Keyless Entry Key-Pad: Service and Repair

KEYLESS ENTRY KEYPAD

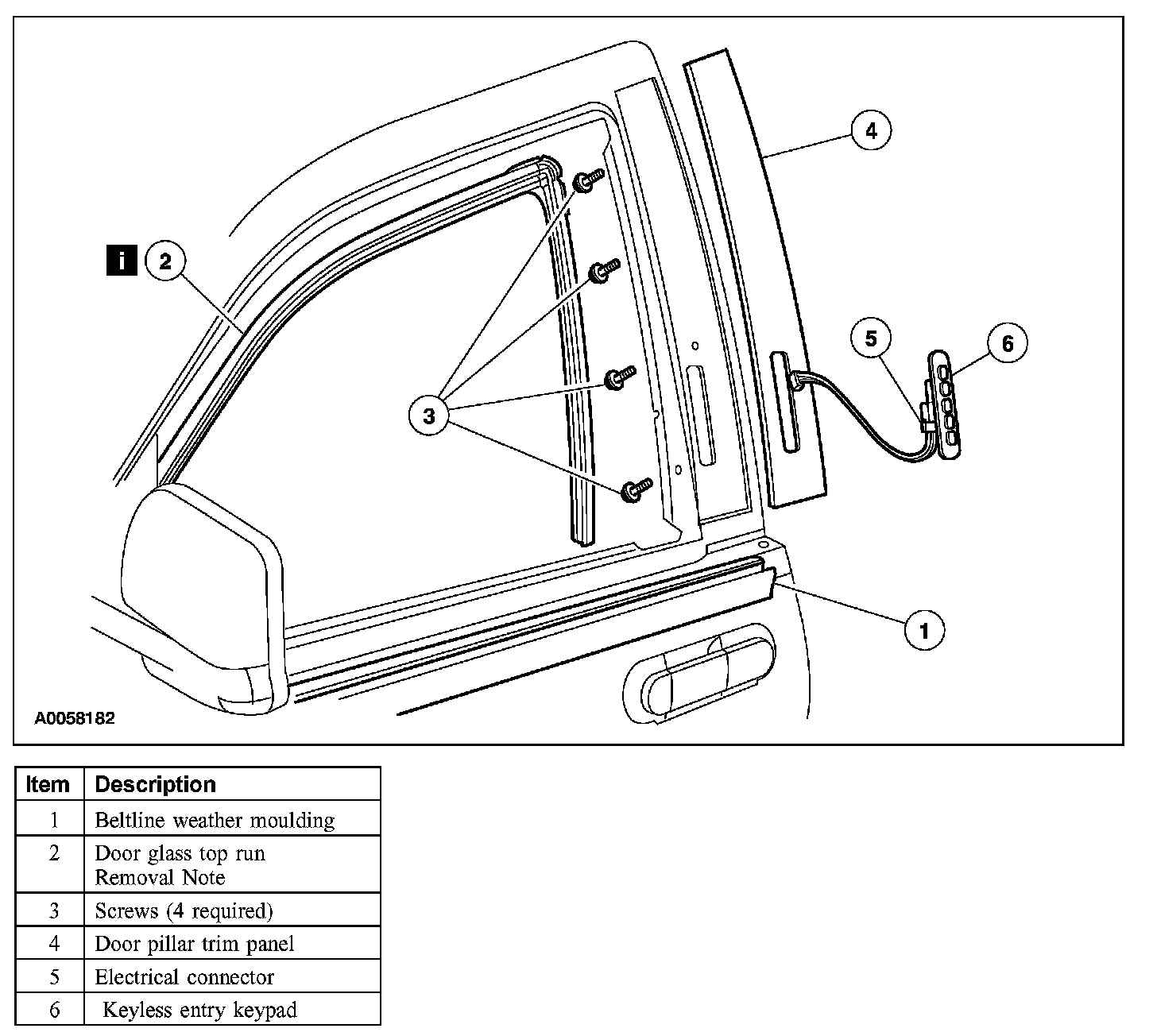

1. Remove the parts in the order indicated in the illustration and table.

Item 2: Door Glass Top Run Removal Note
1. Position the door glass top run aside to access the door pillar trim panel screws.

INSTALLATION
1. To install, reverse the removal procedure.
