Vehicle Security Module C3203d

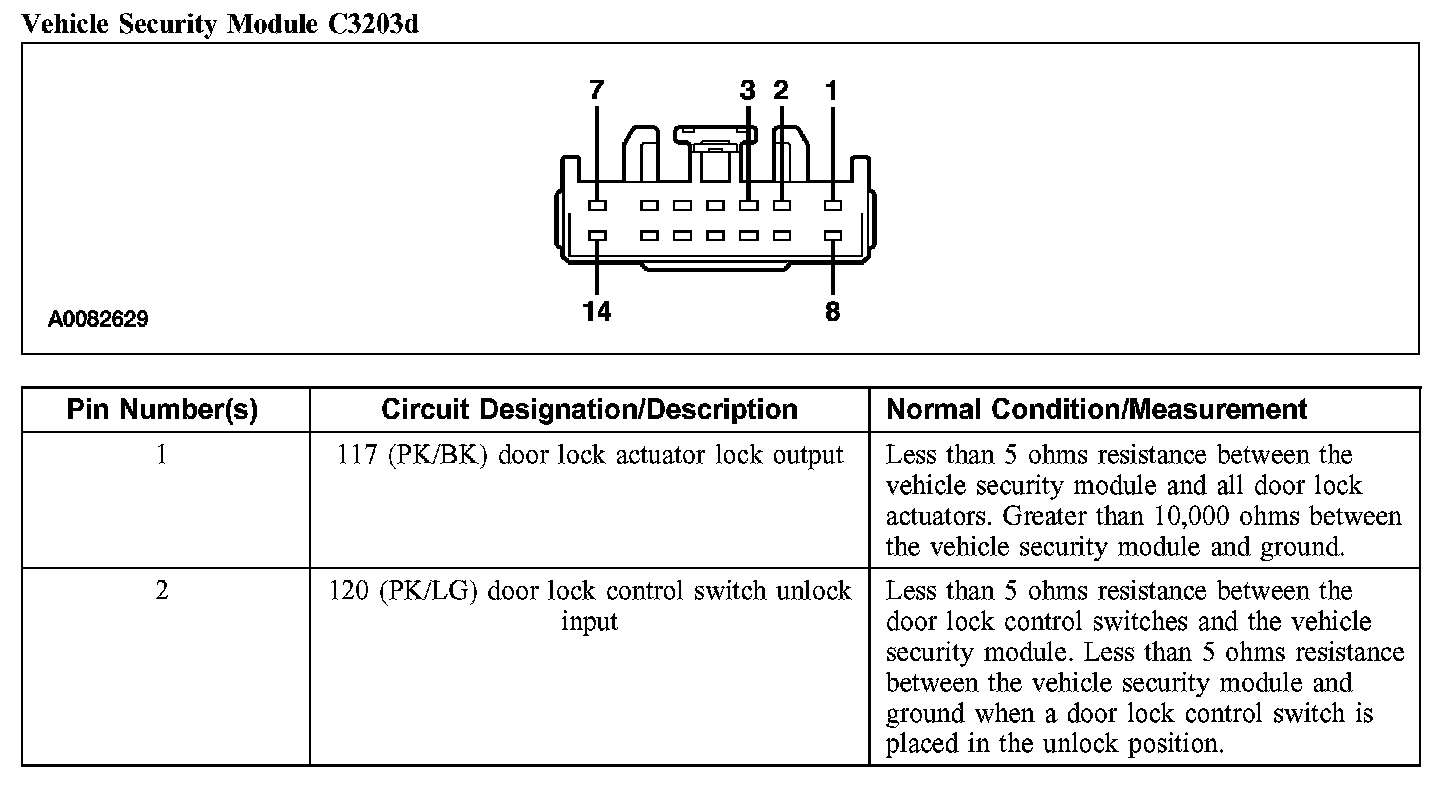

Vehicle Security Module C3203d, Part 1:

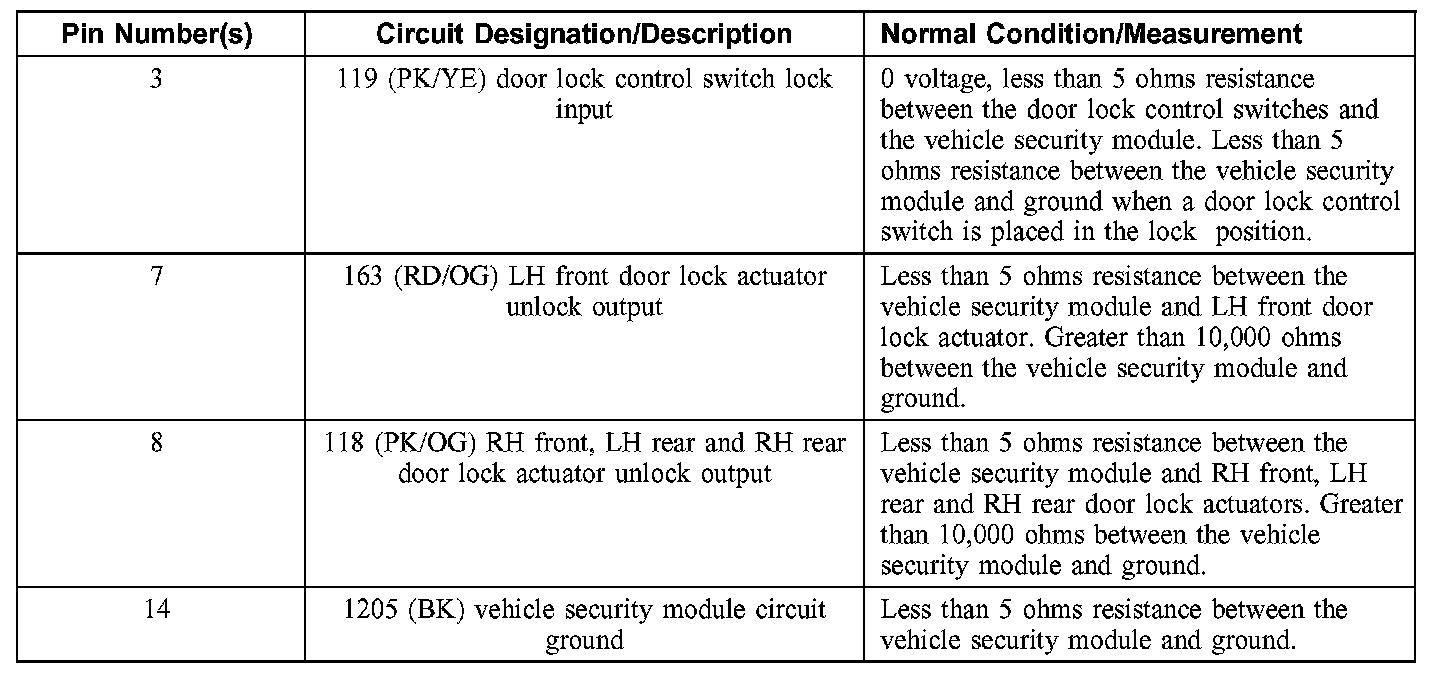

Vehicle Security Module C3203d, Part 2:
