PINPOINT TEST A: THE SPEED CONTROL IS INOPERATIVE

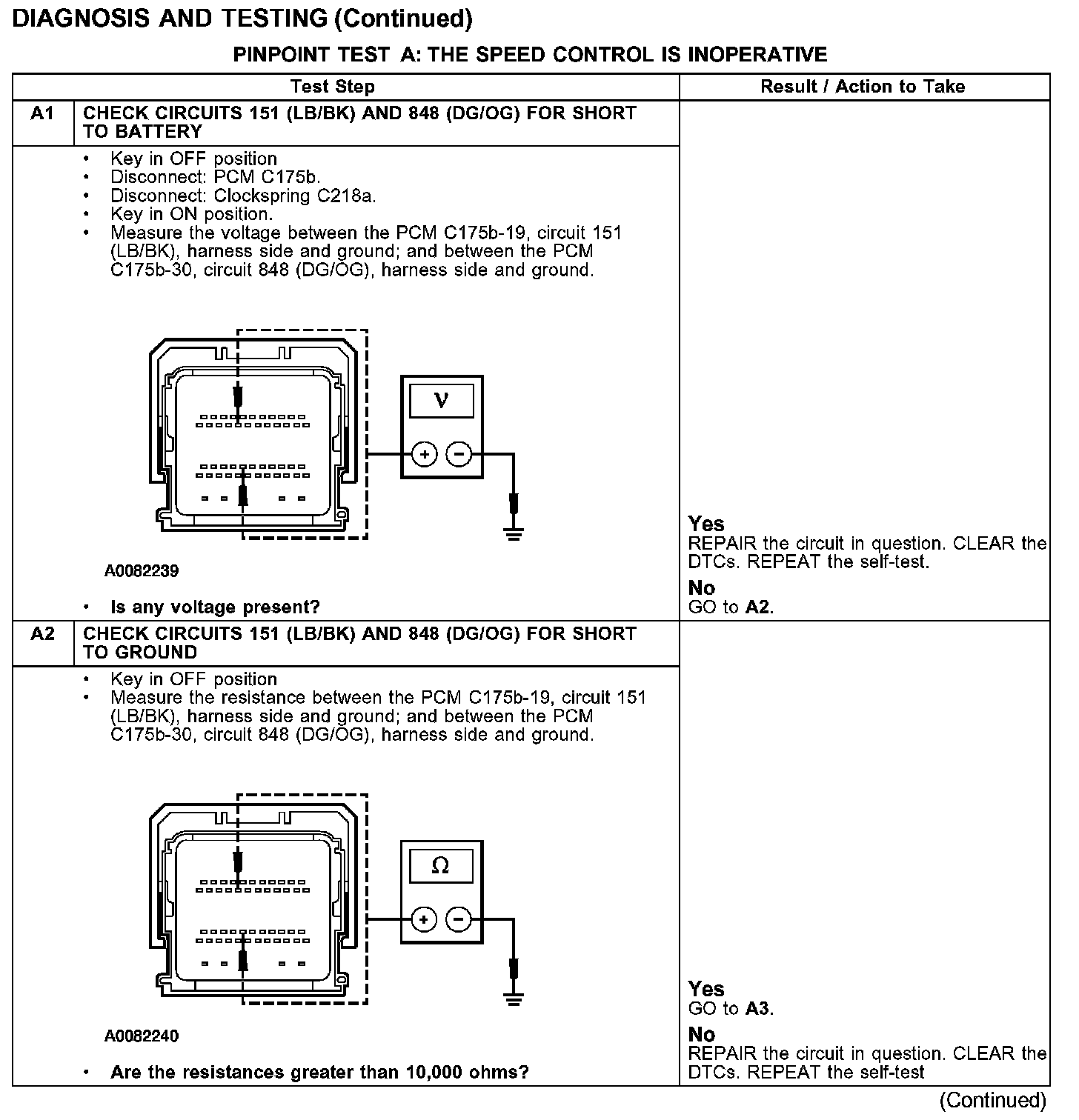

Test A1-A2:

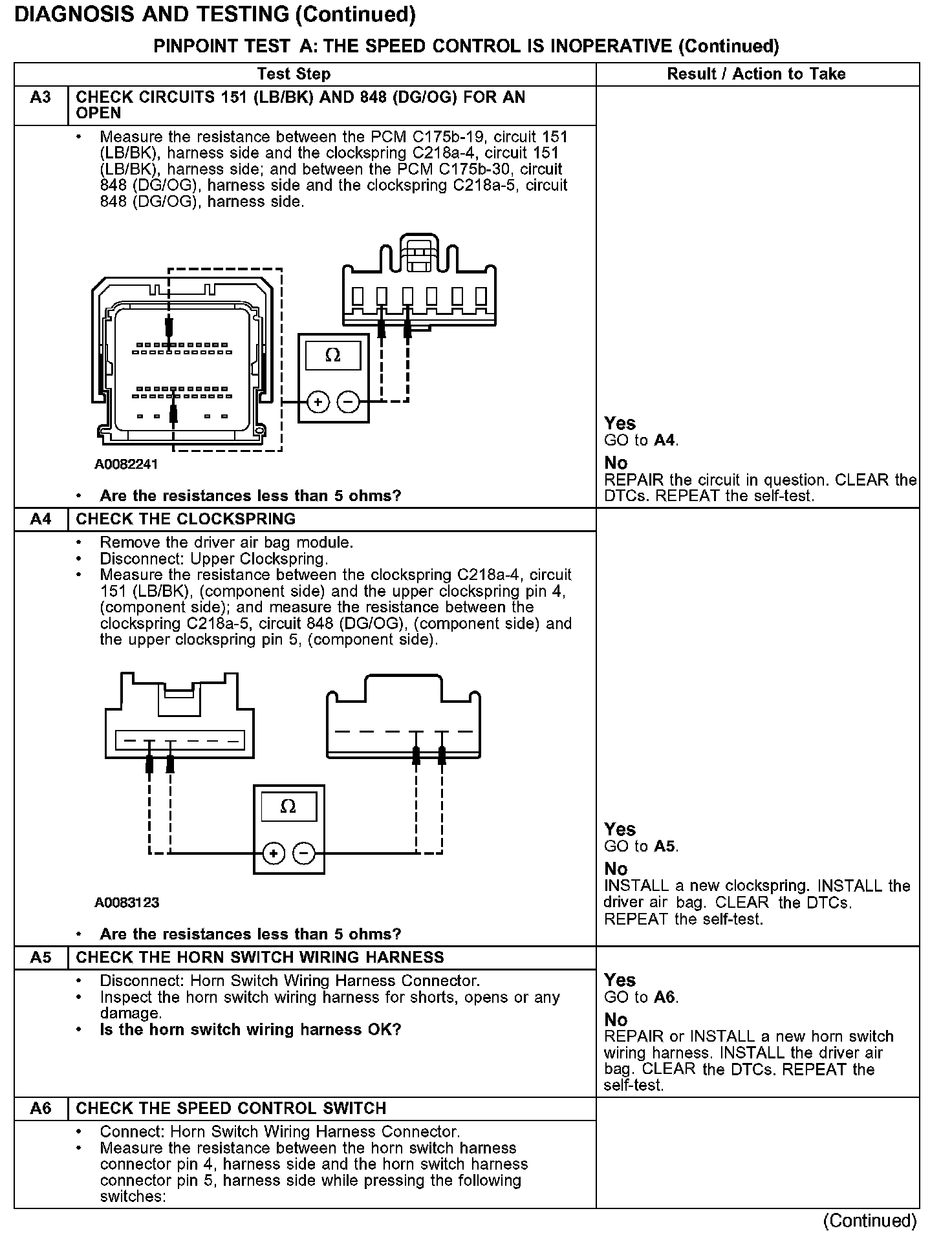

Test A3-A6:

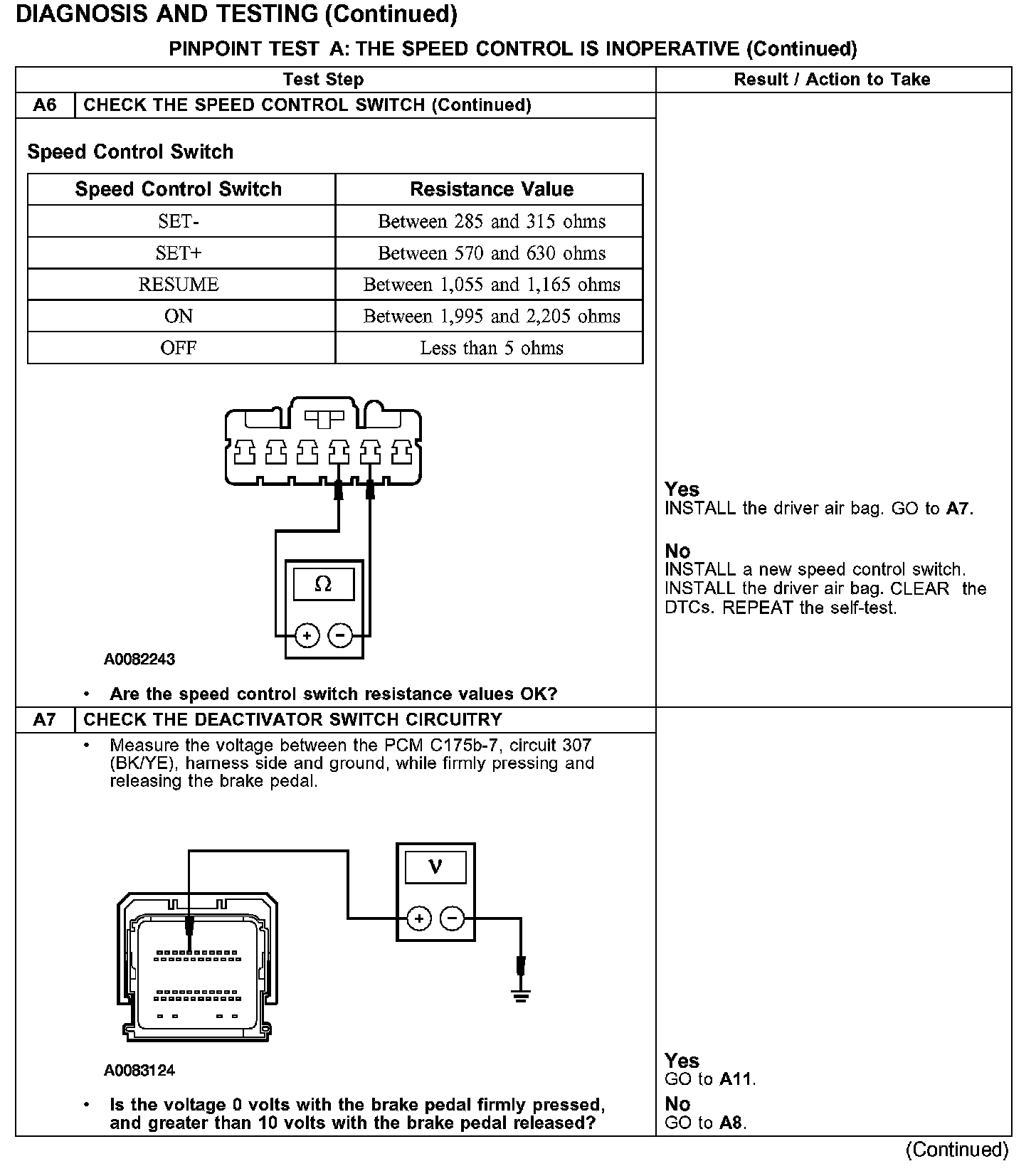

Test A6-A7:

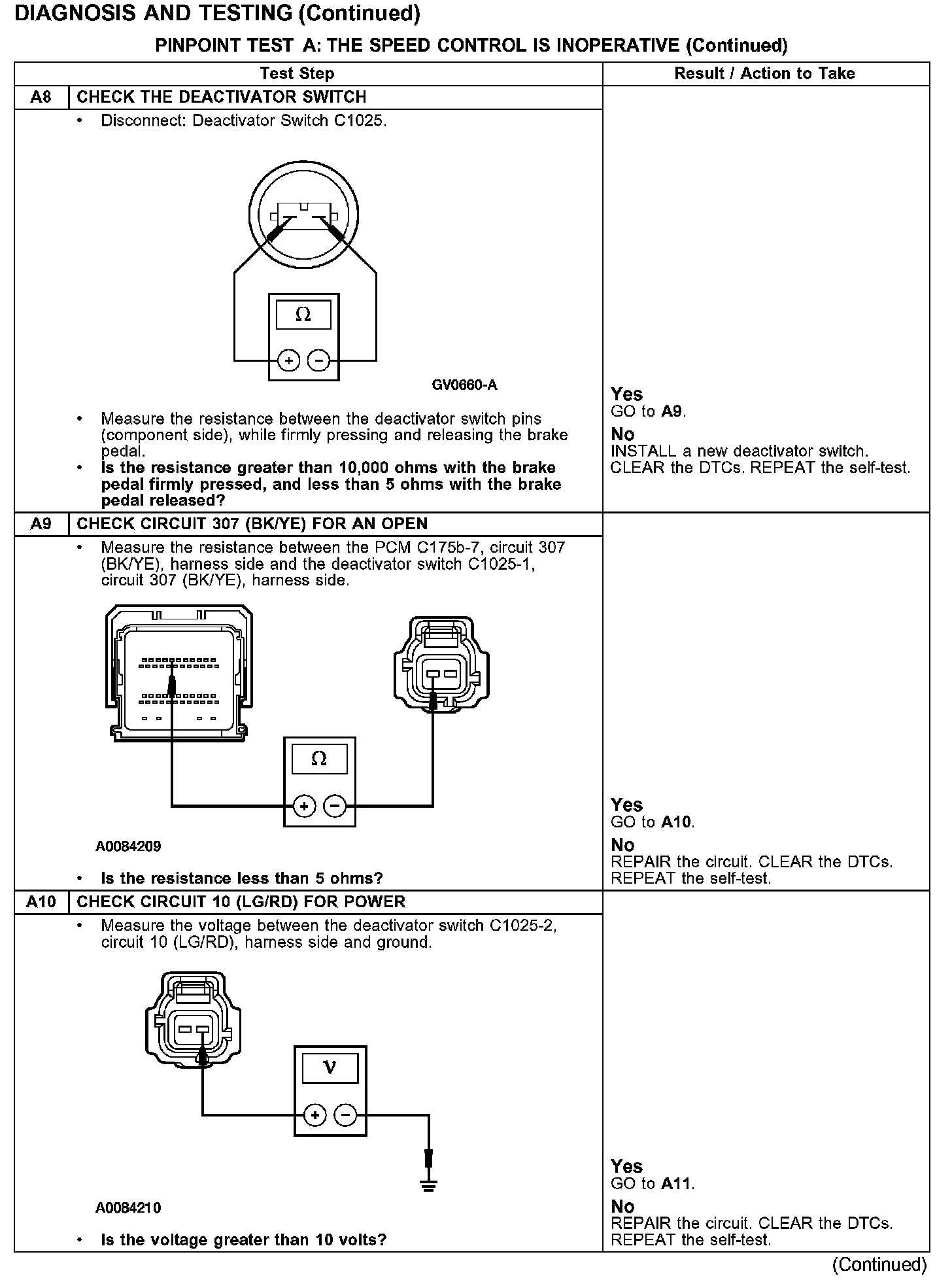

Test A8-A10:

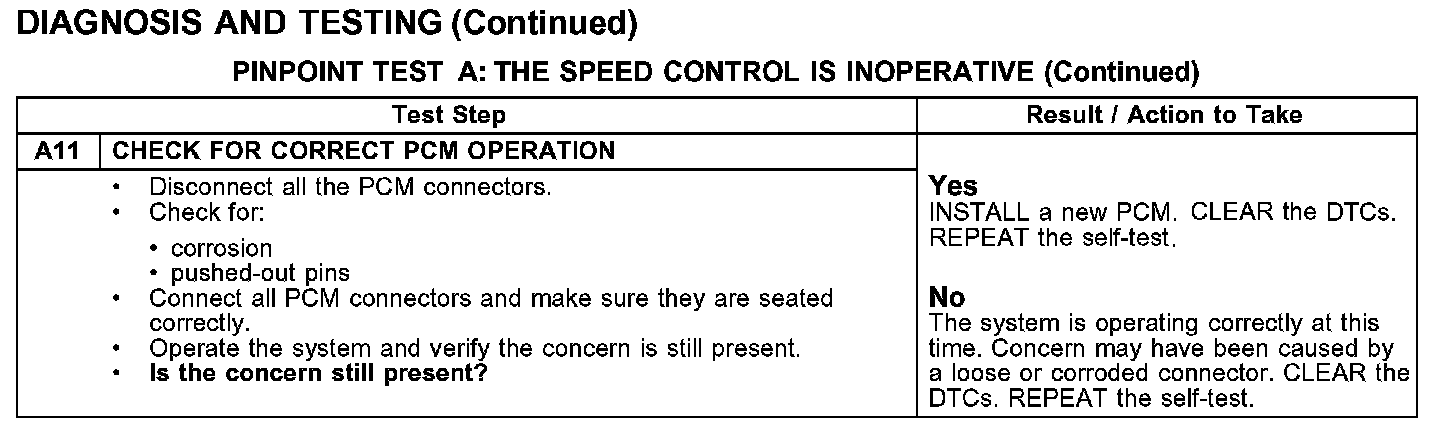

Test A11:

Normal Operation
Under normal operation the powertrain control module (PCM) sends a signal, through circuit 151 (LB/BK) to the speed control switches which passes through the clockspring. The return signal is sent through circuit 848 (DG/OG) and the clockspring.

Possible Causes
- circuit 151 (LB/BK) open, shorted to power or shorted to ground
- circuit 848 (DG/OG) open, shorted to power or shorted to ground
- clockspring
- PCM
- speed control switch
