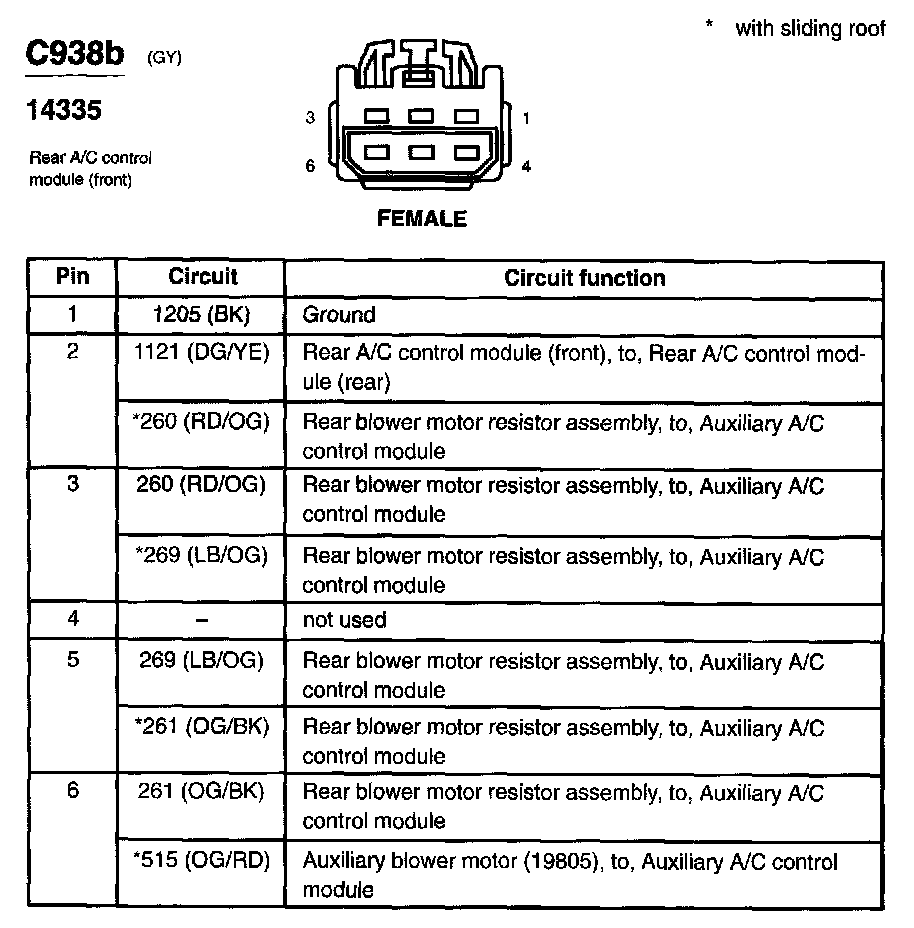

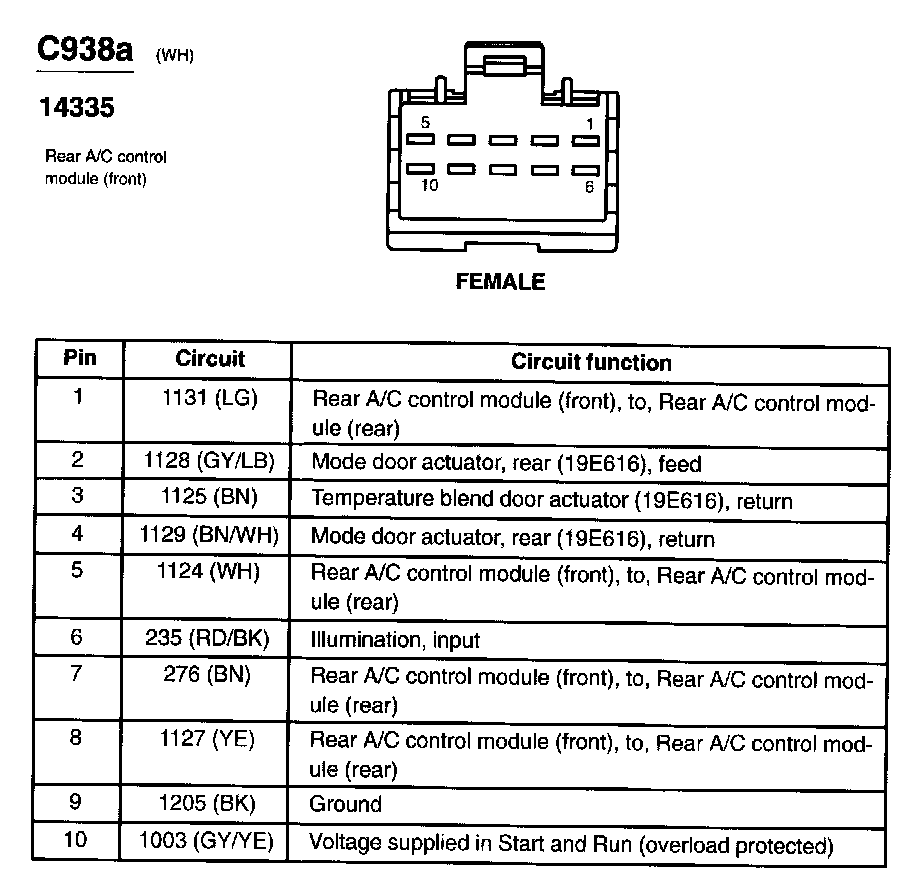

Home >> Ford >> 2004 >> Explorer 4WD V6-4.0L VIN E >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Rear A/C Control Module >> Front
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Front
