Coolant Temperature Sensor/Switch (For Computer): Service and Repair

ENGINE COOLANT TEMPERATURE (ECT) SENSOR

REMOVAL
1. Disconnect the battery ground cable.
2. Drain the cooling system.

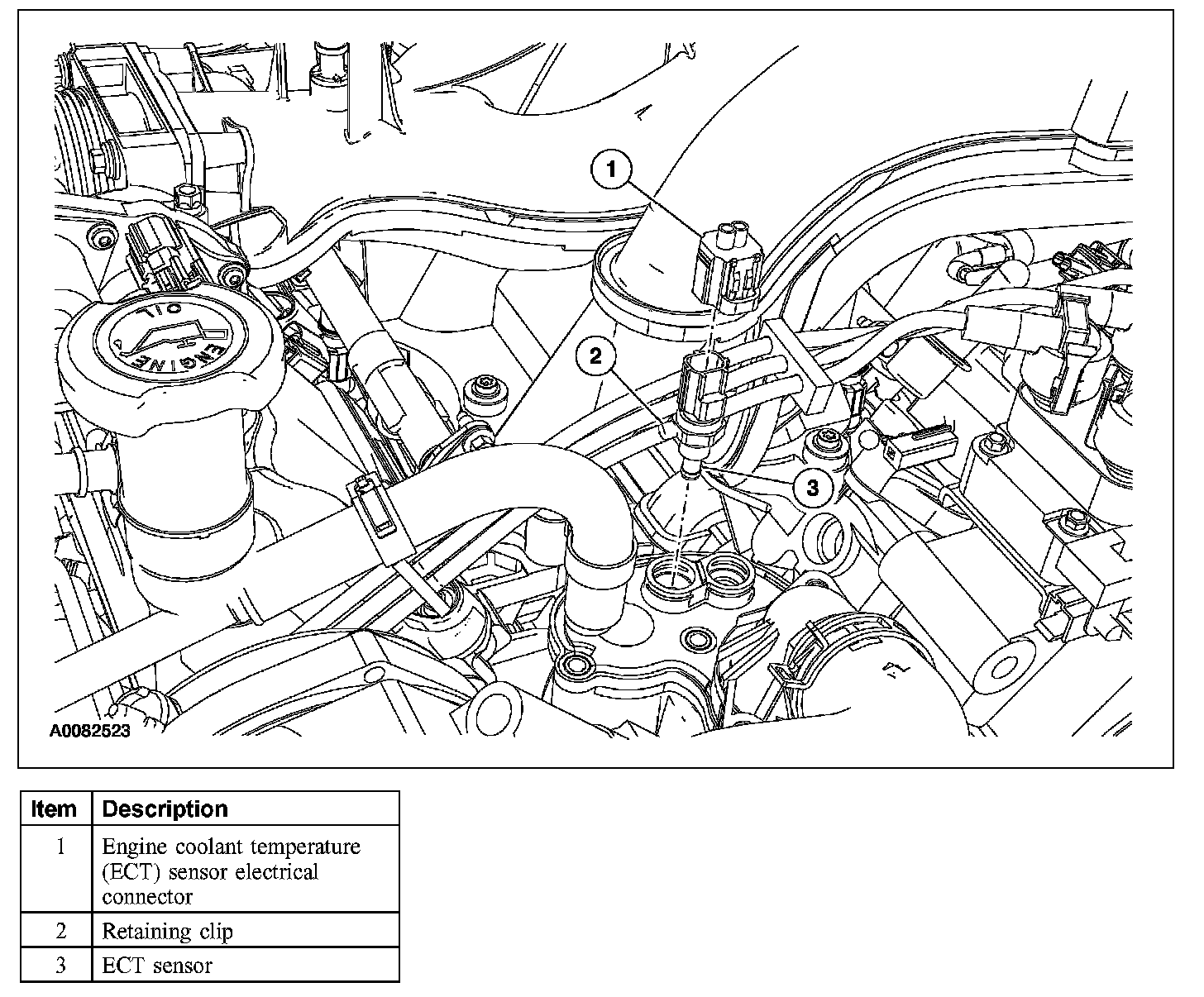

3. Remove the parts in the order indicated in the illustration and table.

INSTALLATION
1. To install, reverse the removal procedure.
2. Fill and bleed the cooling system.
