Pinpoint Tests

PINPOINT TEST A: NO COMMUNICATION WITH THE GENERIC ELECTRONIC MODULE (GEM)

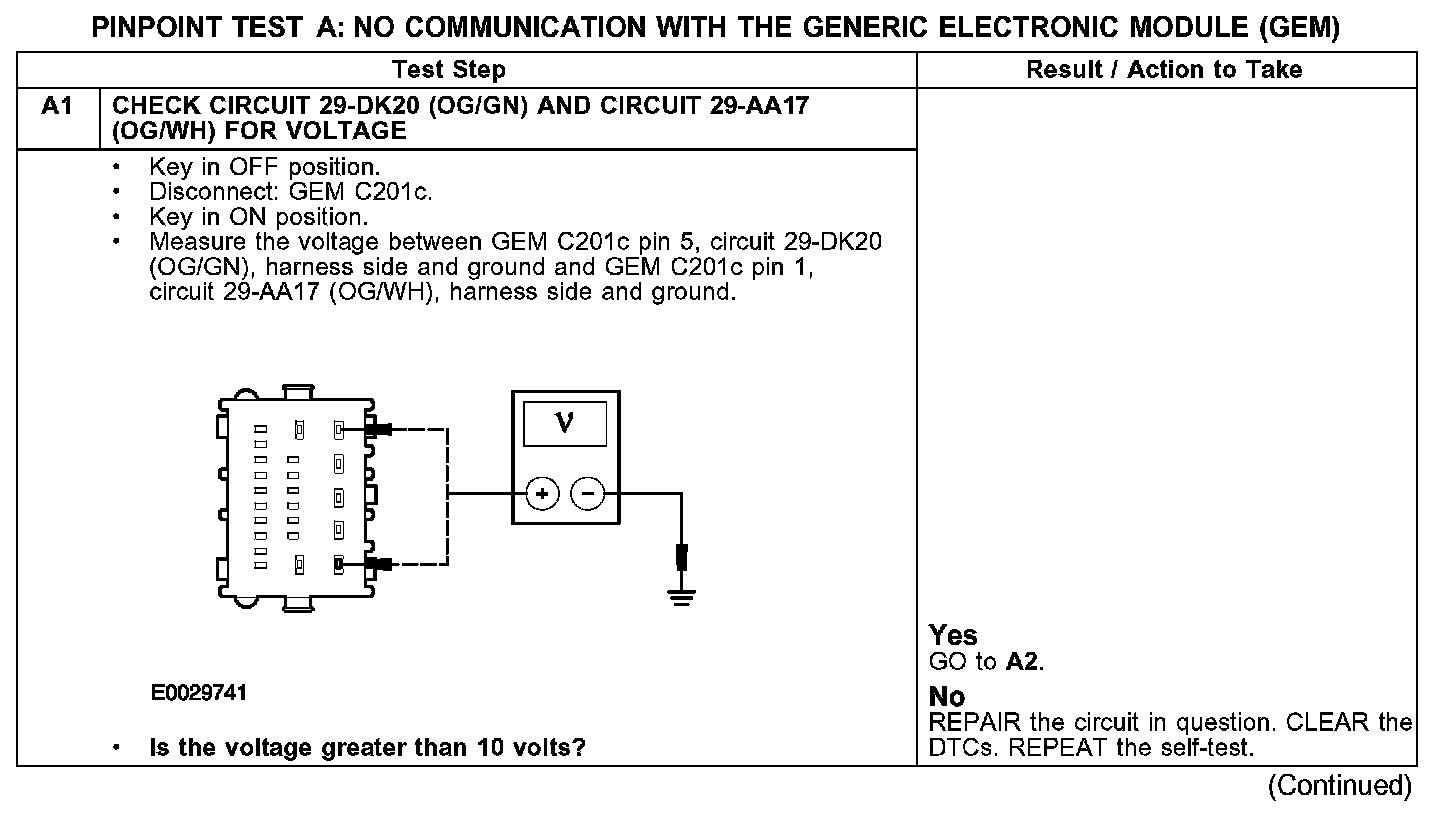

Test A1:

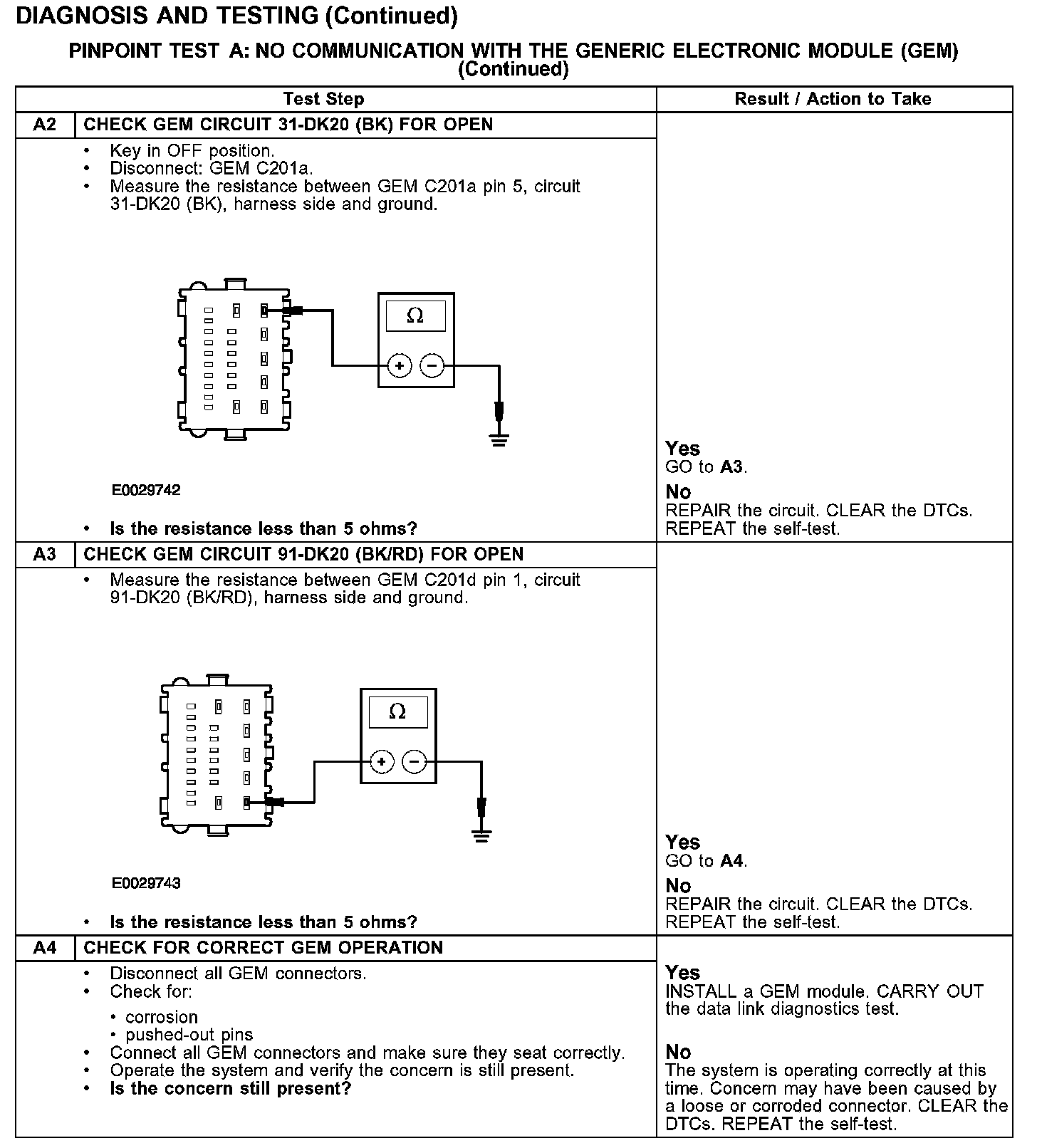

Test A2-A4:
