Traction Control Module DTC Index

Traction Control Module DTC Index

NOTE: The need to re-calibrate the traction control module is indicated by the active/fall lamp flashing. There are other service actions that may be required when there is no flashing lamp. The lamp will flash after clearing DTCs that are indicated on the traction control calibration list.

NOTE: Any time an anti-lock brake sensor is removed, thoroughly clean the mounting surfaces and apply High Temperature 4x4 Front Axle and Wheel Bearing Grease E8TZ-19590-A or equivalent meeting Ford specification ESA-M1C198-A.

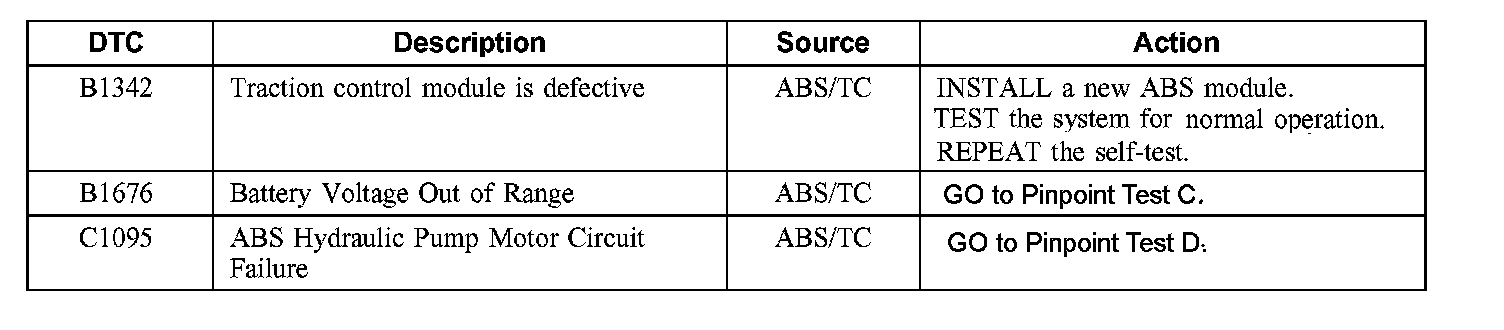

Part 1 Of 2:

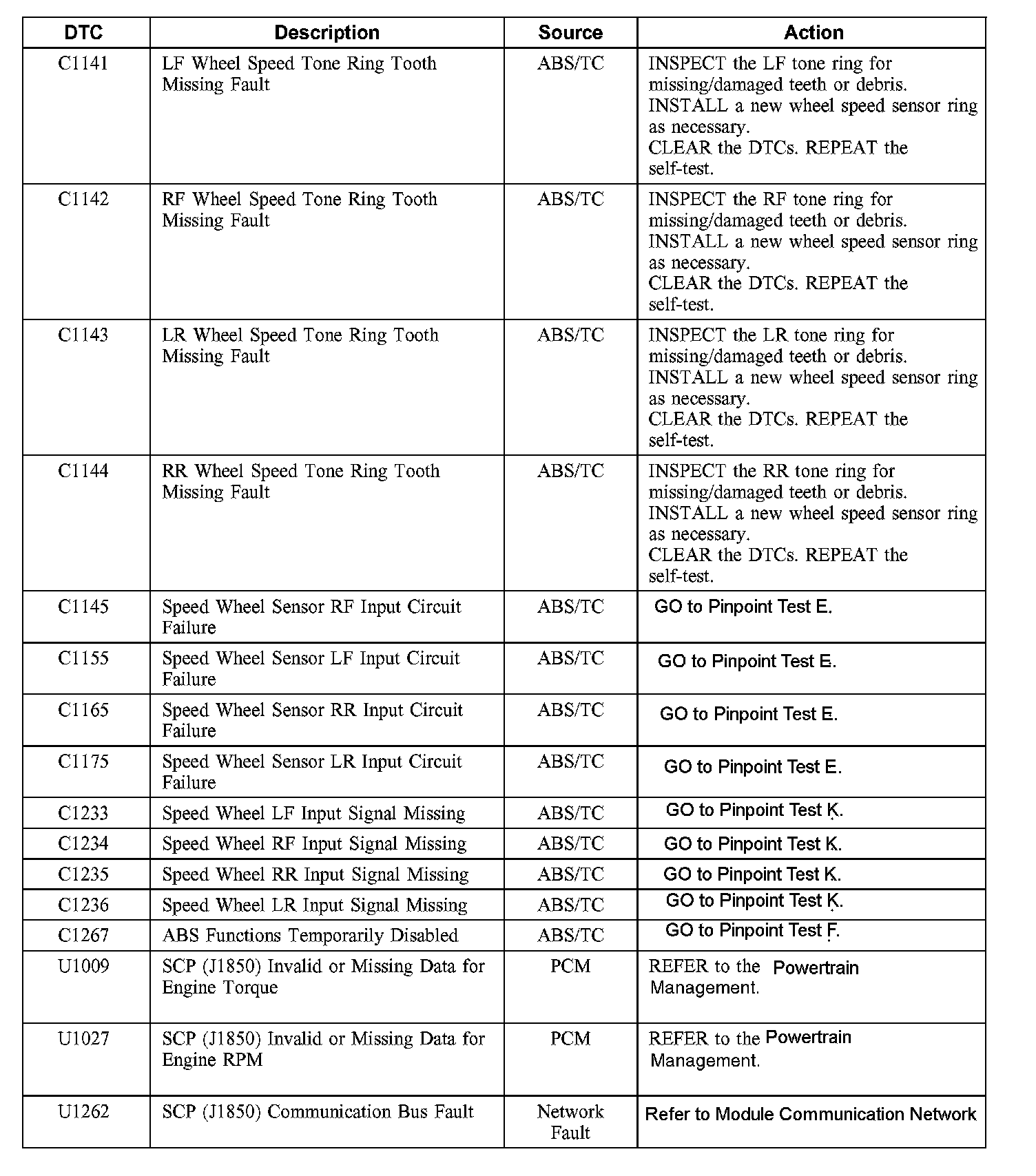

Part 2 Of 2:
