Home >> Ford >> 2004 >> Focus L4-2.3L VIN Z >> Repair and Diagnosis >> Diagrams >> Components >> Component Location Views >> View 151-32
April 5, 2026: LEMON Manuals is launched! Read the announcement.

View 151-32

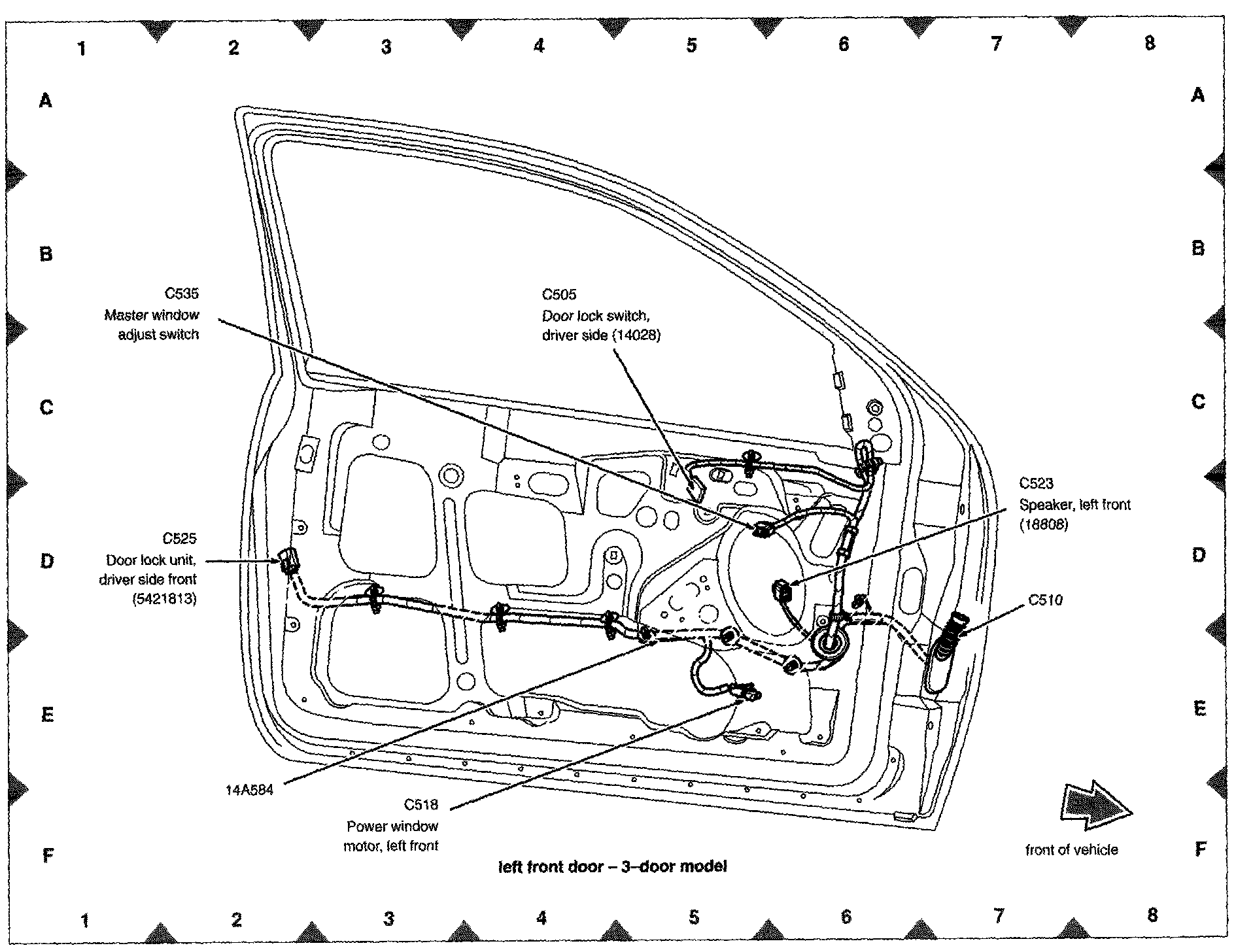

View 151-32:

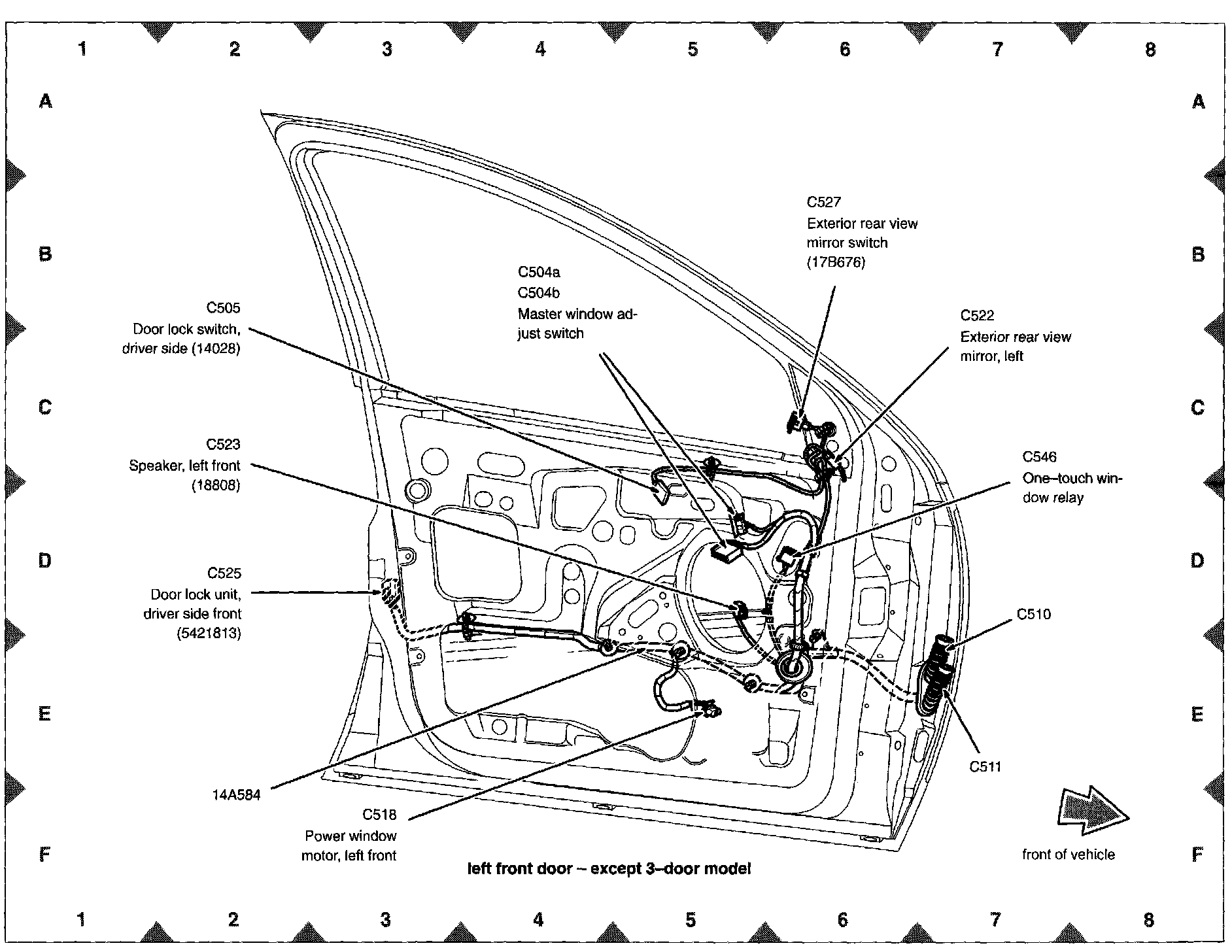

View 151-34:
