Test A



PINPOINT TEST A: THE HEATER BLOWER MOTOR IS INOPERATIVE/DOES NOT OPERATE CORRECTLY

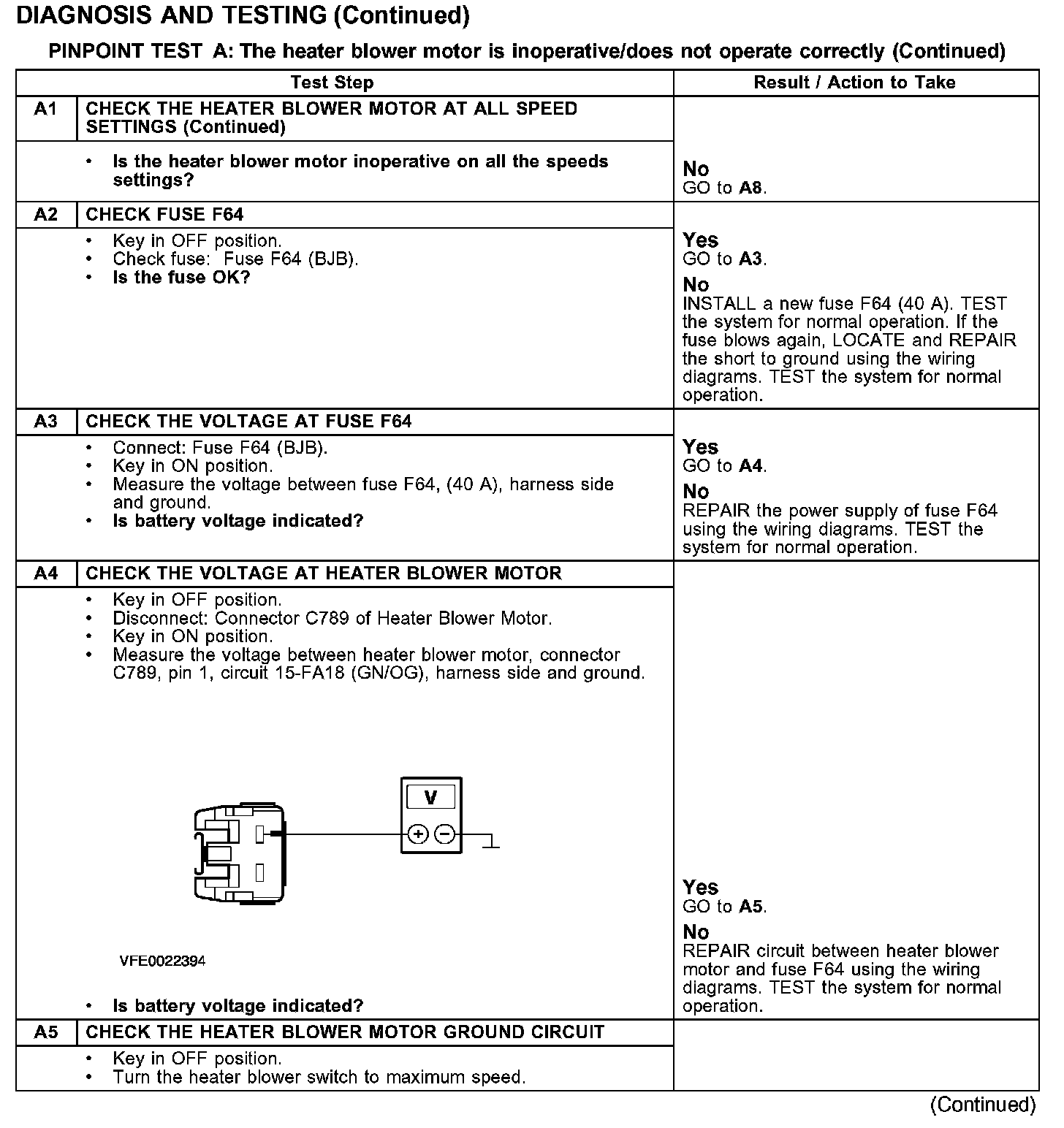

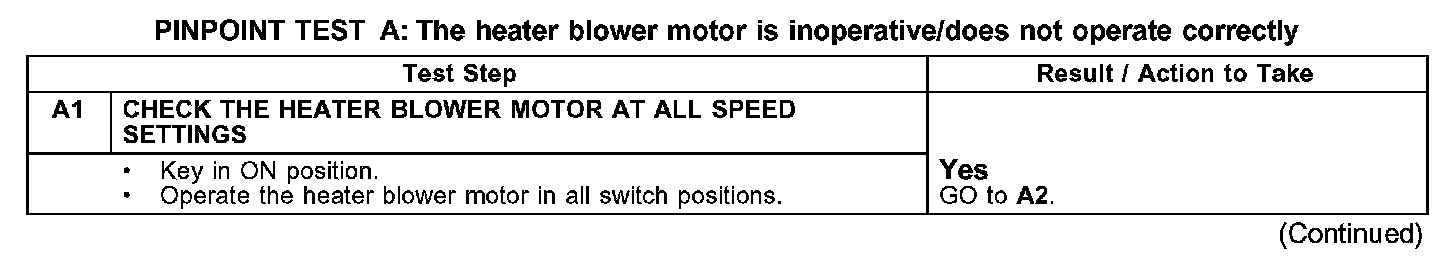

Test A1:






Test A1-A5:

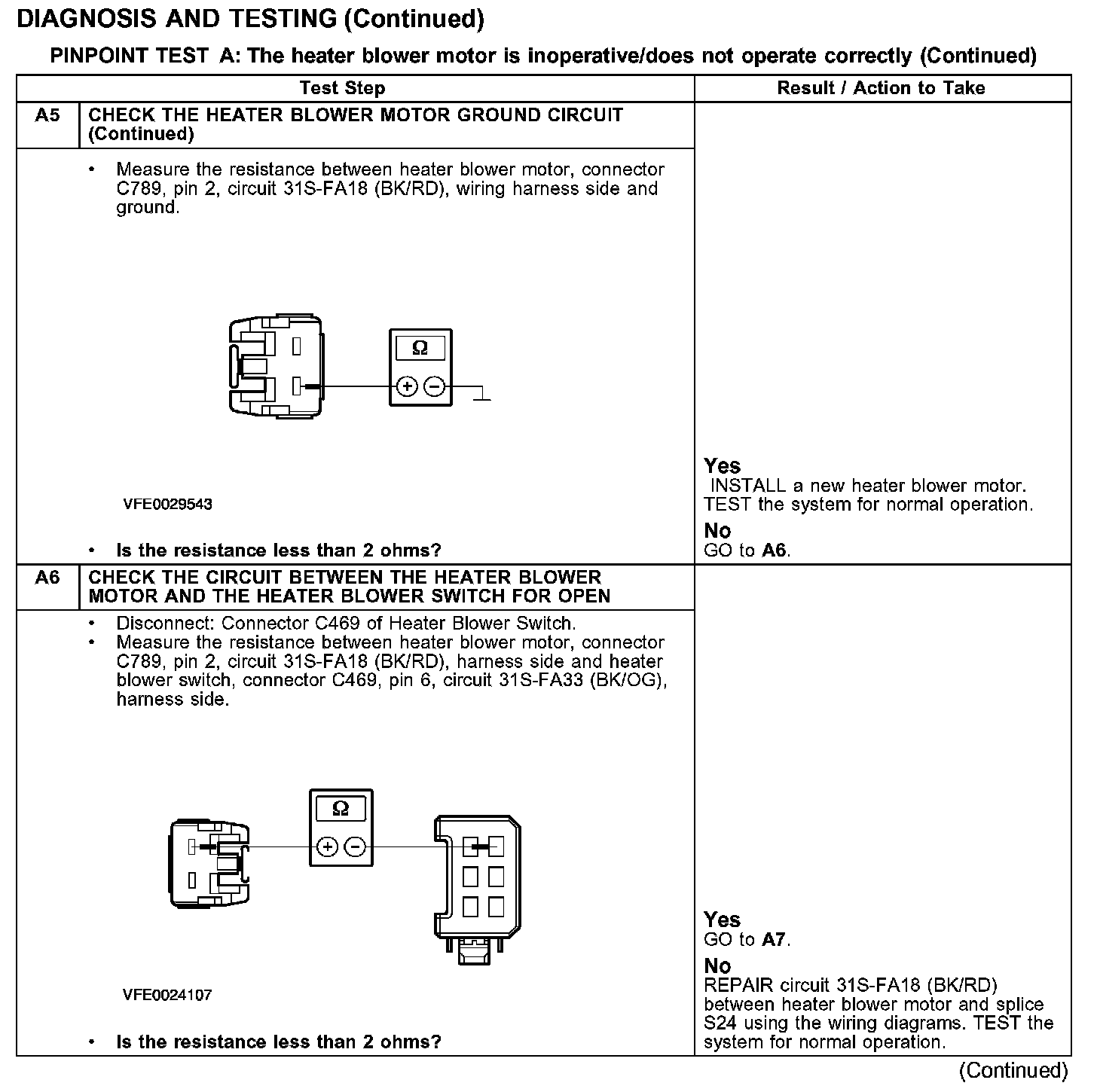

Test A5-A6:

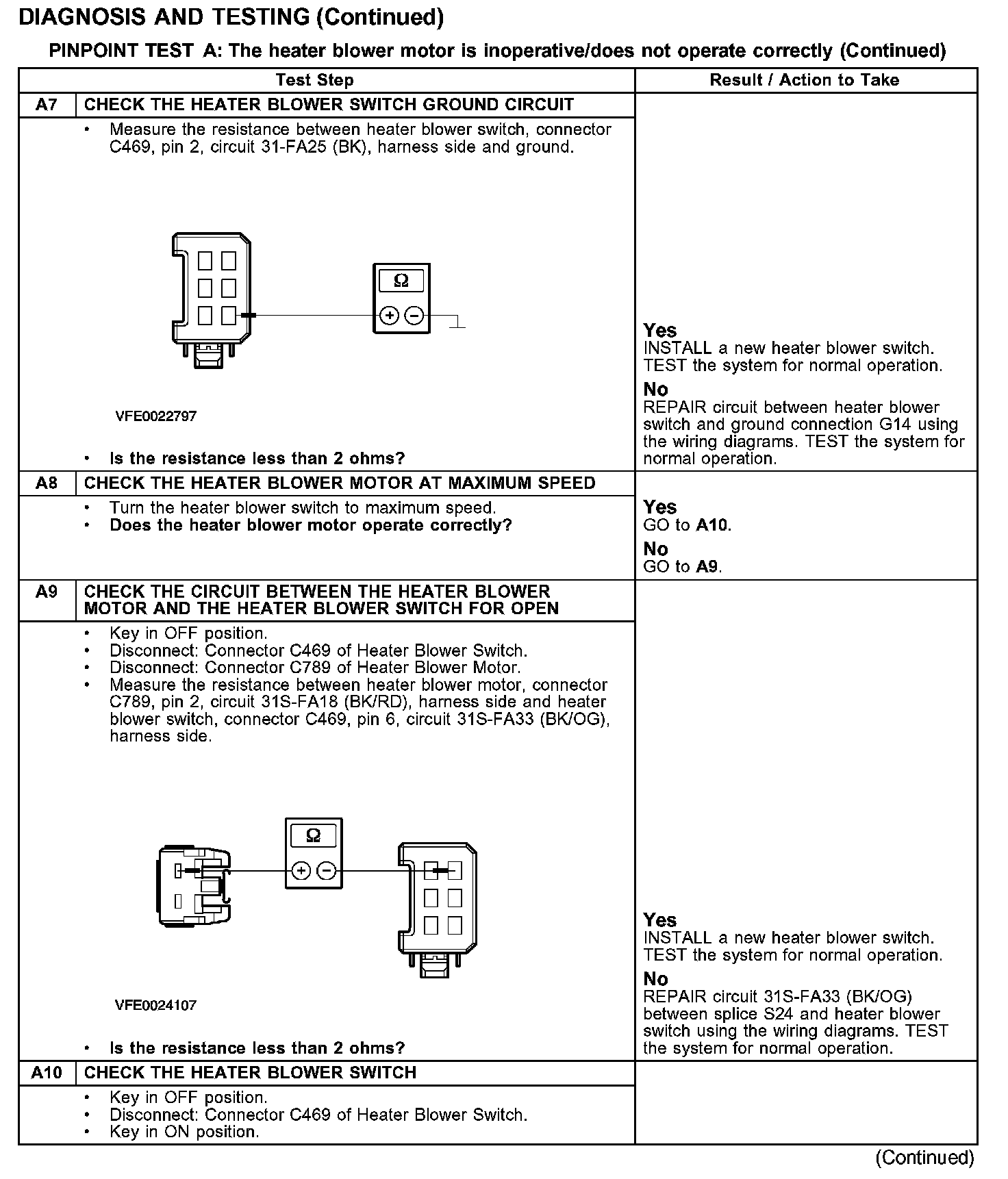

Test A7-A10:

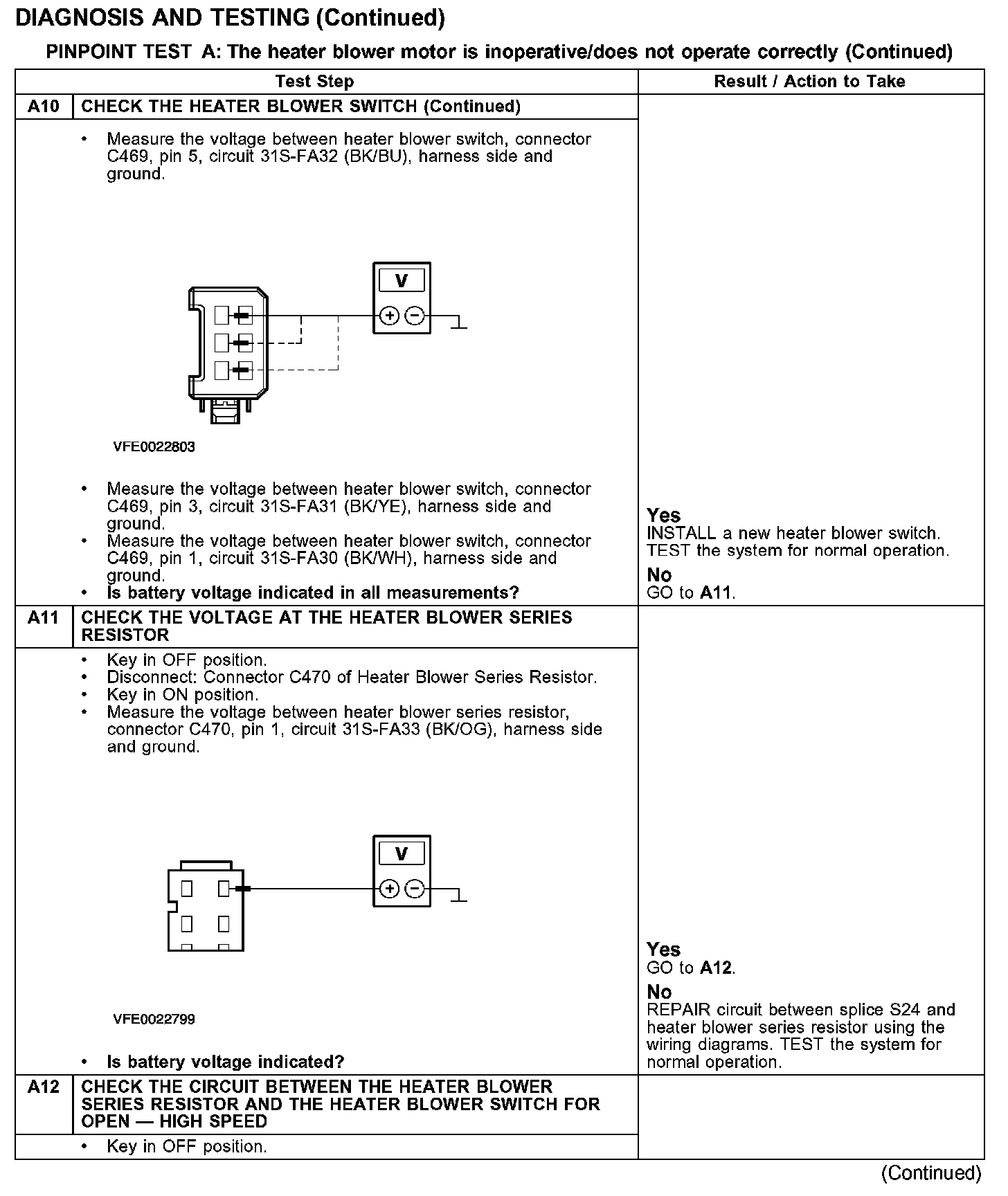

Test A10-A12:

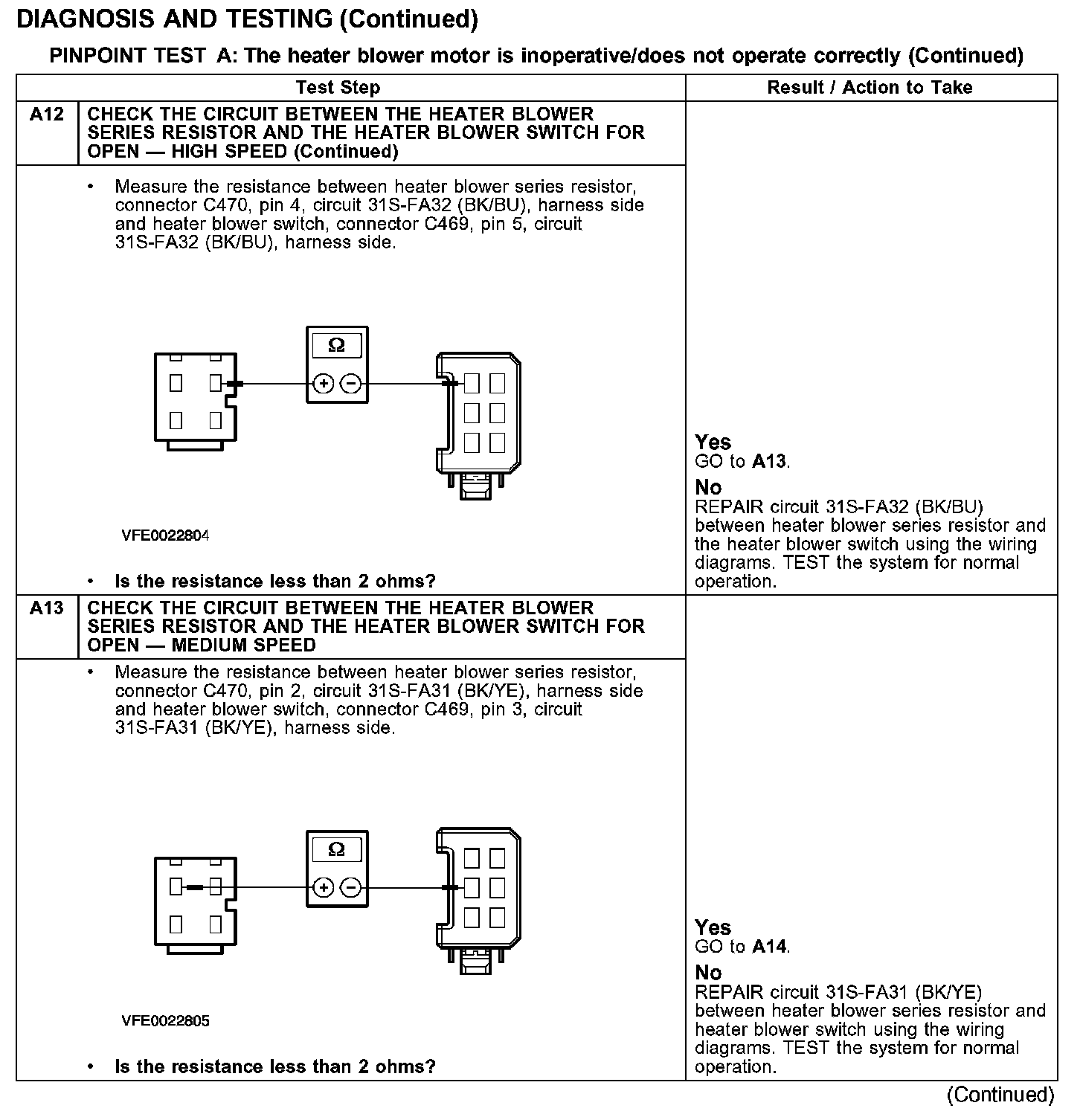

Test A12-A13:

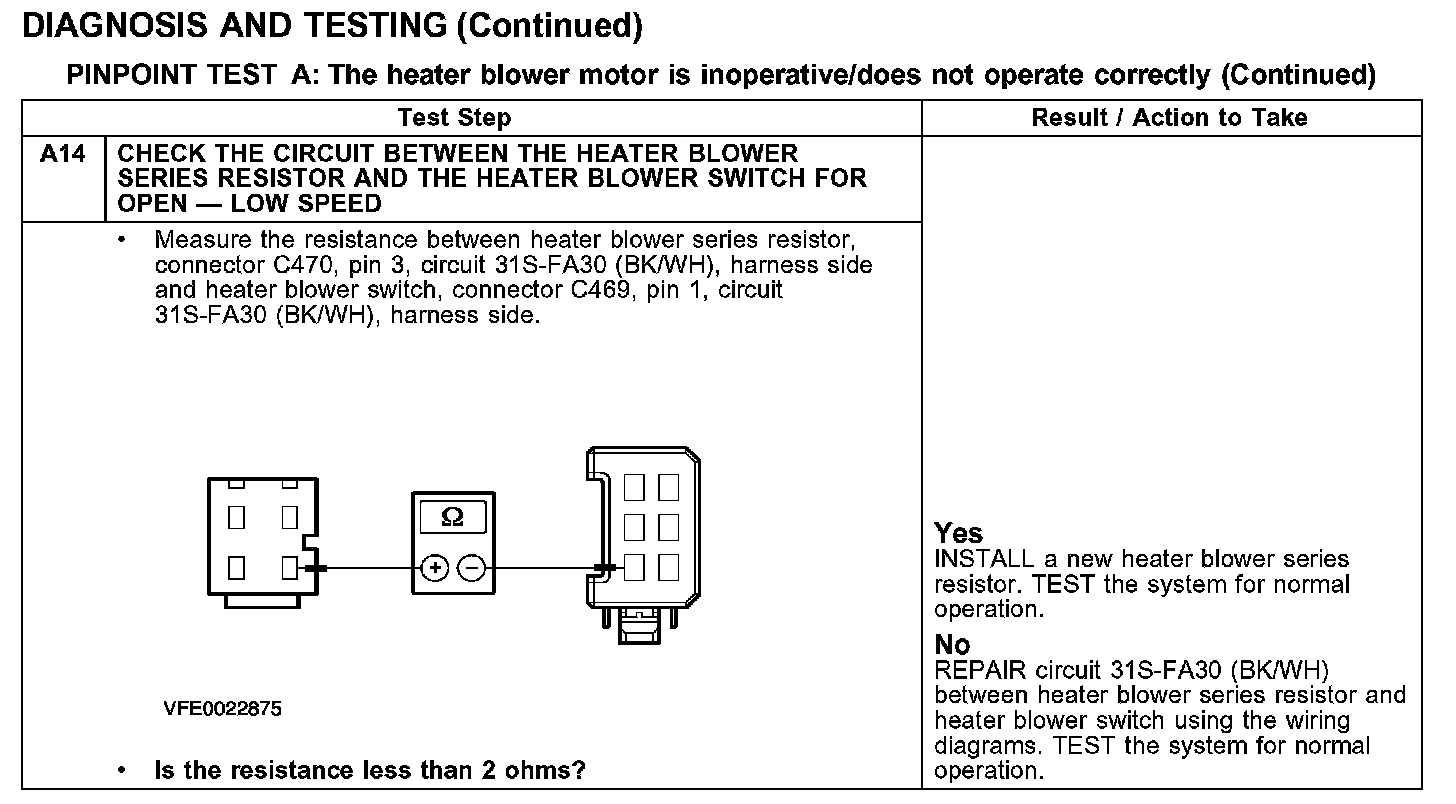

Test A14:
