Tests DK: Accelerator Pedal Position Sensor





DK: ACCELERATOR PEDAL POSITION SENSOR

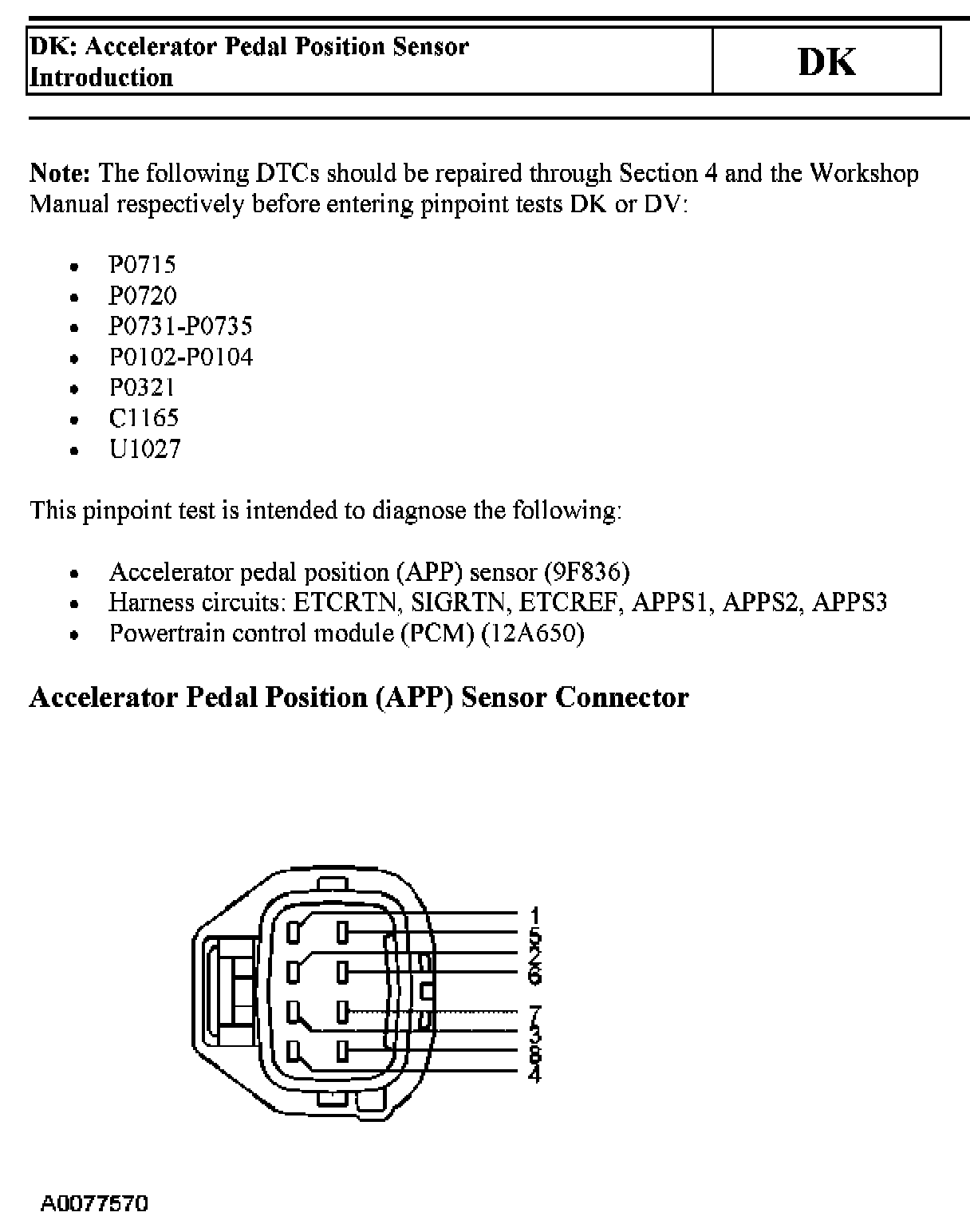

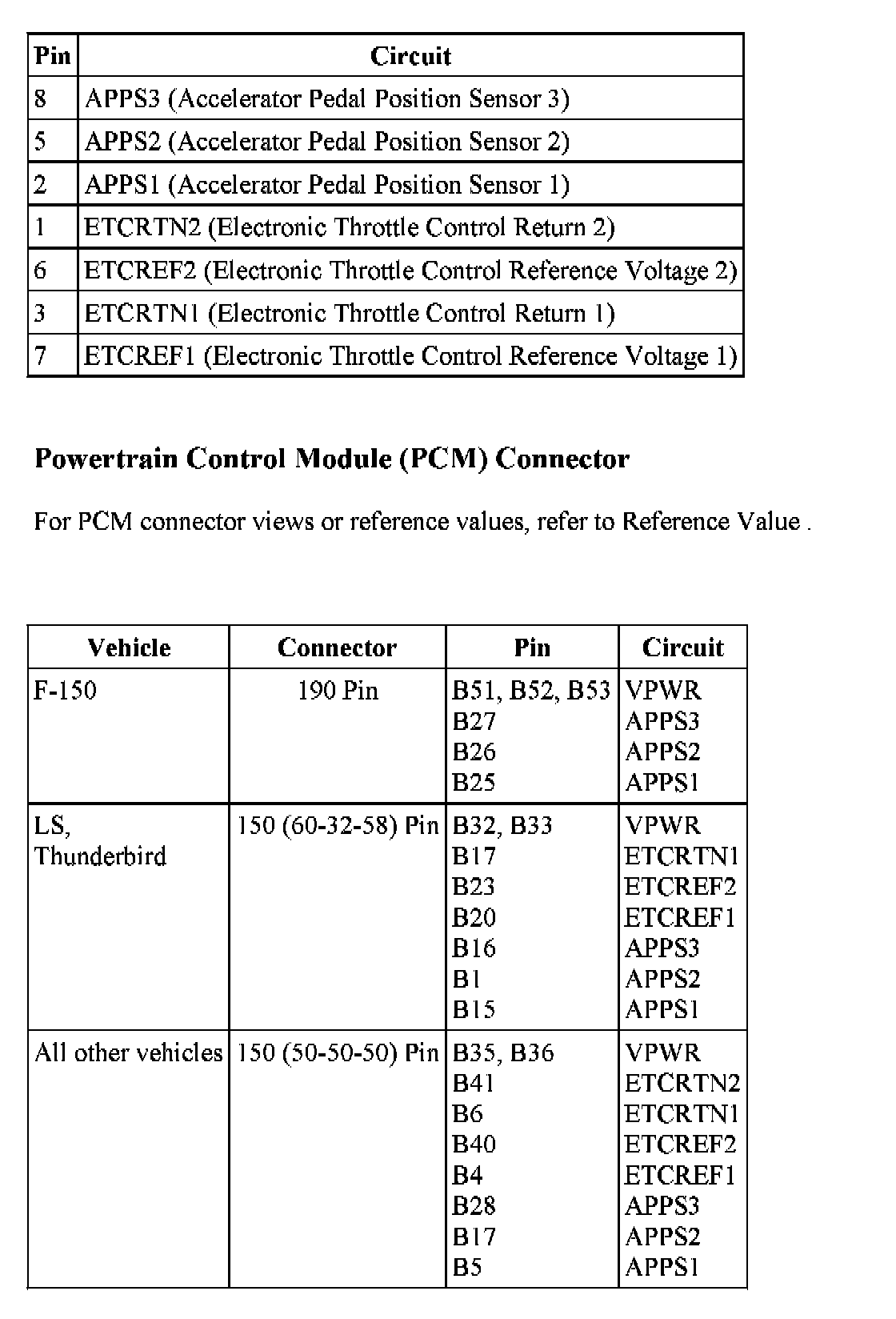

DK Introduction 1 Of 2:





DK Introduction 2 Of 2:

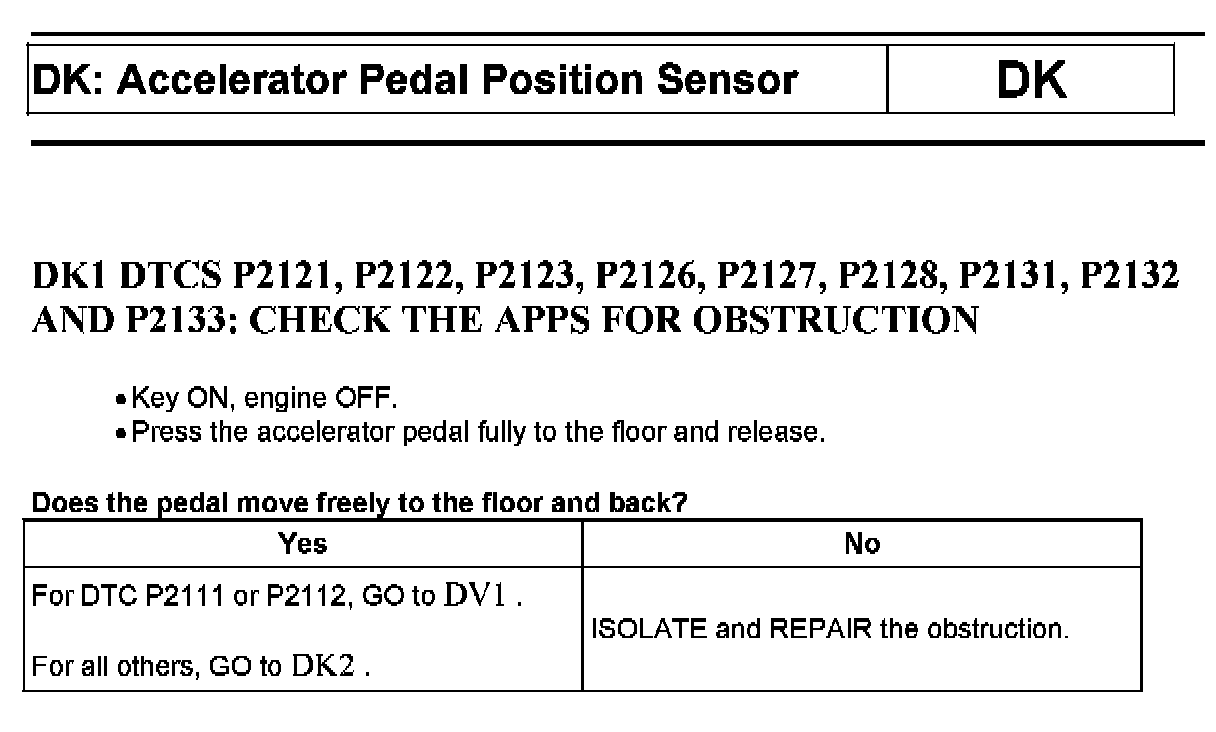

DK1:

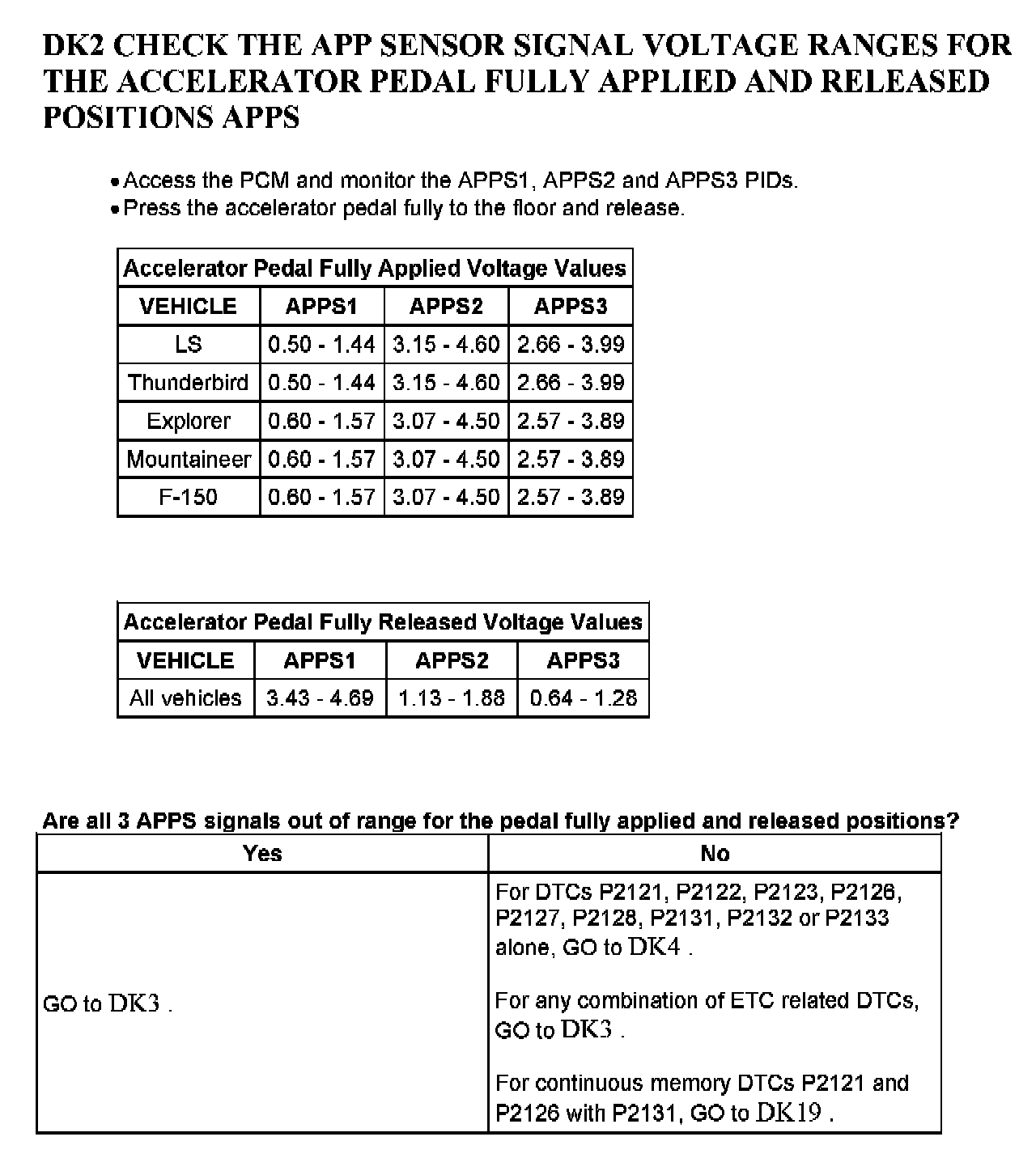

DK2:

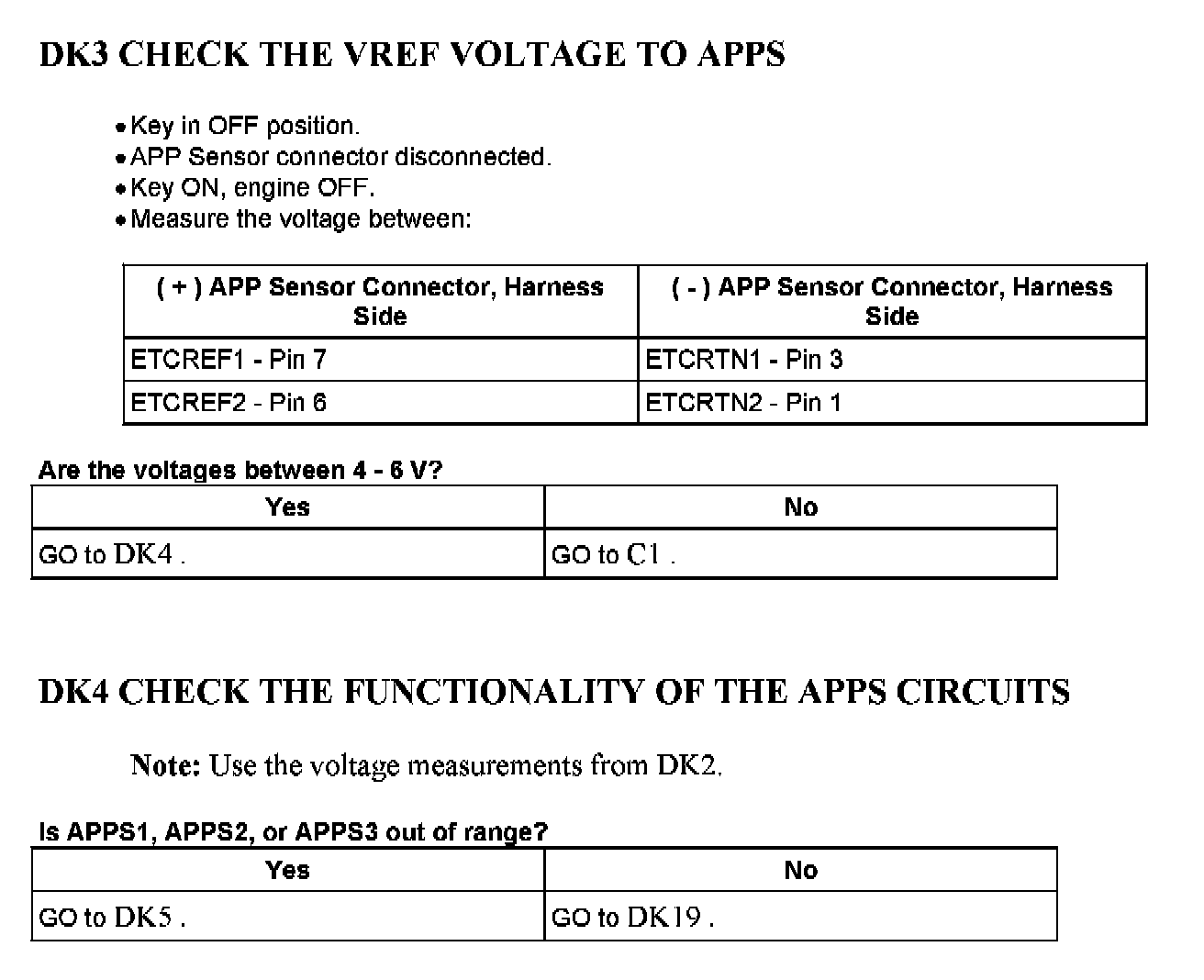

DK3 - DK4:

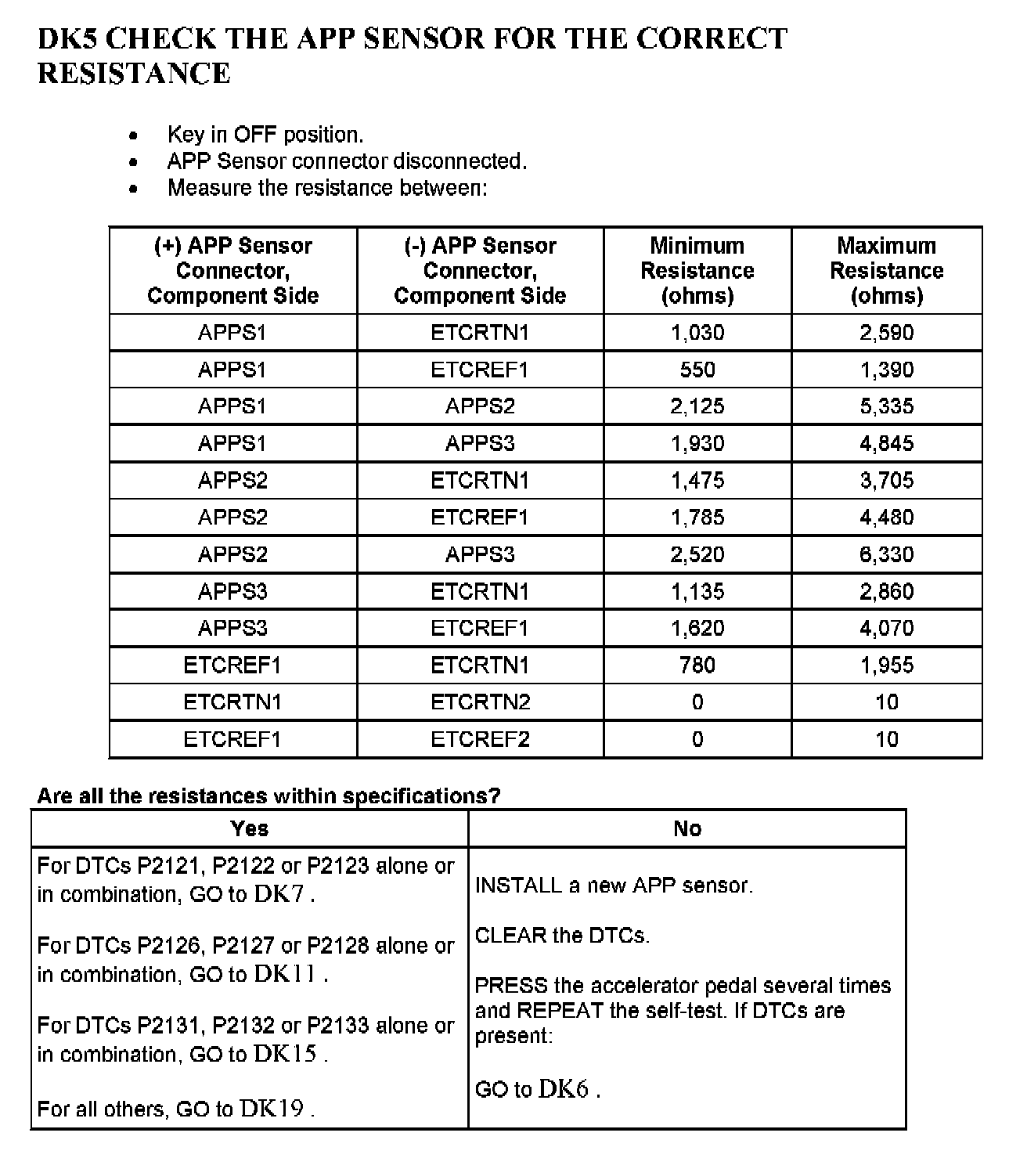

DK5:

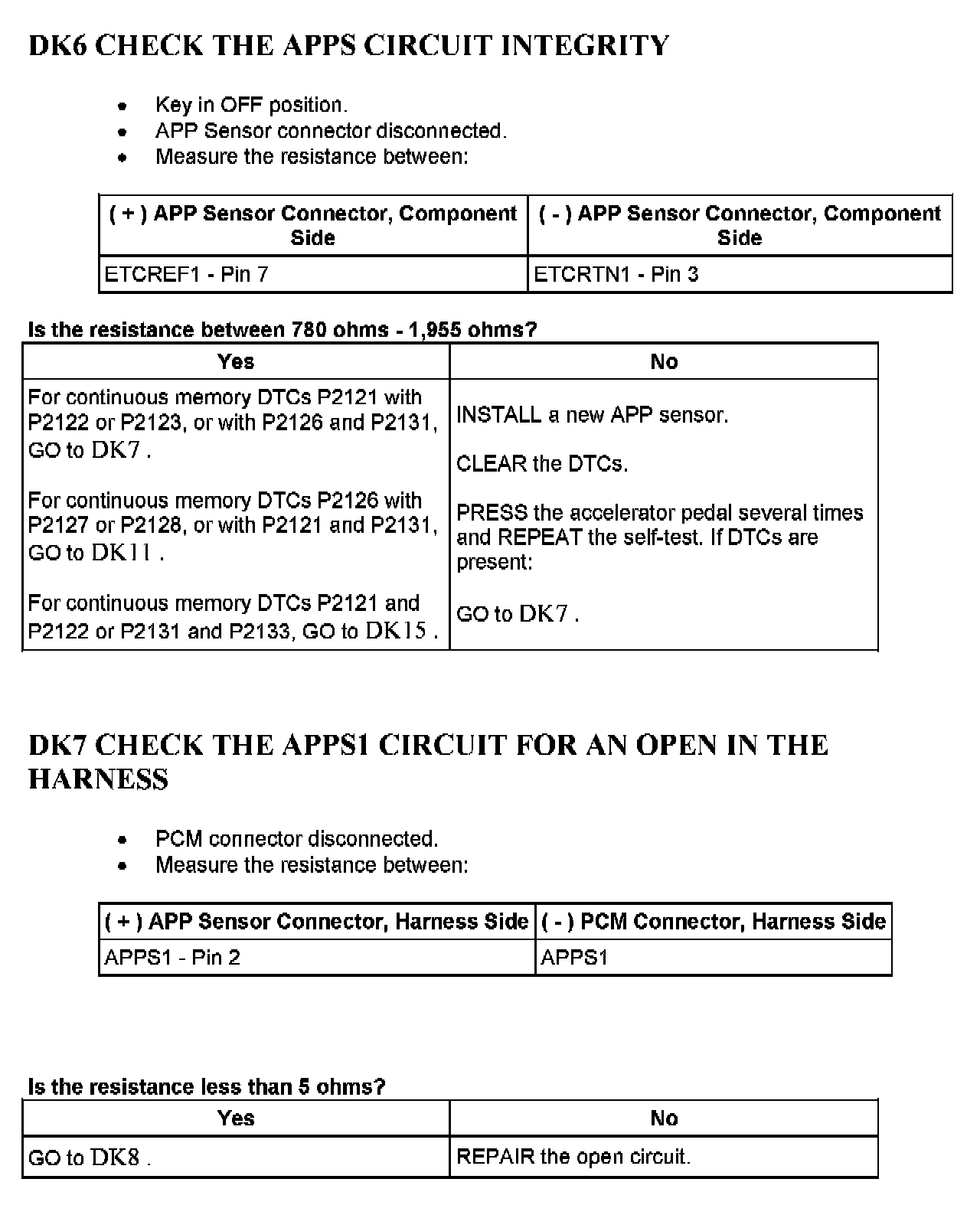

DK6 - DK7:

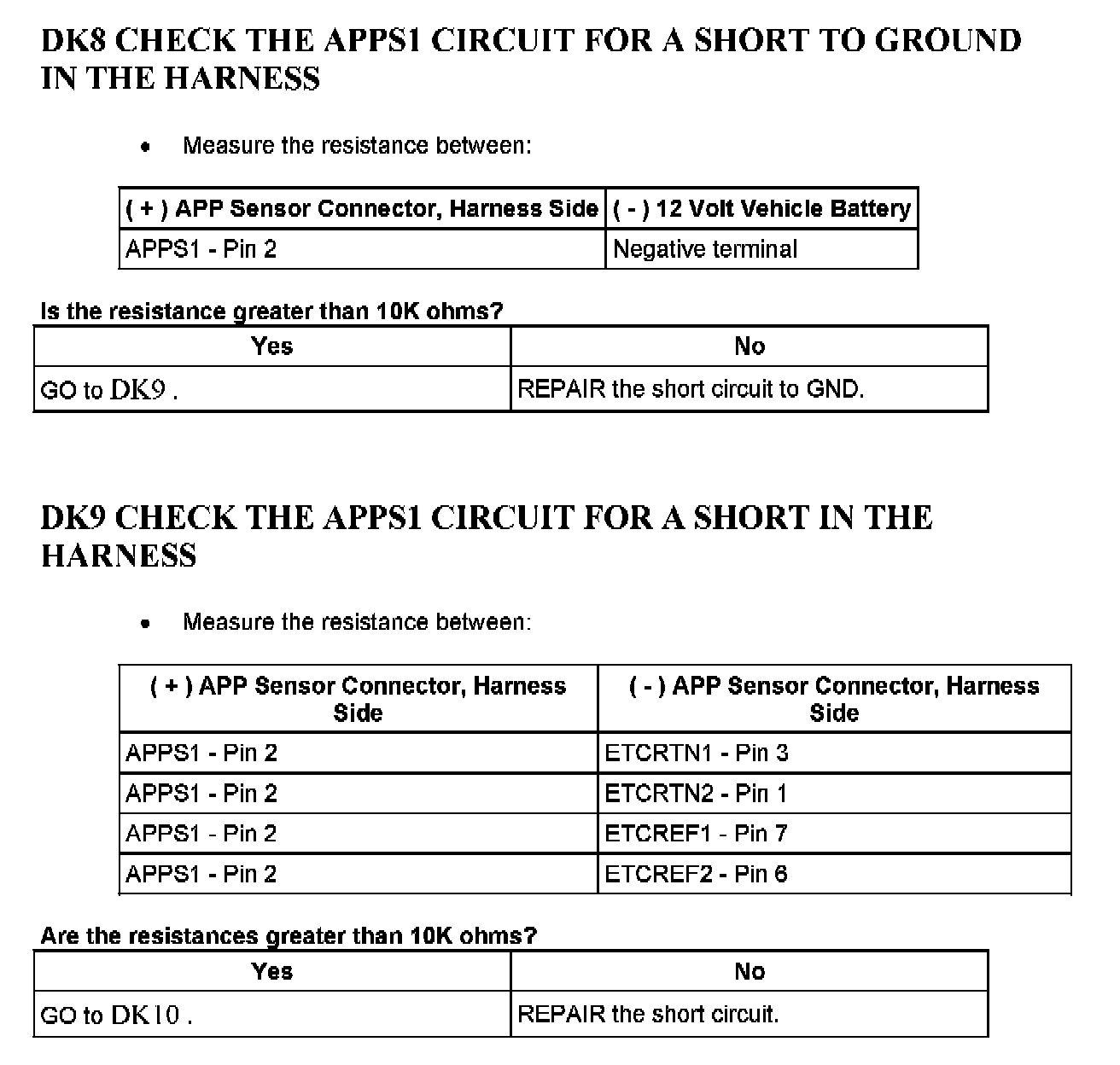

DK8 - DK9:

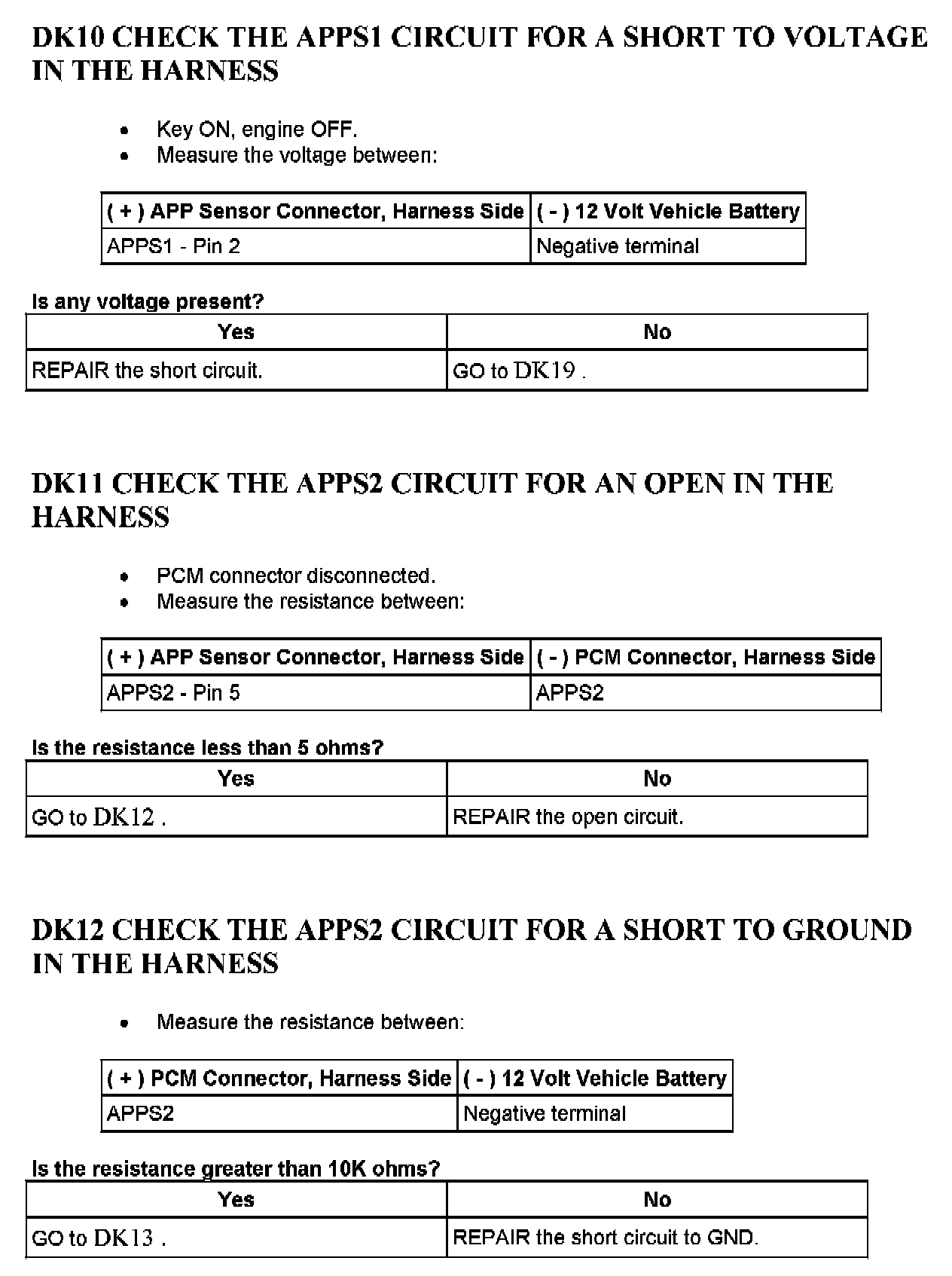

DK10 - DK12:

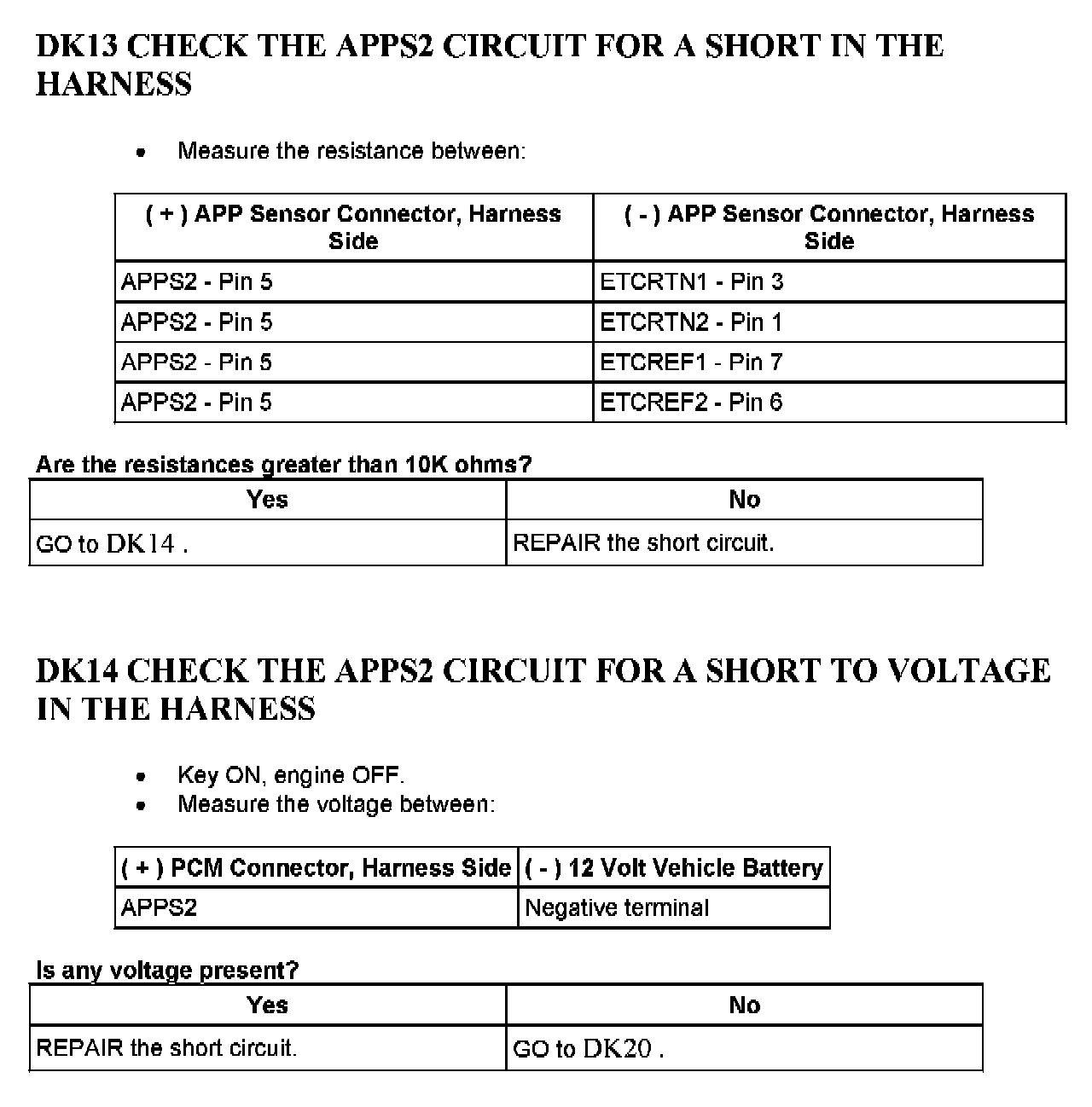

DK13 - DK14:

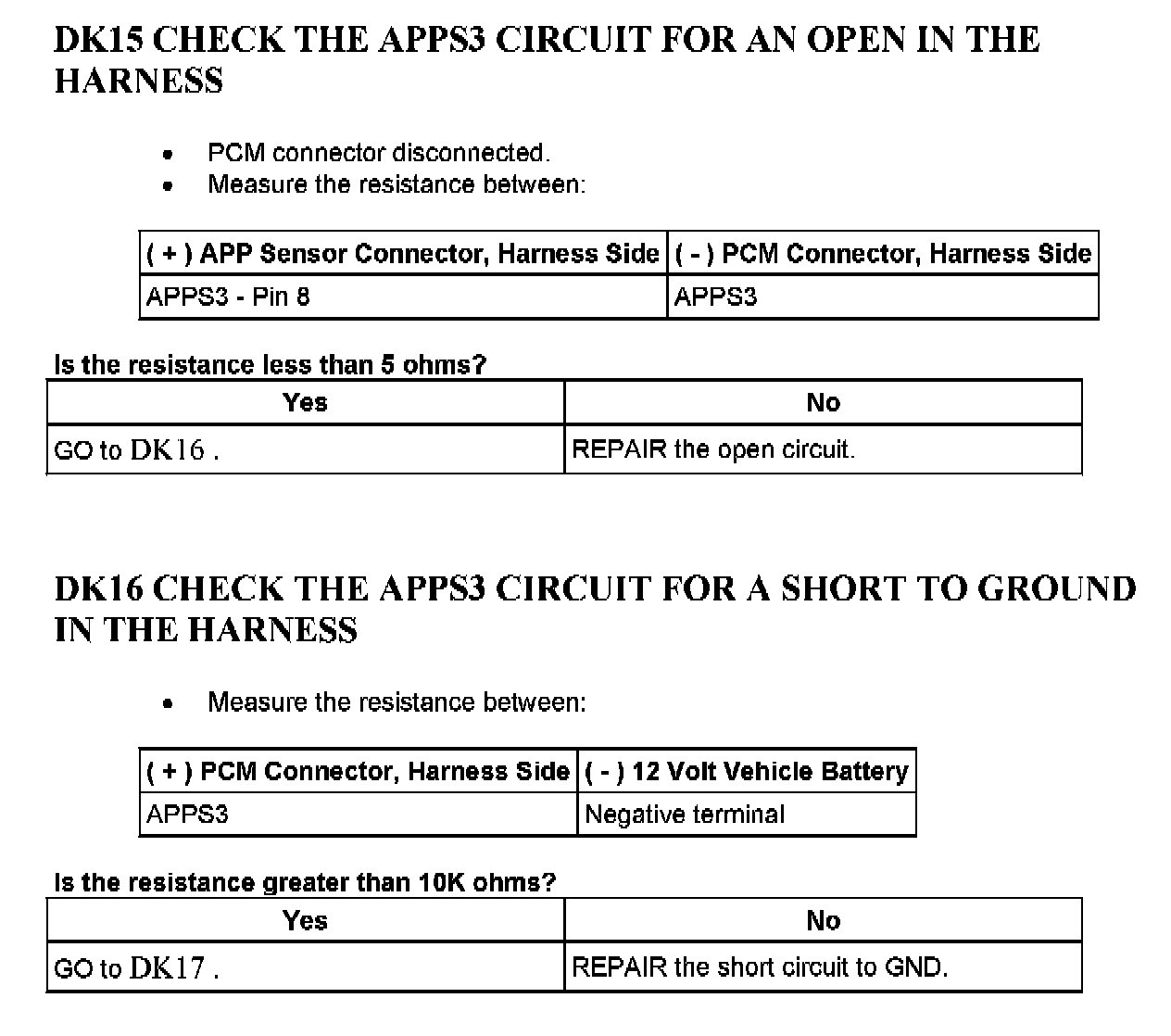

DK15 - DK16:

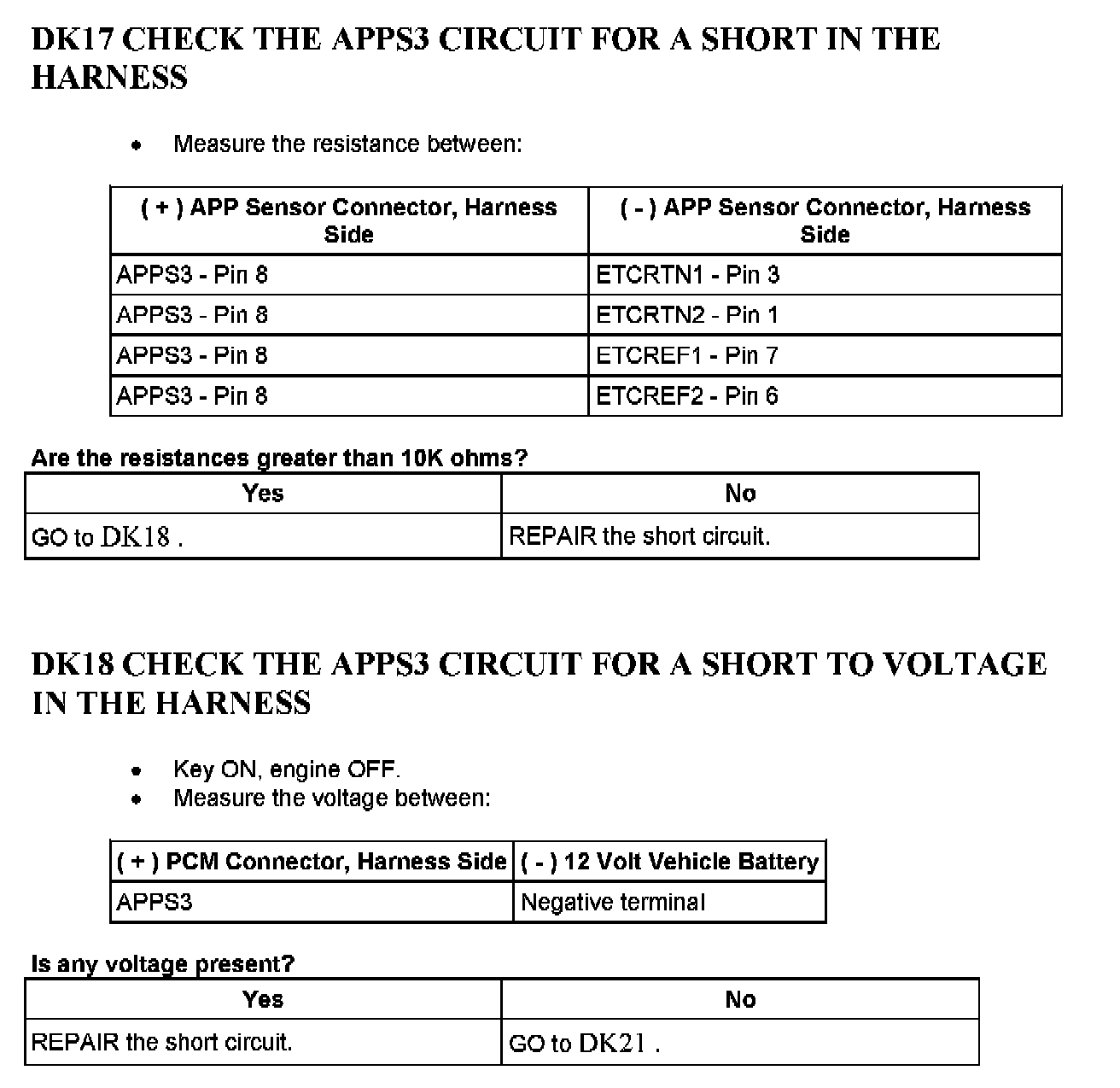

DK17 - DK18:

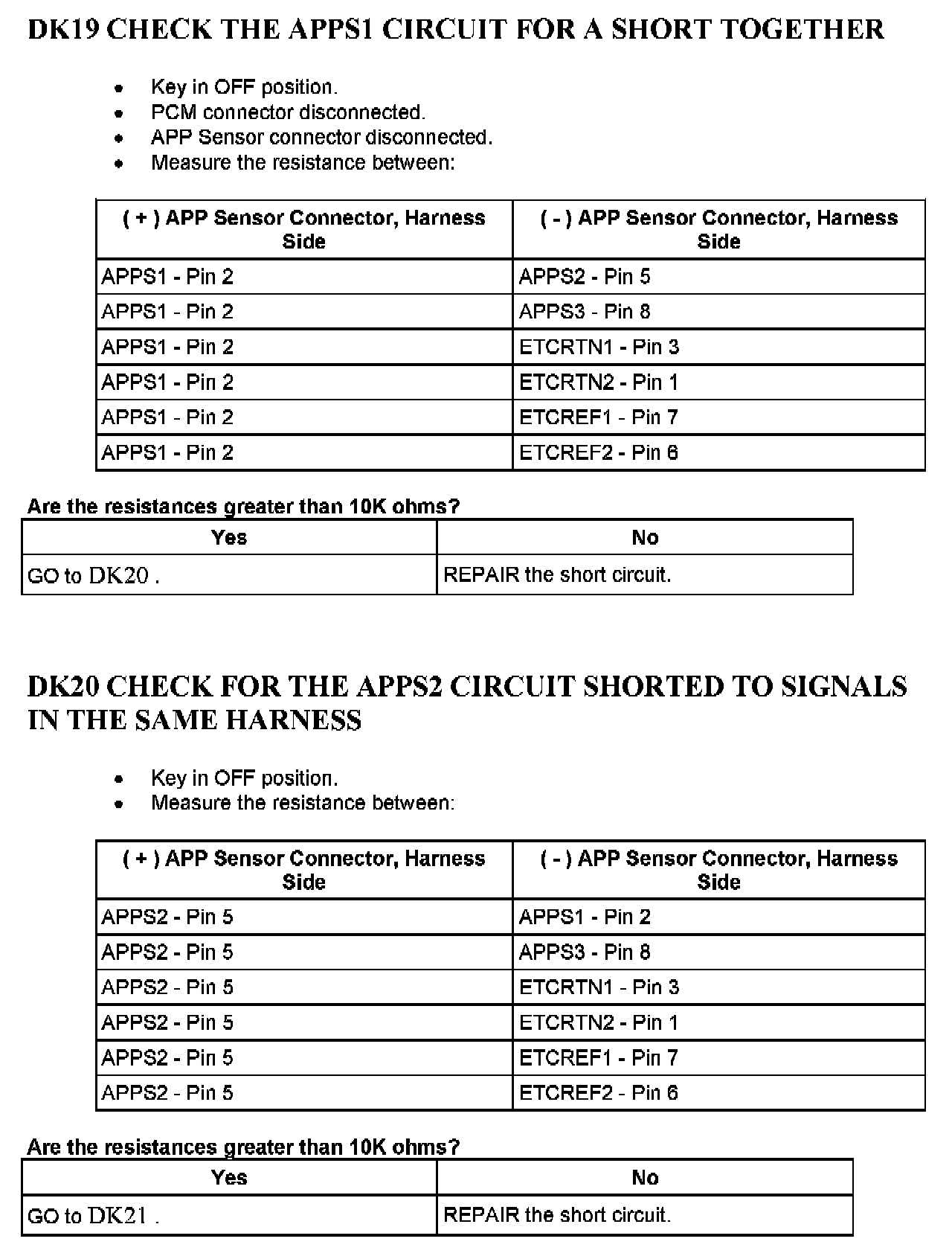

DK19 - DK20:

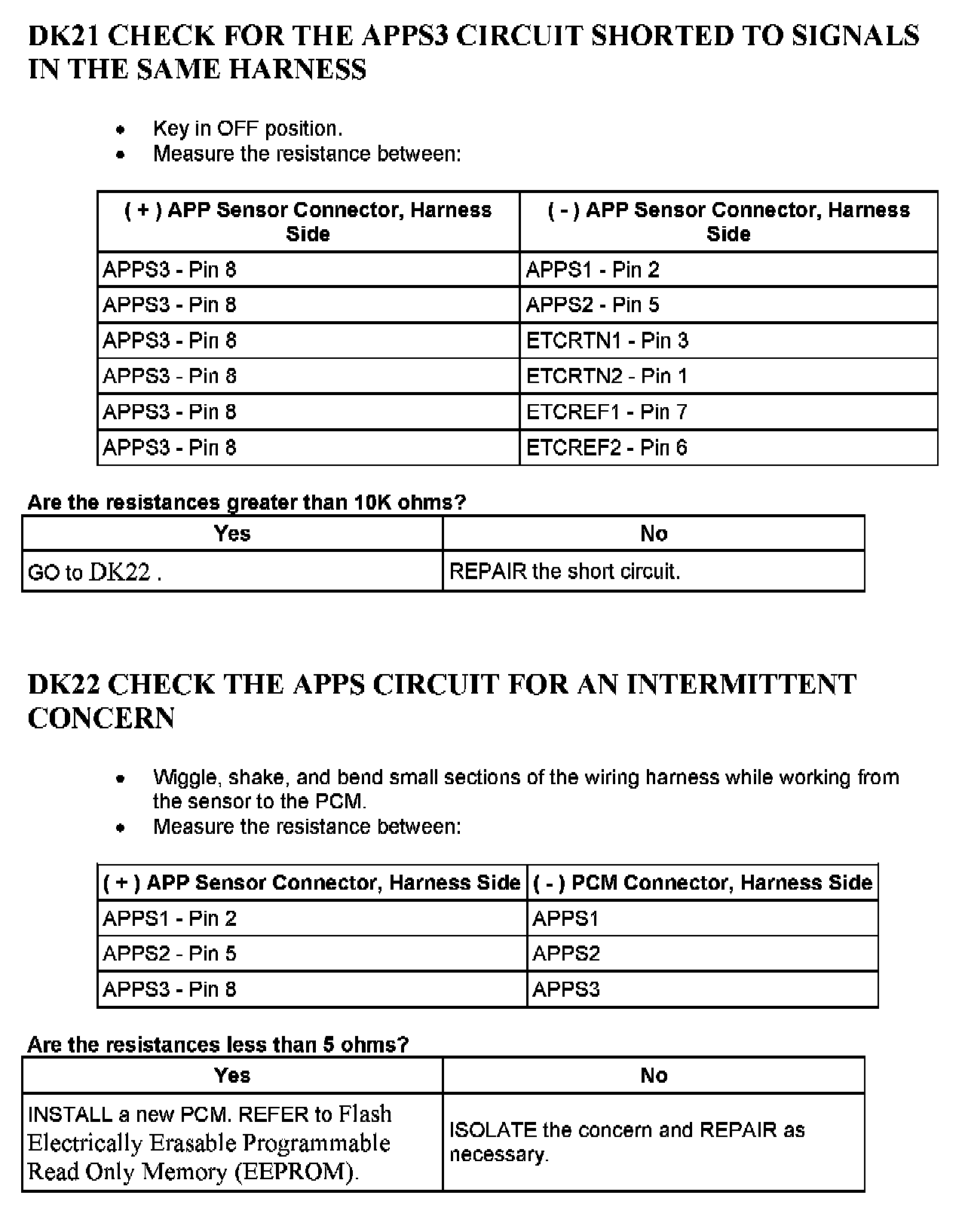

DK21 - DK22:
