Tests DU: Intake Air Temperature 2 Sensor
PINPOINT TEST DU: INTAKE AIR TEMPERATURE 2 SENSOR

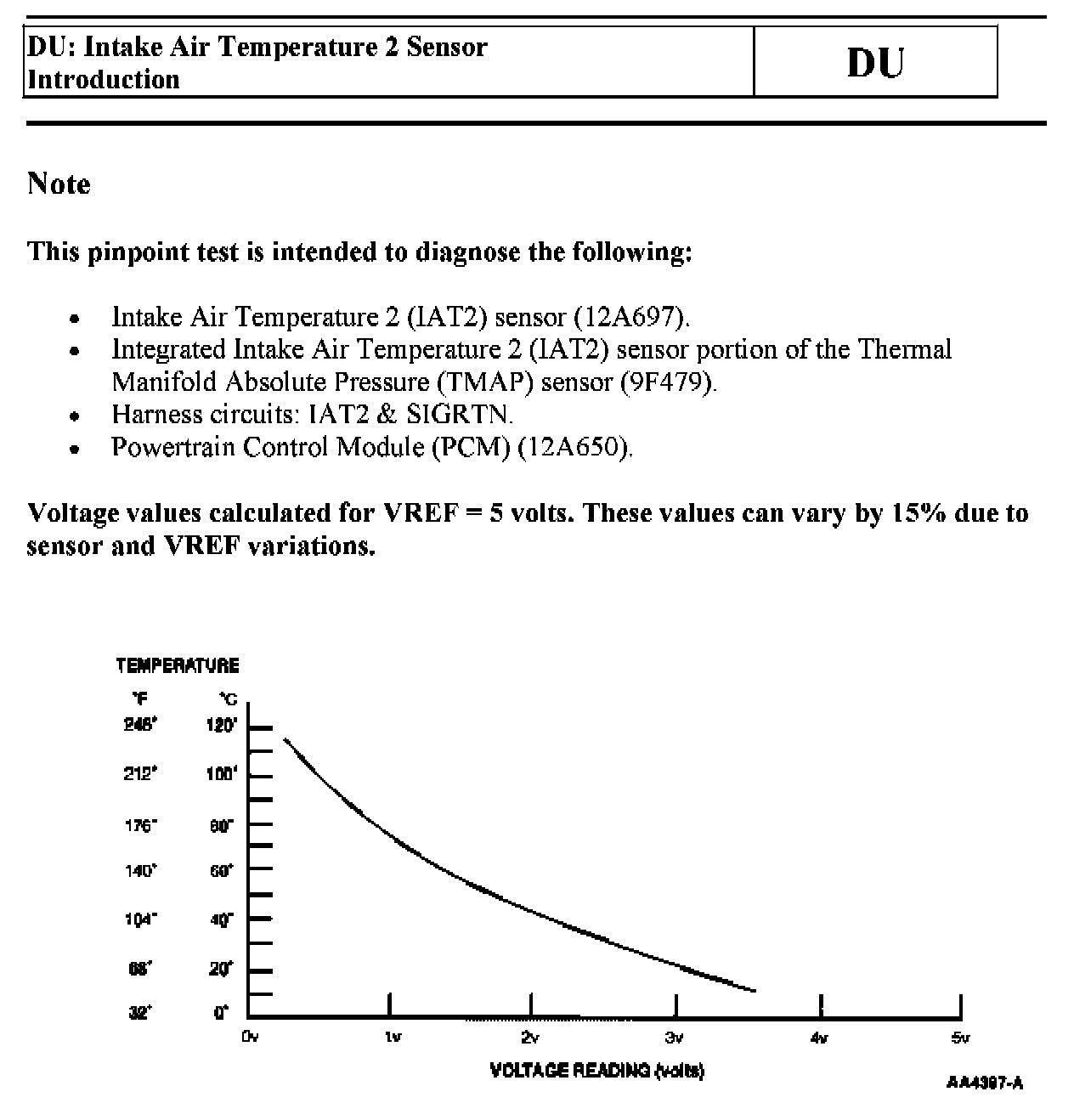

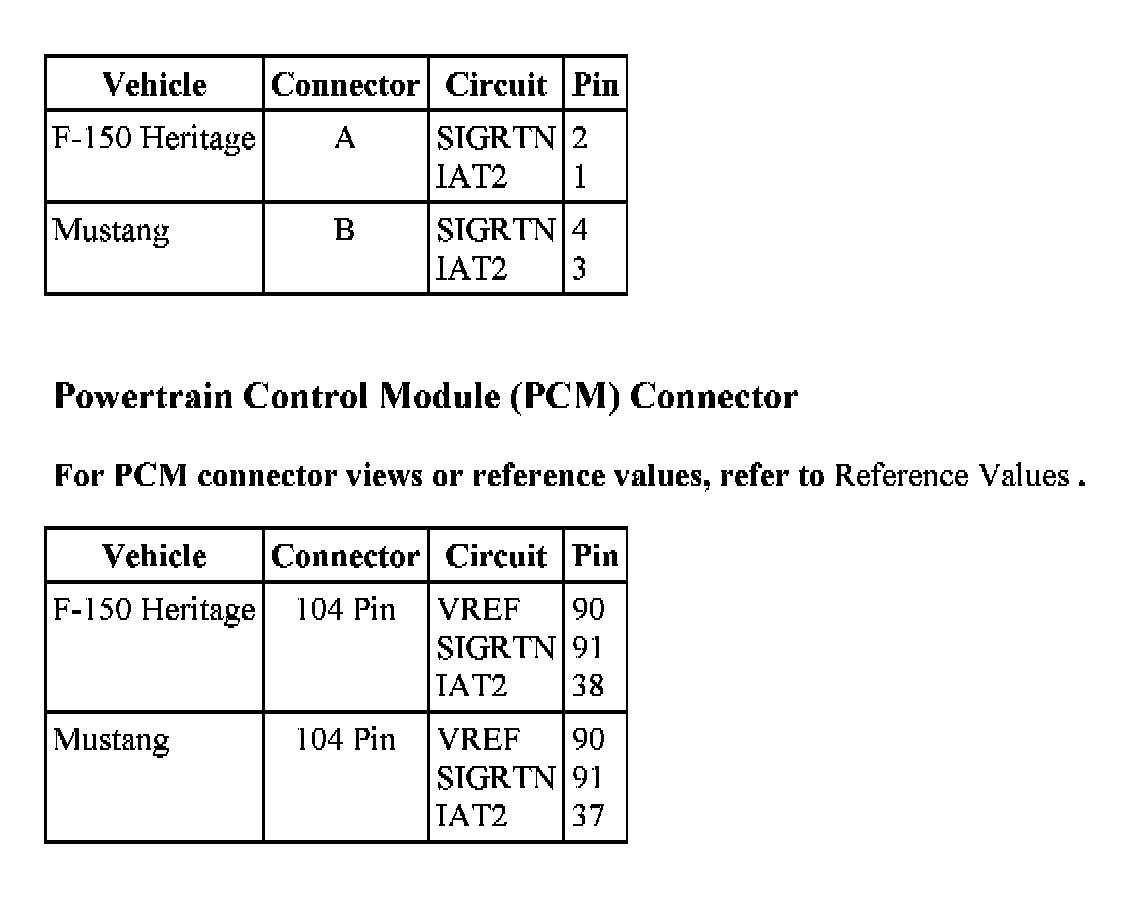

DU Introduction 1 Of 4:

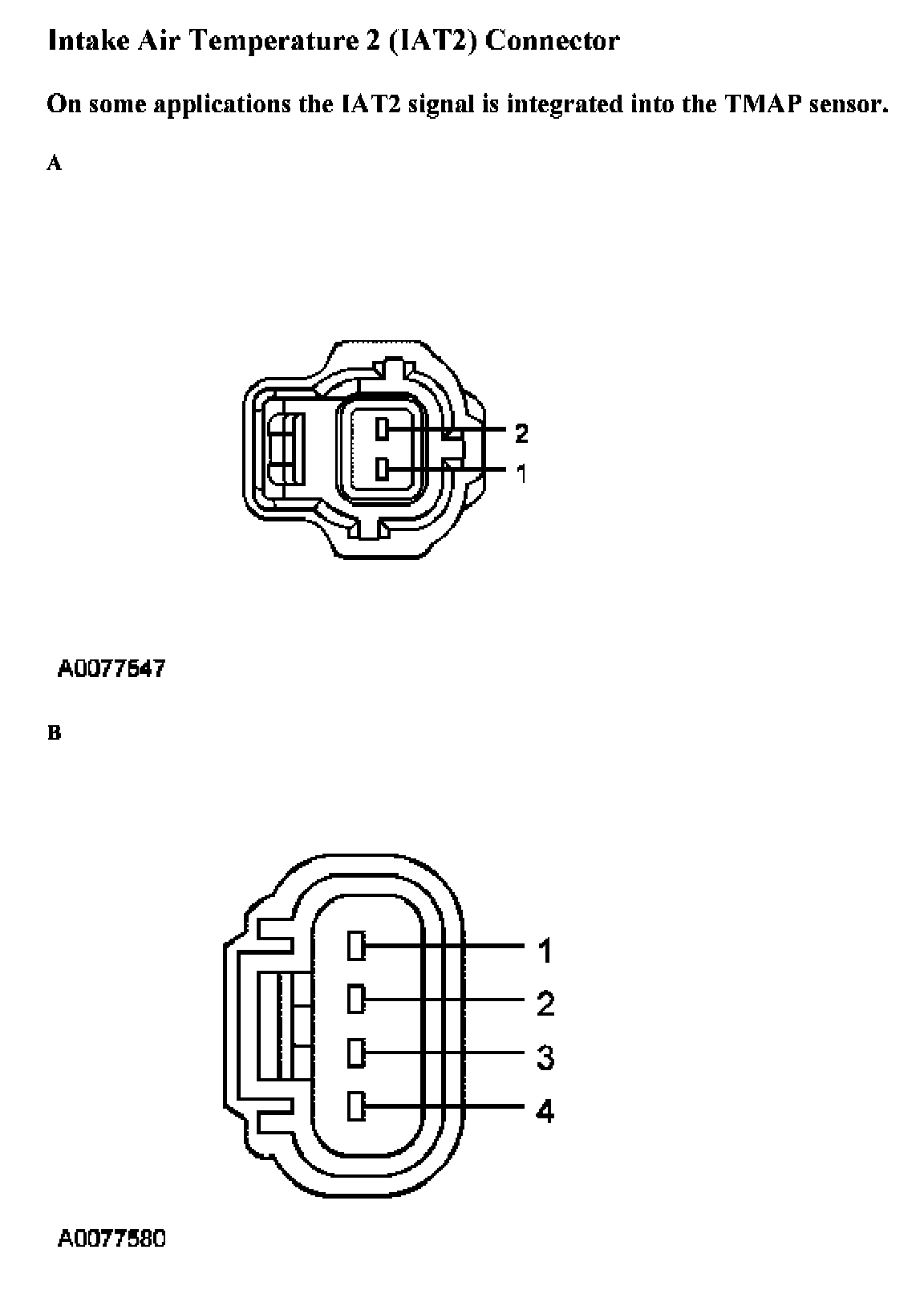

DU Introduction 2 Of 4:

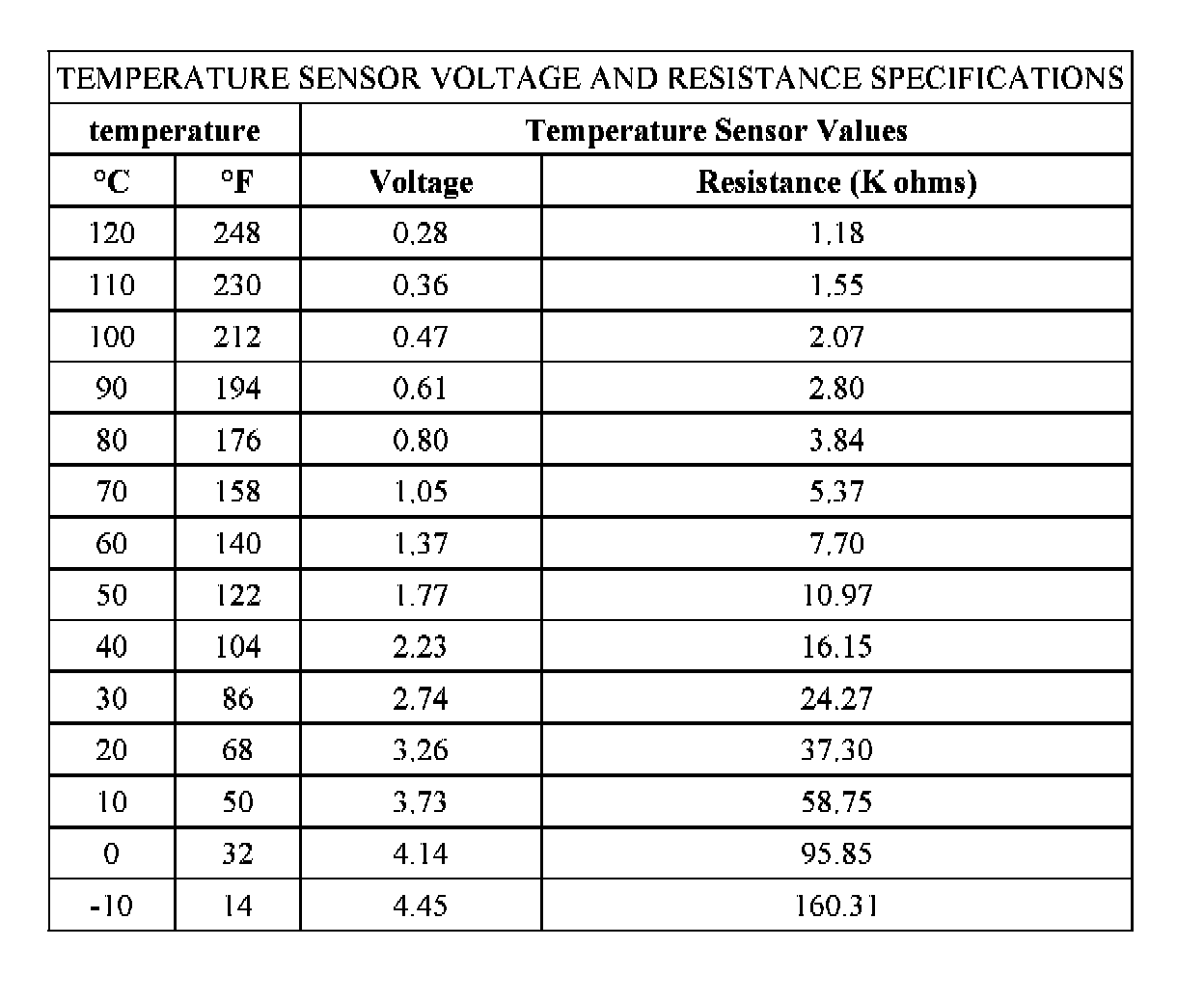

DU Introduction 3 Of 4:
DU Introduction 4 Of 4:

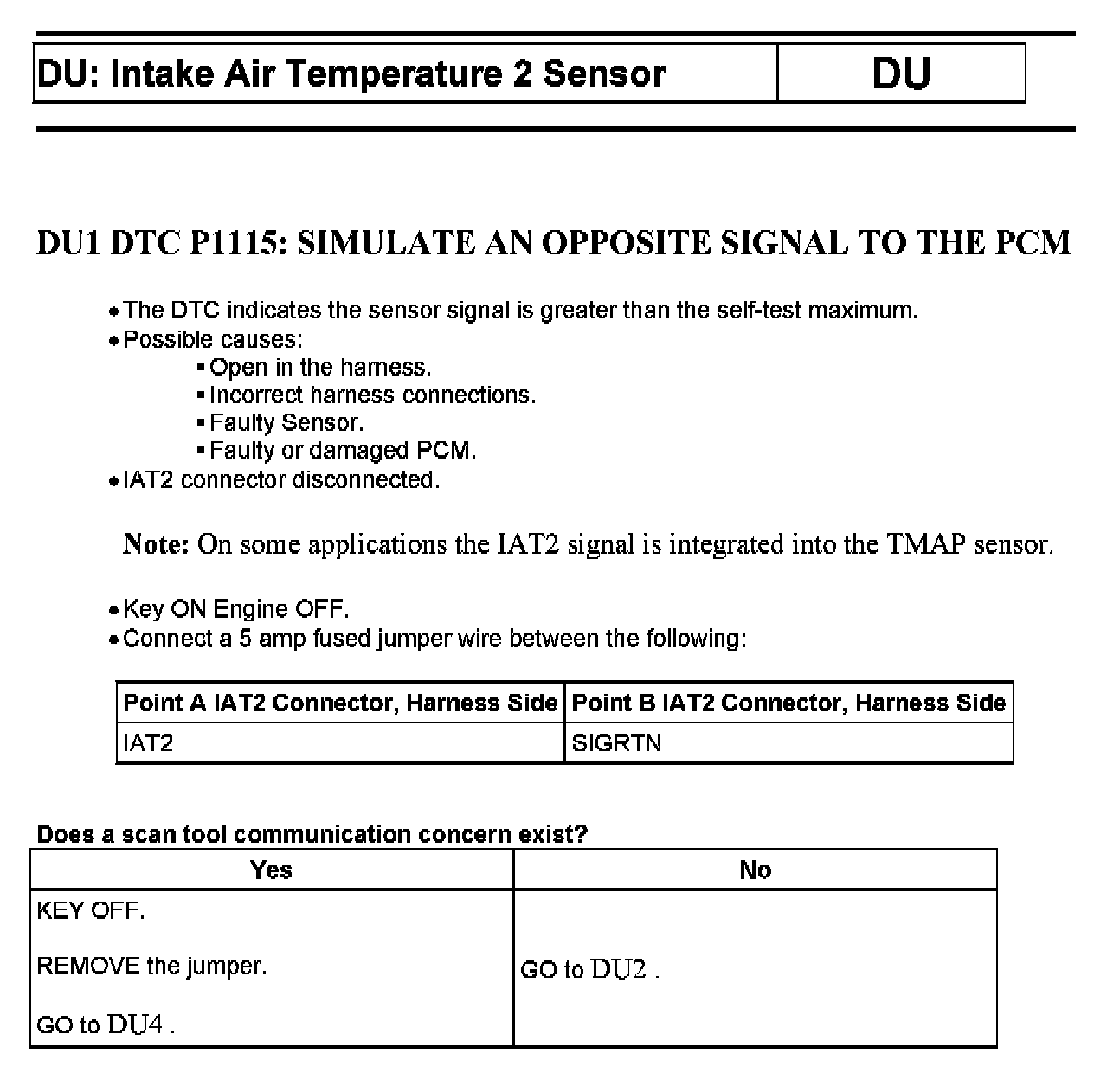

DU1:

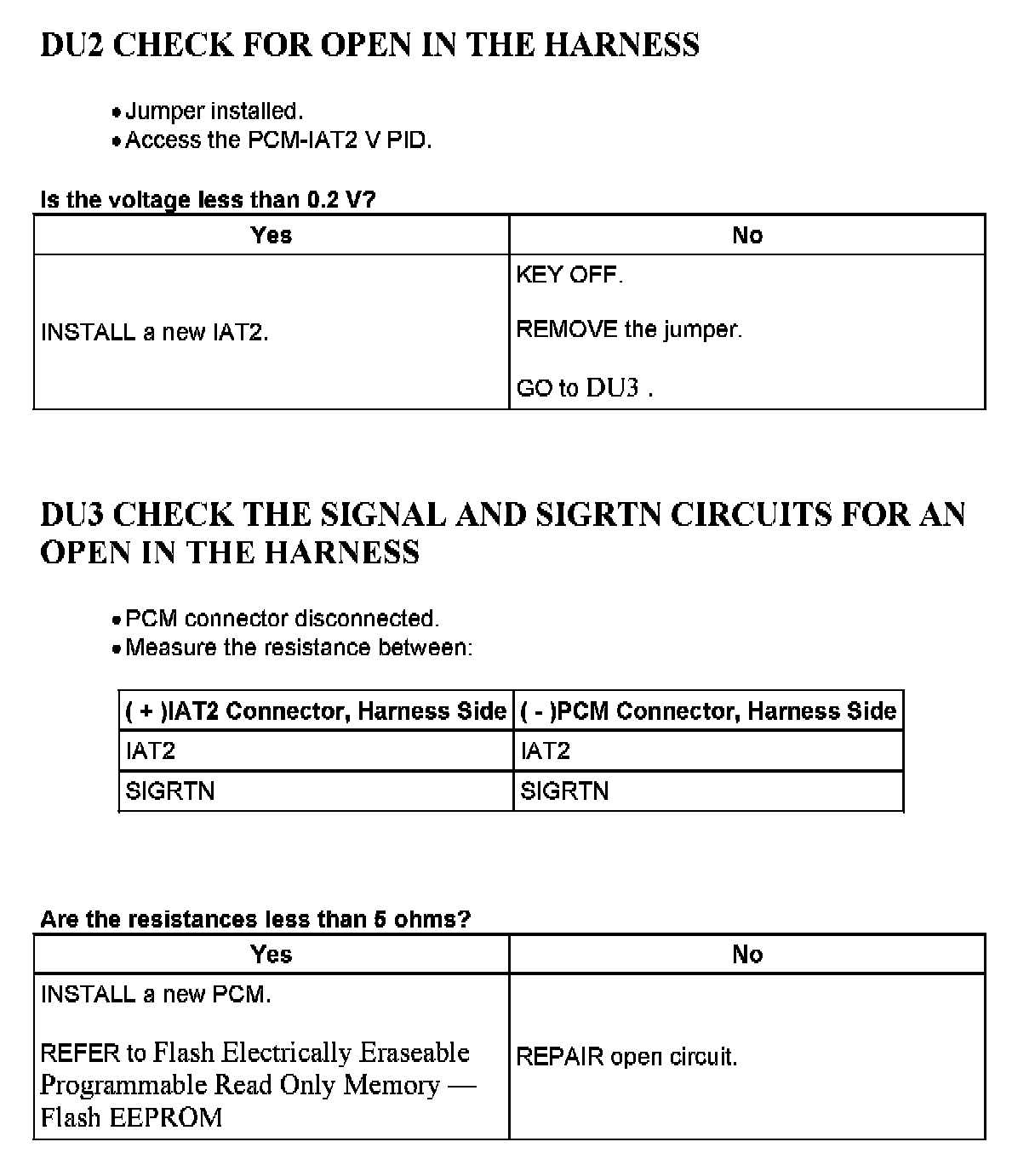

DU2 - DU3:

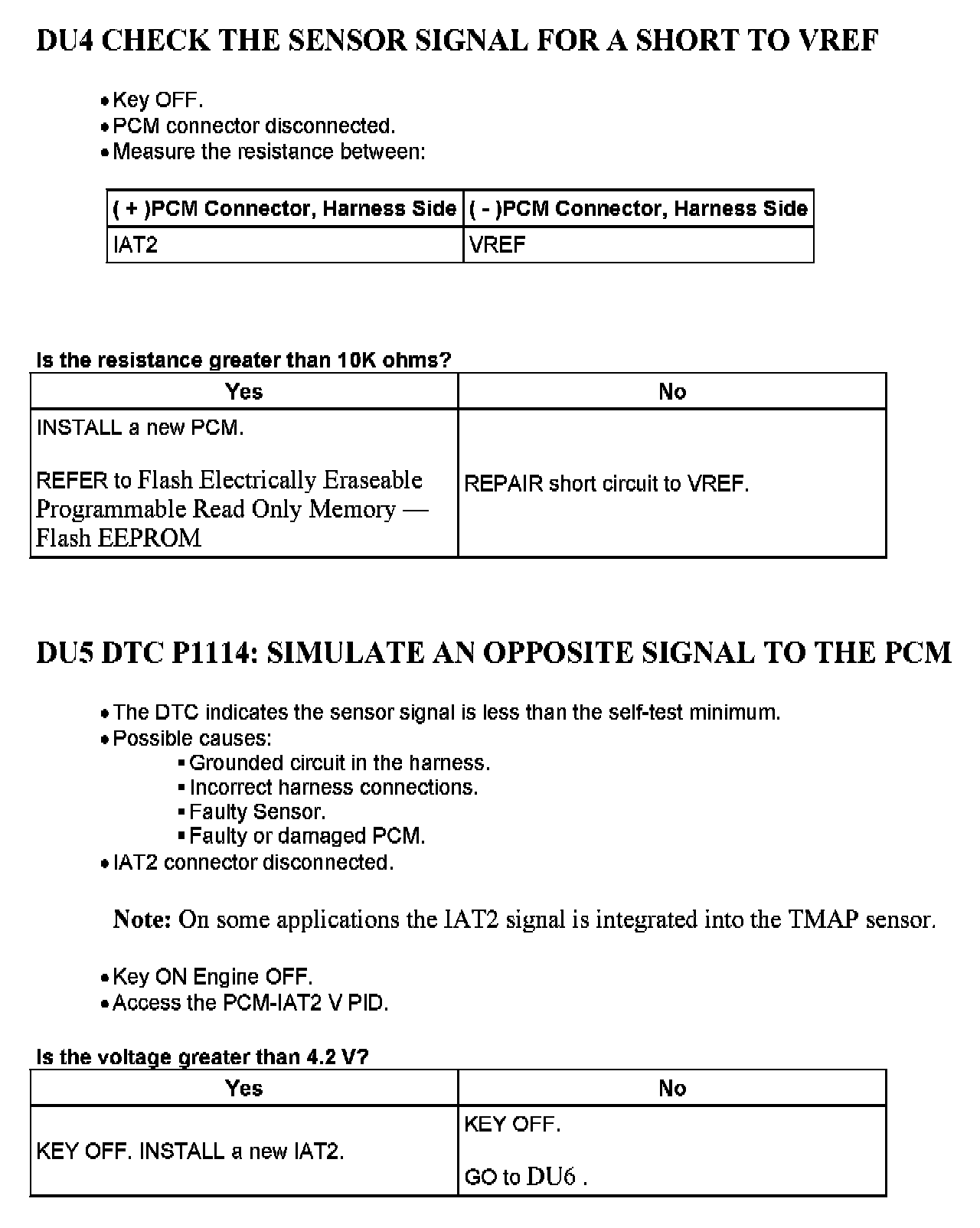

DU4 - DU5:

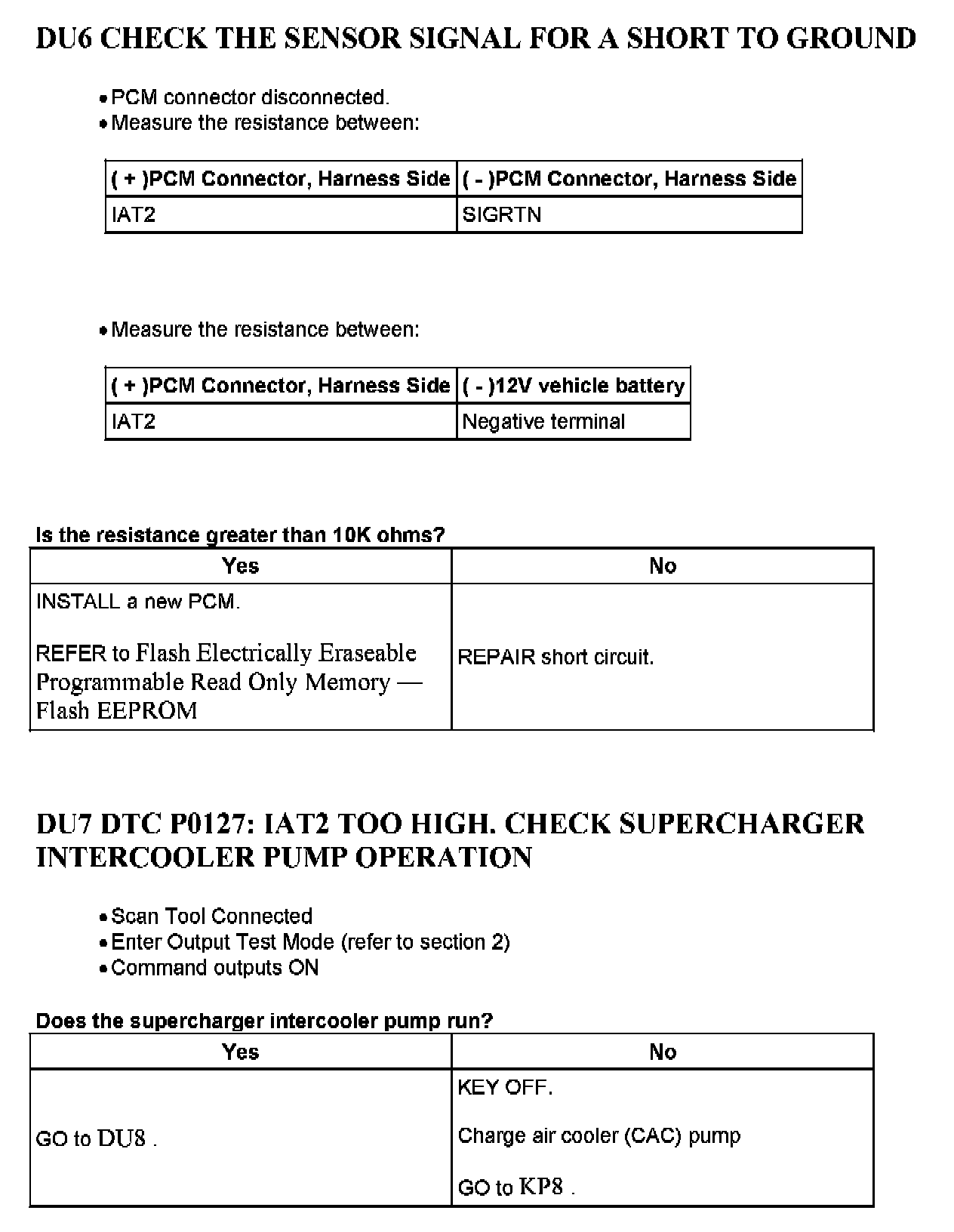

DU6 - DU7:

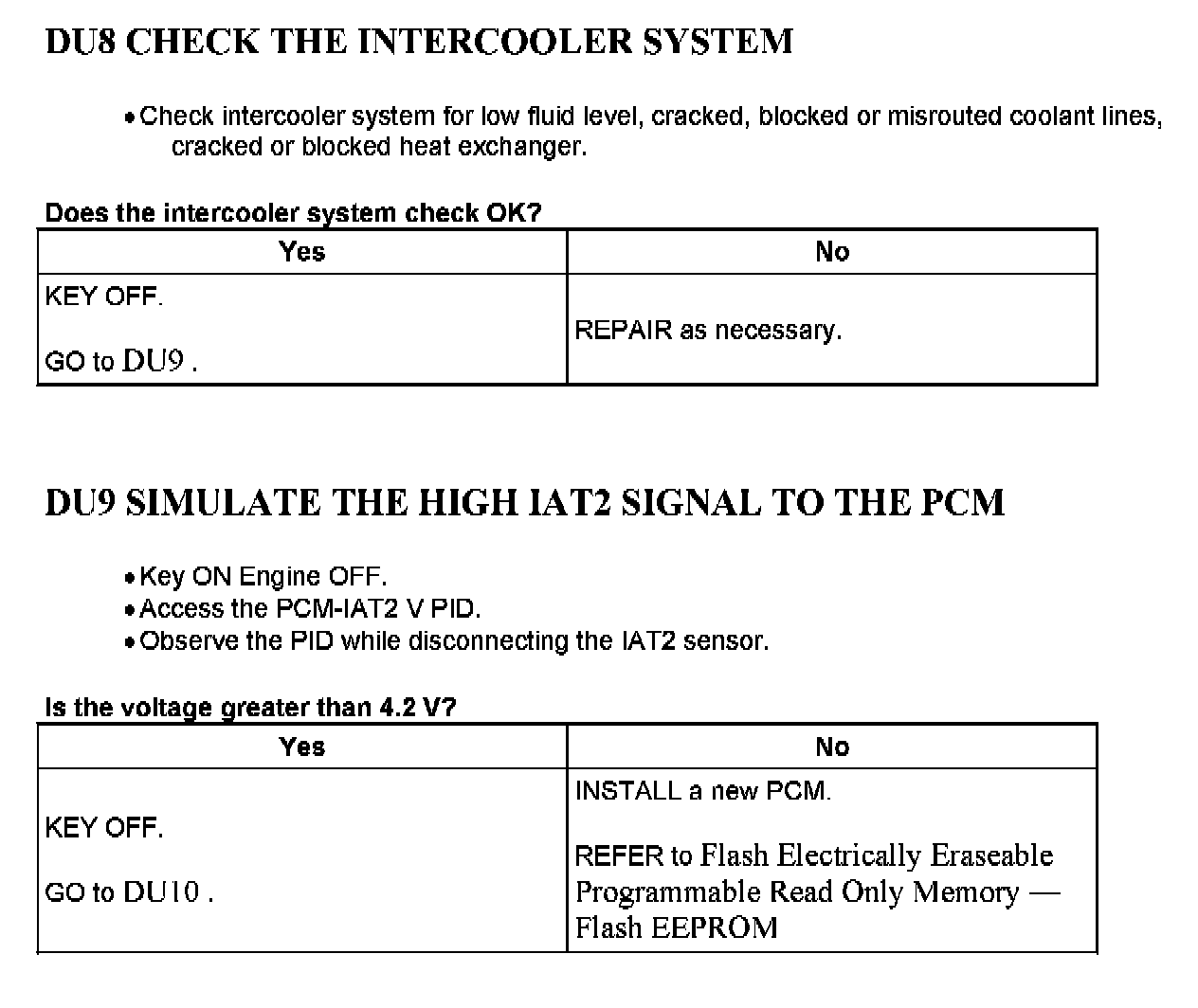

DU8 - DU9:

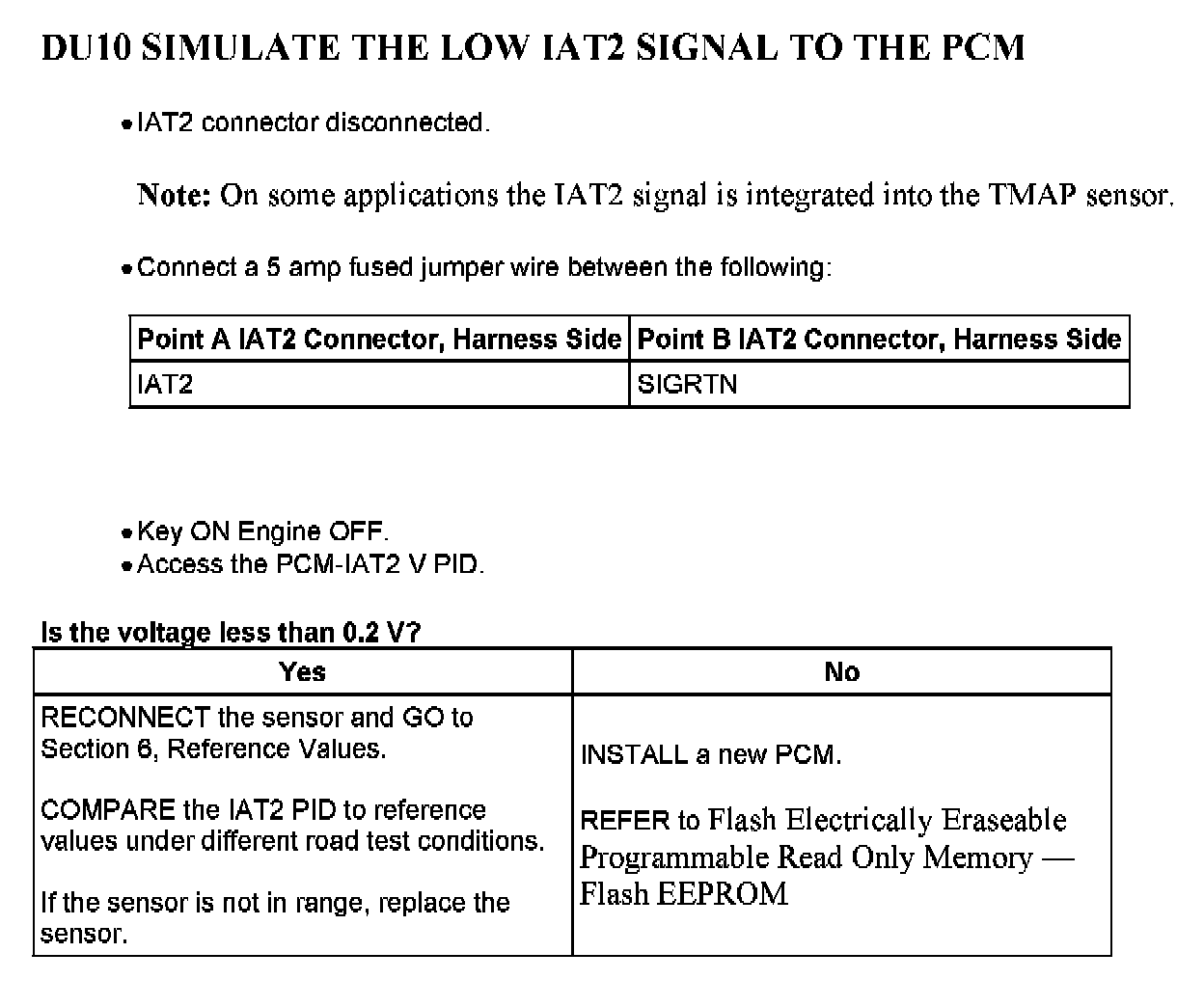

DU10:
