Tests NC: Ignition Engine Speed Input Circuit



PINPOINT TEST NC: IGNITION ENGINE SPEED INPUT CIRCUIT

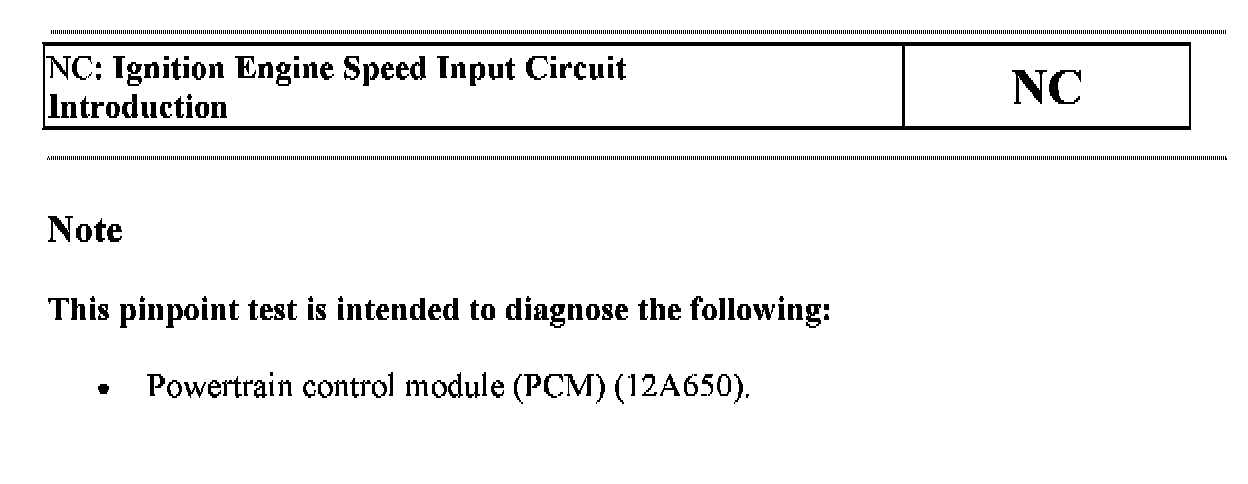

NC Introduction:

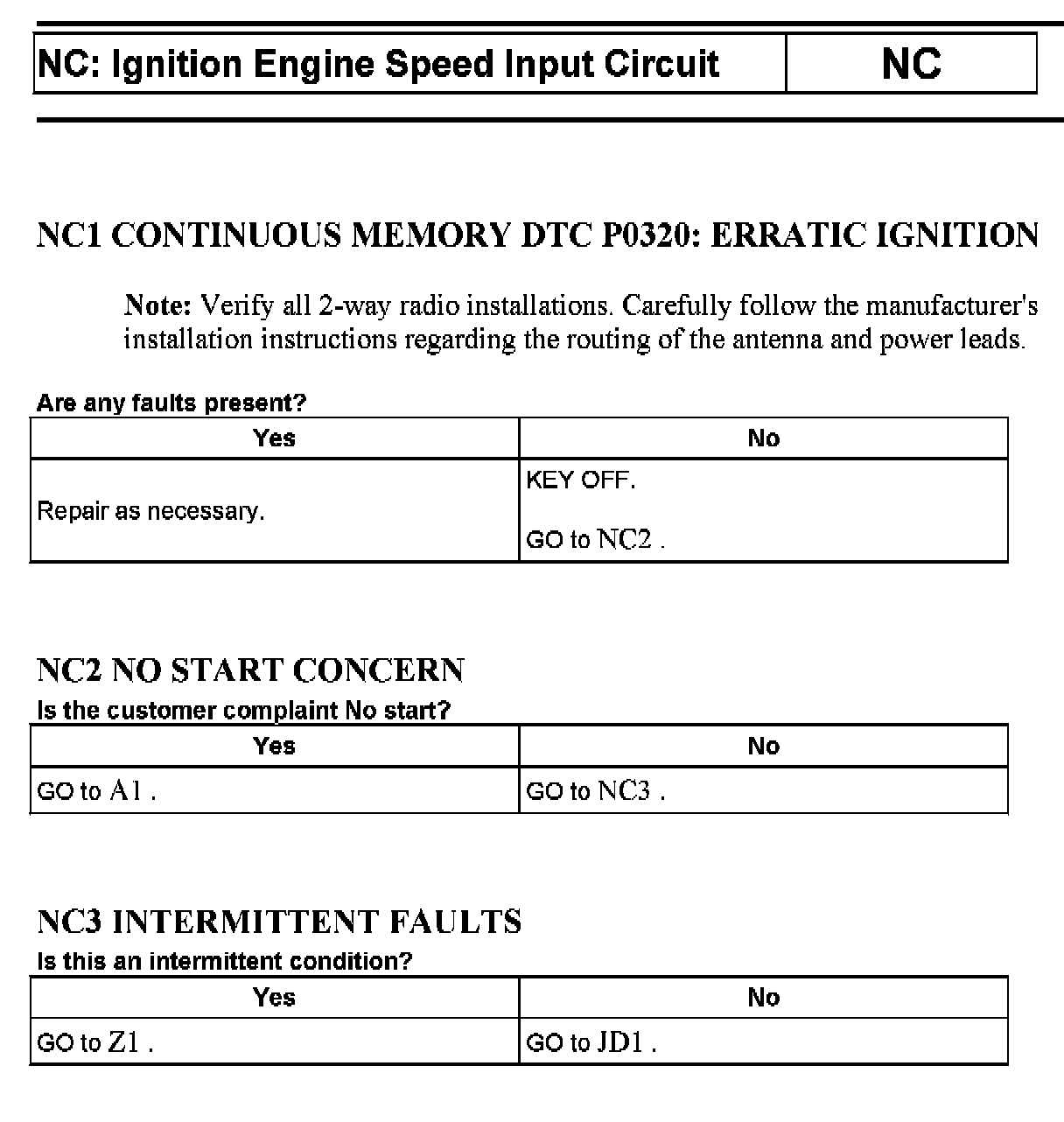

NC1 - NC3:
