Fuel Pressure: Specifications

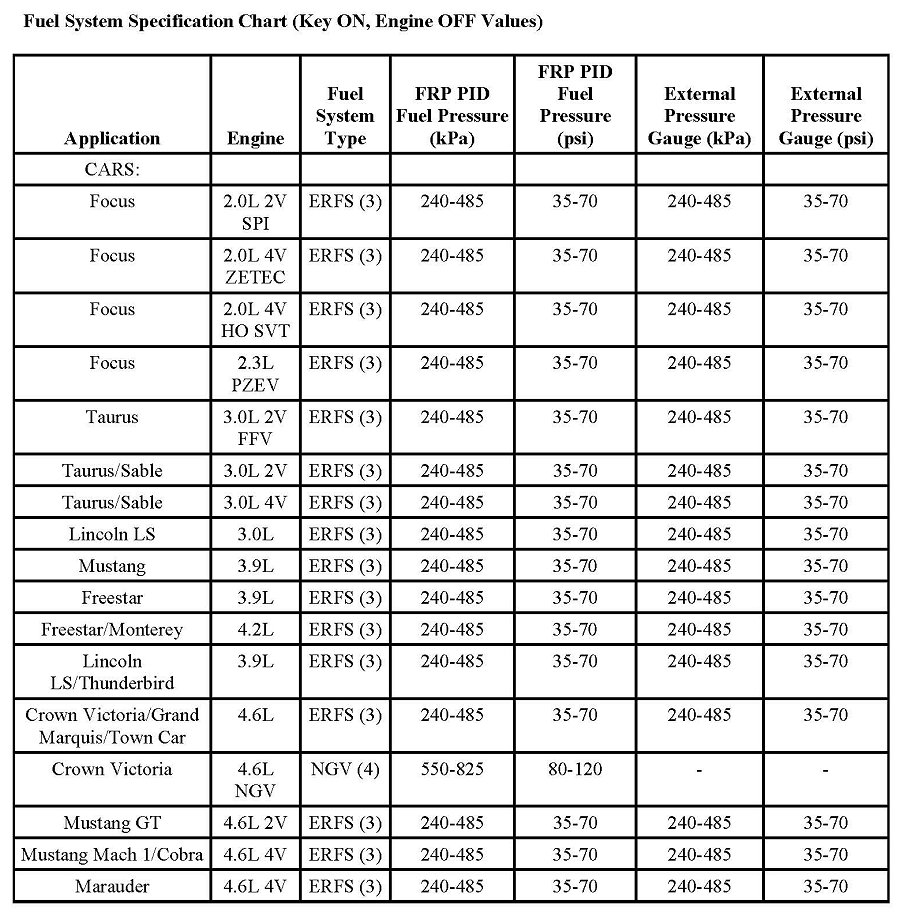

Fuel System Pressure Chart (1 Of 2):

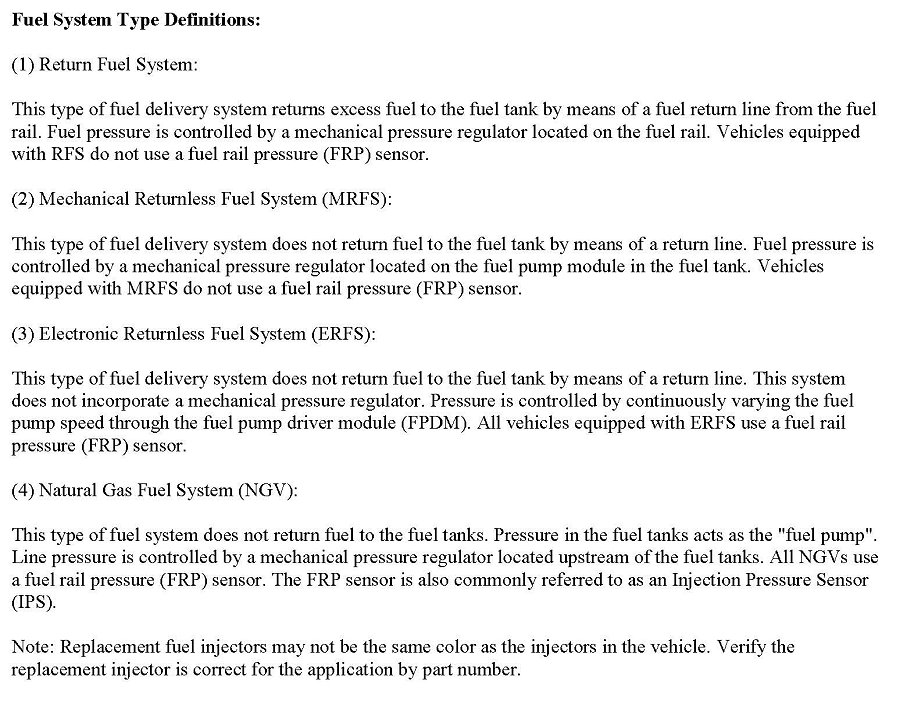

Fuel System Pressure Chart (2 Of 2):
