Oil Pump, Engine

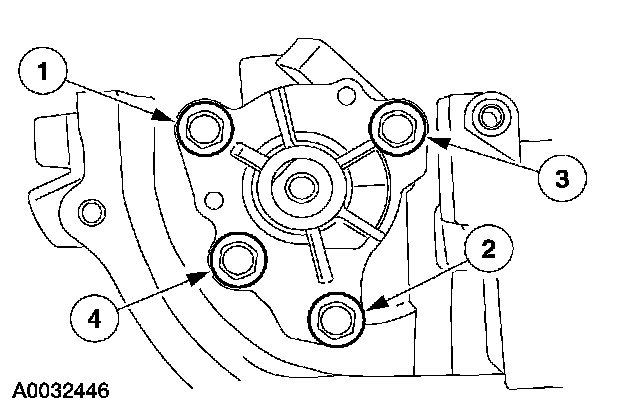

Oil pump bolts.
Stage 1: Tighten the bolts
10 Nm (89 inch lbs.)
Stage 2: Tight the bolts
23 Nm (17 ft. lbs.)
