System Specifications

Timing chain tensioner bolts 10 Nm (89 inch lbs.)
Tighten the crankshaft pulley bolt in two stages:
Stage 1 100 Nm (74 ft. lbs.)
Stage 2 Tighten an additional 90 degrees (1/4 turn)
Chain guide bolts 10 Nm (89 inch lbs.)

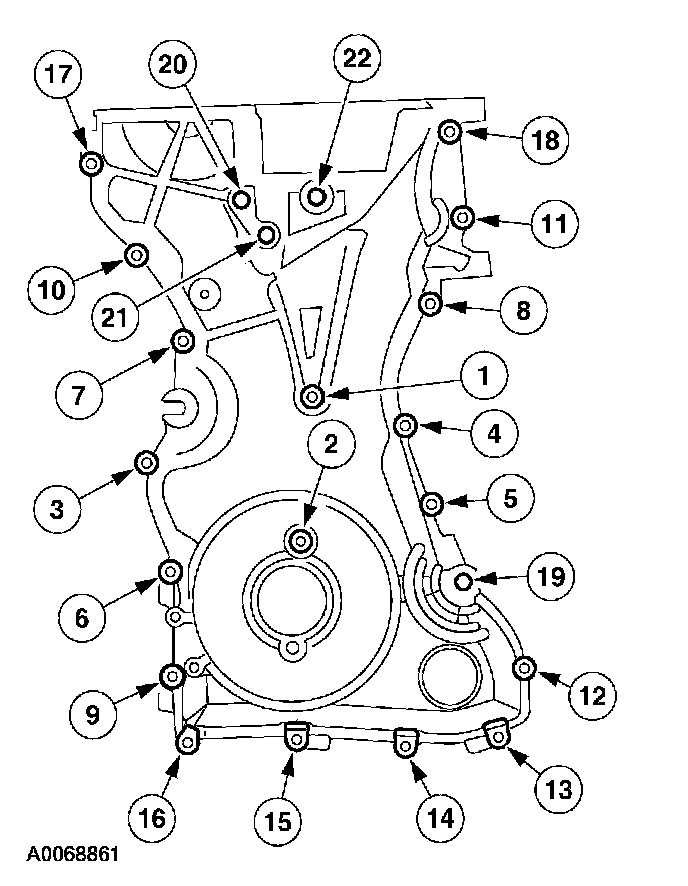

Engine front cover bolts:
8 mm bolts 10 Nm (89 inch lbs.)
13 mm bolts 48 Nm (35 ft. lbs.)
