Test C

PINPOINT TEST C: A SINGLE POWER WINDOW IS INOPERATIVE - FRONT AND REAR POWER WINDOWS - PASSENGER POWER WINDOW

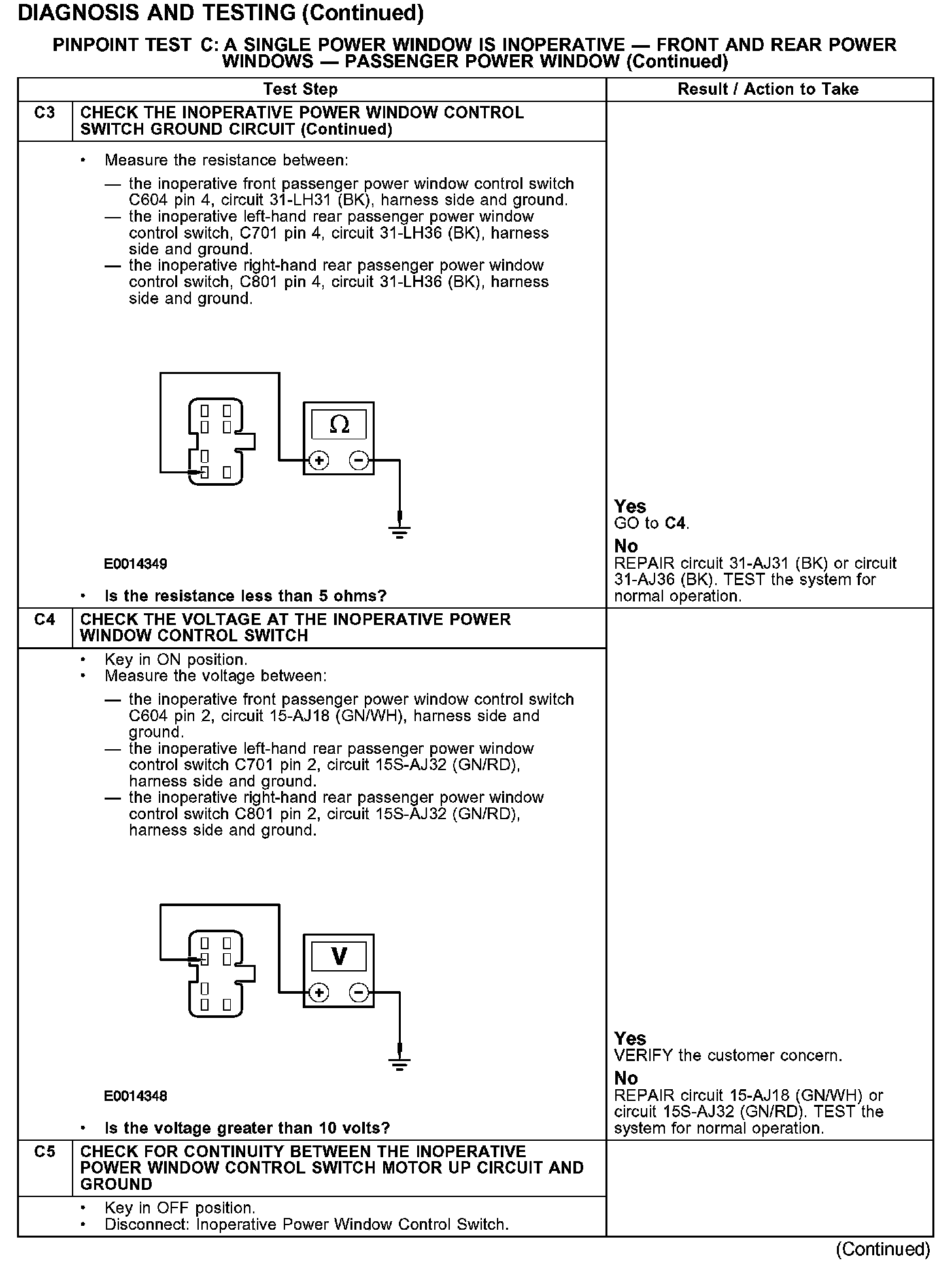

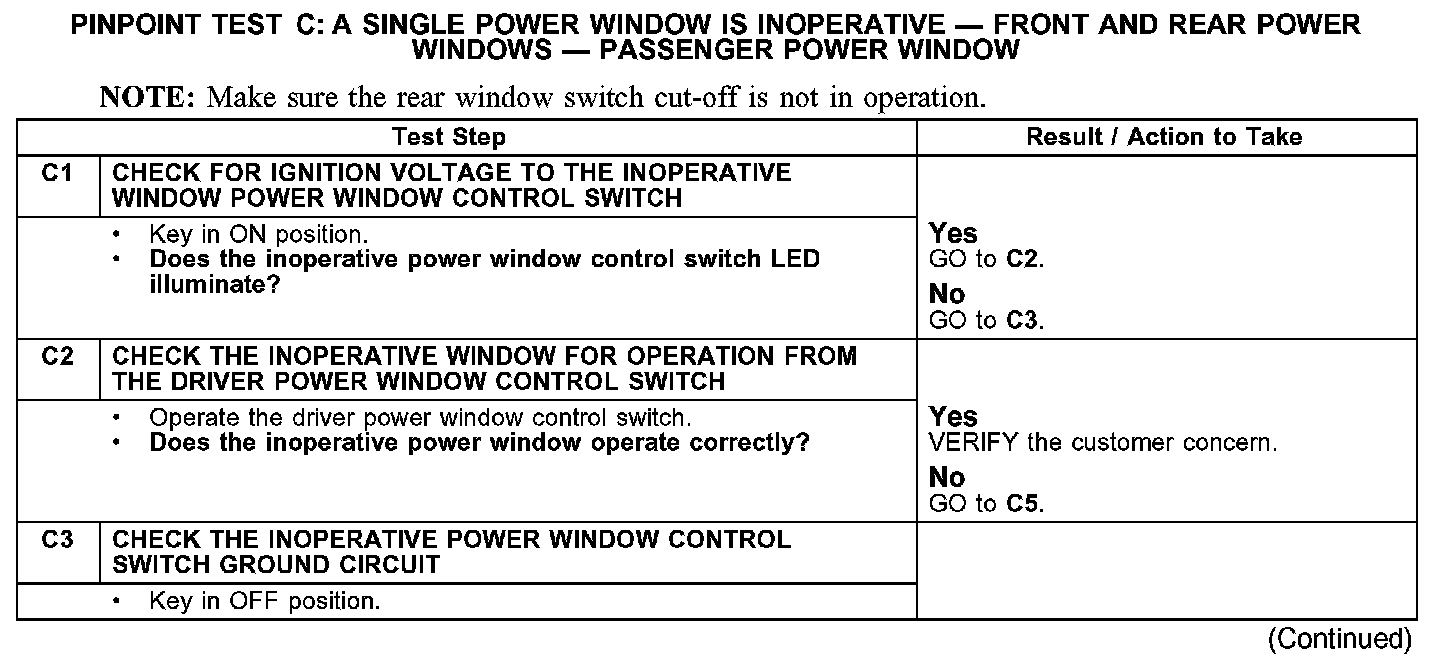

Test C1-C3:






Test C3-C5:

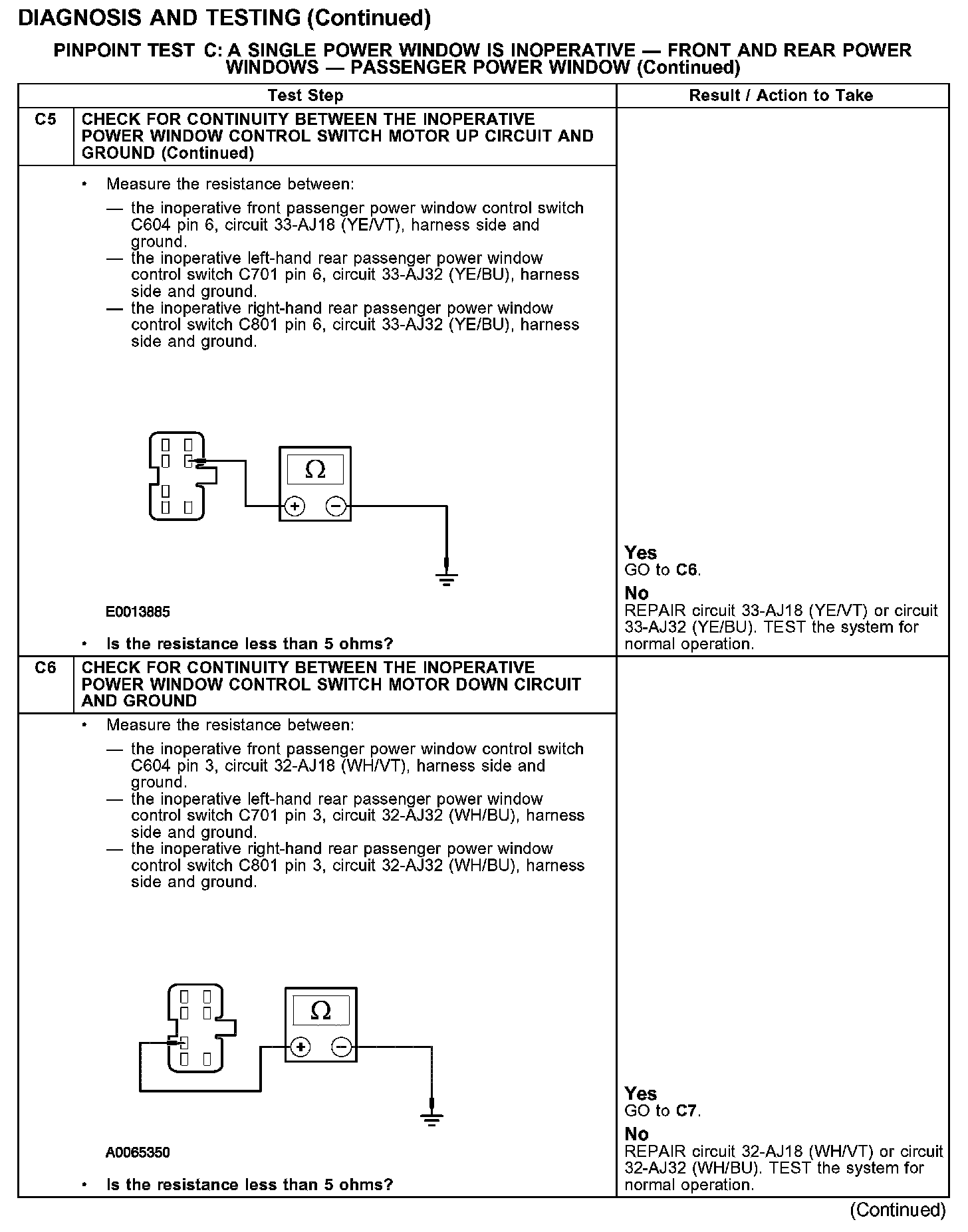

Test C5-C6:

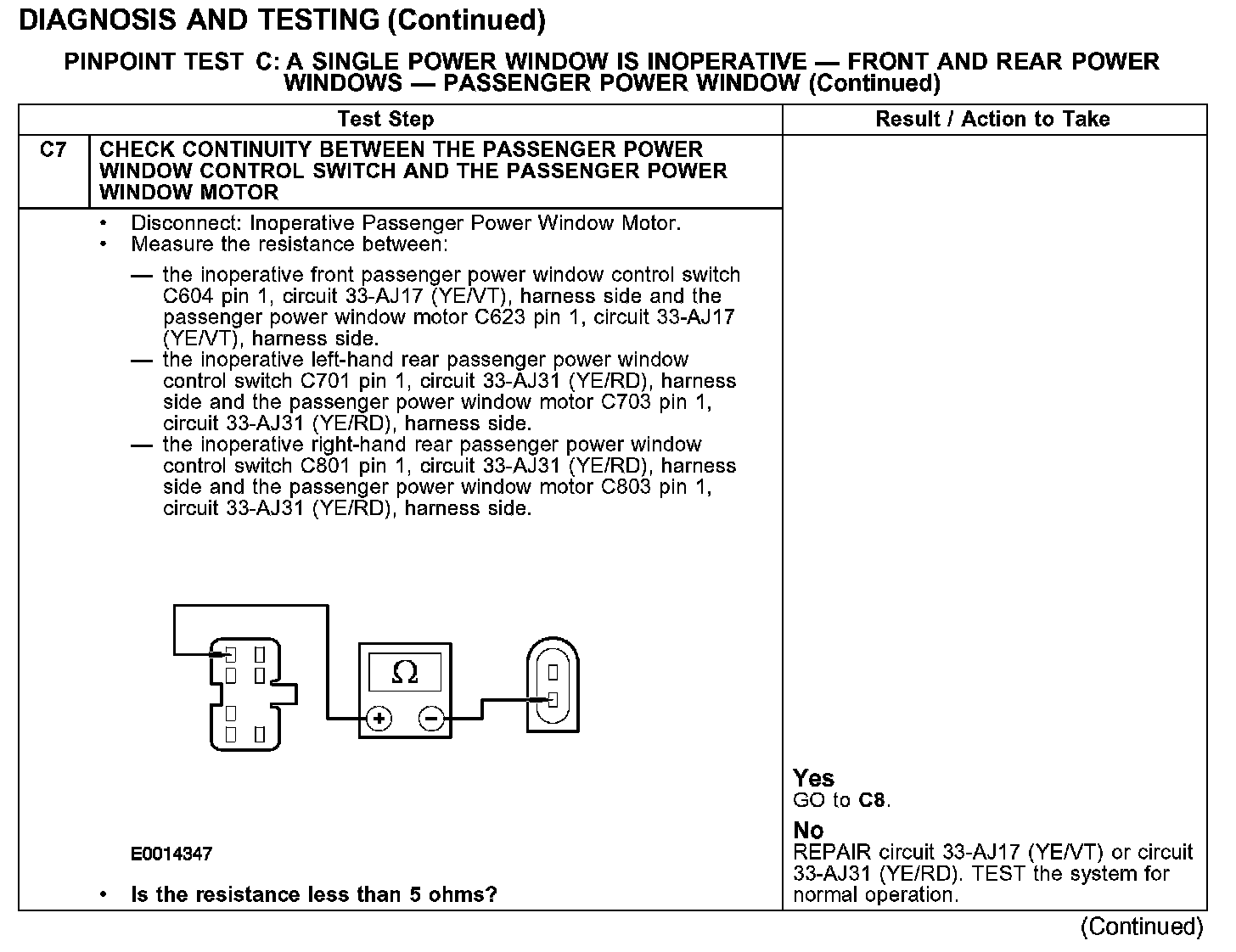

Test C7:

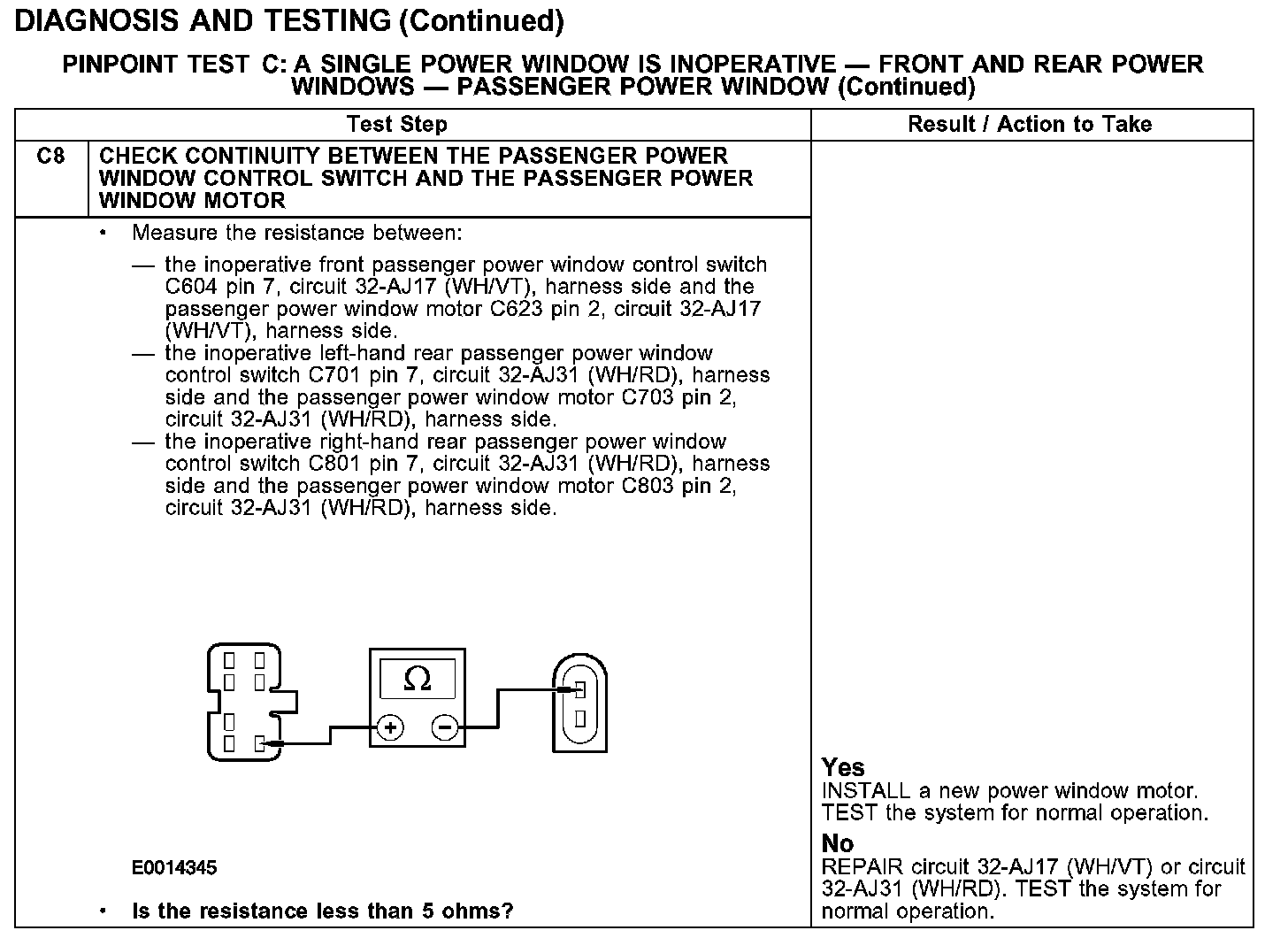

Test C8:
