Pinpoint Test A: No Communication With The Traction Control Module

Test Step

A1 CHECK THE VOLTAGE TO THE TRACTION CONTROL MODULE

• Key in OFF position.
• Disconnect: Traction Control Module C135.
• Key in ON position.
• Measure the voltage between the traction control module C135 pin 4, circuit 15-CF6A (GN/YE), harness side and ground.

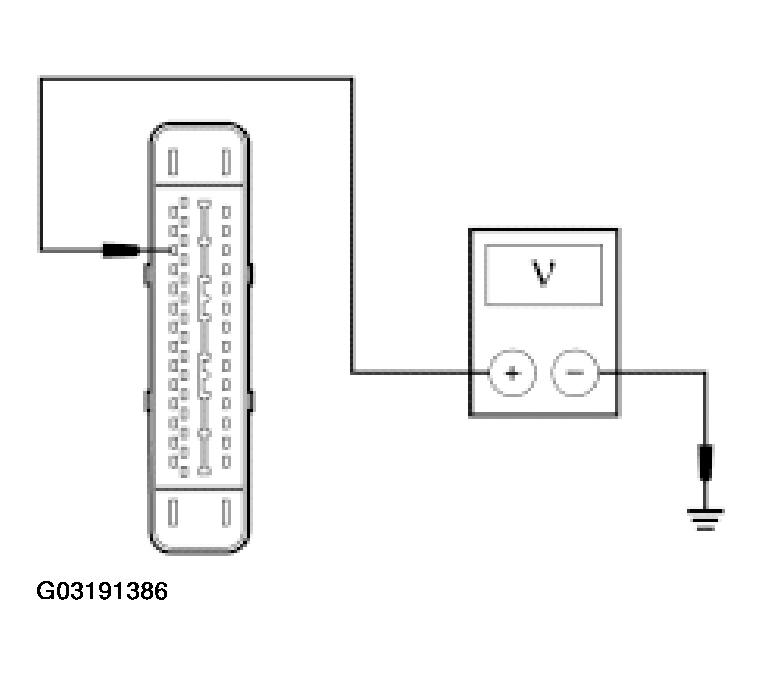

  Fig 1: Checking Voltage To Traction Control Module

  Courtesy of FORD MOTOR CO.
• Is the voltage greater than 10 volts?

Result / Action to Take

Yes

Go to A2.

No

REPAIR the circuit. CLEAR the DTCs. REPEAT the self-test. TEST the system for normal operation.

Test Step

A2 CHECK THE TRACTION CONTROL MODULE GROUNDS

• Key in OFF position.
• Measure the resistance between the traction control module C135 pin 16, circuit 91-CF6 (BK/YE), harness side and ground; and between the traction control module C135 pin 47, circuit 91-CF13 (BK/BU), harness side and ground.

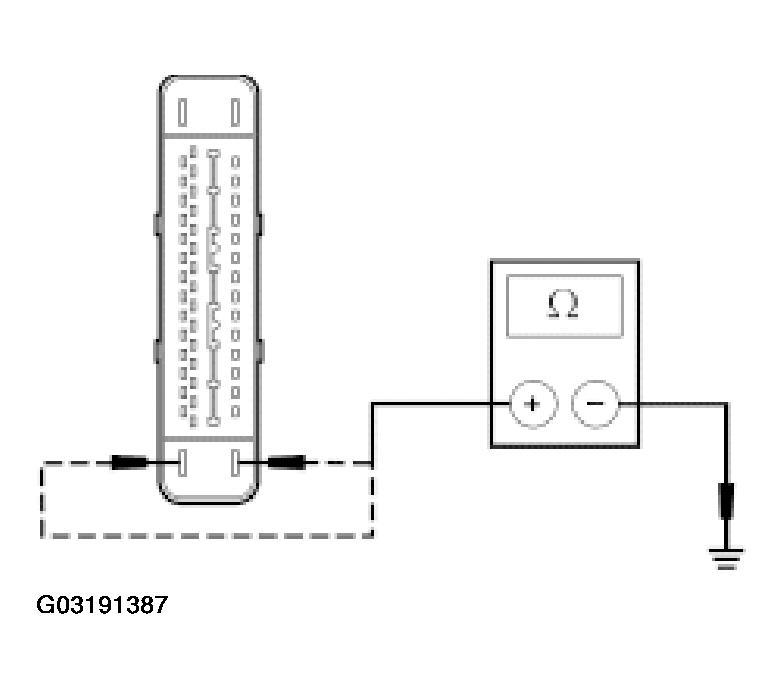

  Fig 2: Checking Traction Control Module Grounds

  Courtesy of FORD MOTOR CO.
• Are the resistances less than 5 ohms?

Result / Action to Take

Yes

REFER to MODULE COMMUNICATIONS NETWORK .

No

REPAIR the circuit in question. CLEAR the DTCs. REPEAT the self-test. TEST the system for normal operation.
