Removal and Installation

  1. Raise and support the vehicle. For additional information, refer to JACKING & HOISTING . Remove the wheel. .
  2. Remove the wheel speed sensor.

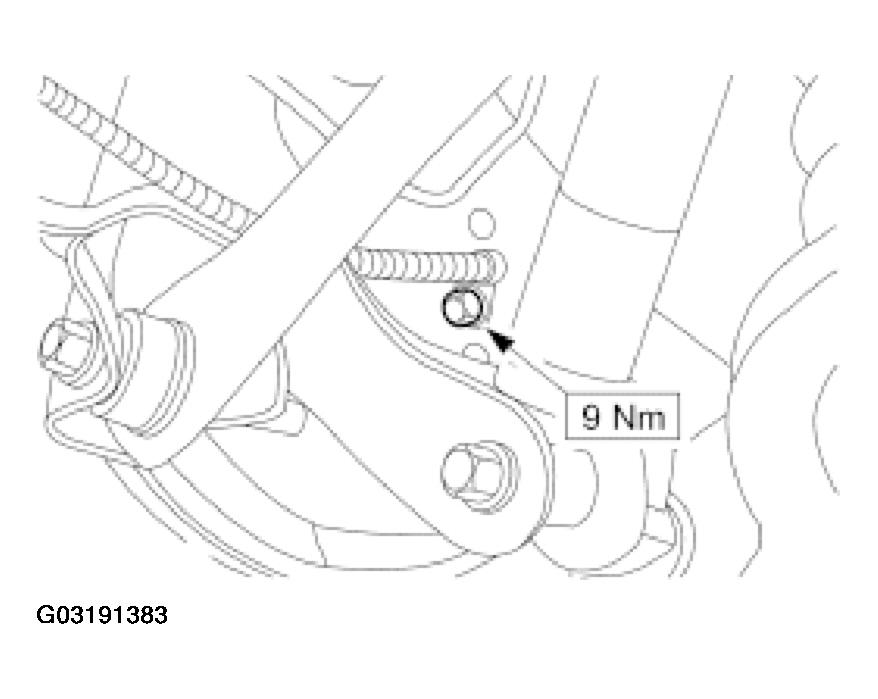

    Fig 1: Removing Wheel Speed Sensor
    G03191383Courtesy of FORD MOTOR CO.
  3. Disconnect the wheel speed sensor wiring harness.
    1. Disconnect the electrical connector.
    2. Detach the clips.

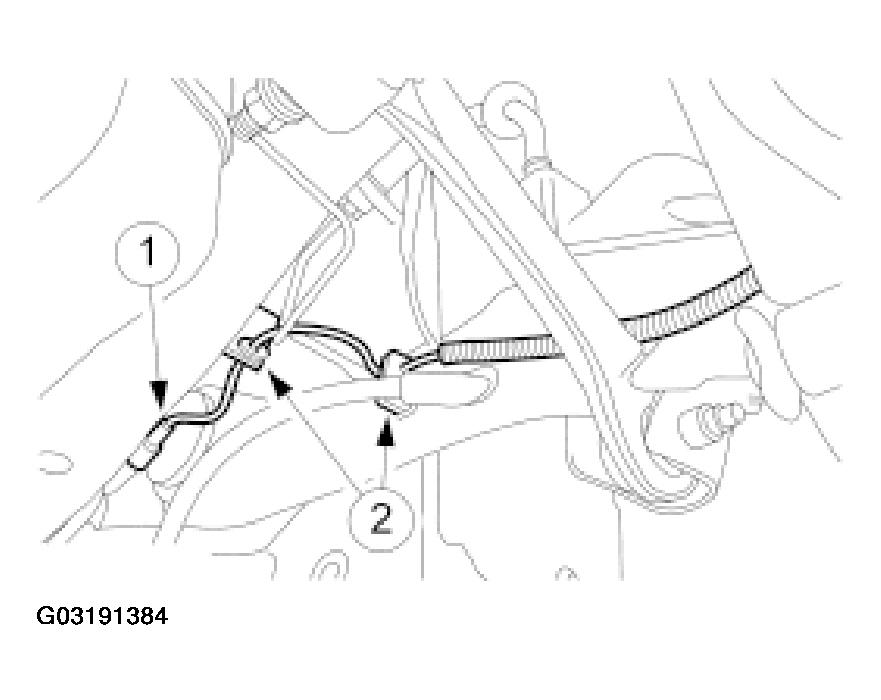

    Fig 2: Disconnecting Wheel Speed Sensor Wiring Harness
    G03191384Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
