Cylinder Block Distortion

  1. Using a Straight Edge and a Feeler Gauge, measure the cylinder block/cylinder head distortion.
    • Measure the mating face distortion.
    • If the value is not to specification rework the mating face (if allowed).

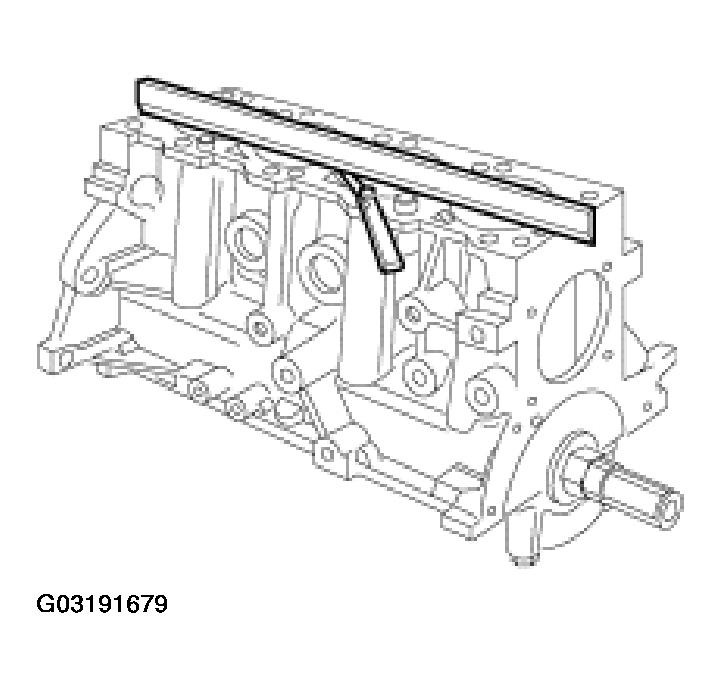

    Fig 1: Measuring Cylinder Block/Cylinder Head Distortion
    G03191679Courtesy of FORD MOTOR CO.
