Wheel Alignment Specifications

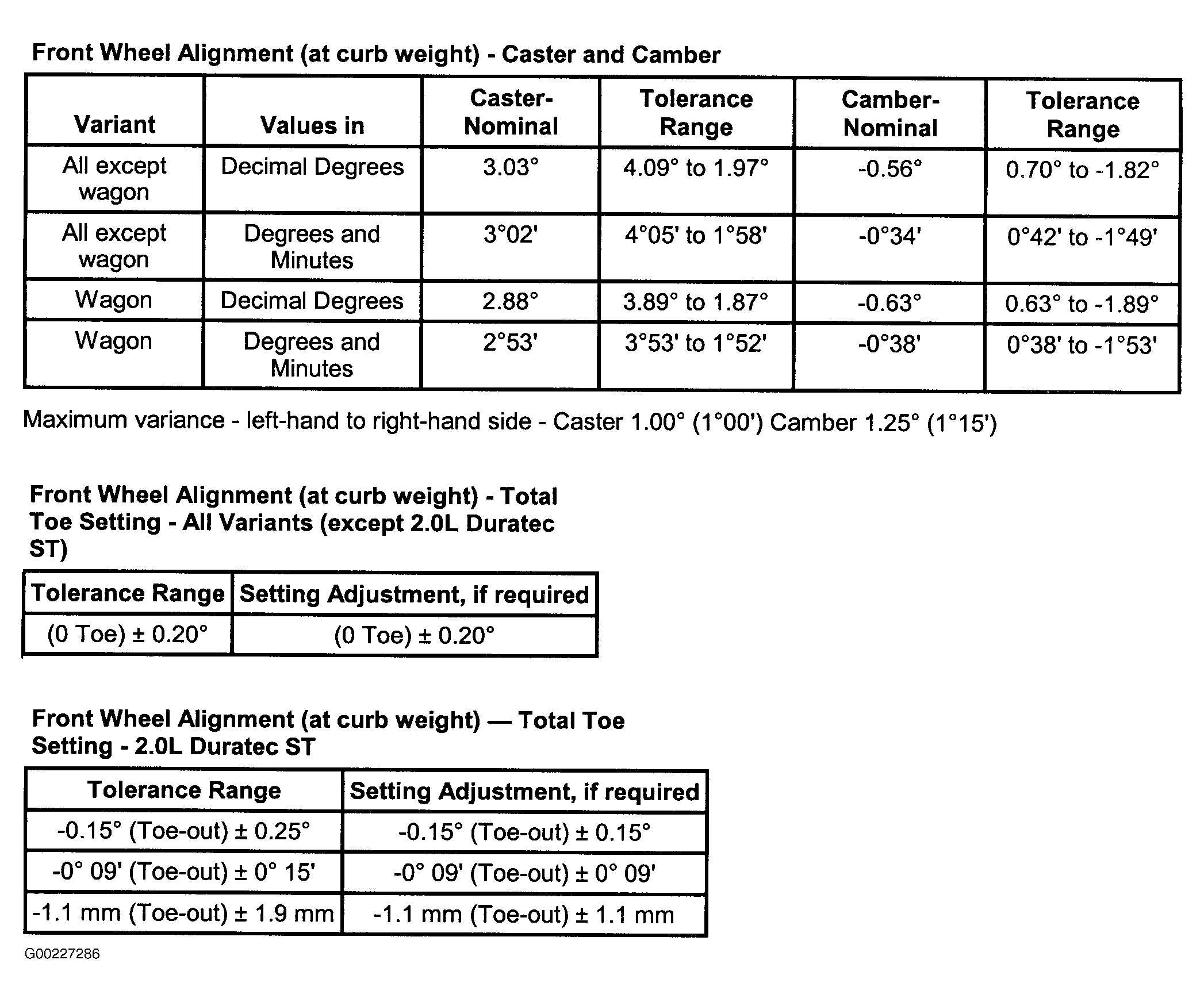

Fig 1: Front Wheel Alignment Specifications
Courtesy of FORD MOTOR CO.

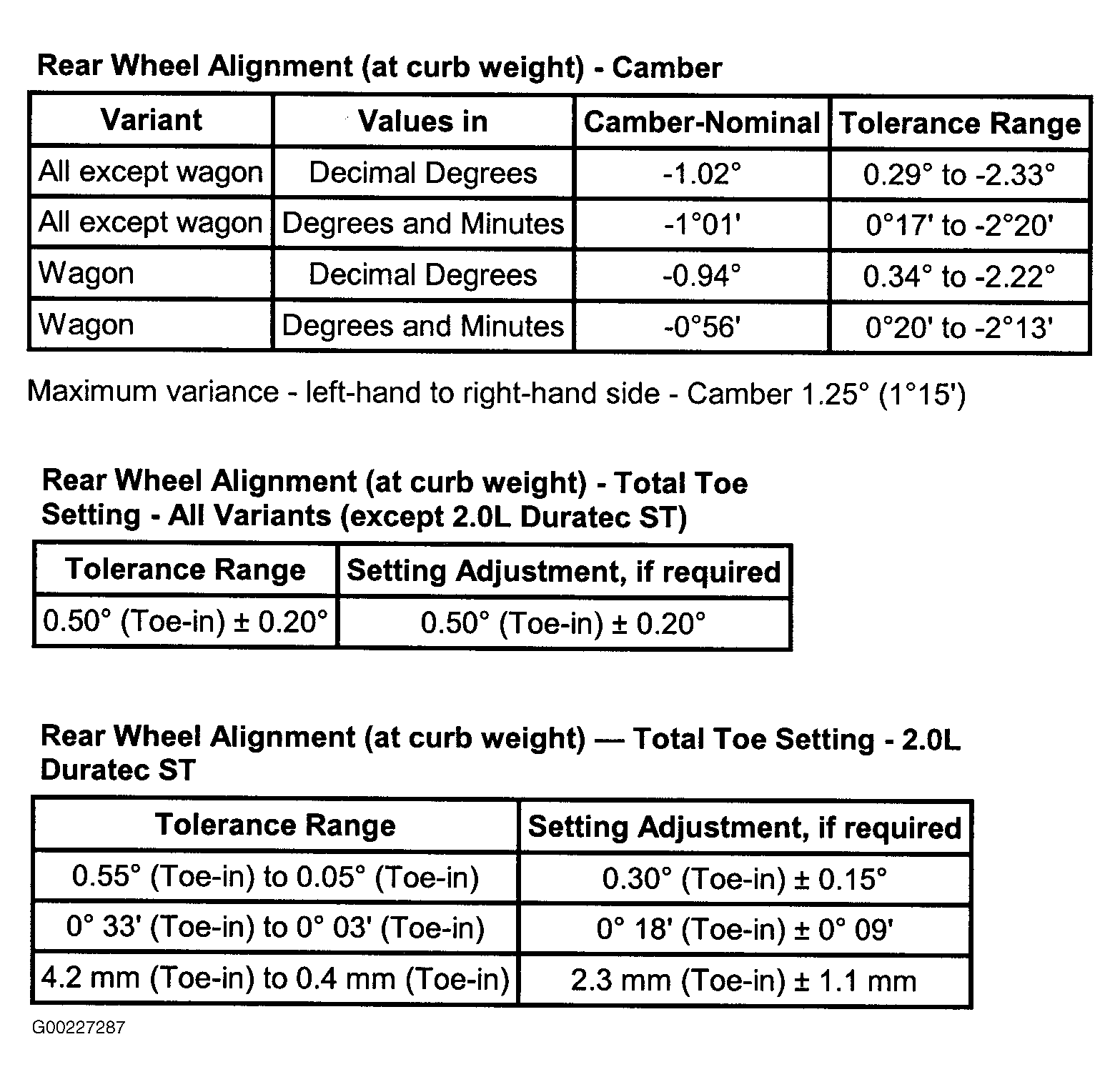

Fig 2: Rear Wheel Alignment Specifications
Courtesy of FORD MOTOR CO.
