Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

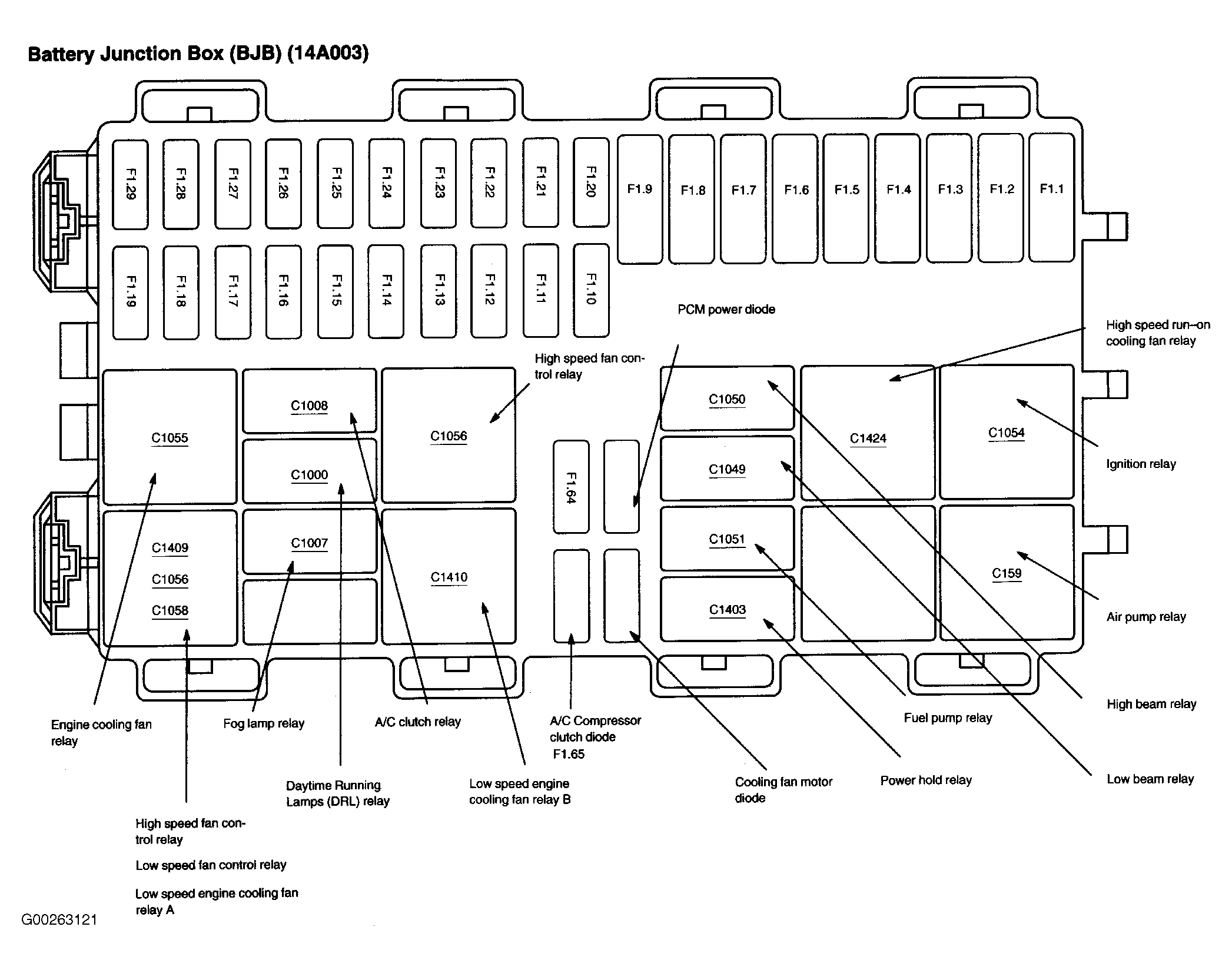

Fig 1: Battery Junction Box (BJB)
Courtesy of FORD MOTOR CO.
Fig 2: Central Junction Box (CJB)
Courtesy of FORD MOTOR CO.
Fig 3: Front Of Engine Compartment (SVT)
Courtesy of FORD MOTOR CO.
Fig 4: Front Of Engine Compartment (Except SVT)
Courtesy of FORD MOTOR CO.

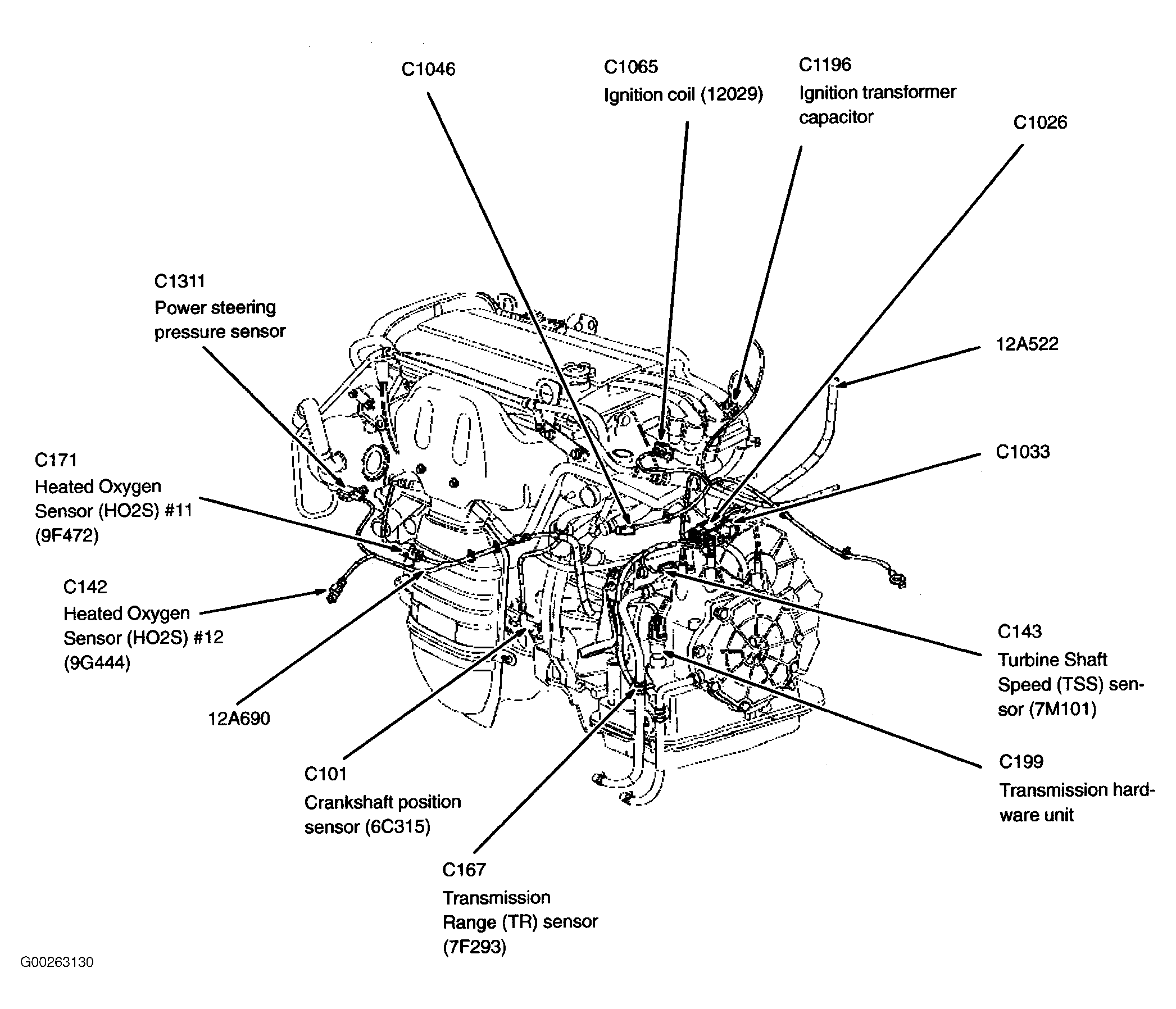

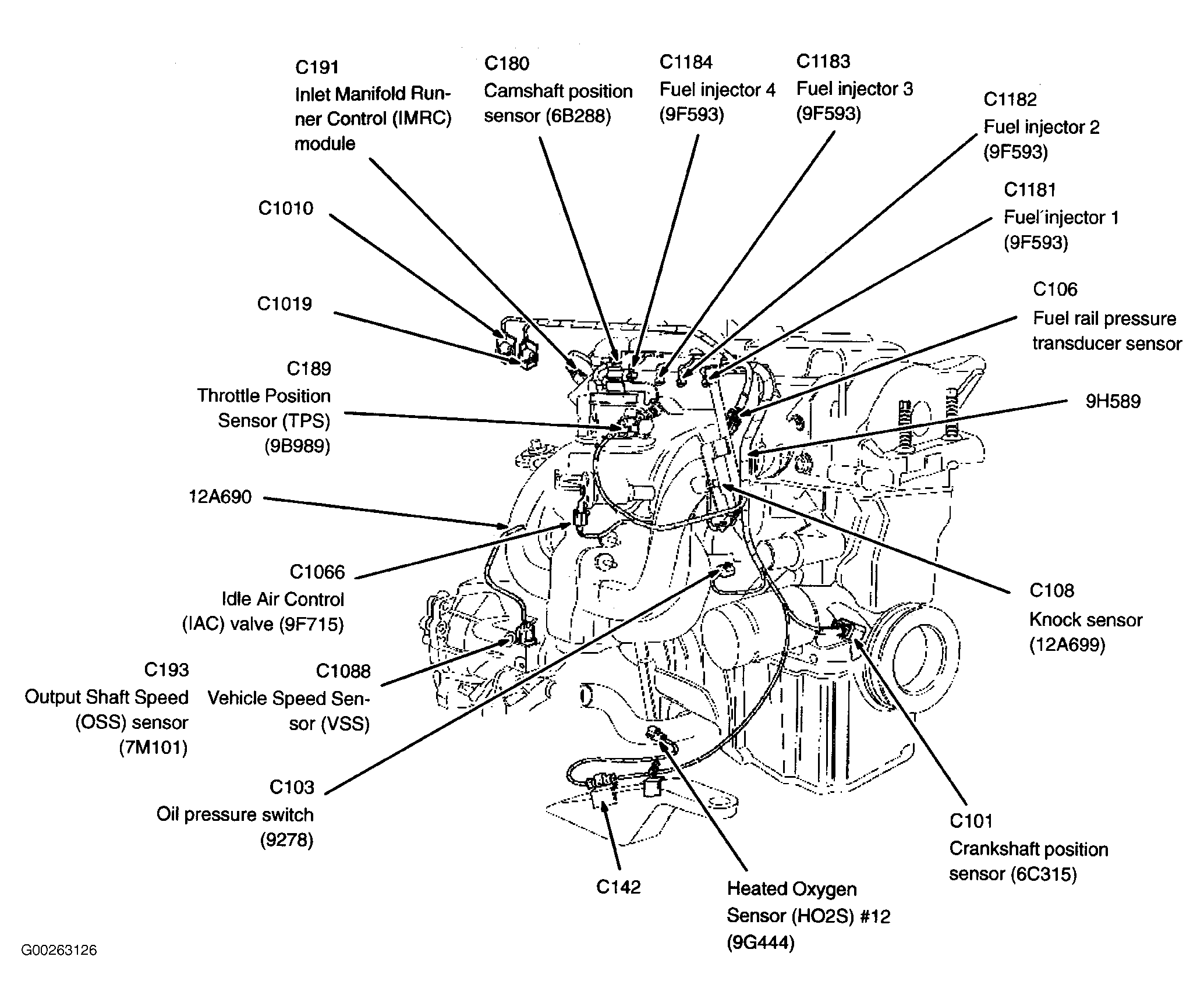

Fig 5: Rear Of Engine (2.0L SPI) (A/T)
Courtesy of FORD MOTOR CO.

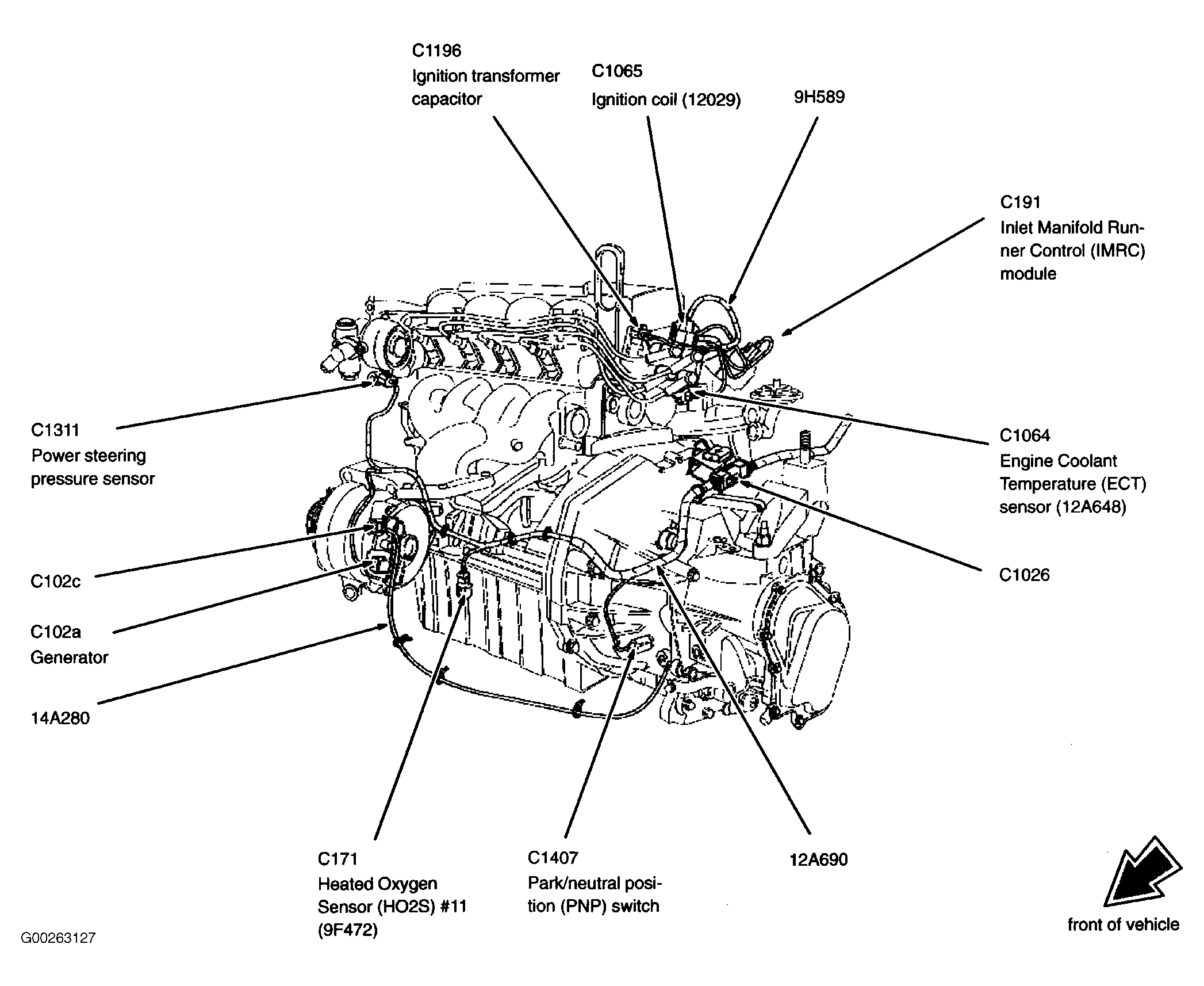

Fig 6: Right Side Of Engine (2.0L SPI)
Courtesy of FORD MOTOR CO.

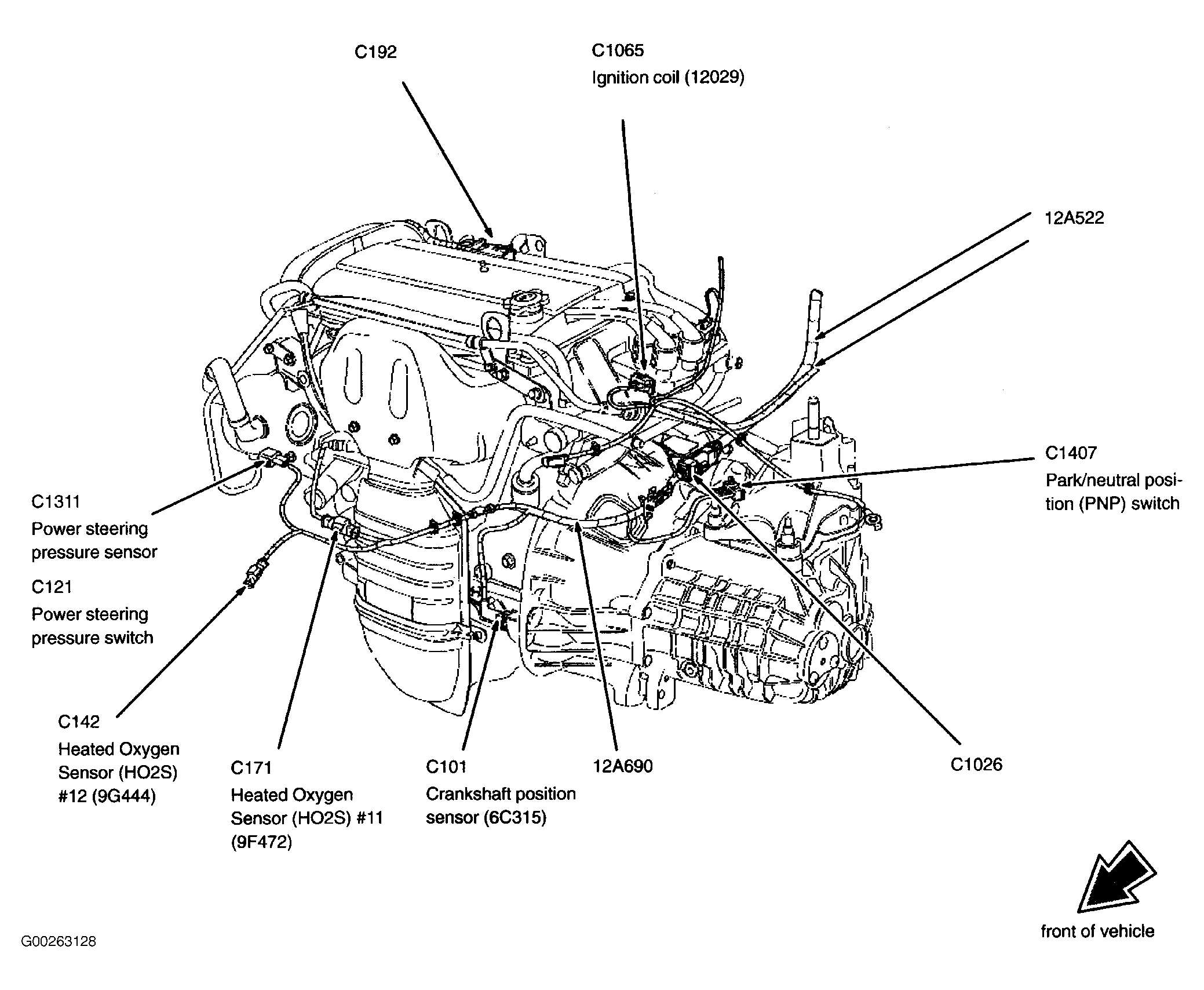

Fig 7: Rear Of Engine (2.0L SPI) (M/T)
Courtesy of FORD MOTOR CO.

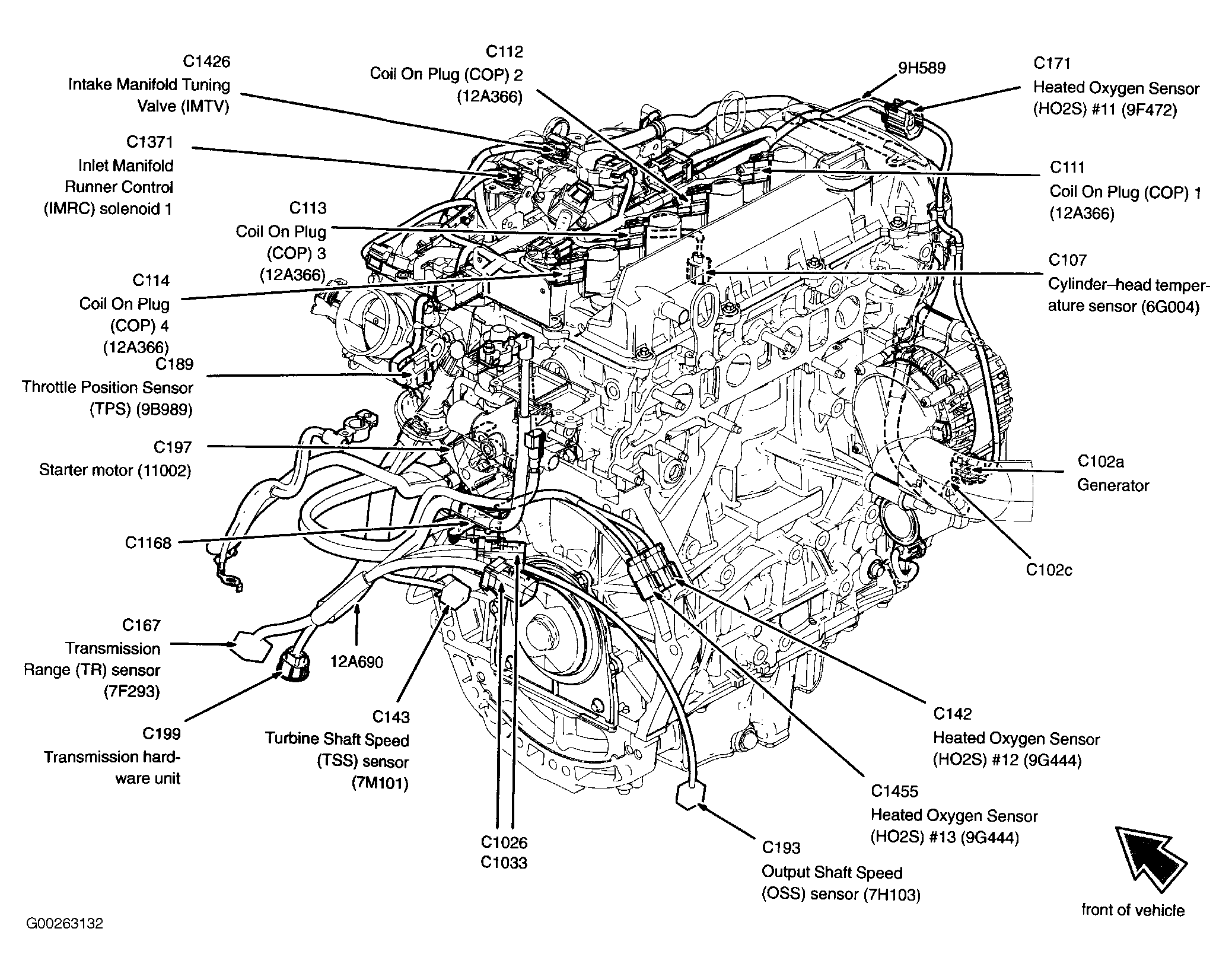

Fig 8: Left Side Of Engine (2.0L DOHC) (M/T) (SVT Similar)
Courtesy of FORD MOTOR CO.

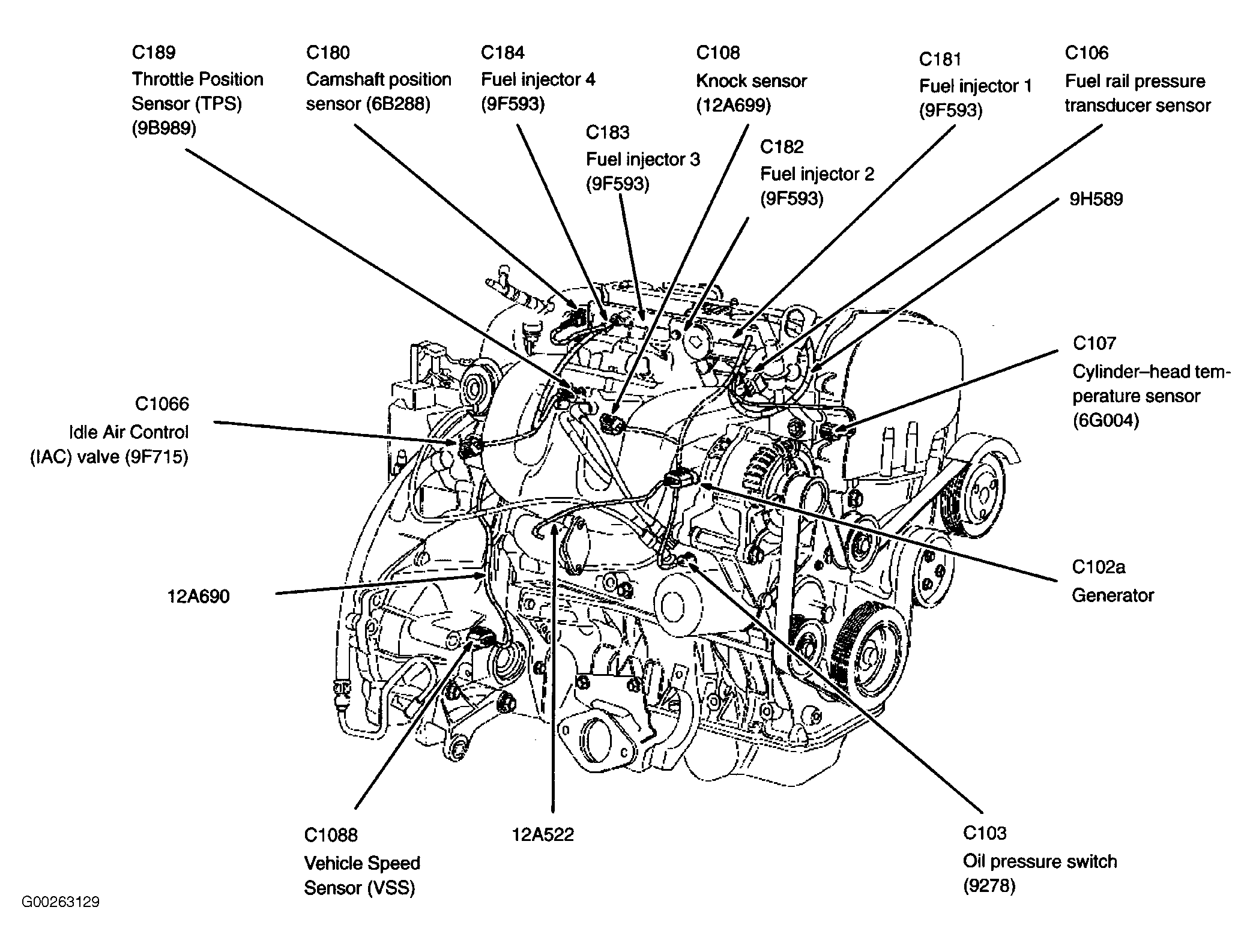

Fig 9: Right Side Of Engine (2.0L DOHC) (SVT Similar)
Courtesy of FORD MOTOR CO.
Fig 10: Left Side Of Engine (2.0L DOHC) (A/T)
Courtesy of FORD MOTOR CO.
Fig 11: Front Of Engine (2.3L)
Courtesy of FORD MOTOR CO.
Fig 12: Rear Of Engine (2.3L)
Courtesy of FORD MOTOR CO.

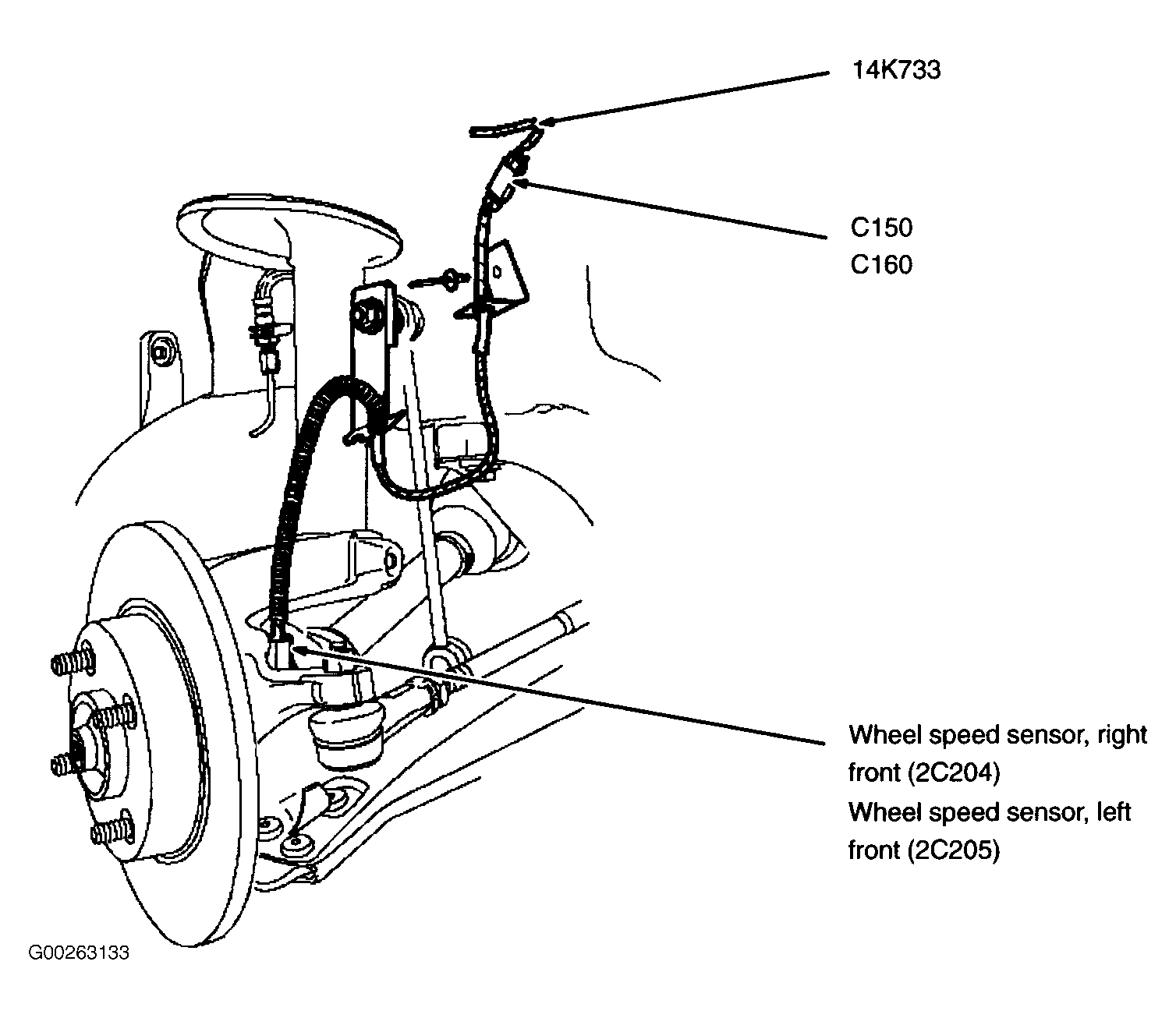

Fig 13: Driver Side Front Suspension (Passenger Side Similar)
Courtesy of FORD MOTOR CO.

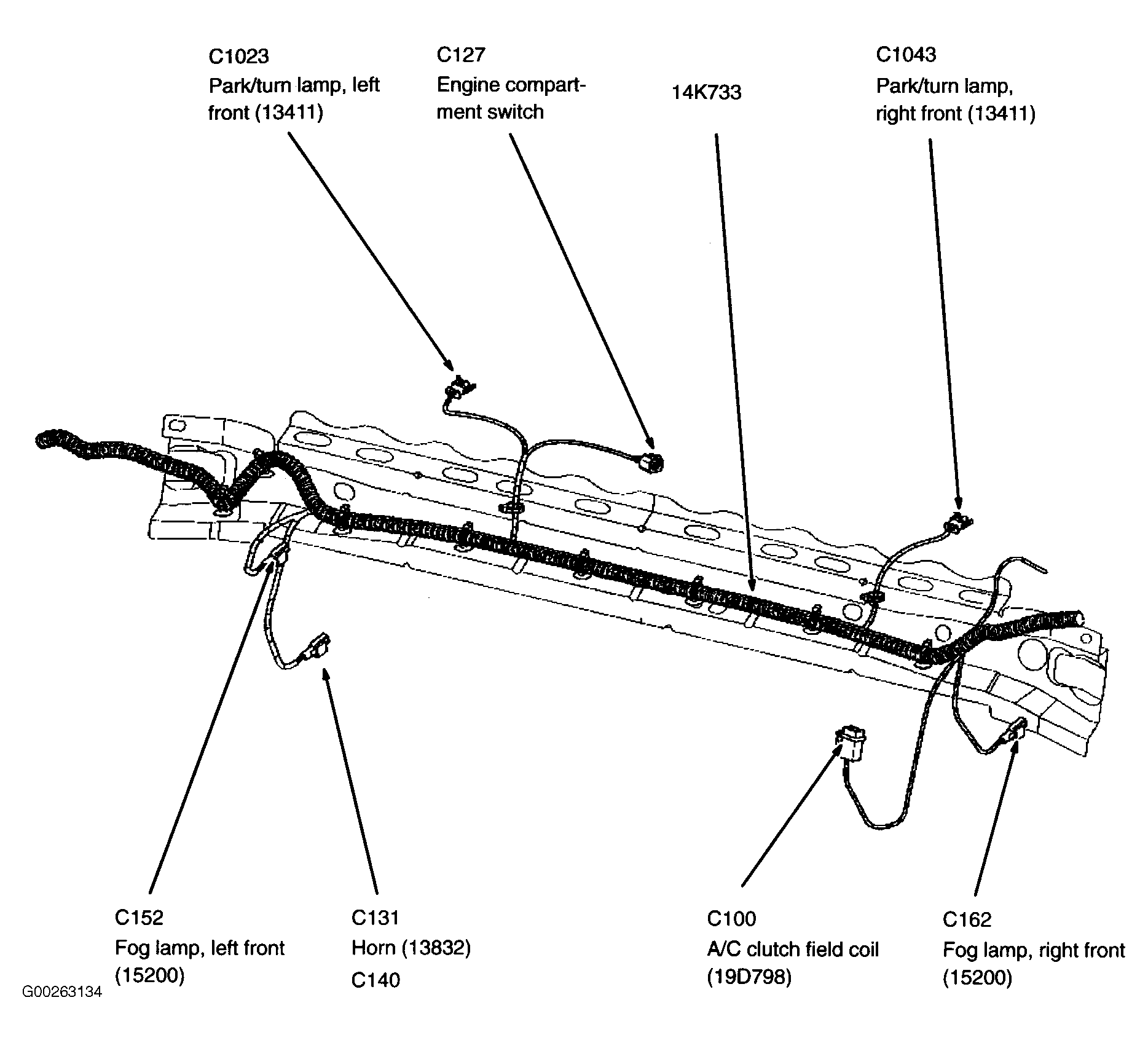

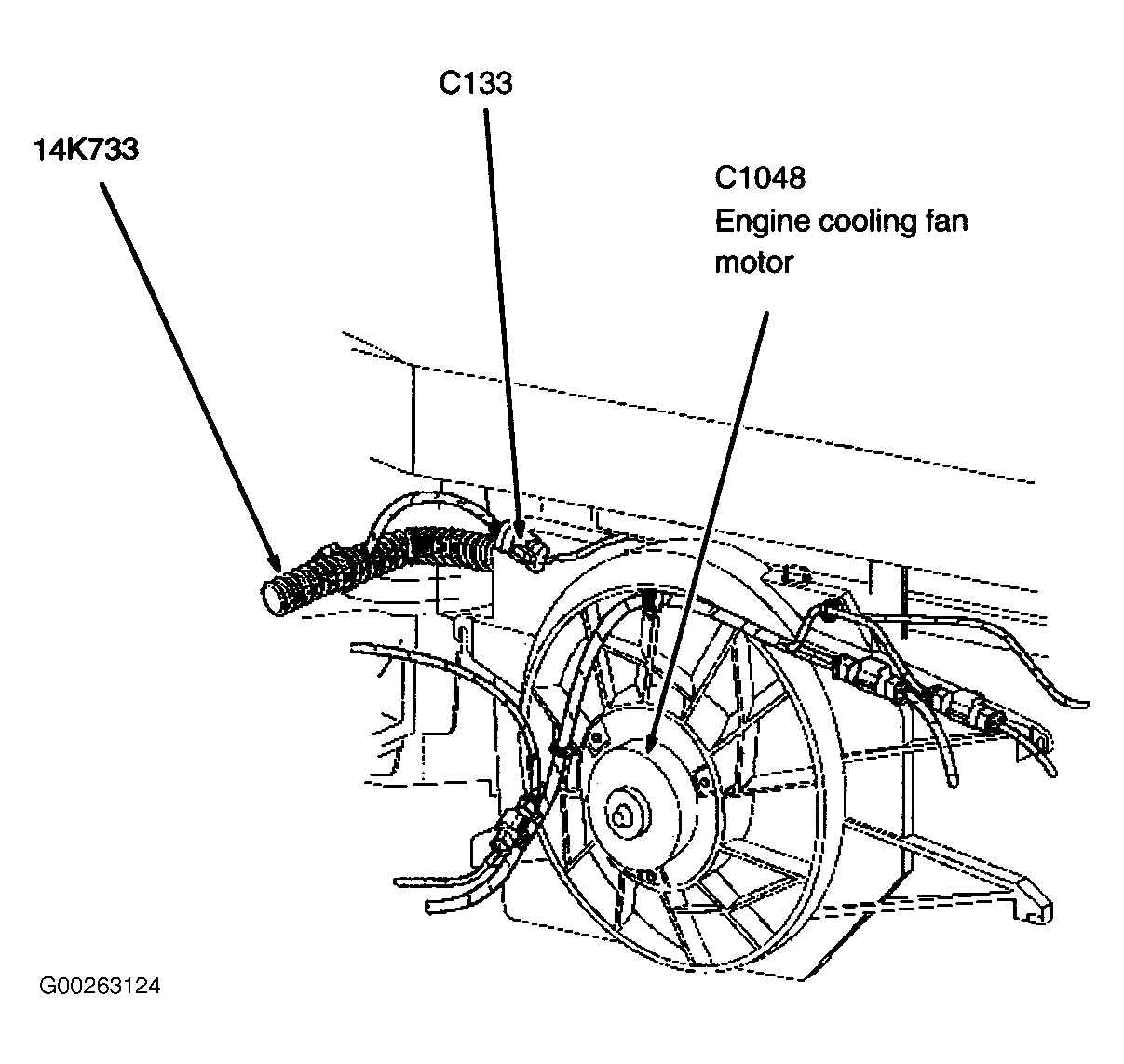

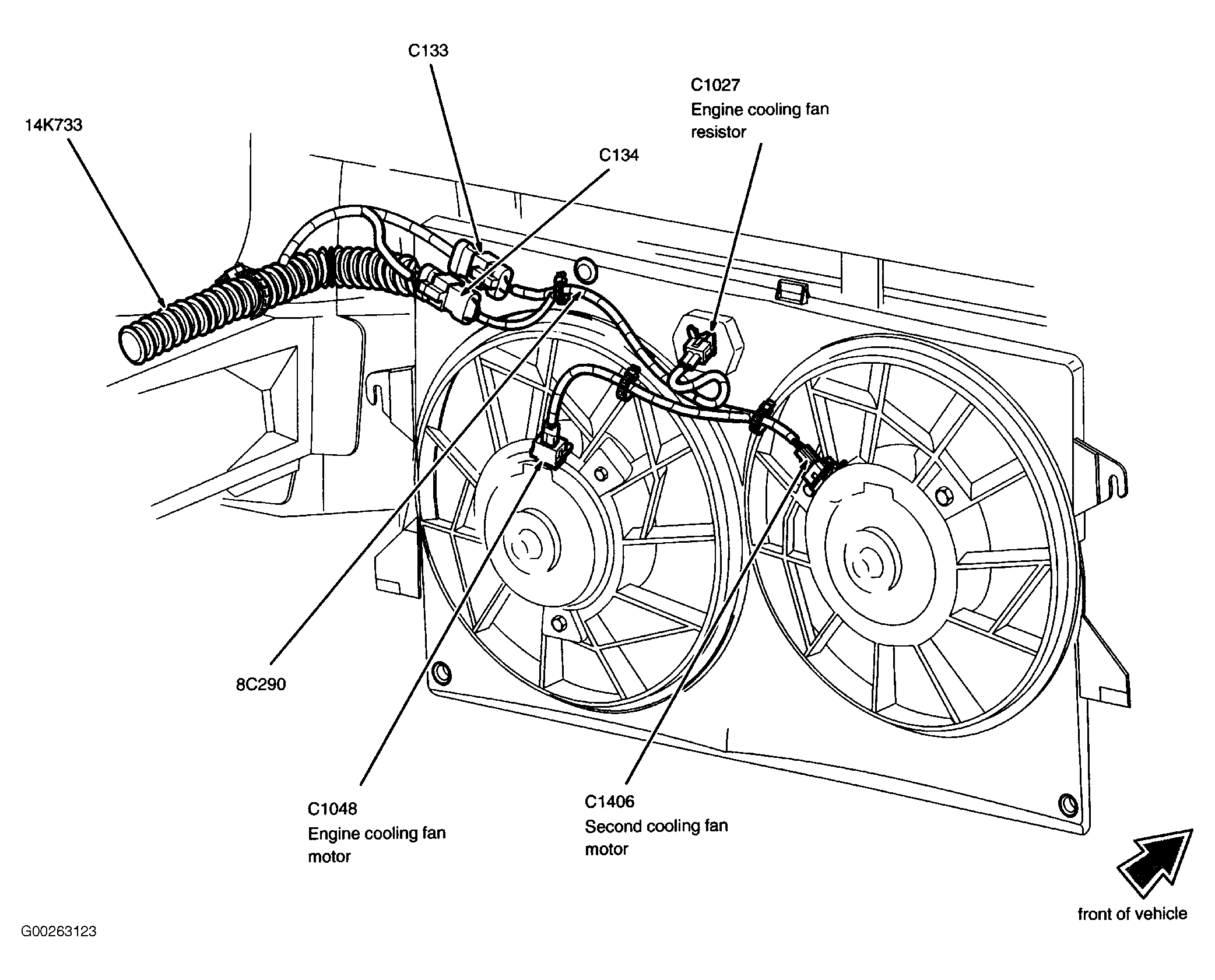

Fig 14: Front Of Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 15: Right Front Of Engine Compartment
Courtesy of FORD MOTOR CO.

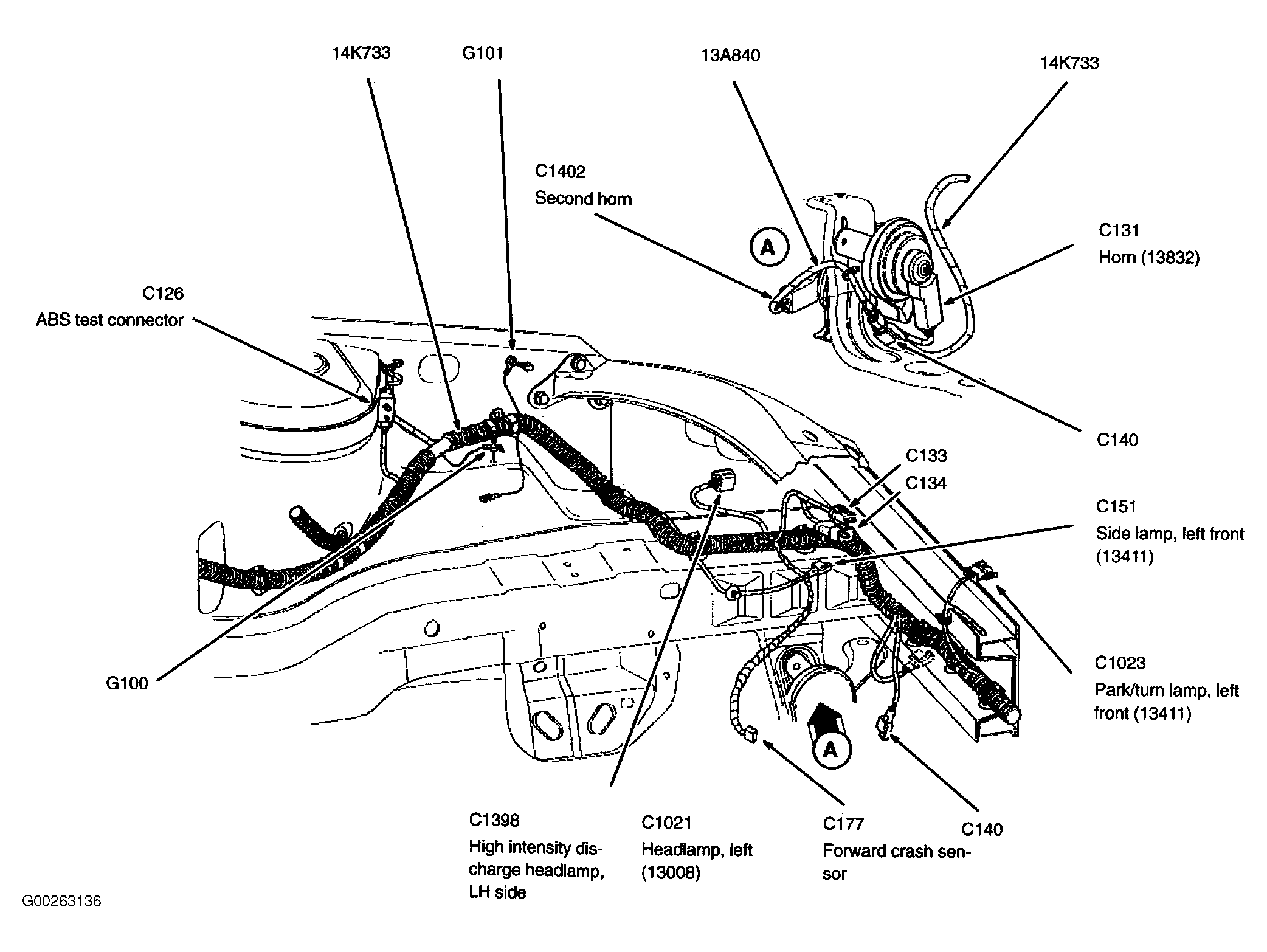

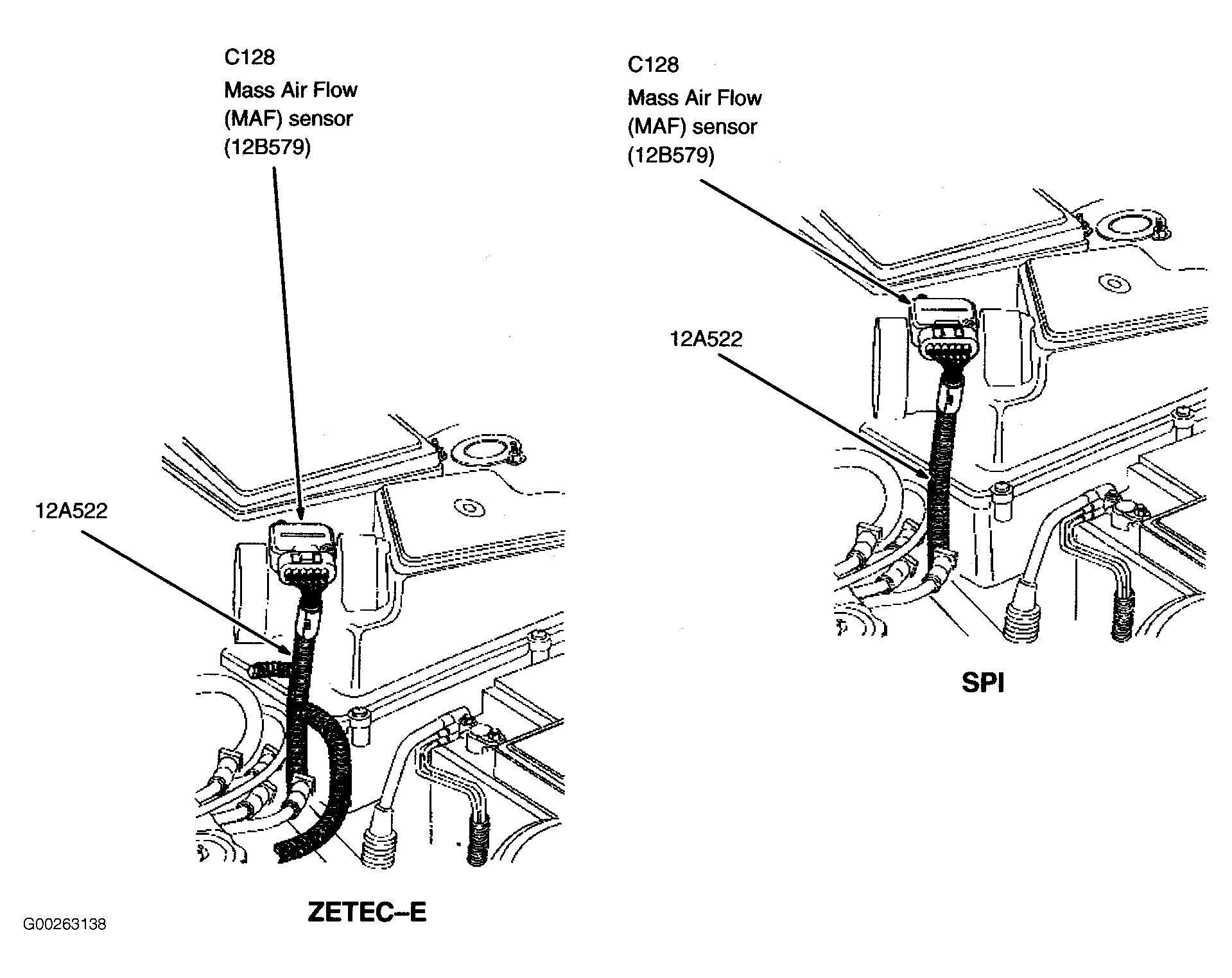

Fig 16: Left Front Of Engine Compartment
Courtesy of FORD MOTOR CO.

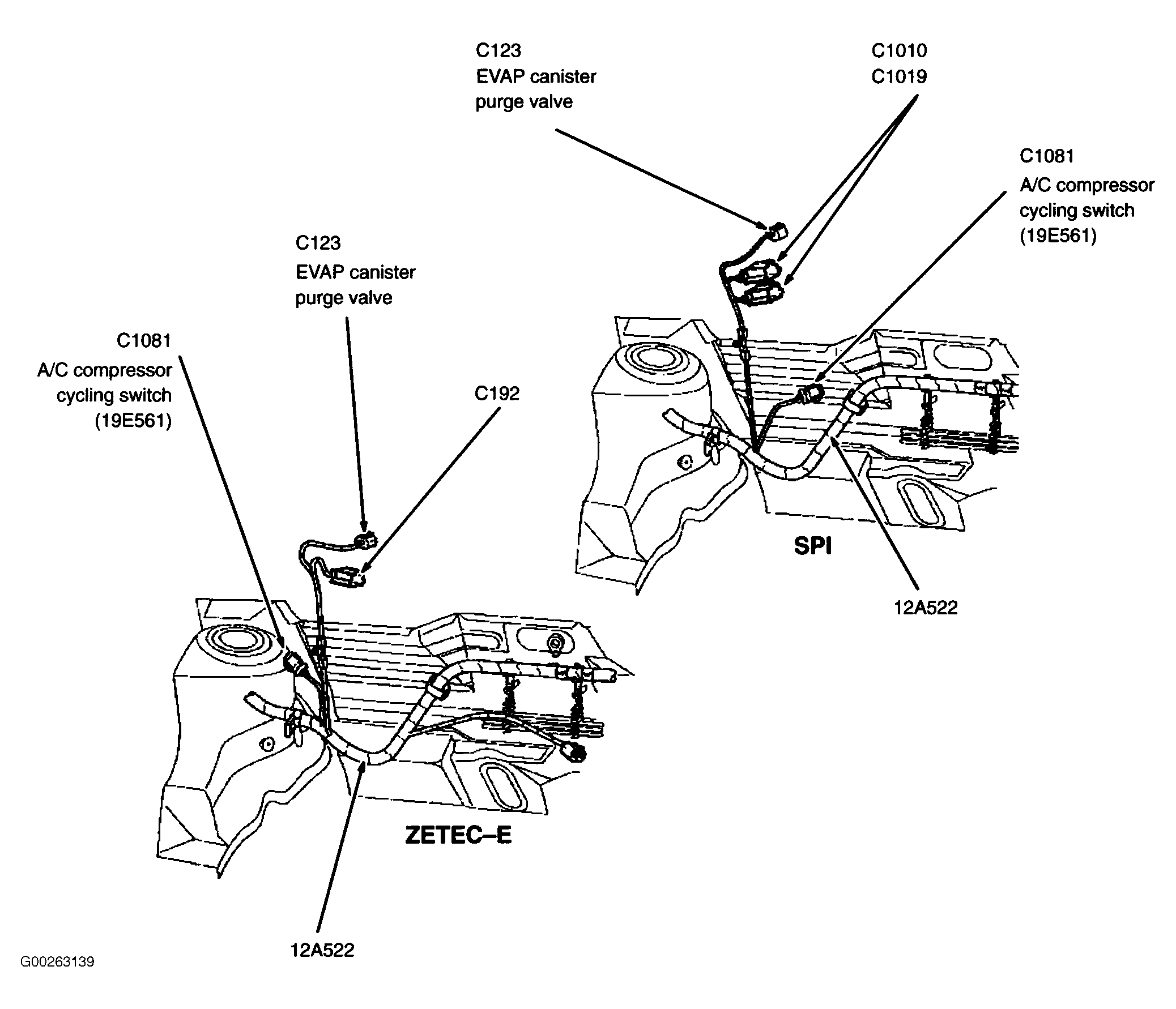

Fig 17: Left Side Of Firewall
Courtesy of FORD MOTOR CO.
Fig 18: Left Side Of Engine Compartment
Courtesy of FORD MOTOR CO.

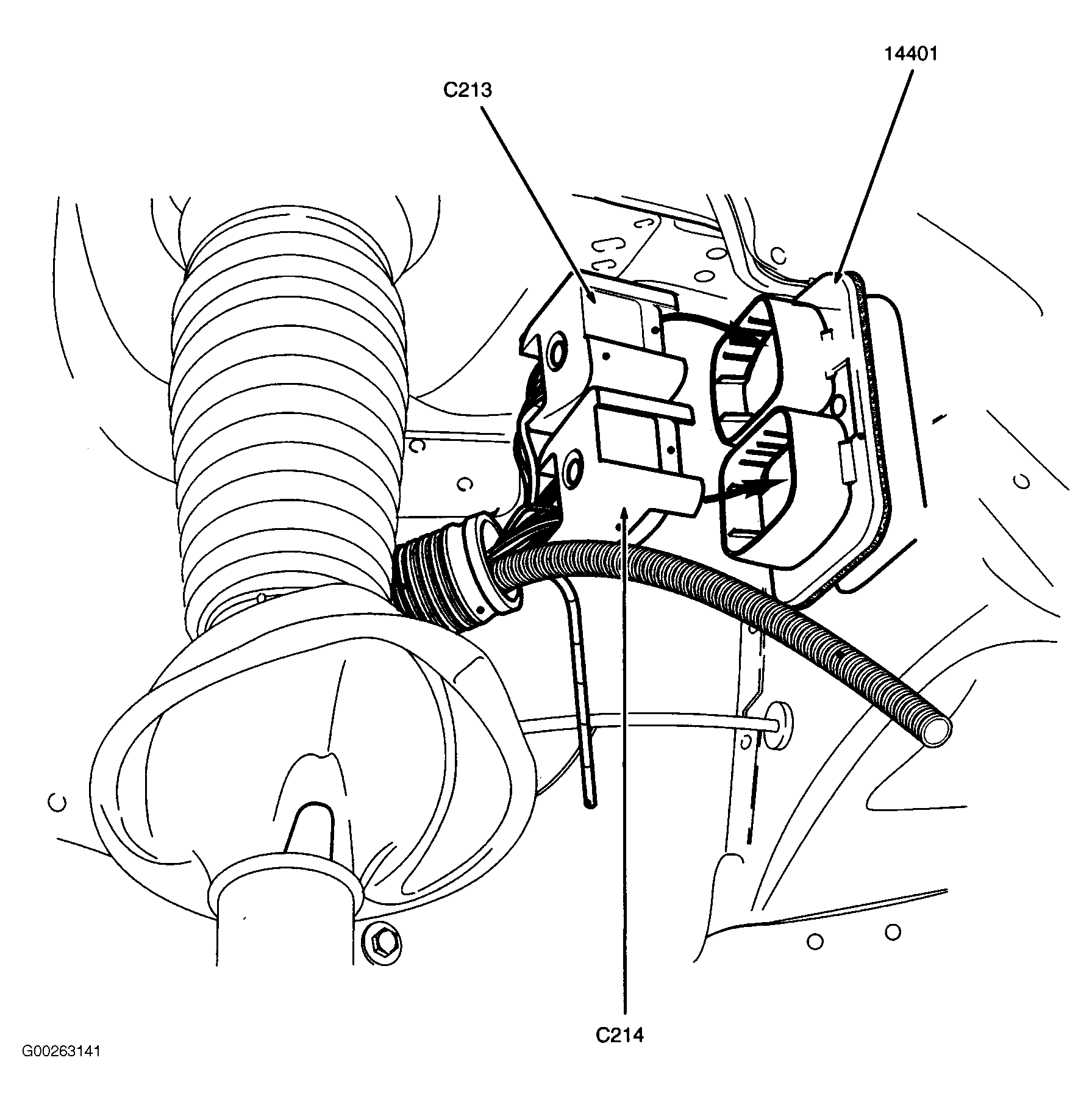

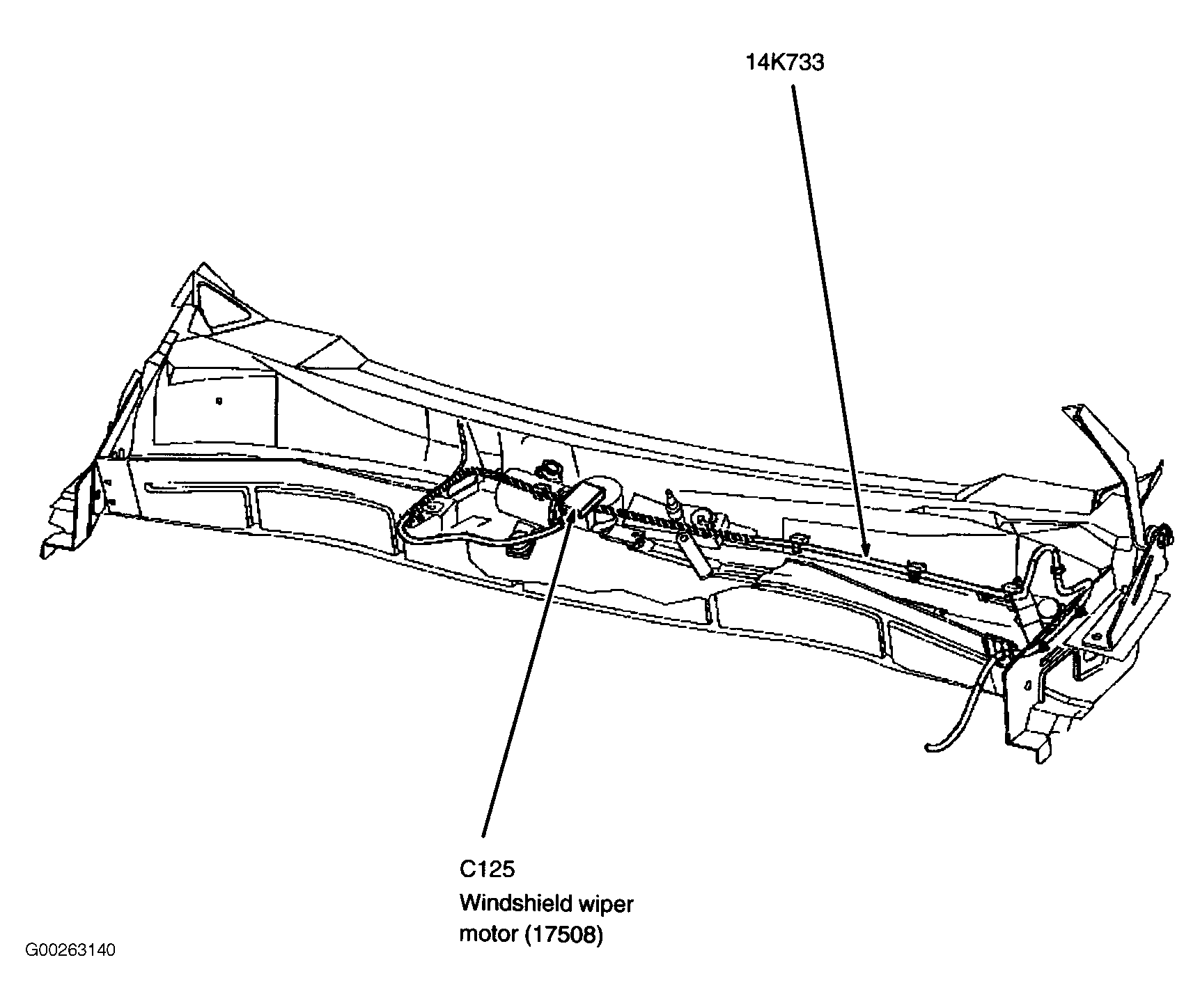

Fig 19: Firewall
Courtesy of FORD MOTOR CO.
Fig 20: Firewall
Courtesy of FORD MOTOR CO.
Fig 21: Left Rear Of Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 22: Rear Of Dash
Courtesy of FORD MOTOR CO.

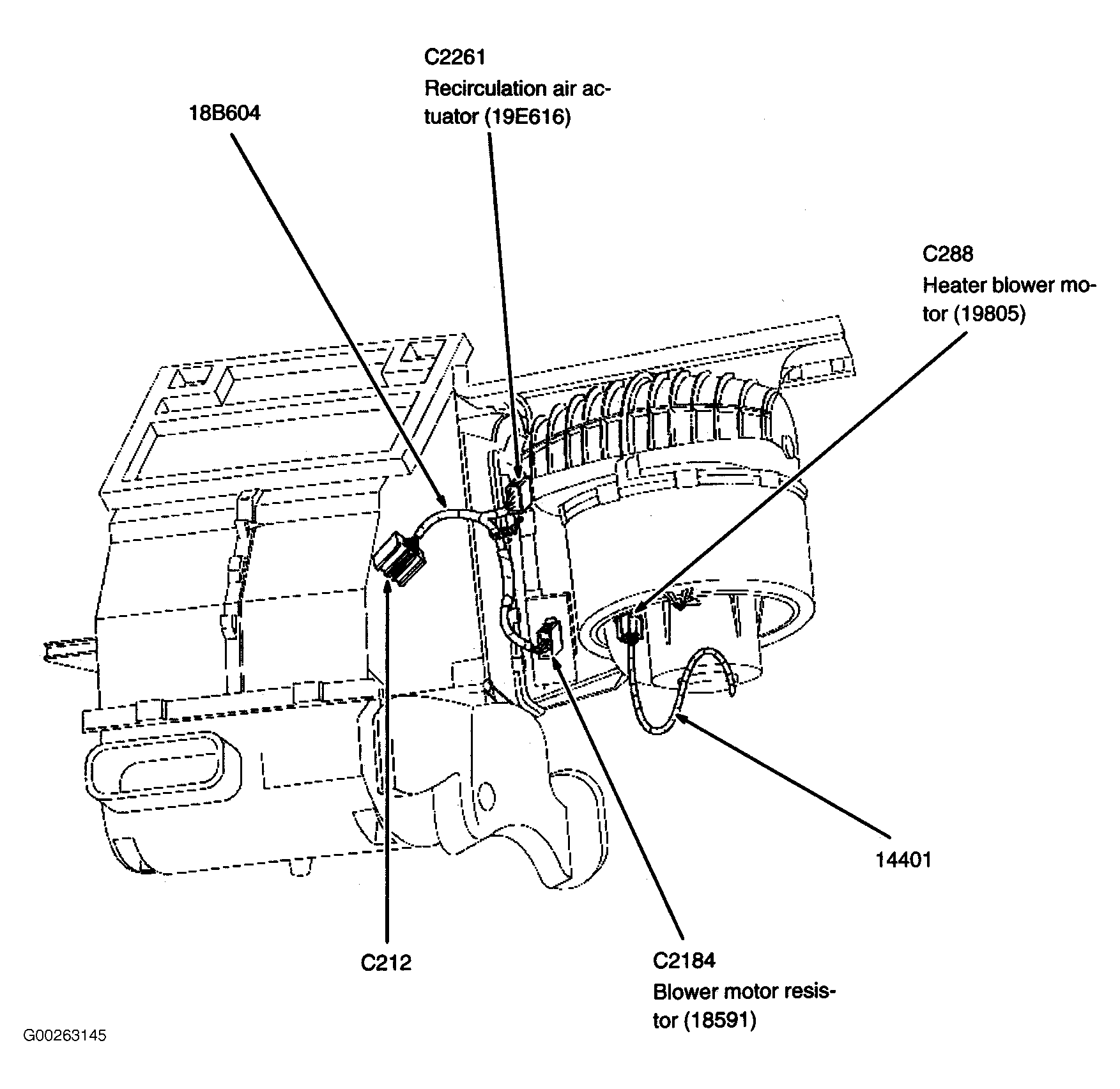

Fig 23: Front Of Dash
Courtesy of FORD MOTOR CO.
Fig 24: Center Of Dash
Courtesy of FORD MOTOR CO.
Fig 25: Steering Column
Courtesy of FORD MOTOR CO.

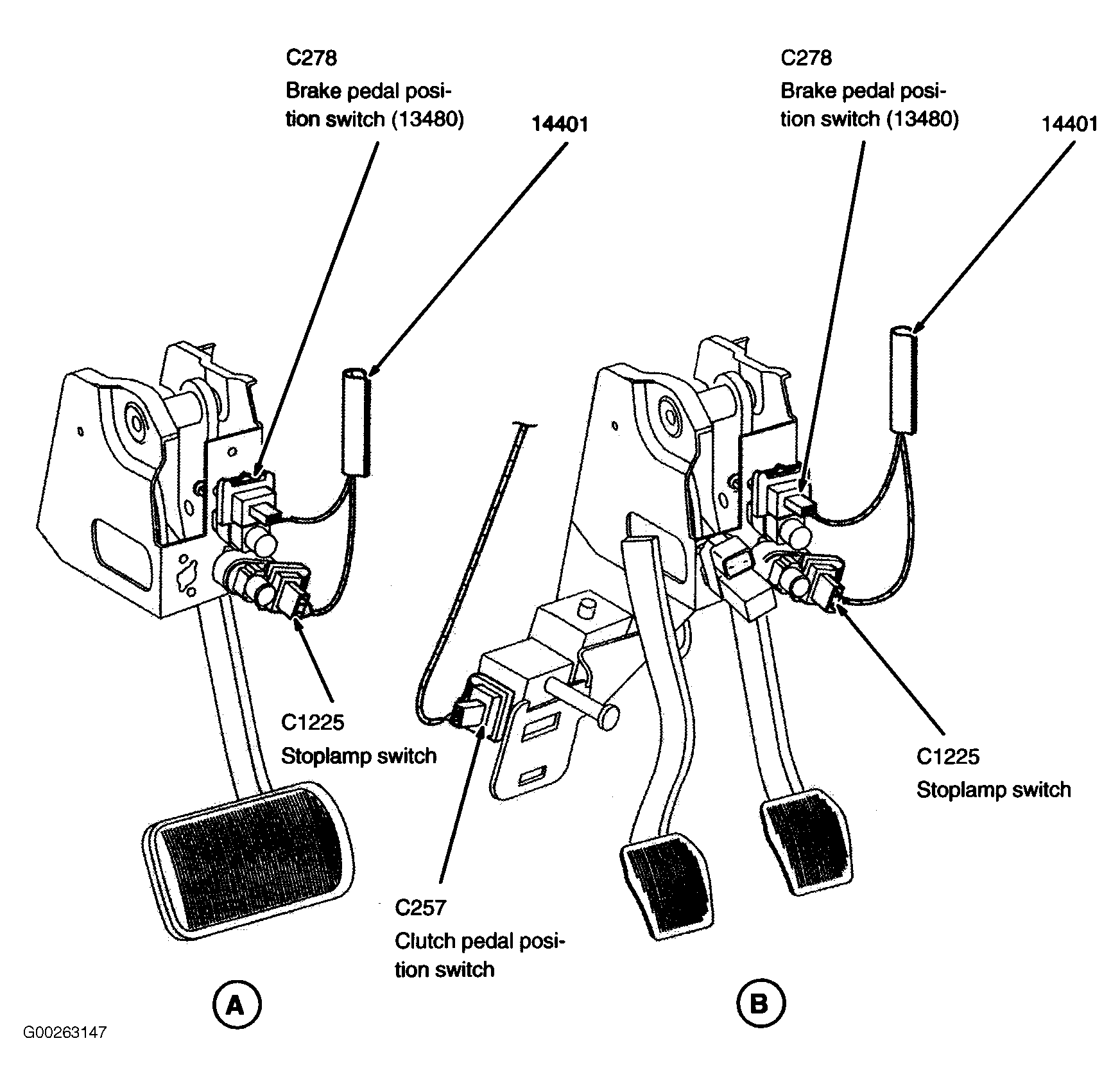

Fig 26: Brake Pedal Support
Courtesy of FORD MOTOR CO.
Fig 27: Left Side Of Dash
Courtesy of FORD MOTOR CO.

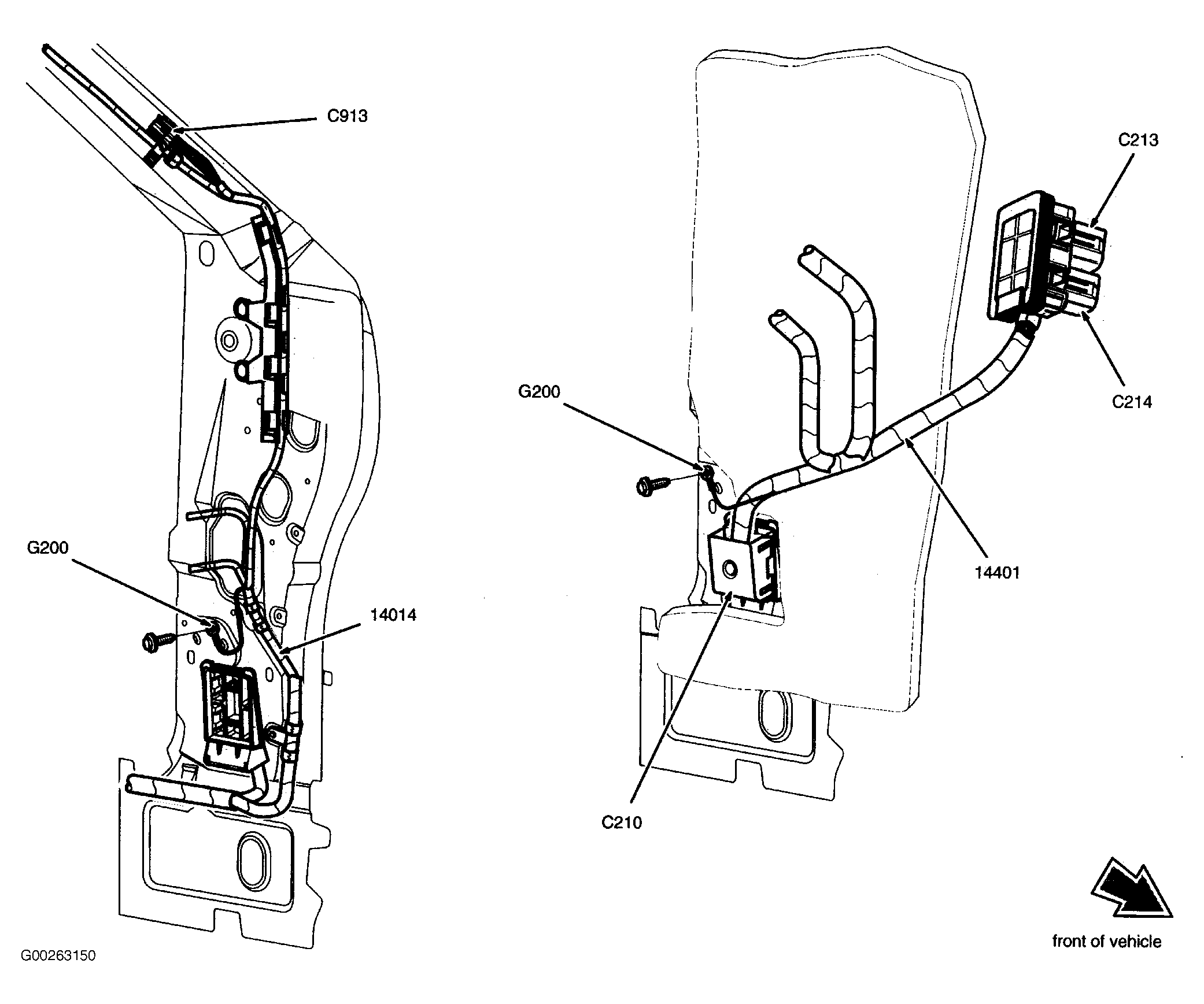

Fig 28: Right "A" Pillar
Courtesy of FORD MOTOR CO.
Fig 29: Left "A" Pillar
Courtesy of FORD MOTOR CO.
Fig 30: Center Console
Courtesy of FORD MOTOR CO.

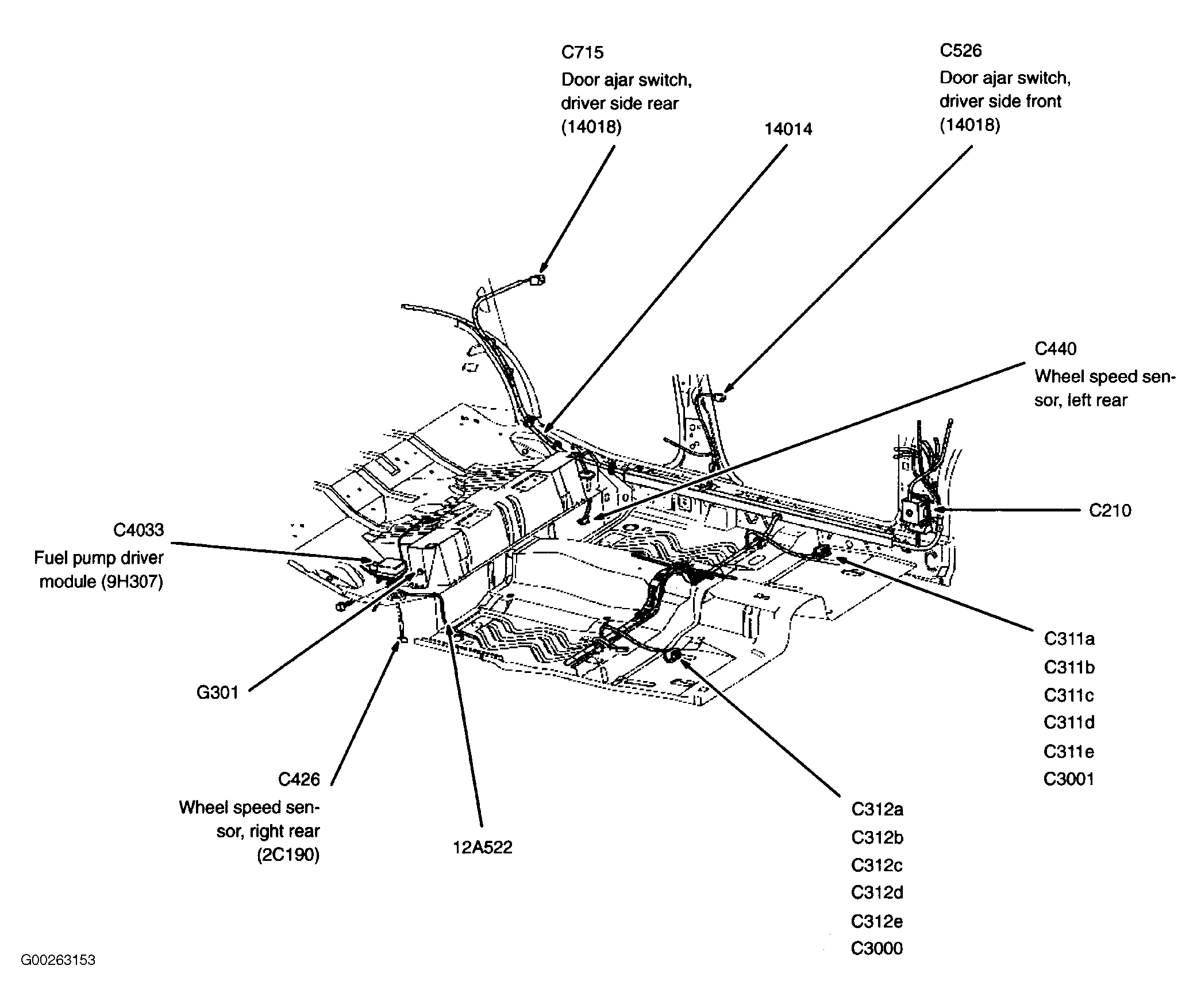

Fig 31: Vehicle Floor
Courtesy of FORD MOTOR CO.
Fig 32: Vehicle Floor
Courtesy of FORD MOTOR CO.

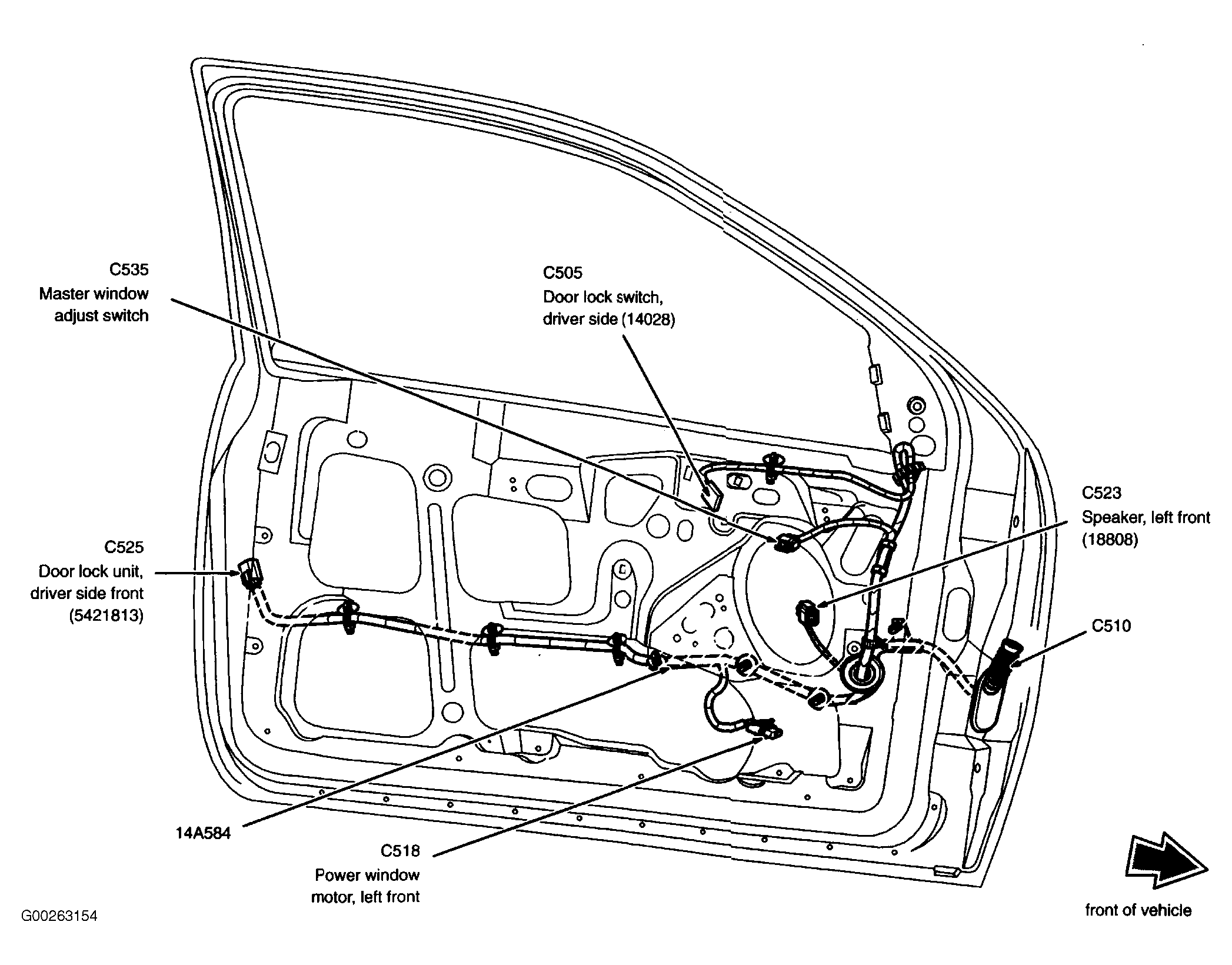

Fig 33: Left Front Door (3-Door)
Courtesy of FORD MOTOR CO.

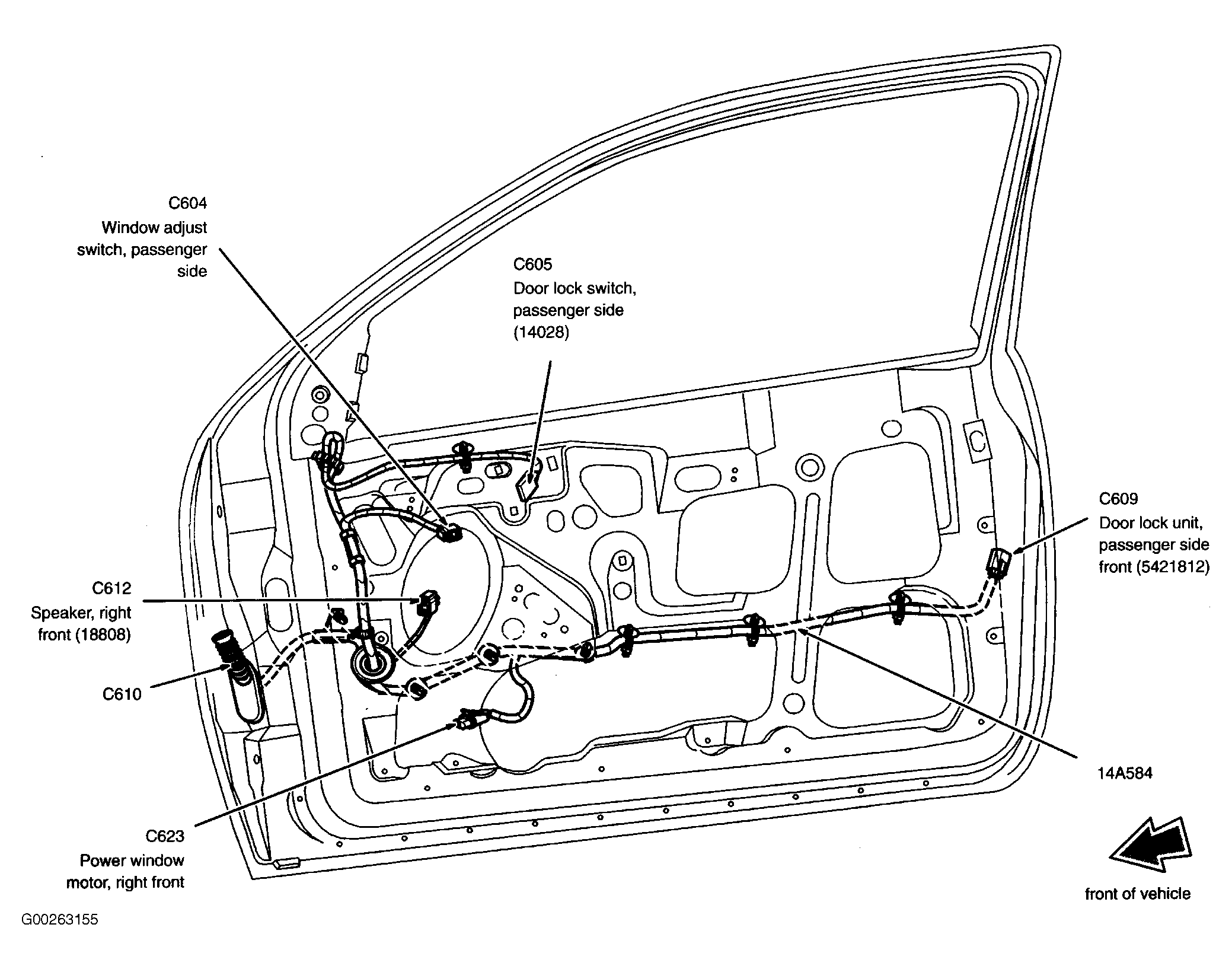

Fig 34: Right Front Door (3-Door)
Courtesy of FORD MOTOR CO.

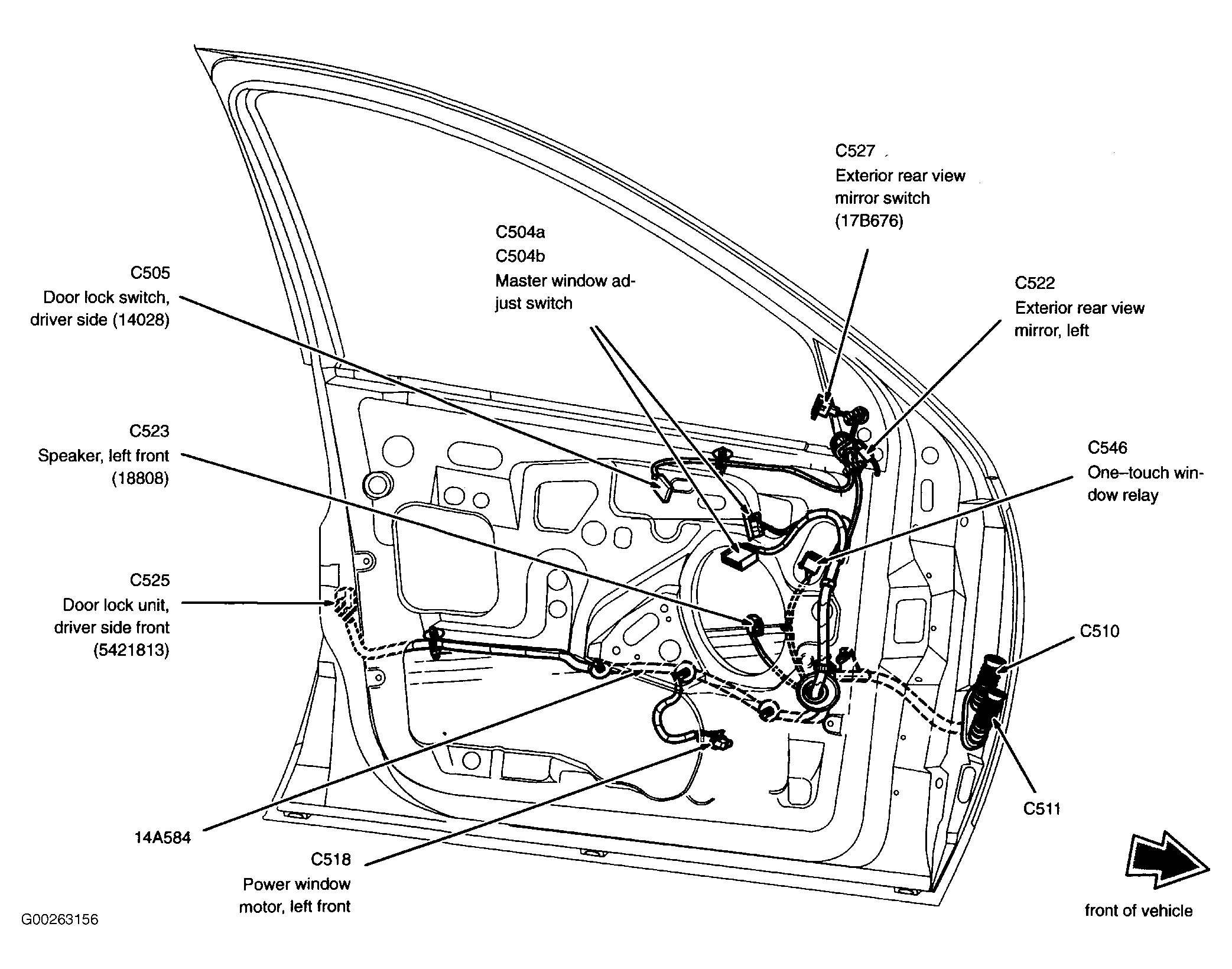

Fig 35: Left Front Door (Except 3-Door)
Courtesy of FORD MOTOR CO.

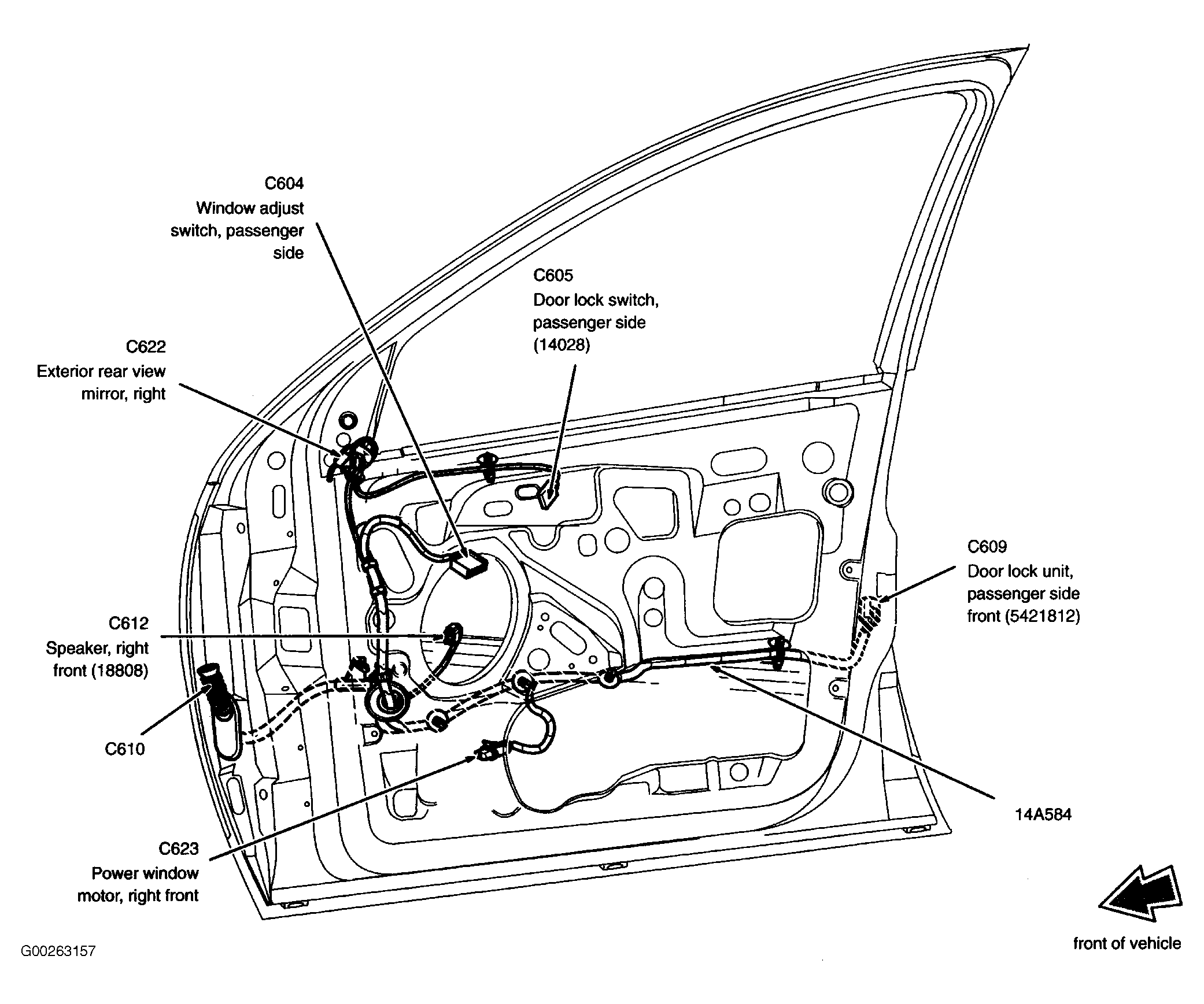

Fig 36: Right Front Door (Except 3-Door)
Courtesy of FORD MOTOR CO.
Fig 37: Right Rear Door (Left Similar)
Courtesy of FORD MOTOR CO.

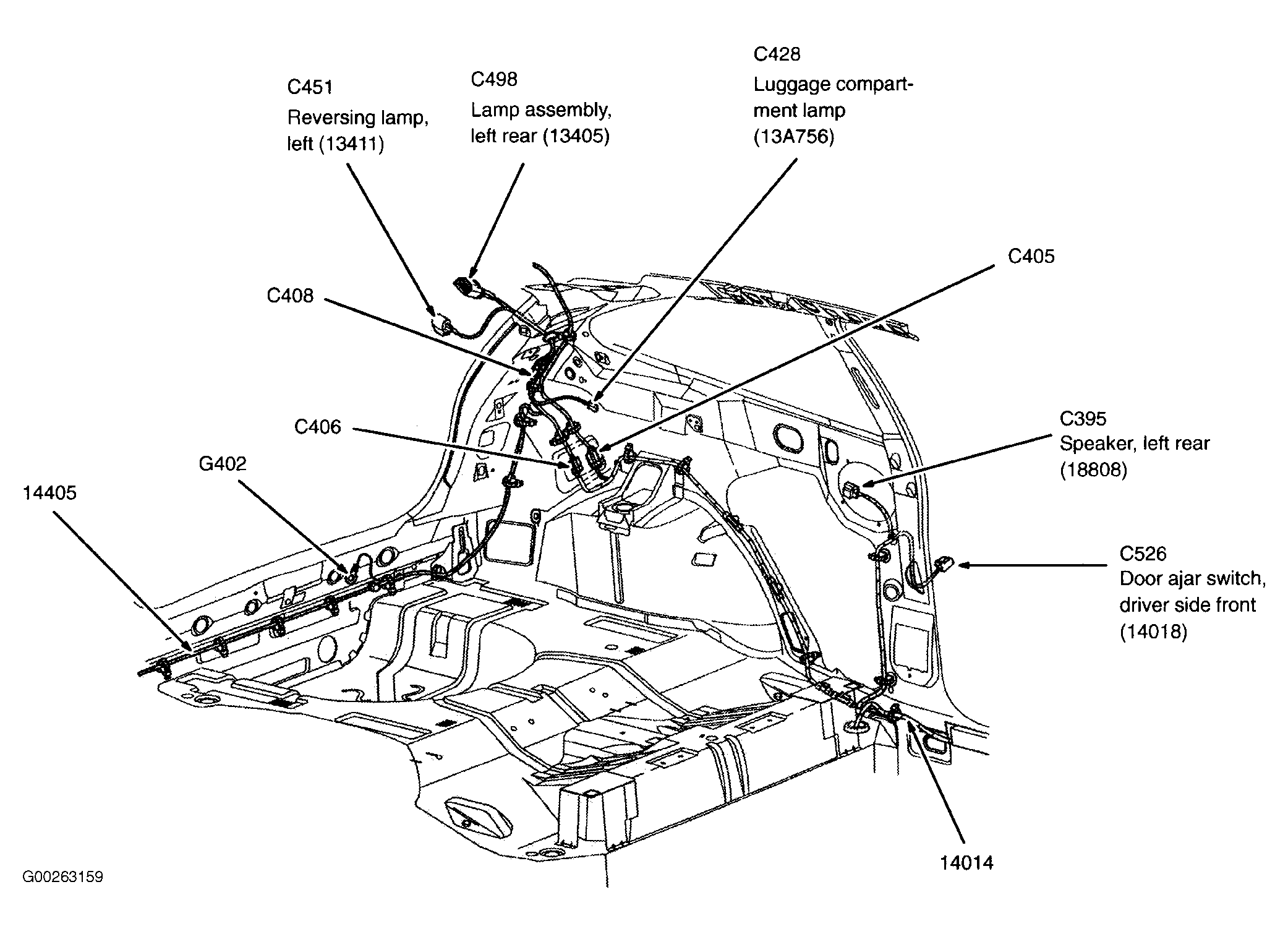

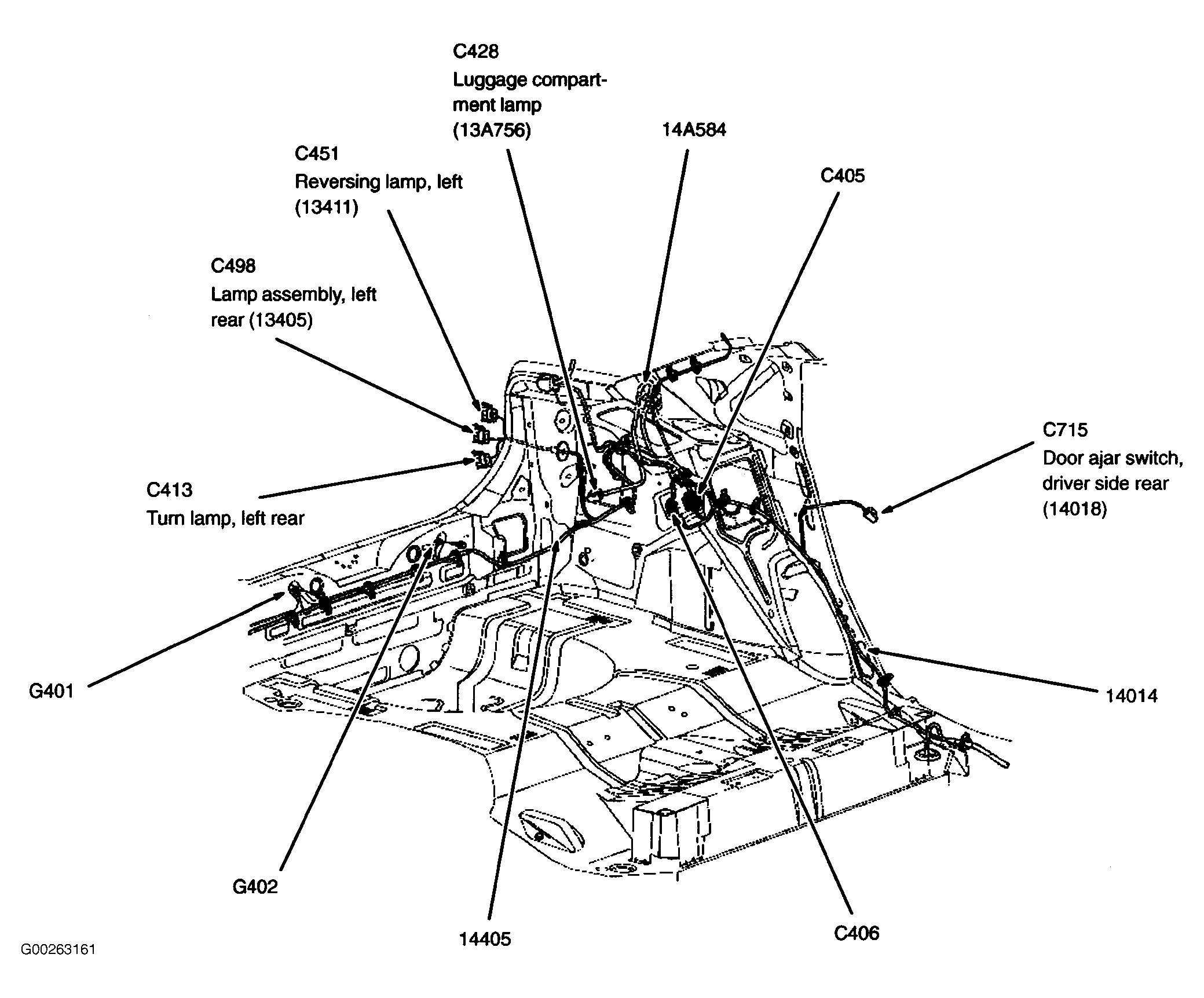

Fig 38: Left Side Of Luggage Compartment (3-Door)
Courtesy of FORD MOTOR CO.

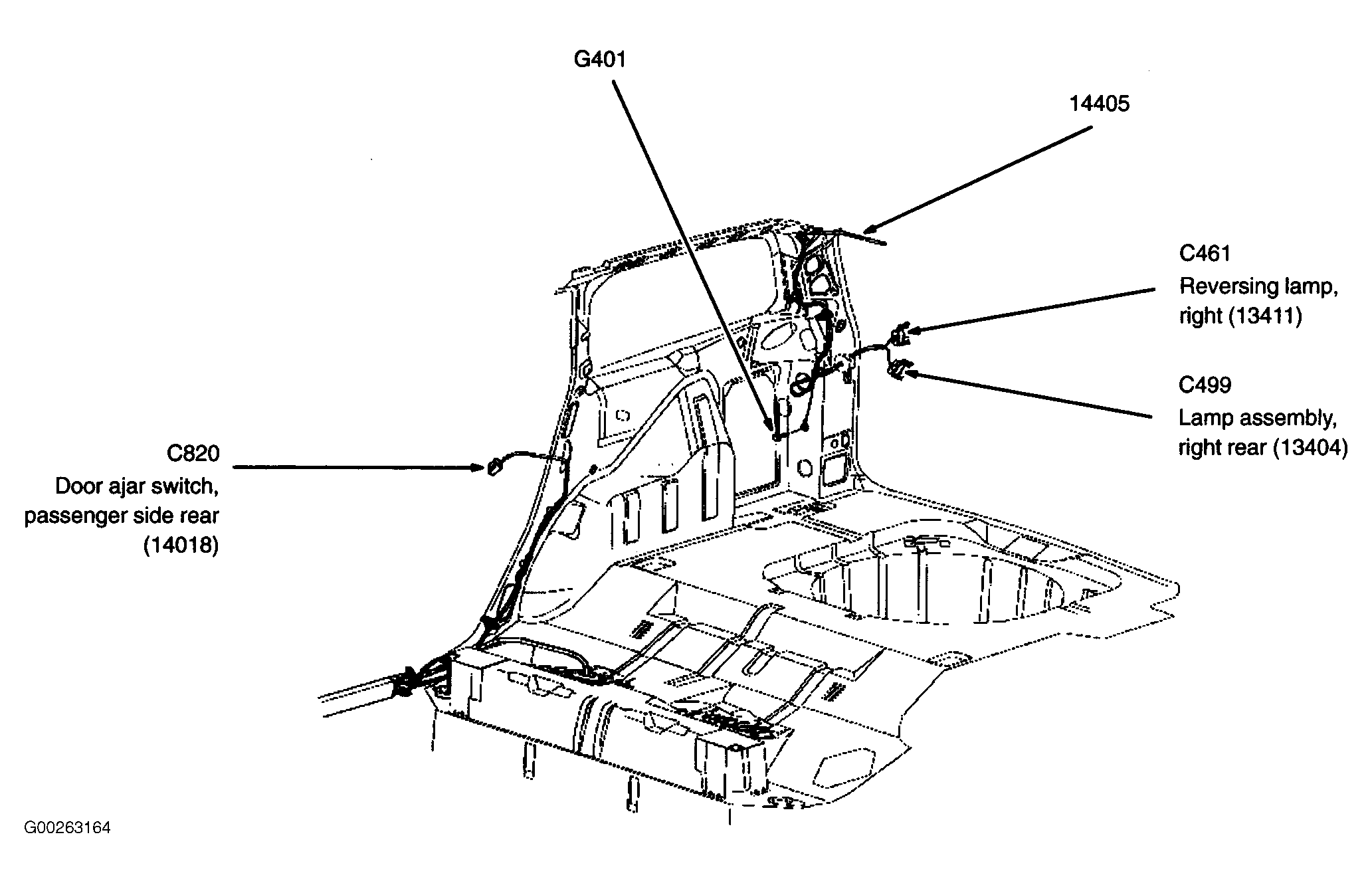

Fig 39: Right Side Of Luggage Compartment (3-Door)
Courtesy of FORD MOTOR CO.
Fig 40: Left Side Of Luggage Compartment (Sedan)
Courtesy of FORD MOTOR CO.
Fig 41: Left Side Of Luggage Compartment (Wagon)
Courtesy of FORD MOTOR CO.
Fig 42: Right Side Of Luggage Compartment (Wagon)
Courtesy of FORD MOTOR CO.

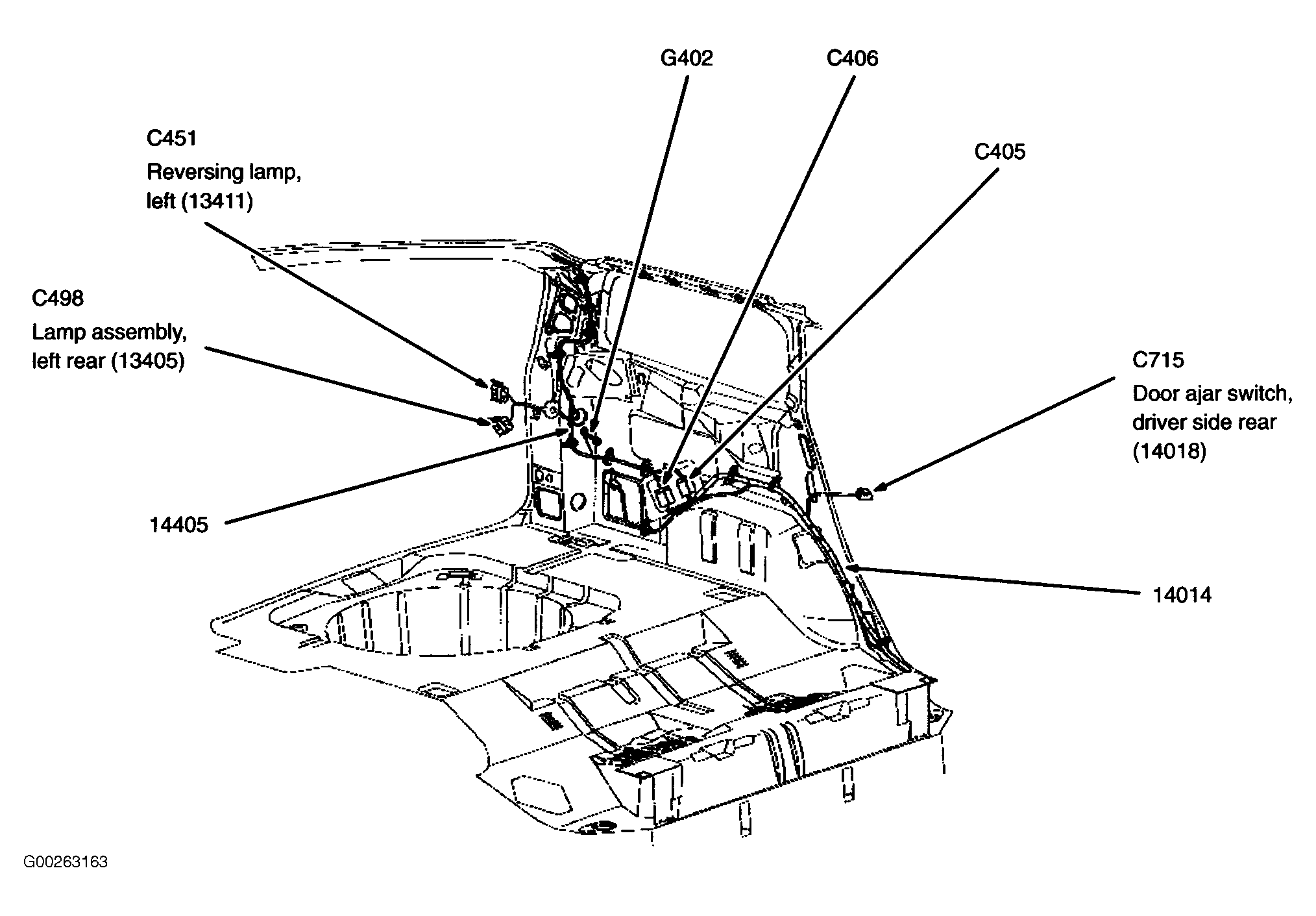

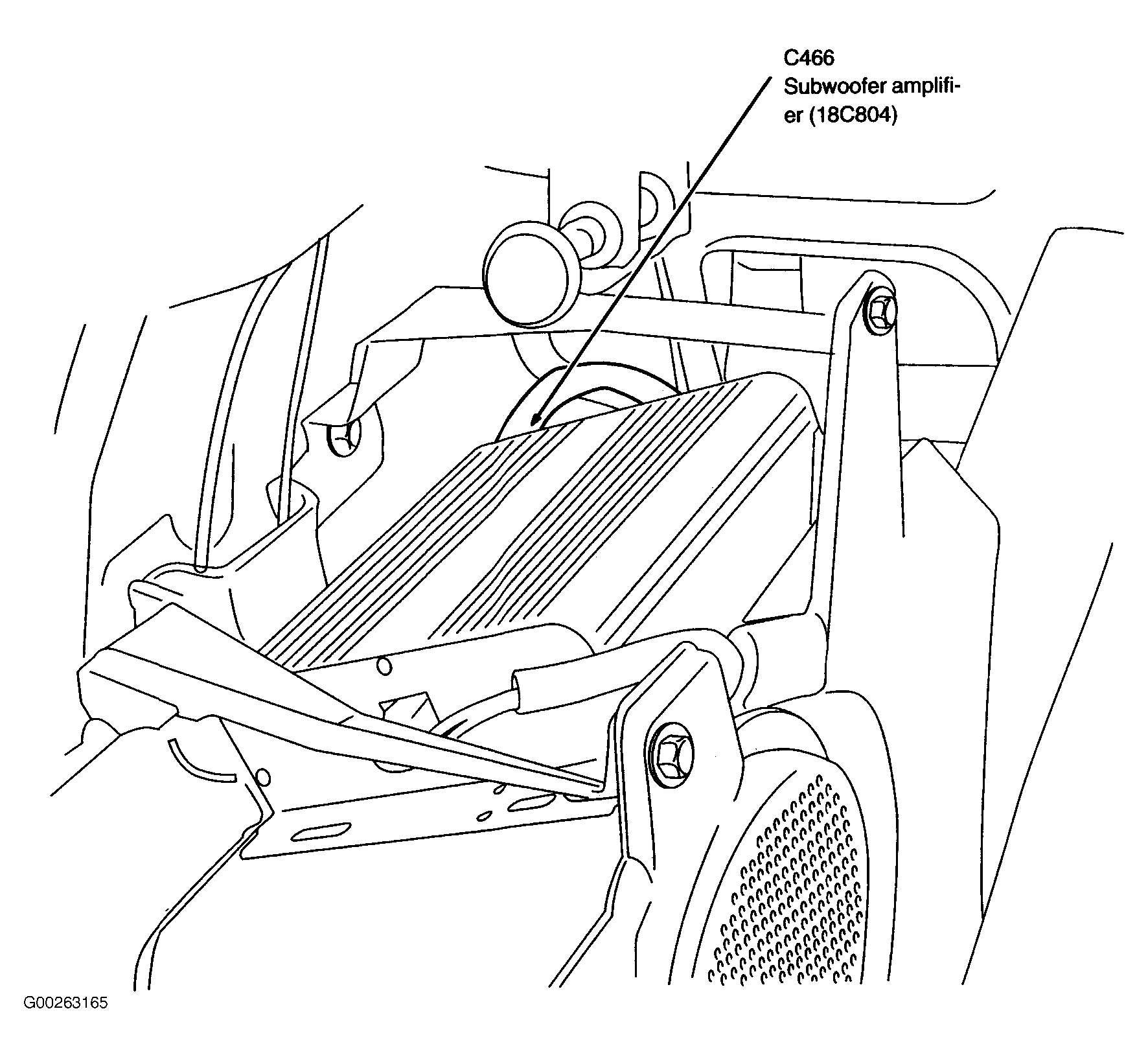

Fig 43: Left Side Of Luggage Compartment
Courtesy of FORD MOTOR CO.

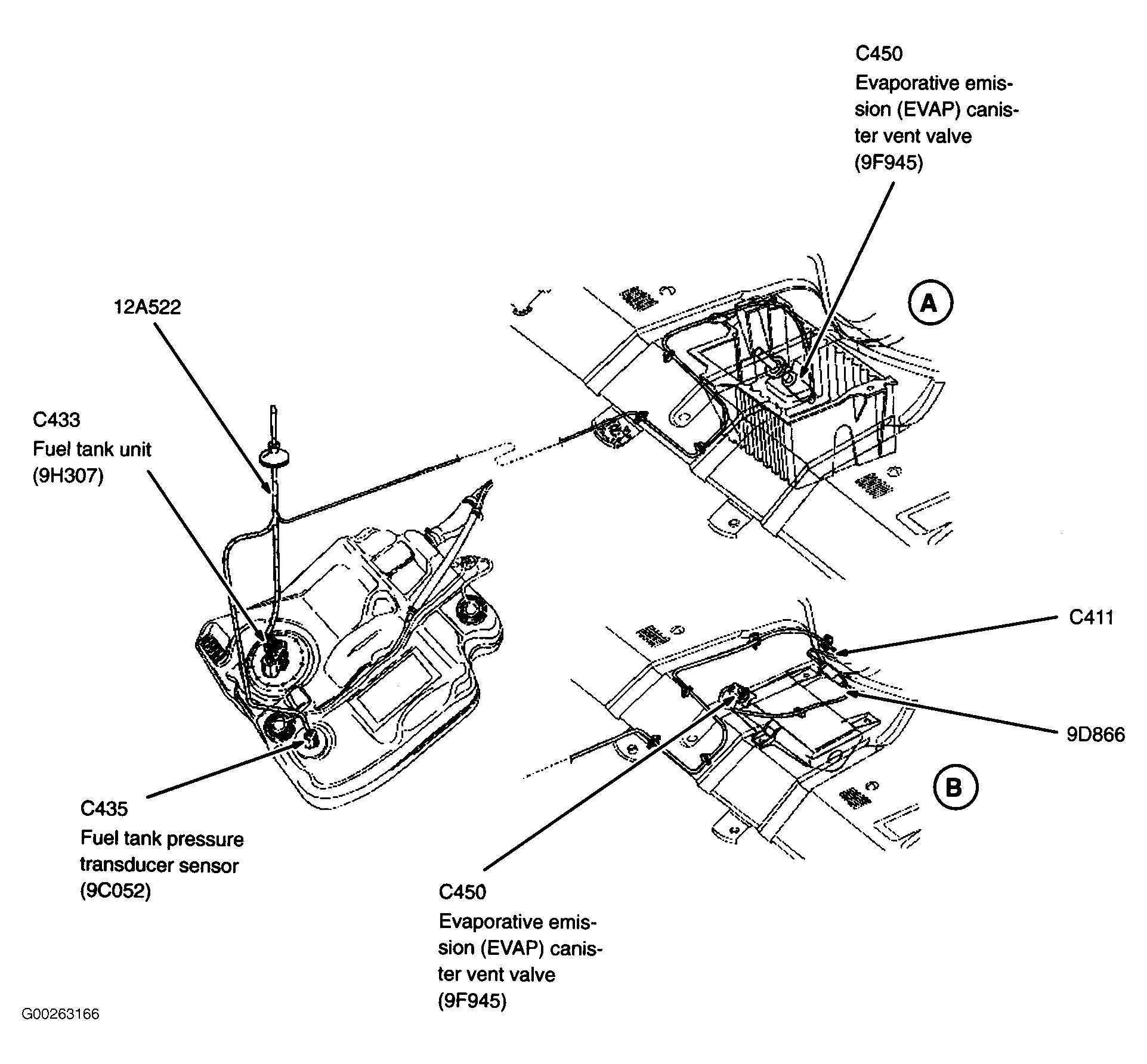

Fig 44: Under Rear Of Vehicle
Courtesy of FORD MOTOR CO.

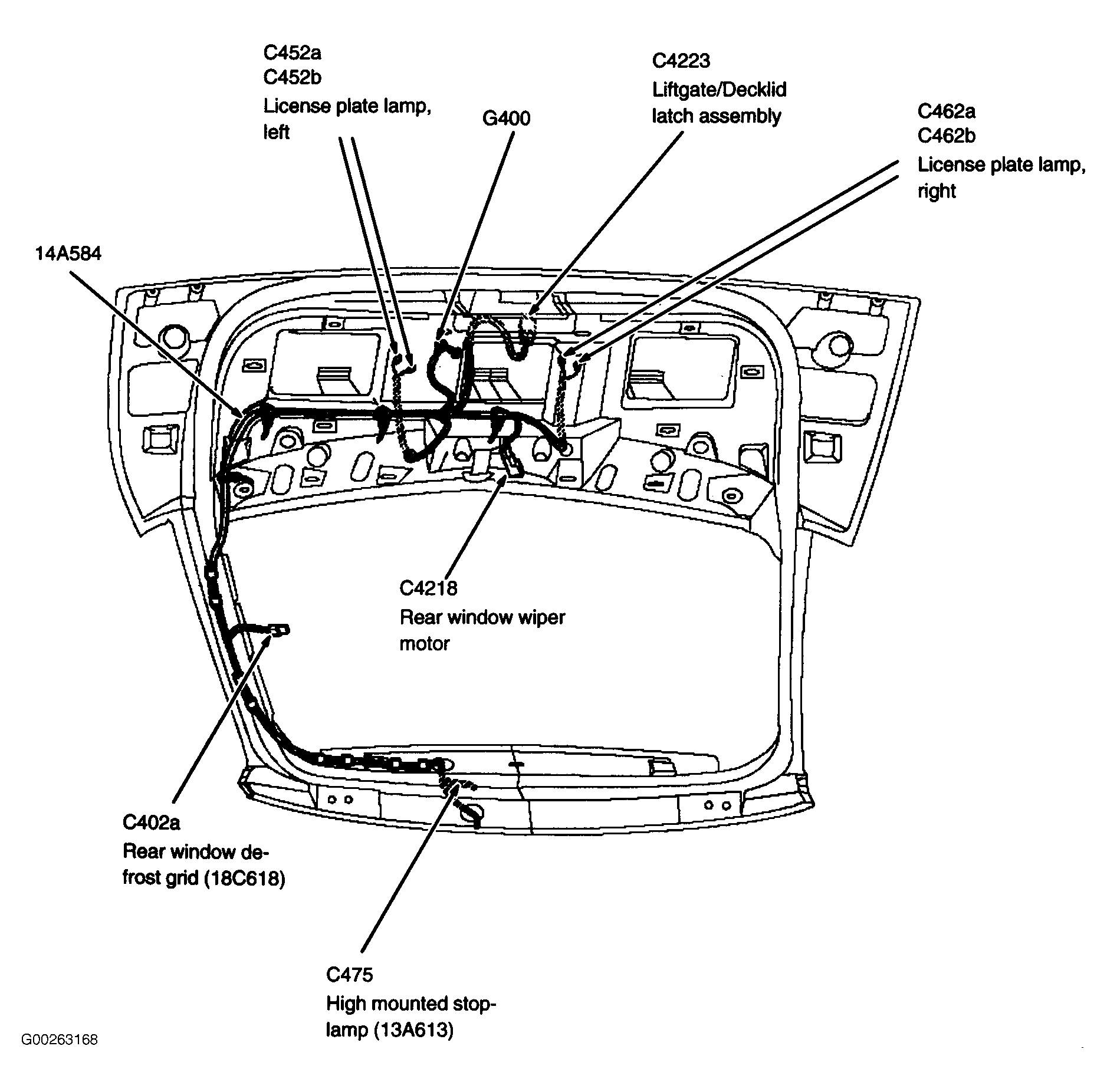

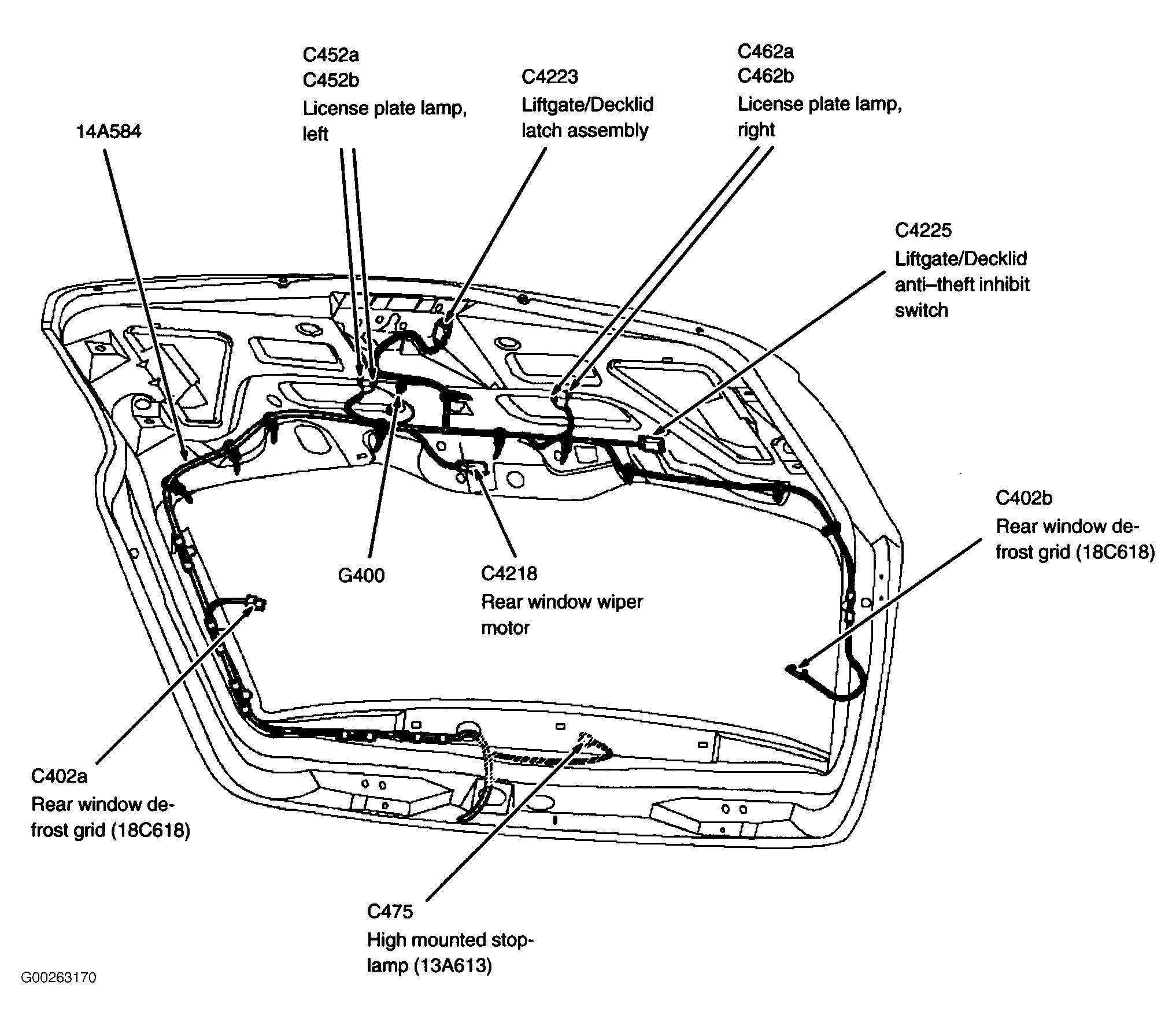

Fig 45: Liftgate (3-Door, 5-Door)
Courtesy of FORD MOTOR CO.

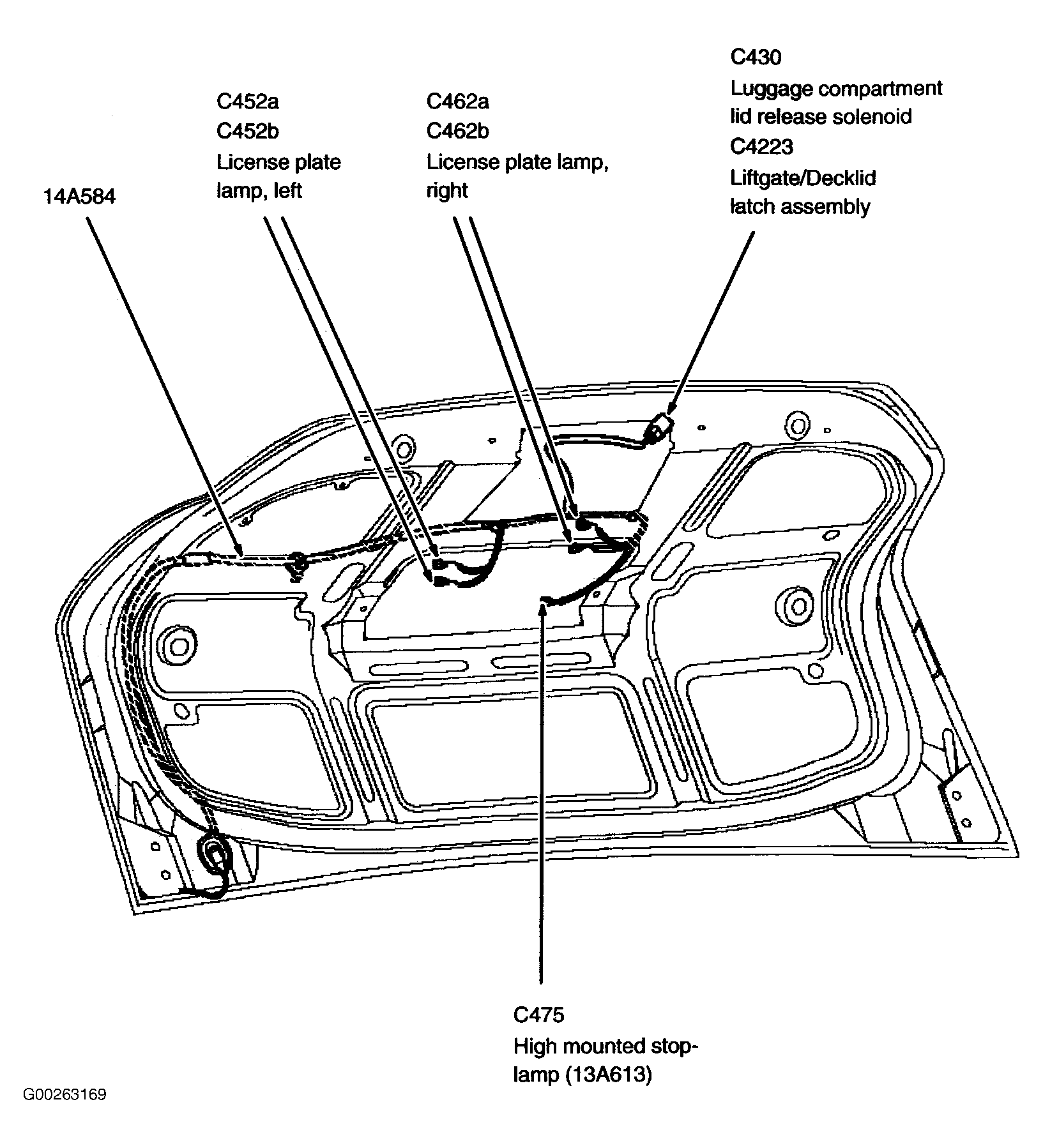

Fig 46: Decklid (Sedan)
Courtesy of FORD MOTOR CO.
Fig 47: Liftgate (Wagon)
Courtesy of FORD MOTOR CO.
Fig 48: Roof Panel (3-Door, 5-Door)
Courtesy of FORD MOTOR CO.
Fig 49: Roof Panel (Sedan)
Courtesy of FORD MOTOR CO.
Fig 50: Roof Panel (Wagon)
Courtesy of FORD MOTOR CO.
