Powertrain Calibration Information

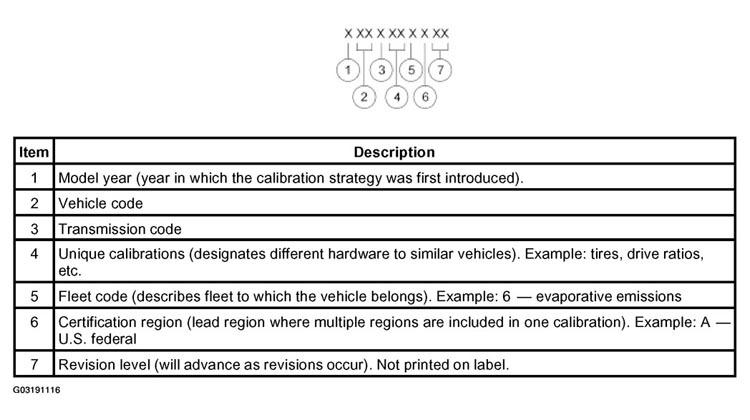

Fig 1: Identifying Powertrain Calibration Information

Courtesy of FORD MOTOR CO.

NOTE: Powertrain calibration information is limited to a maximum of five characters per line on the vehicle certification (VC) label. Because of this, calibration identification consisting of more than five characters will wrap to the second line on the VC label.

Powertrain calibration information is printed in the lower right corner of the vehicle certification (VC) label.

Only the base calibration information is printed.

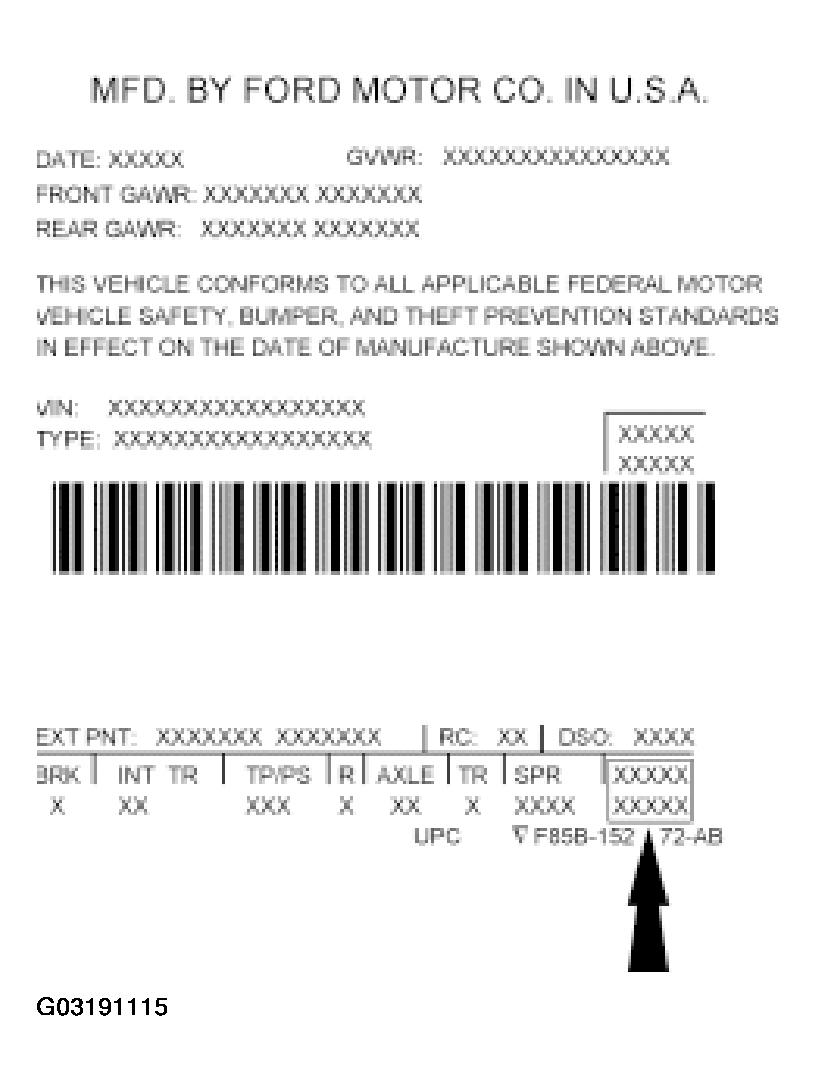

Fig 2: Identifying Powertrain Calibration Information On VC Label

Courtesy of FORD MOTOR CO.
