Main Control Assembly

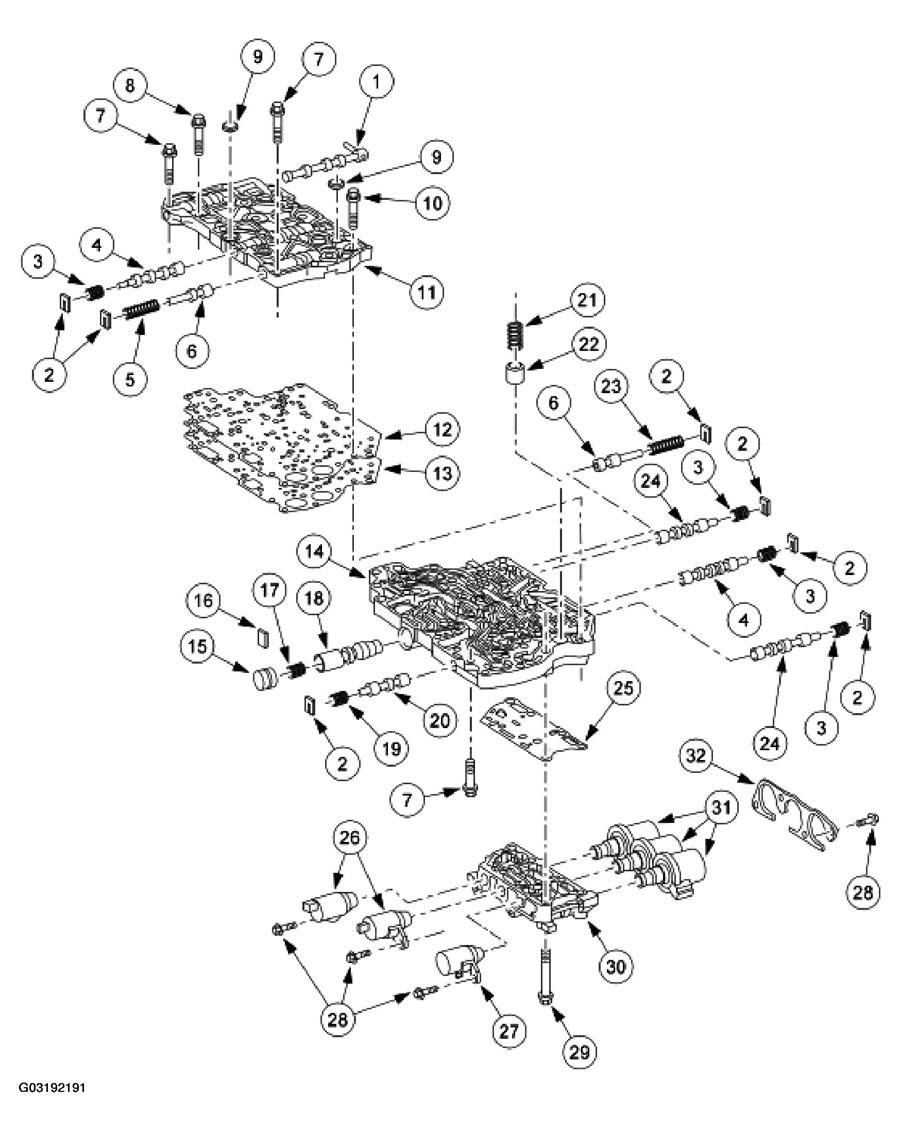

Fig 1: Identifying Main Control Assembly Components (1 Of 2)
G03192191Courtesy of FORD MOTOR CO.

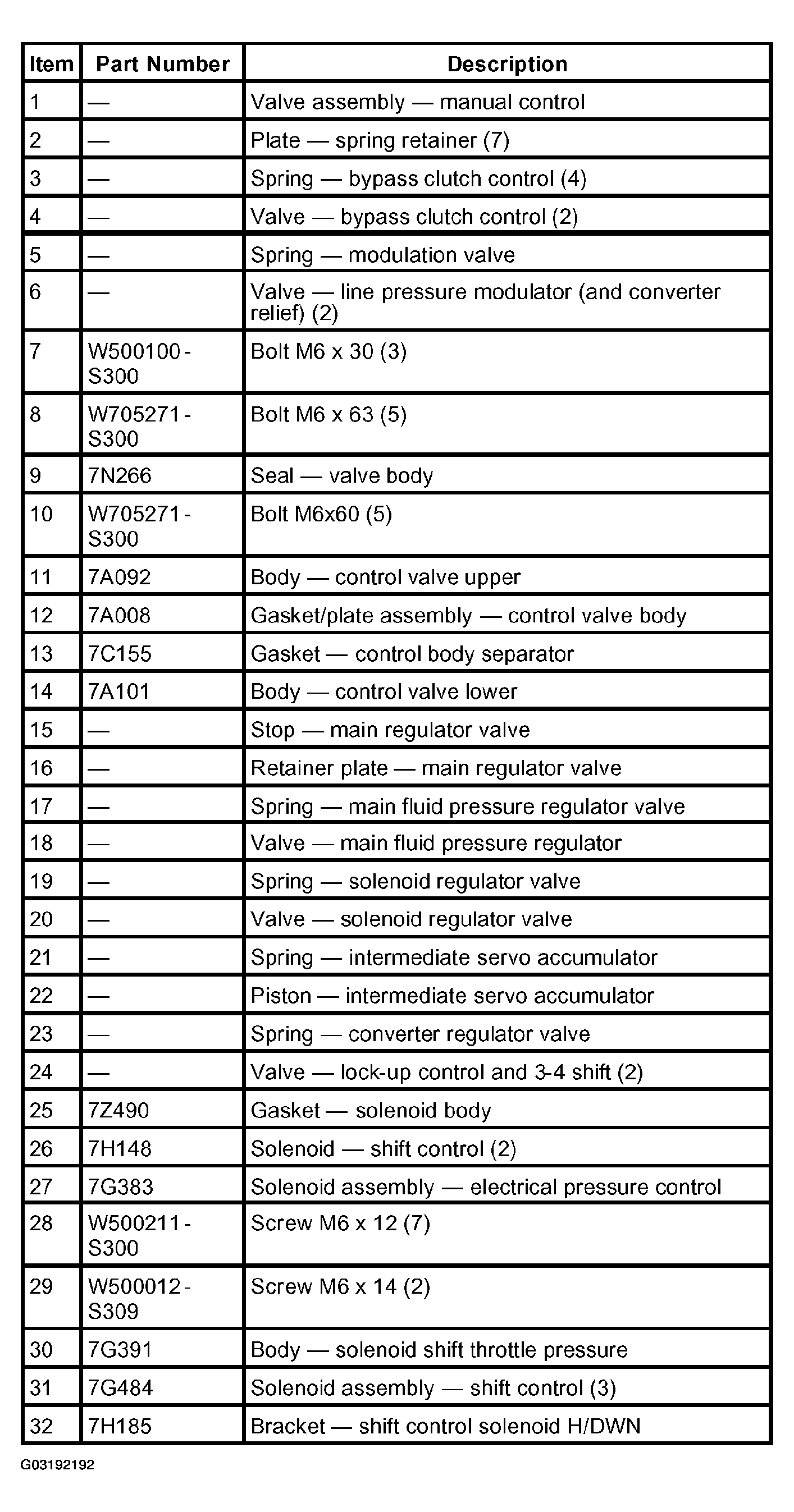

Fig 2: Identifying Main Control Assembly Components (2 Of 2)
G03192192Courtesy of FORD MOTOR CO.
