Forward Clutch: Assembly

Soak the internal spline clutch plates in clean automatic transmission fluid for 15 minutes before assembly.
Inspect the forward clutch piston bore surfaces for nicks or scratches. Install a new balance piston if necessary.
Lubricate and install the forward clutch piston assembly.

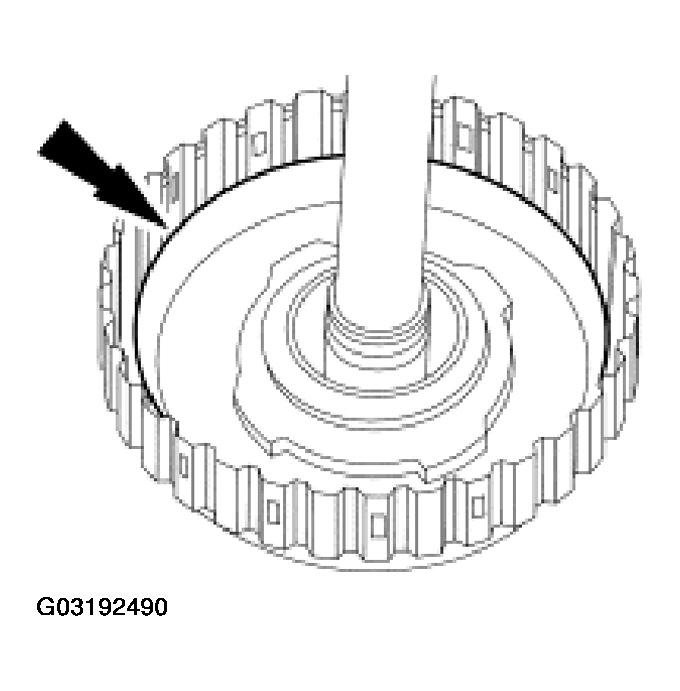

Fig 1: Installing Forward Clutch Piston Assembly
Courtesy of FORD MOTOR CO.
Install the forward piston return spring.

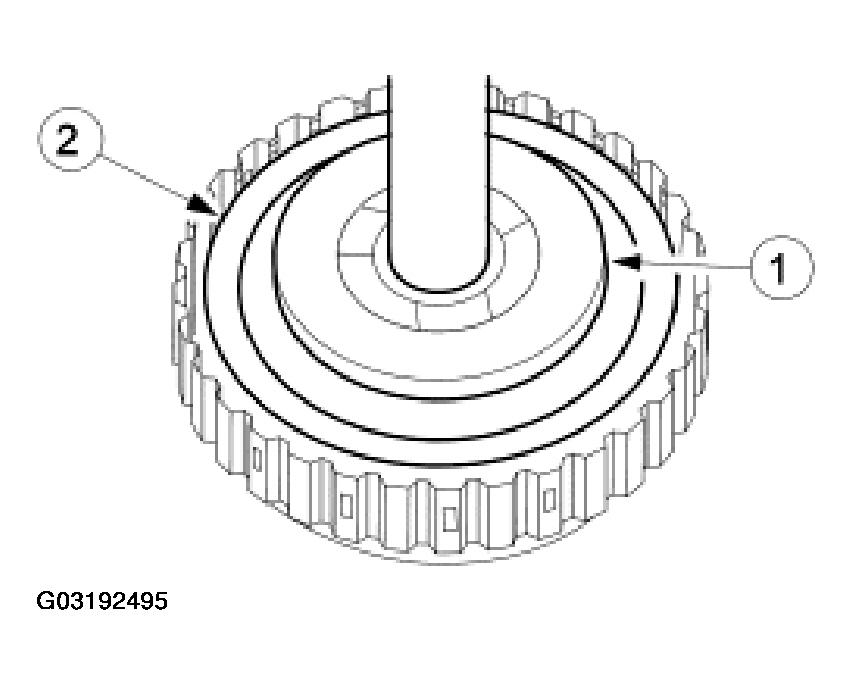

Fig 2: Installing Forward Piston Return Spring
Courtesy of FORD MOTOR CO.
Lubricate and install the forward clutch balance piston.

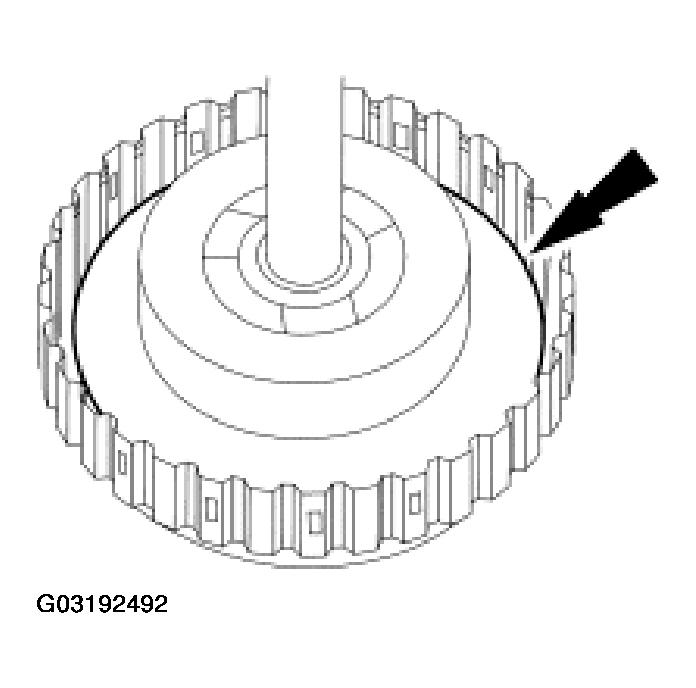

Fig 3: Installing Forward Clutch Balance Piston
Courtesy of FORD MOTOR CO.
Using the special tool, install the forward clutch assembly in a suitable press.

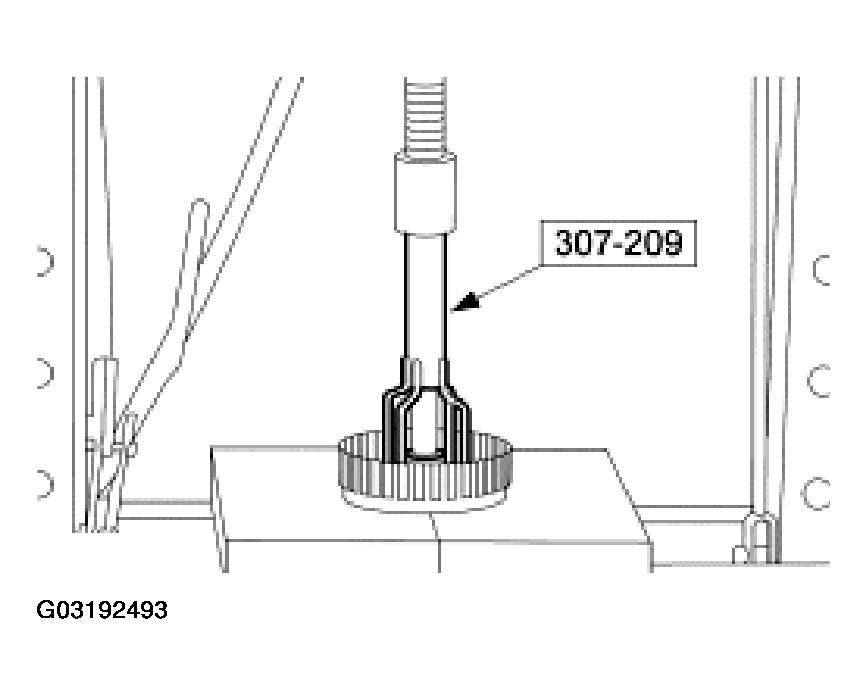

Fig 4: Installing Forward Clutch Assembly In Press
Courtesy of FORD MOTOR CO.
Using the special tool, install the forward clutch balance piston snap ring.

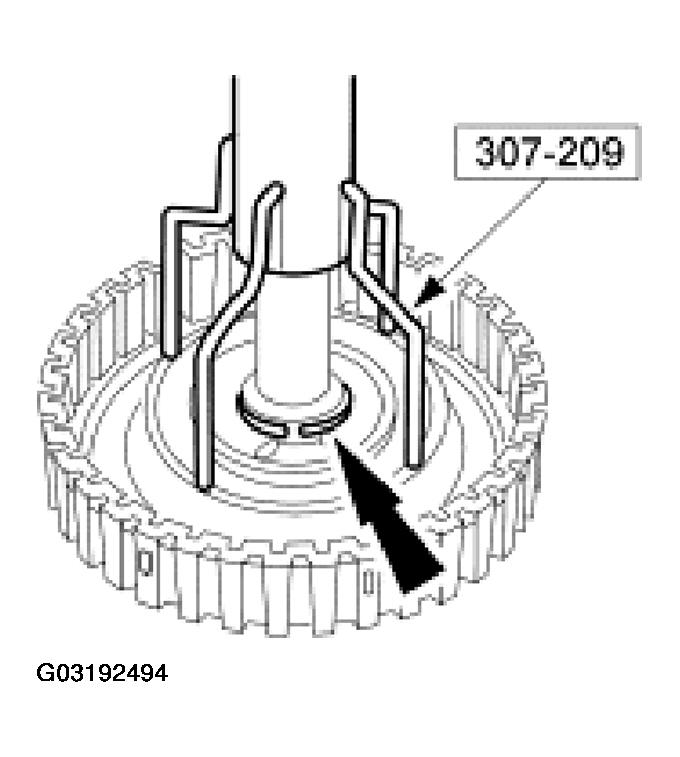

Fig 5: Installing Forward Clutch Balance Piston Snap Ring
Courtesy of FORD MOTOR CO.
Install the forward clutch pressure, friction and steel plates.
1. Install the plates.
2. Install the retaining ring.
  - Check the clearance. For additional information, refer to SPECIFICATION .

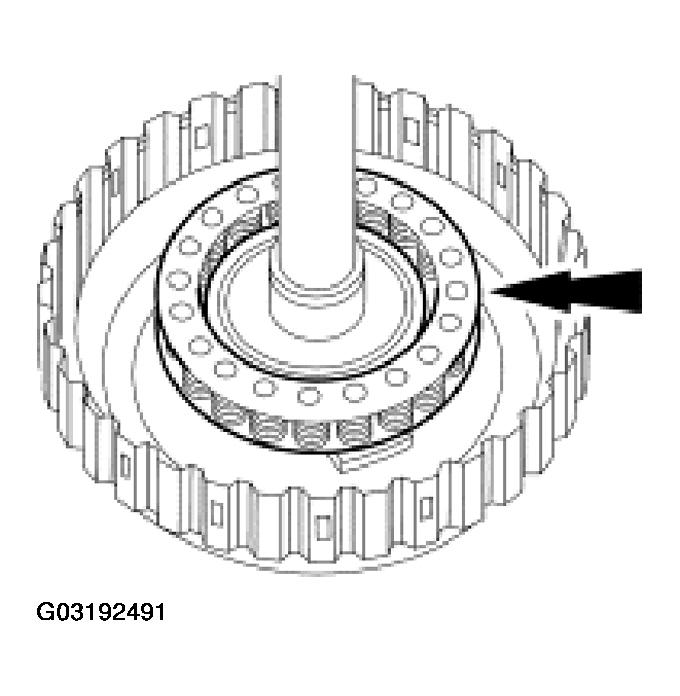

Fig 6: Installing Forward Clutch Pressure, Friction And Steel Plates
Courtesy of FORD MOTOR CO.
