Main Control Valve Body: Assembly

    NOTE: The top side of the separator plate has a bonded gasket.
    NOTE: The separator gasket goes on the bottom side.
    NOTE: Inspect the main control valve body.

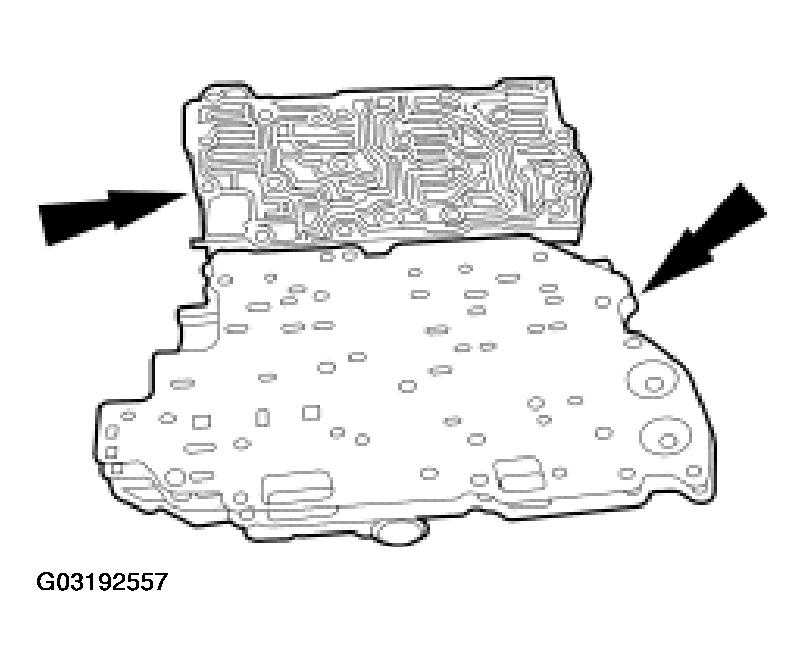

    Fig 1: Installing Control Valve Body Plate Assembly And Separator Gaskets
    G03192557Courtesy of FORD MOTOR CO.
  1. Install new control valve body plate assembly and separator gaskets.
    2. NOTE: Do not fully tighten the bolts at this stage.

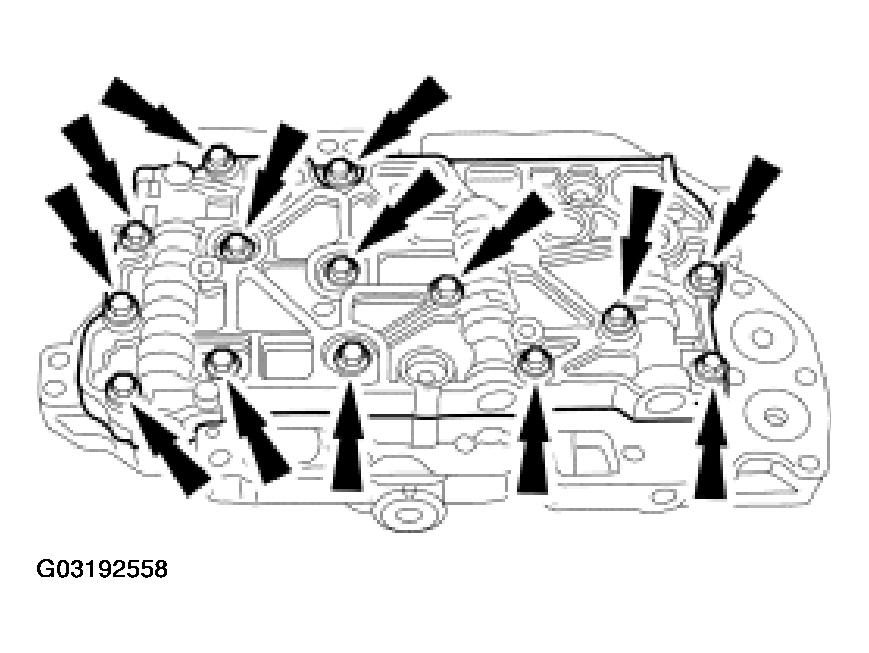

    Fig 2: Assembling Main Control Valve Body
    G03192558Courtesy of FORD MOTOR CO.
  2. Assemble the main control valve body.
  3. Install the seals.

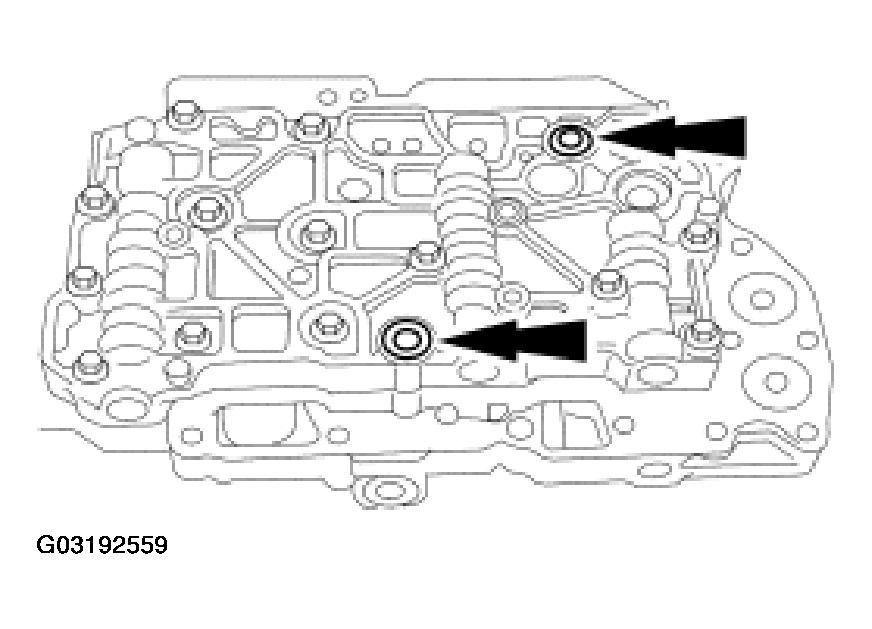

    Fig 3: Installing Seals
    G03192559Courtesy of FORD MOTOR CO.
  4. Tighten the solenoid body bolts.

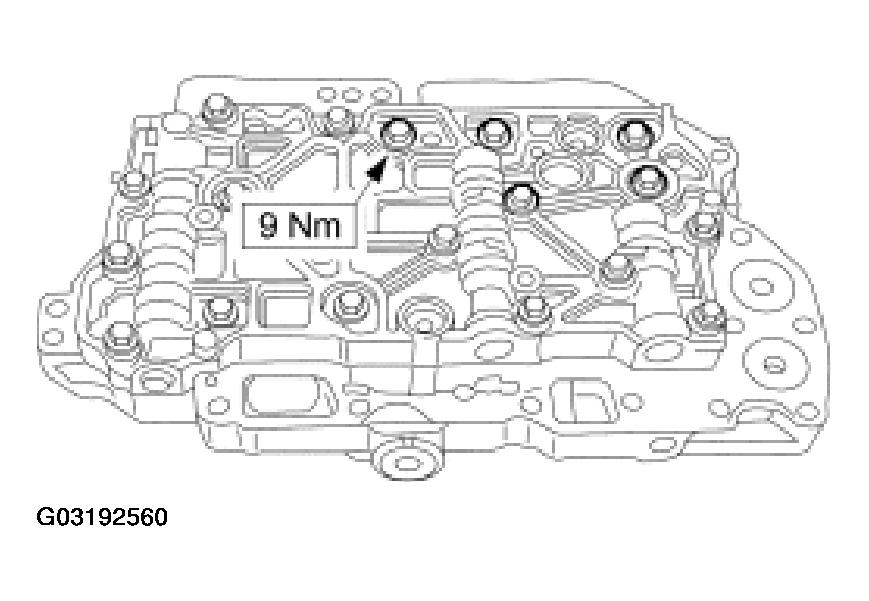

    Fig 4: Tightening Solenoid Body Bolts
    G03192560Courtesy of FORD MOTOR CO.
  5. Tighten the remaining bolts in the sequence shown.

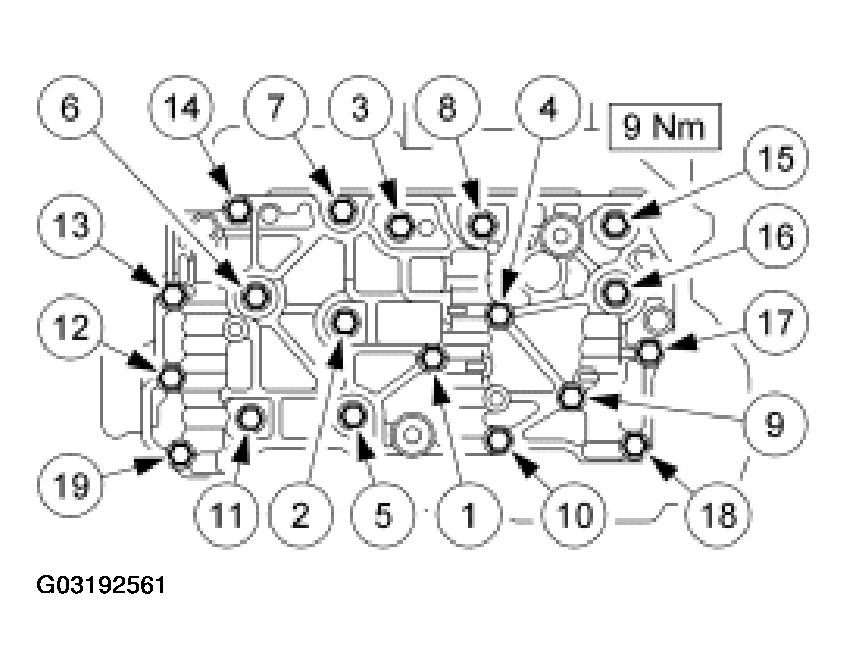

    Fig 5: Tightening Remaining Bolts In Sequence
    G03192561Courtesy of FORD MOTOR CO.
