Pump Assembly: Assembly

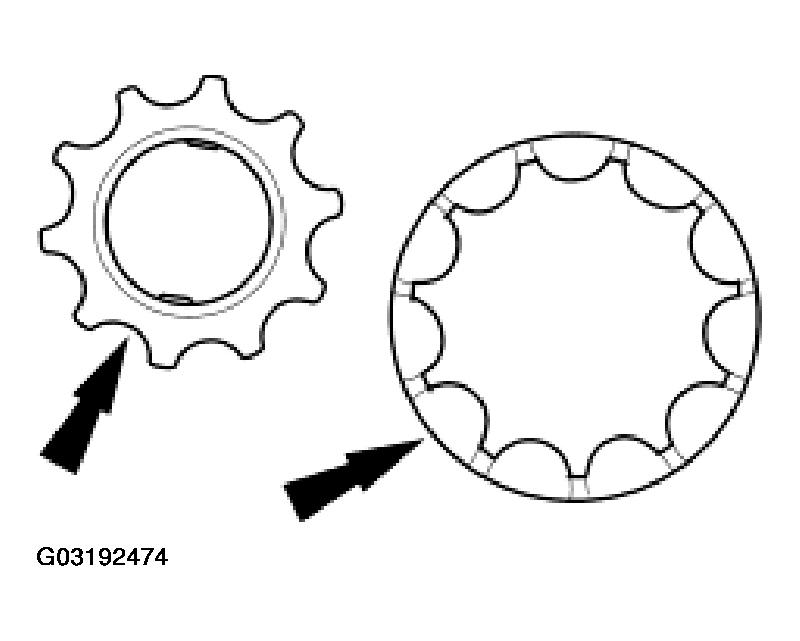

NOTE: The smaller gear has a recess on both sides.

NOTE: The smaller recess must face away from the torque converter seal.

NOTE: The larger recess, with the beveled edge, must face toward the torque converter.

Fig 1: Lubricating Gears And Thrust Washers

Courtesy of FORD MOTOR CO.

Lubricate the gears and thrust washers with clean automatic transmission fluid.

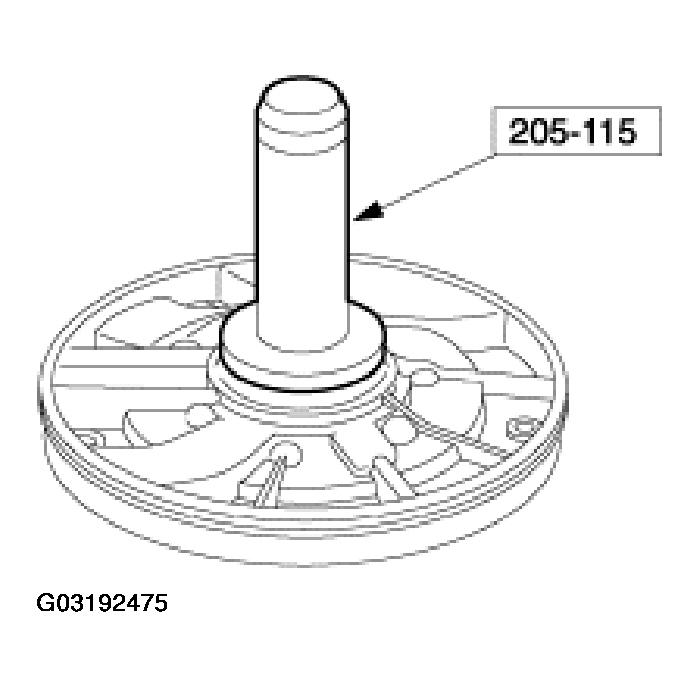

Using the special tool, install the pump seal.
- Lubricate the gears and thrust washers with automatic transmission fluid.
Fig 2: Installing Pump Seal
Courtesy of FORD MOTOR CO.

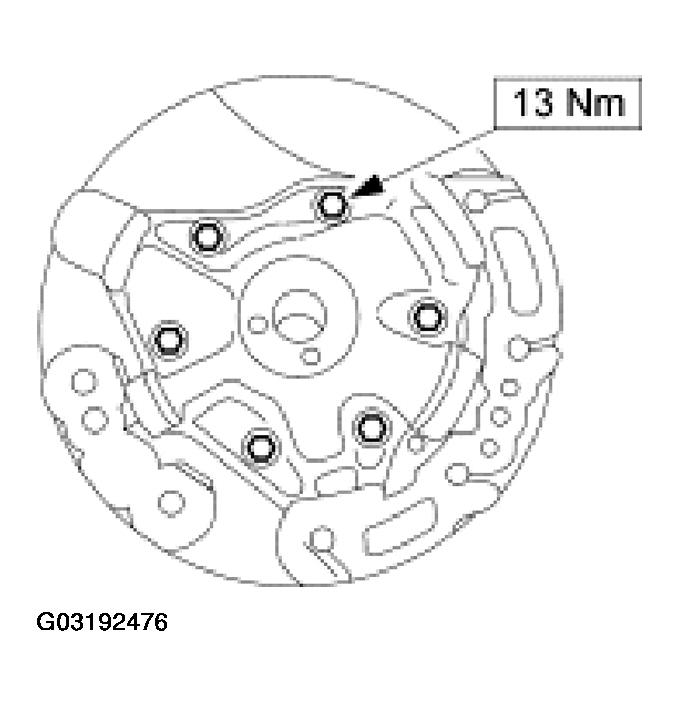

Install the top portion of the pump.

Fig 3: Installing Top Portion Of Pump
Courtesy of FORD MOTOR CO.
