Transaxle Case: Assembly

NOTE: The converter housing side bearing cups for the transfer shaft bearing and differential case bearing will be installed during the assembly of the transaxle.

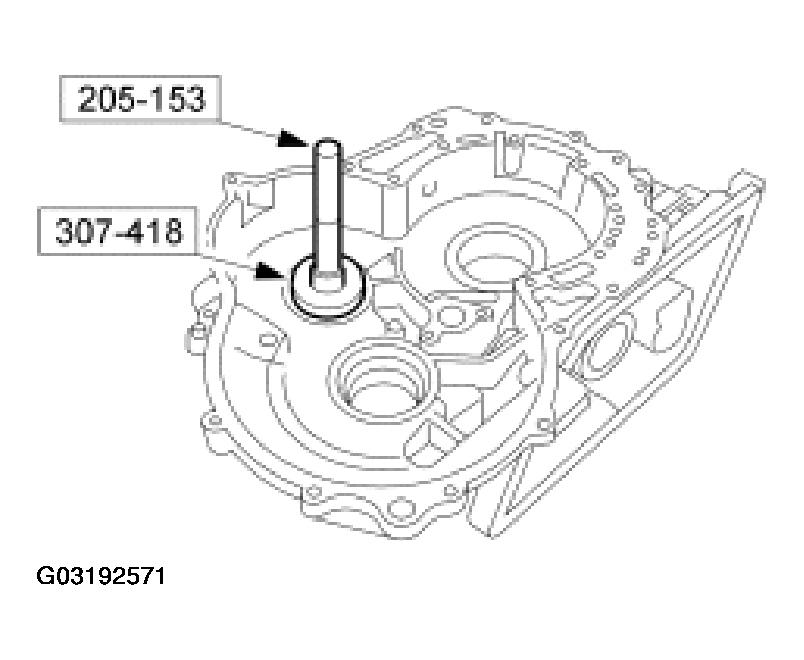

Fig 1: Installing Final Drive Input Gear Bearing Cup

Courtesy of FORD MOTOR CO.

Using the special tools, install the final drive input gear bearing cup.
Rotate the transaxle 180 degrees.

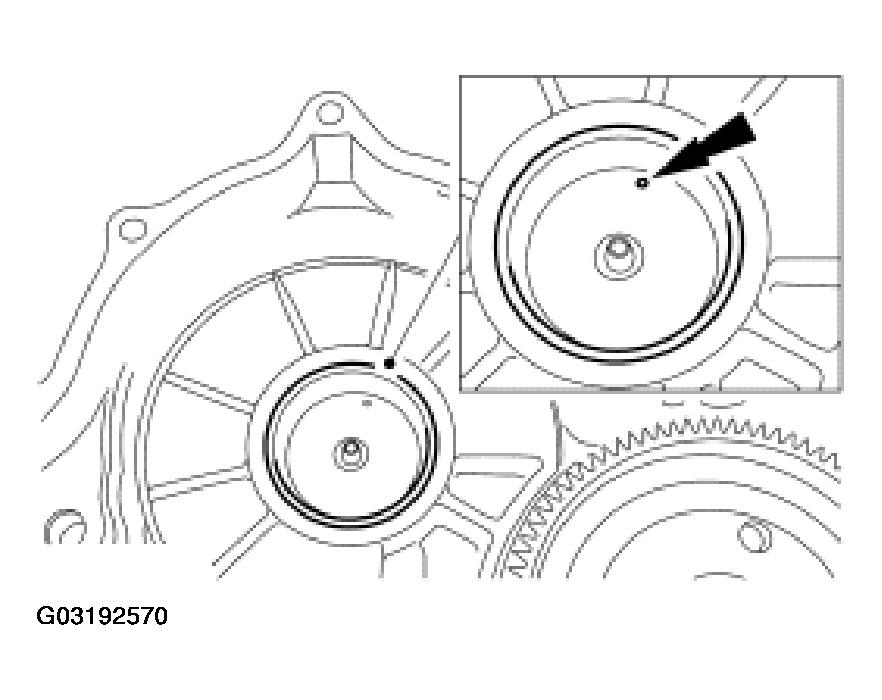

NOTE: Note the location of the bleed hole

NOTE: Inspect the bleed hole for foreign material.

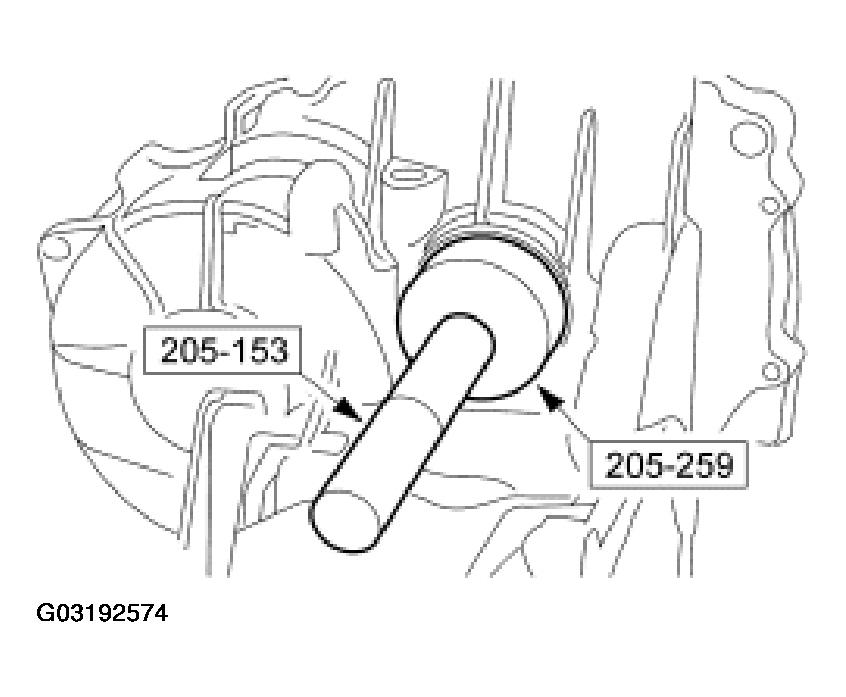

Fig 2: Installing Funnel

Courtesy of FORD MOTOR CO.

Install the funnel.
Using the special tools, install the left-hand side transfer shaft gear bearing cup.

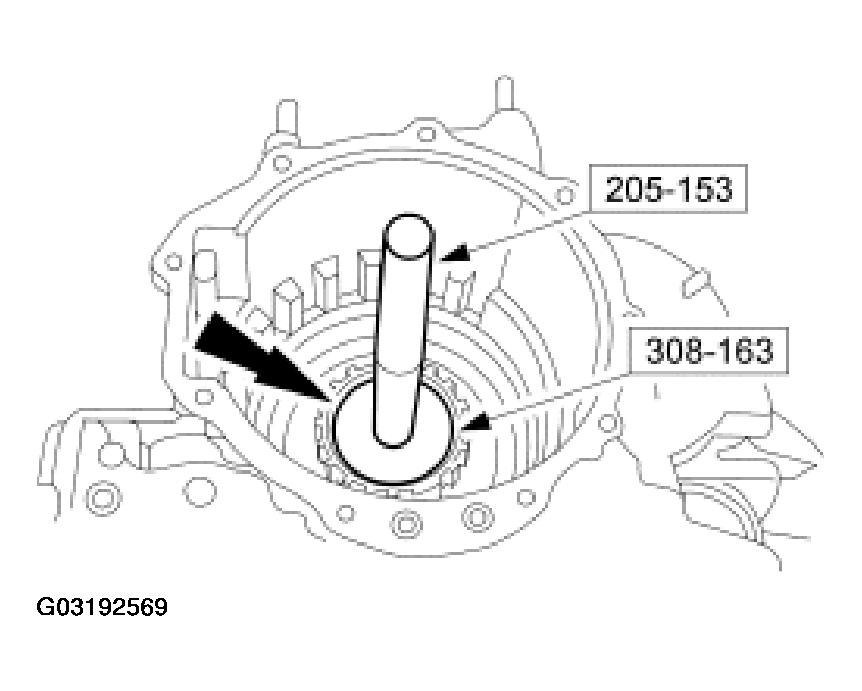

Fig 3: Installing Left-Hand Side Transfer Shaft Gear Bearing Cup
Courtesy of FORD MOTOR CO.
Using the special tools, install the final drive input gear bearing cup (left-hand side shown).

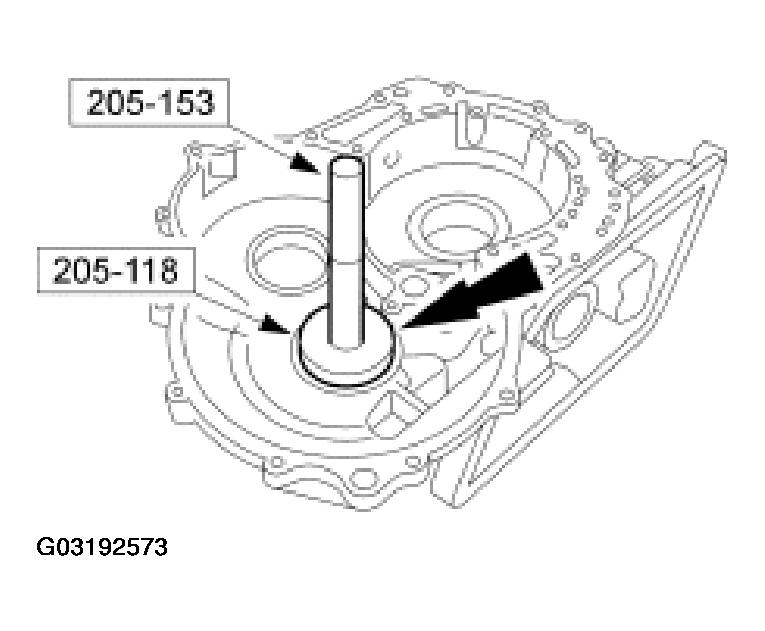

Fig 4: Installing Final Drive Input Gear Bearing Cup
Courtesy of FORD MOTOR CO.
Using the special tools, install the left-hand side differential case bearing cup.

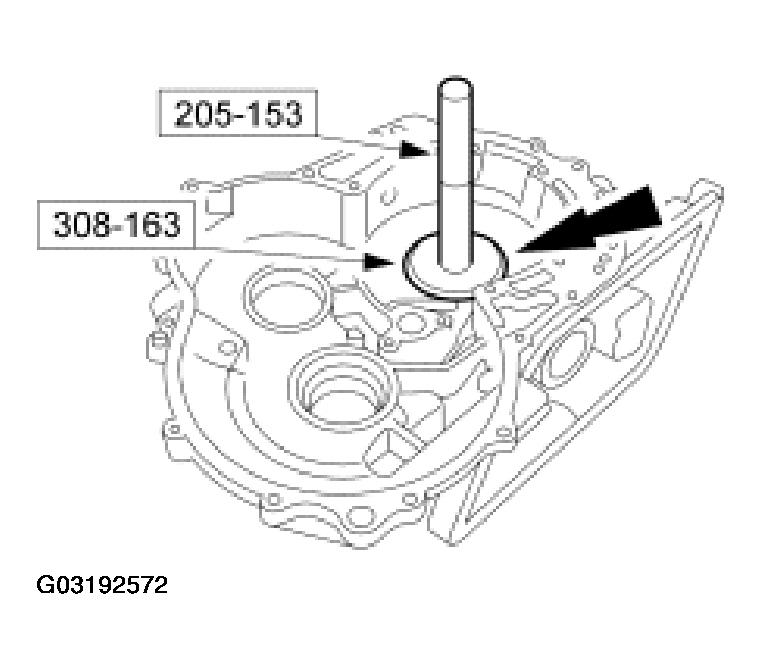

Fig 5: Installing Left-Hand Side Differential Case Bearing Cup
Courtesy of FORD MOTOR CO.
Using the special tools, install the halfshaft seals (left-hand side shown).

Fig 6: Installing Halfshaft Seals
Courtesy of FORD MOTOR CO.
