Transaxle Case: Disassembly

Remove the halfshaft seals (left-hand side shown).

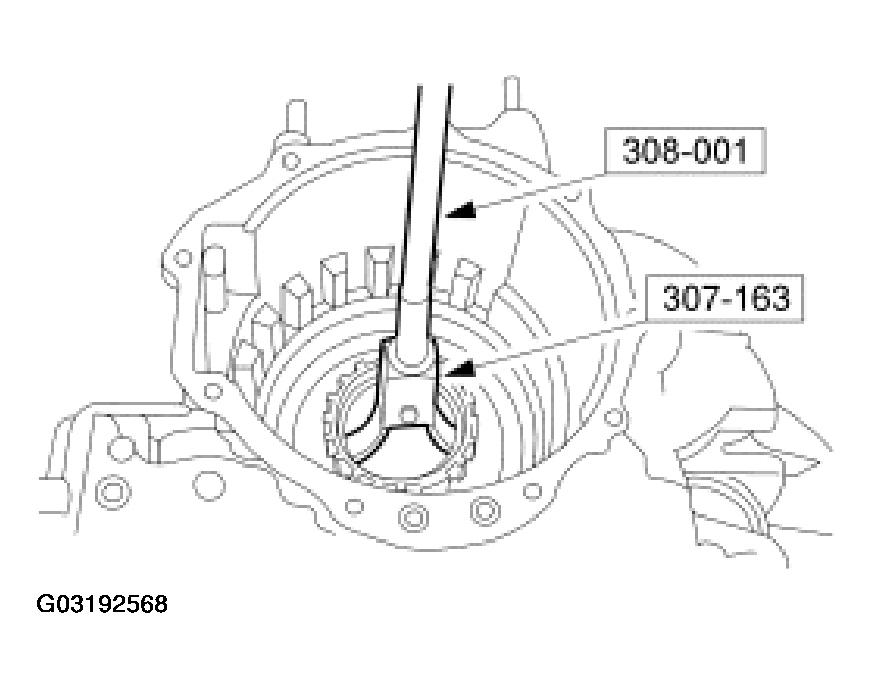

Fig 1: Removing Halfshaft Seals
Courtesy of FORD MOTOR CO.
Using the special tools, remove the differential case bearing cups (left-hand side shown).

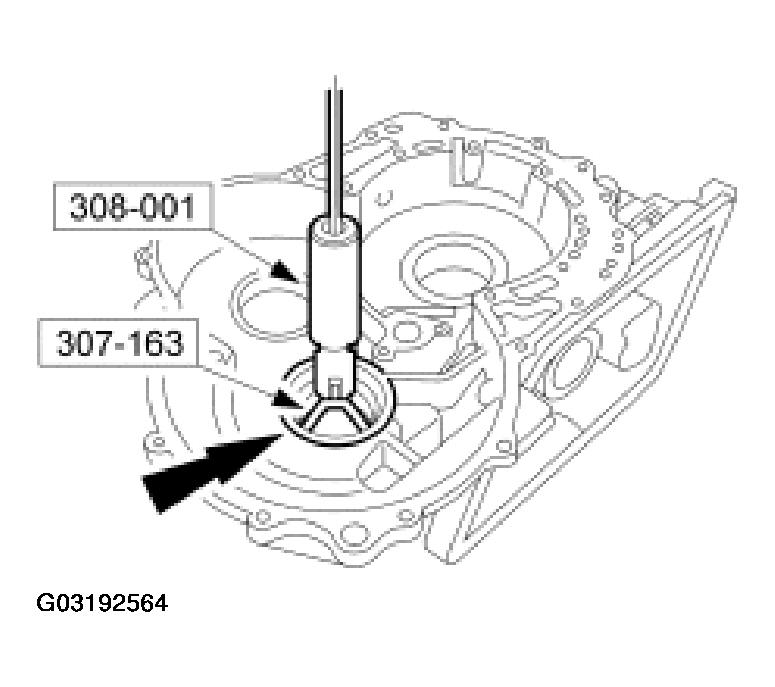

Fig 2: Removing Differential Case Bearing Cups
Courtesy of FORD MOTOR CO.
Using the special tools, remove the final drive input gear bearing cup.

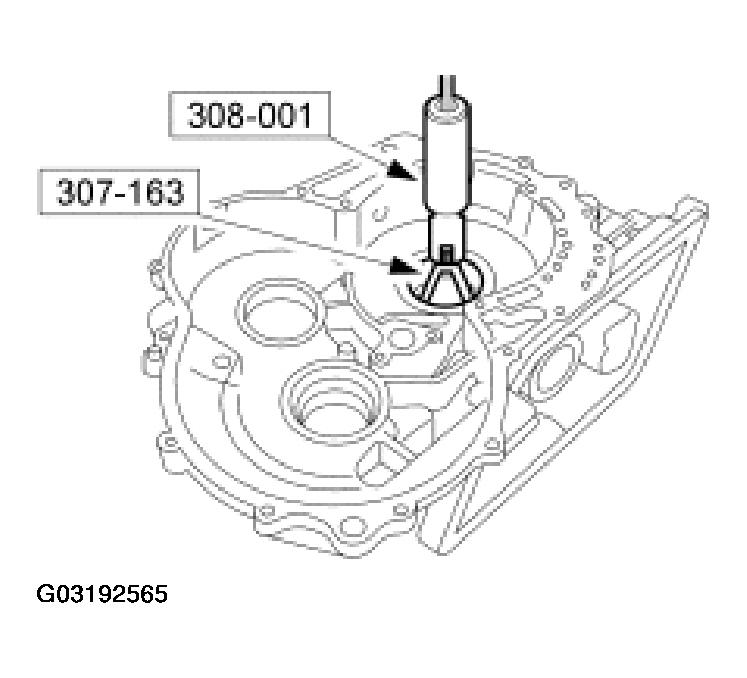

Fig 3: Removing Final Drive Input Gear Bearing Cup
Courtesy of FORD MOTOR CO.

CAUTION: Use care when removing the differential bearing cup not to damage the funnel. Install new funnel if damaged.

Fig 4: Removing Transfer Shaft Gear Bearing Cups

Courtesy of FORD MOTOR CO.

Using the special tool, remove the transfer shaft gear bearing cups (left-hand side shown).

NOTE: Note the location of the bleed hole in the funnel in relation to the bottom of the case.

NOTE: Inspect the bleed hole for foreign material.

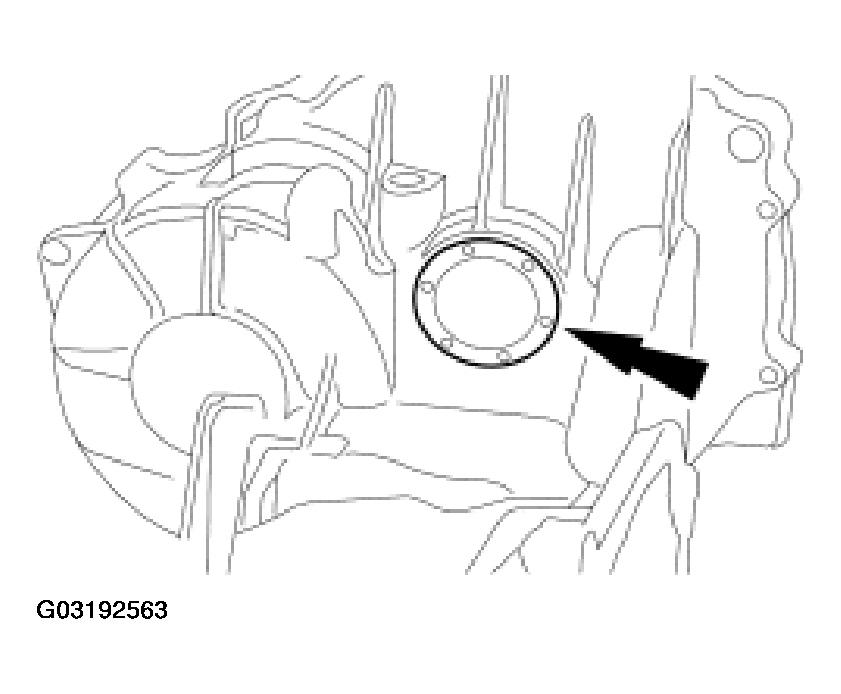

Fig 5: Removing Funnel

Courtesy of FORD MOTOR CO.

Remove the funnel.
Rotate the transaxle 180 degrees.
Using the special tools, remove the final drive input gear bearing cup.

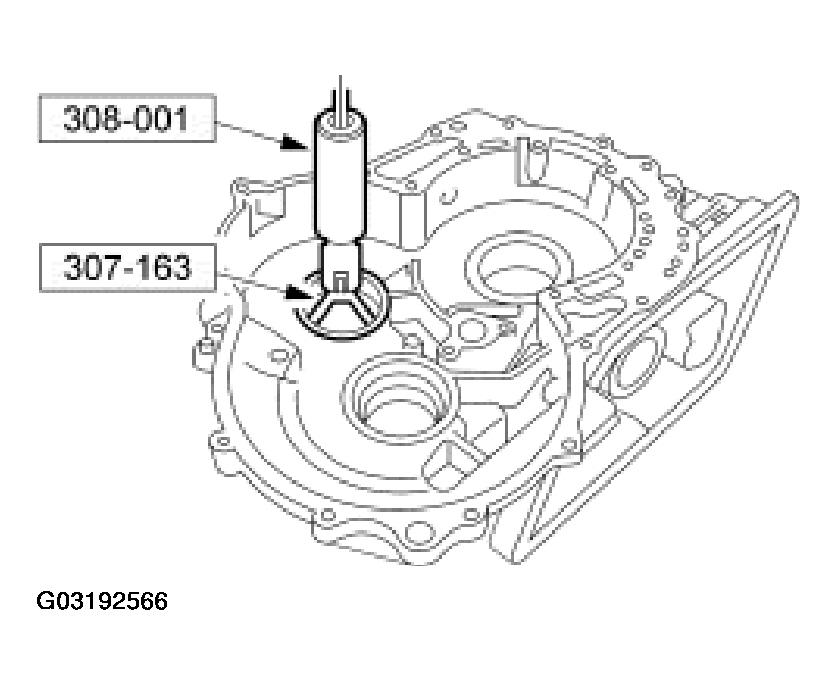

Fig 6: Removing Final Drive Input Gear Bearing Cup
