Output Shaft Speed (OSS) Sensor: Installation

    NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.

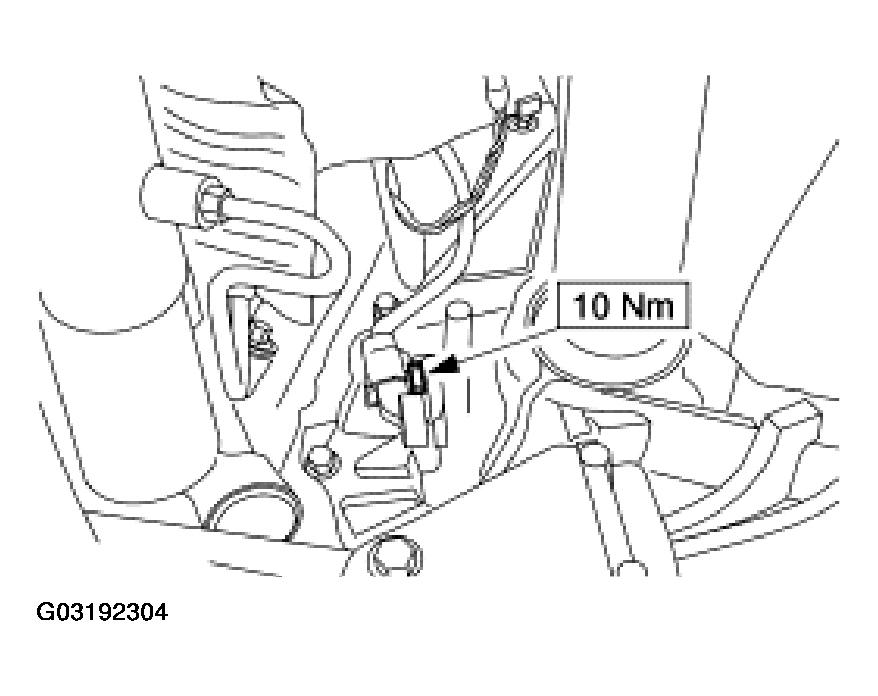

    Fig 1: Connecting OSS Sensor Electrical Connector
    G03192304Courtesy of FORD MOTOR CO.
  1. Install the OSS sensor.
    • Connect the electrical connector.
  2. Lower vehicle.
  3. Check the transmission fluid level and add automatic transmission fluid as necessary.

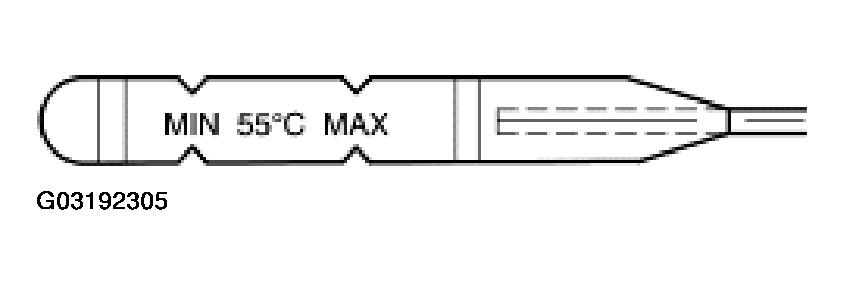

    Fig 2: Identifying Fluid Level Mark
    G03192305Courtesy of FORD MOTOR CO.
  4. Start the engine and move the transaxle range selector lever through all gear positions.
