Selector Lever Cable: Installation

    All Vehicles

  1. Attach the draw cord to the transaxle end of the selector lever cable.
  2. Pull the selector lever cable through the floor panel.
  3. Install the selector lever cable grommet.

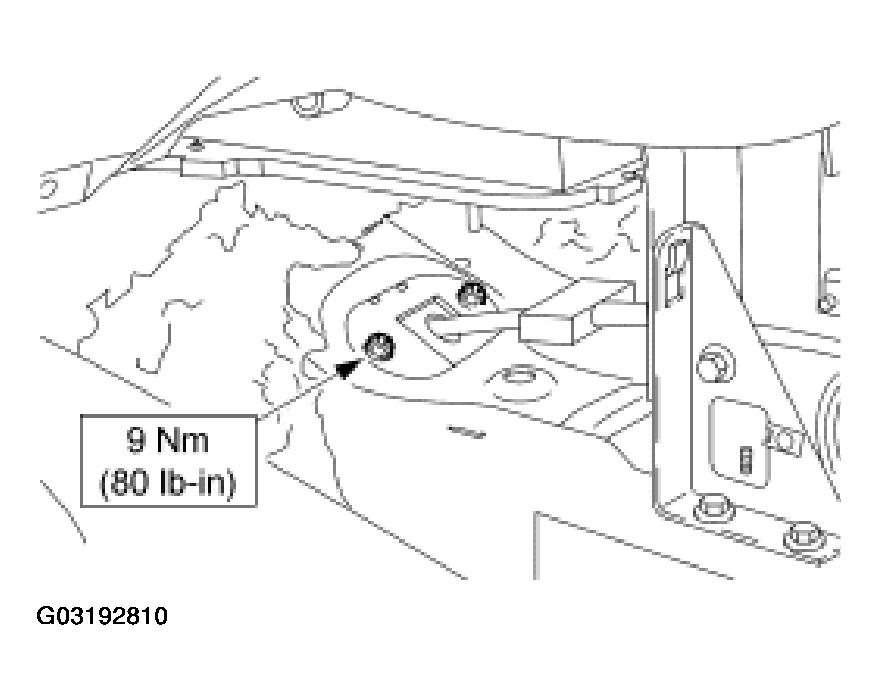

    Fig 1: Installing Selector Lever Cable Grommet
    G03192810Courtesy of FORD MOTOR CO.
  4. Secure the insulator material and the floor covering with adhesive tape (head exchanger shown removed).

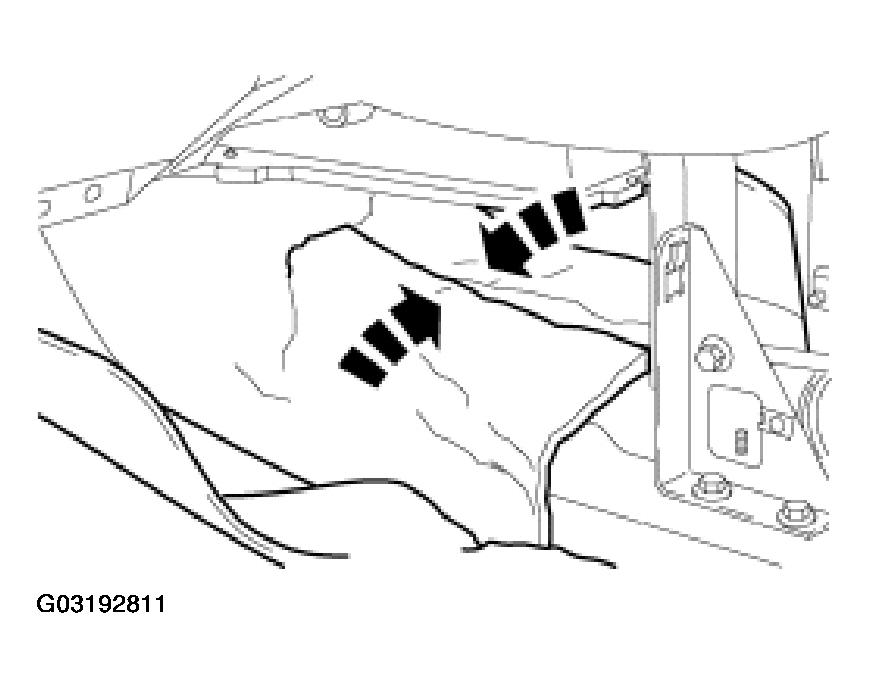

    Fig 2: Removing Insulator Material And Floor Covering With Adhesive Tape
    G03192811Courtesy of FORD MOTOR CO.
  5. Install the heater housing cover (right-hand side shown).
    • Locate the four clips.
    • Install the two screws.

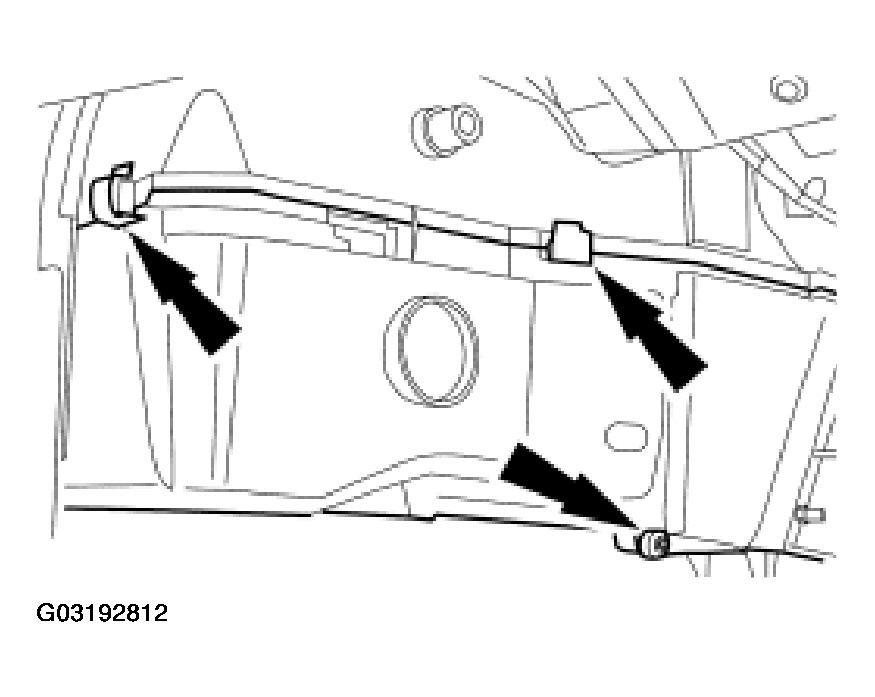

    Fig 3: Installing Heater Housing Cover
    G03192812Courtesy of FORD MOTOR CO.
  6. Install the footwell heater channel.

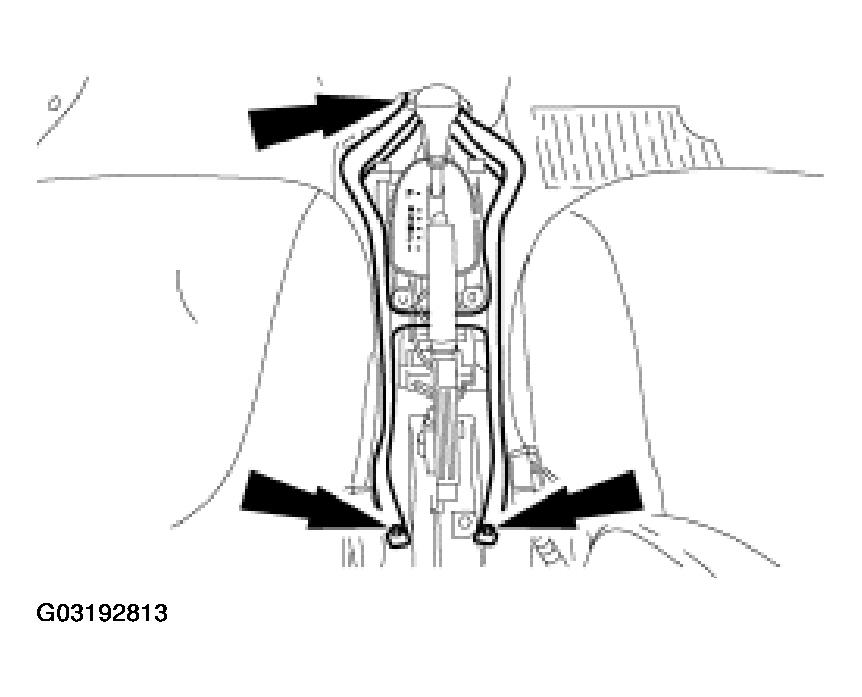

    Fig 4: Installing Footwell Heater Channel
    G03192813Courtesy of FORD MOTOR CO.
  7. Install the center console lower trim panels (left-hand side shown).
    • Install the clip.
    • Install the screws.

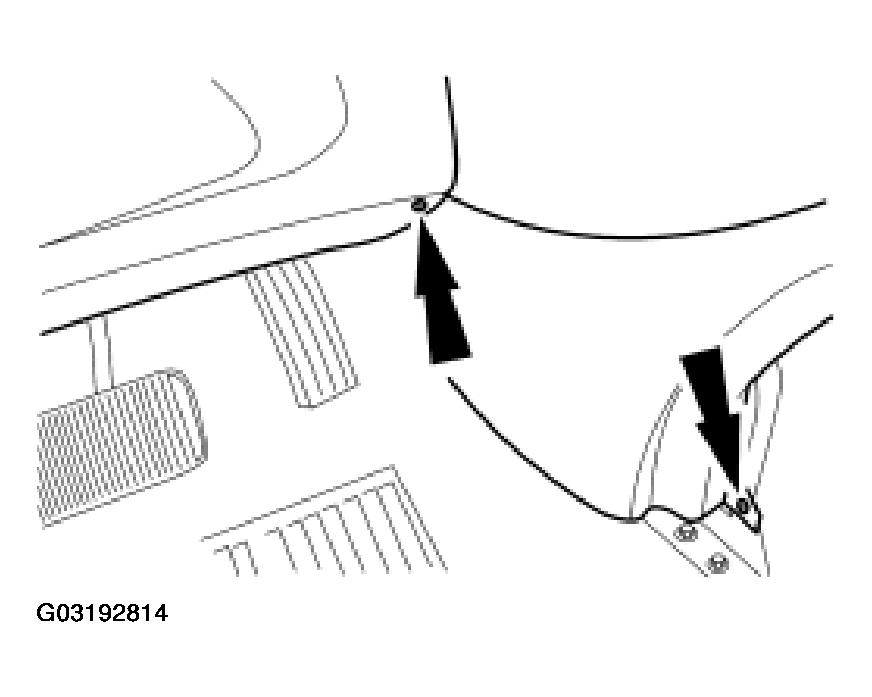

    Fig 5: Installing Center Console Lower Trim Panels
    G03192814Courtesy of FORD MOTOR CO.
  8. Install the armrest brace.

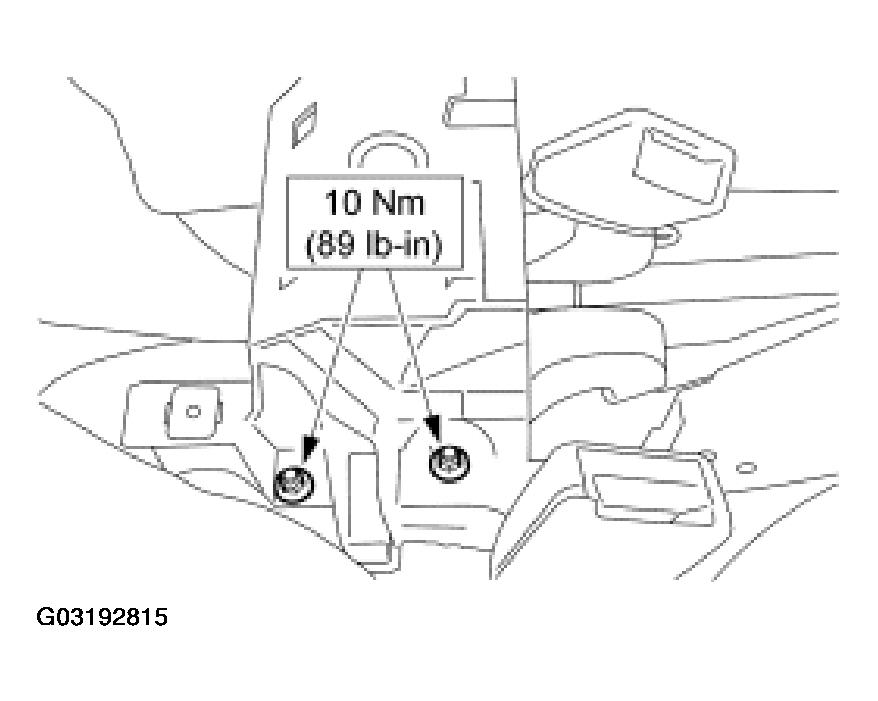

    Fig 6: Installing Armrest Brace
    G03192815Courtesy of FORD MOTOR CO.
  9. Install the selector cable to the selector lever.
    1. Shift the selector lever to "P".
    2. Clip in the selector lever cable outer sleeve.
    3. Clip in the selector lever cable.

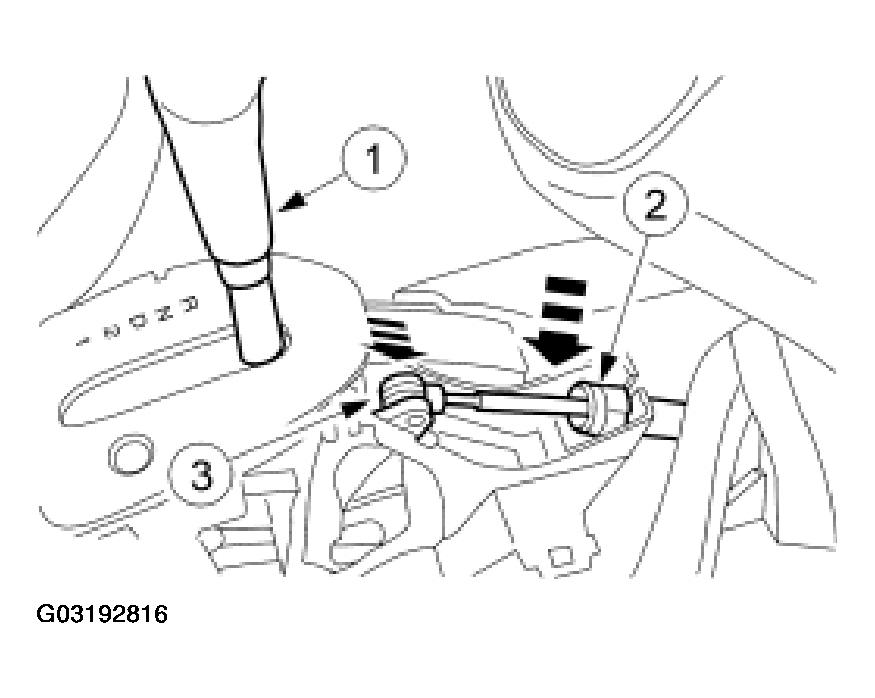

    Fig 7: Installing Selector Cable To Selector Lever
    G03192816Courtesy of FORD MOTOR CO.
  10. Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  11. Raise and support the vehicle. For additional information, refer to JACKING AND LIFTING .
  12. Remove the draw cord.
  13. Unlock the shift cable end. Make sure that the cable end moves freely.

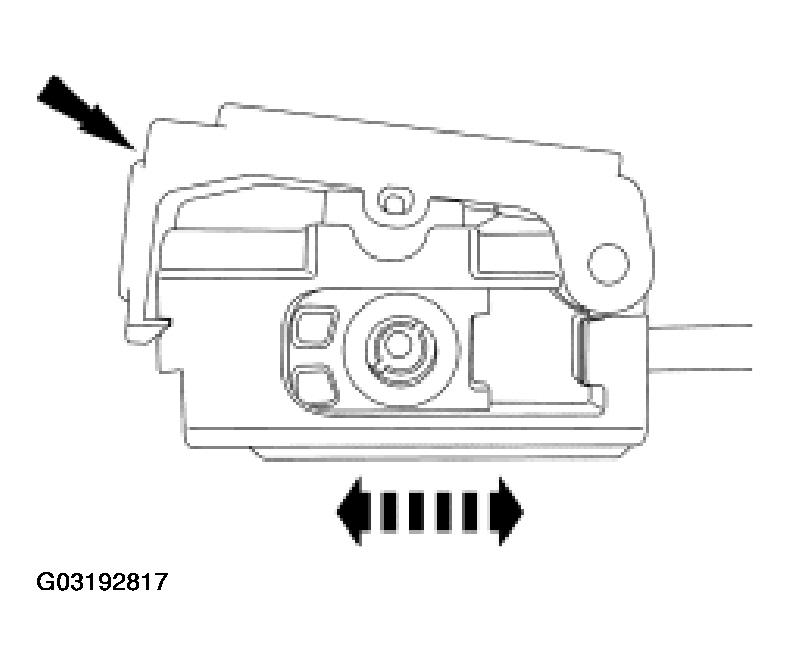

    Fig 8: Installing Floor Console
    G03192817Courtesy of FORD MOTOR CO.
  14. Connect the shift cable end to the manual control lever.
    1. Connect the shift cable to the cable bracket.
    2. Connect the shift cable end to the manual control lever.

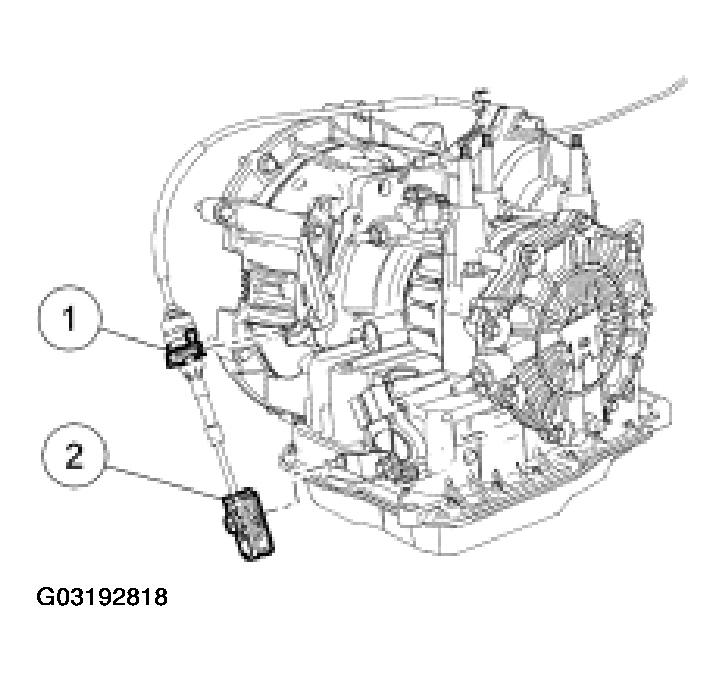

    Fig 9: Connecting Shift Cable End To Manual Control Lever
    G03192818Courtesy of FORD MOTOR CO.
  15. Press the lock tab down to secure the cable end from moving.

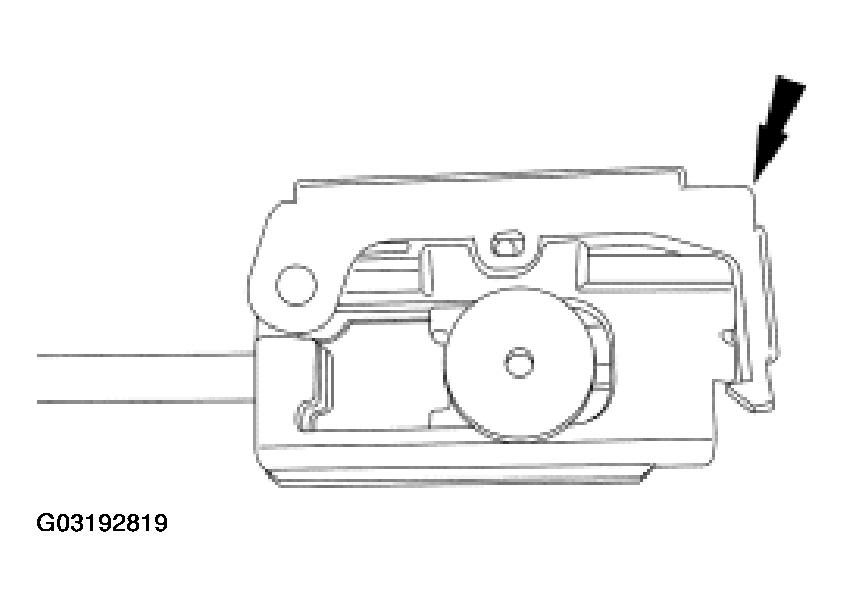

    Fig 10: Pressing Lock Tab To Cable End
    G03192819Courtesy of FORD MOTOR CO.
  16. Install the exhaust heat shield.

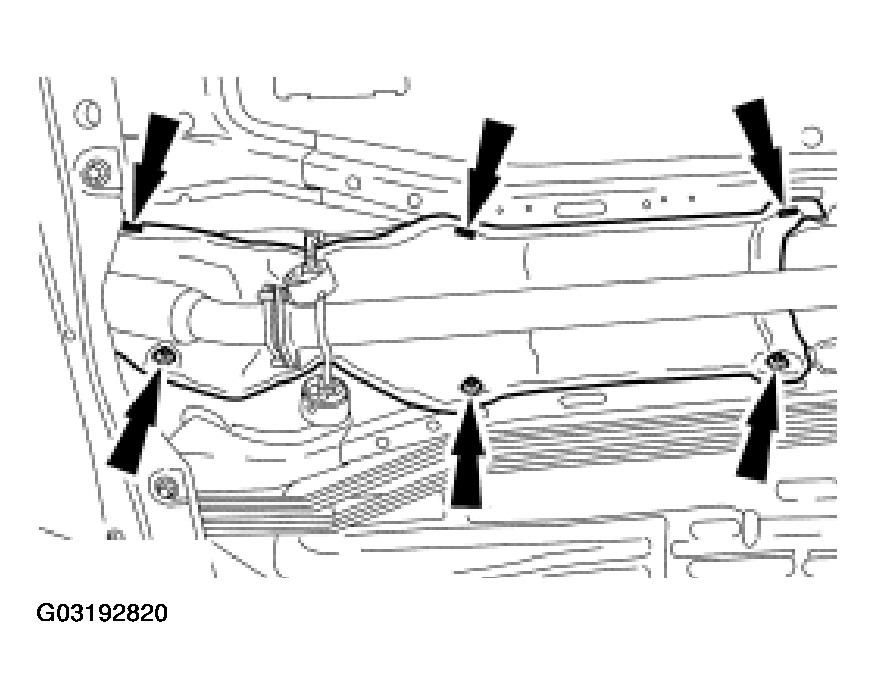

    Fig 11: Installing Exhaust Heat Shield
    G03192820Courtesy of FORD MOTOR CO.
  17. Connect the center exhaust hanger and remove the support wire.

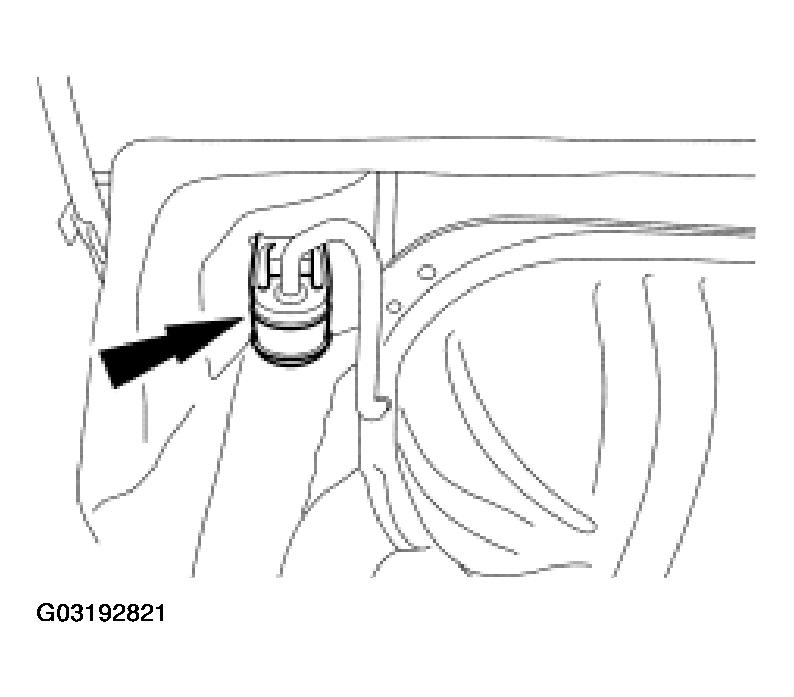

    Fig 12: Connecting Center Exhaust Hanger
    G03192821Courtesy of FORD MOTOR CO.
    18. NOTE: Install a new exhaust flange gasket.

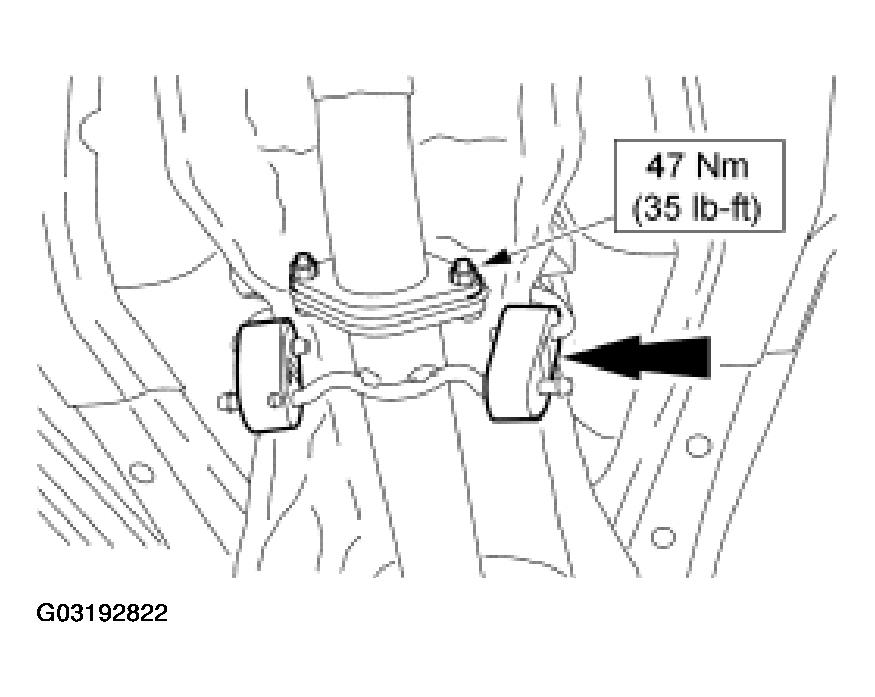

    Fig 13: Connecting Front Exhaust Pipe
    G03192822Courtesy of FORD MOTOR CO.
  18. Attach the exhaust pipe support insulators and connect the front exhaust pipe.
  19. Remove the support wrap.

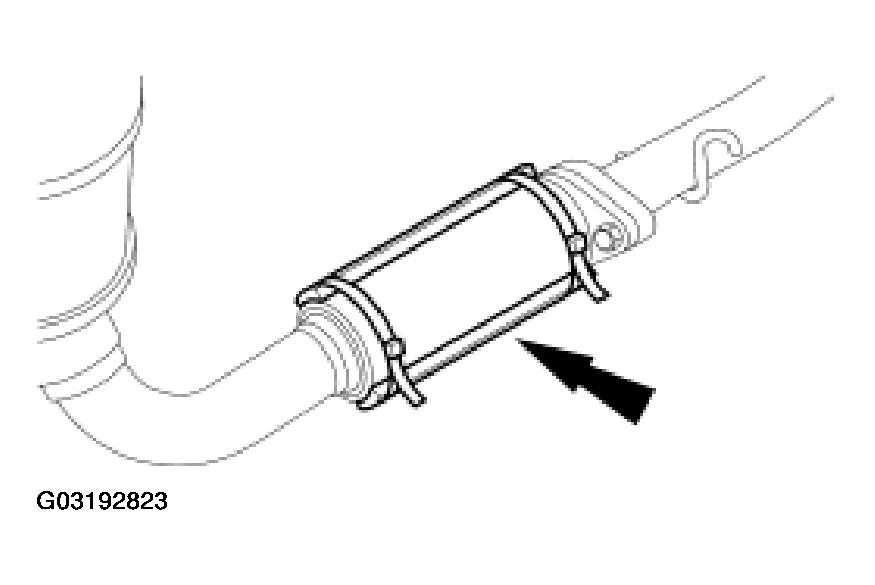

    Fig 14: Removing Support Wrap
    G03192823Courtesy of FORD MOTOR CO.
  20. Adjust the selector lever cable. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .

    21. Vehicles With 2.0L Zetec-E (Zeta) Engine

  21. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  22. Install the air cleaner. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .

    23. Vehicles With 2.3L (PZEV) Engine

  23. Install the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  24. Check that the vehicle starts in PARK and NEUTRAL and the reverse lamps illuminate in REVERSE.
