Transmission Selector Lever: Installation

    NOTE: Use thread locking compound for the nuts.

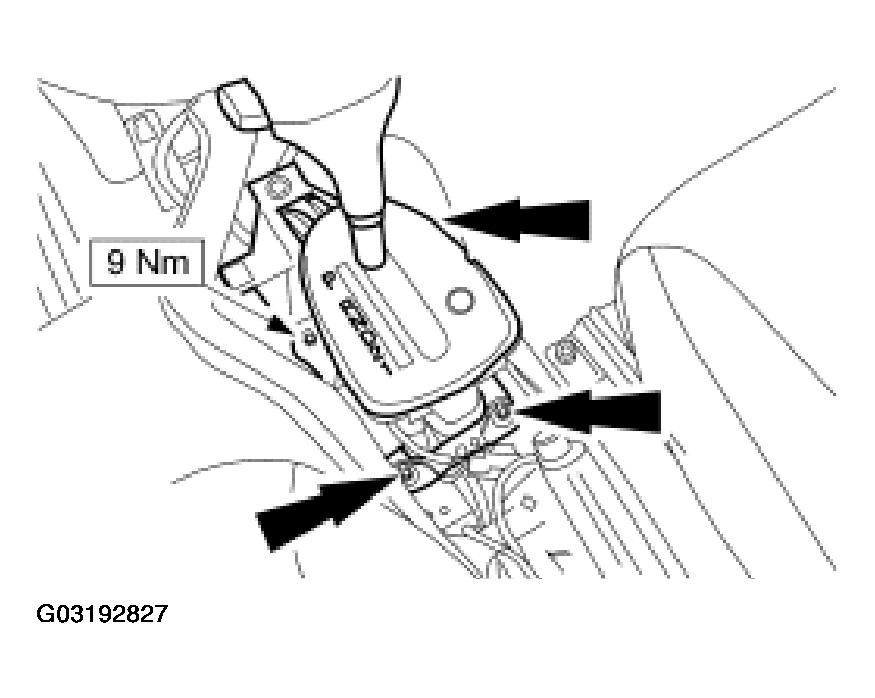

    Fig 1: Installing Selector Lever Assembly
    G03192827Courtesy of FORD MOTOR CO.
  1. Install the selector lever assembly.
    • Install the four nuts.
  2. Connect the selector lever assembly electrical connector.

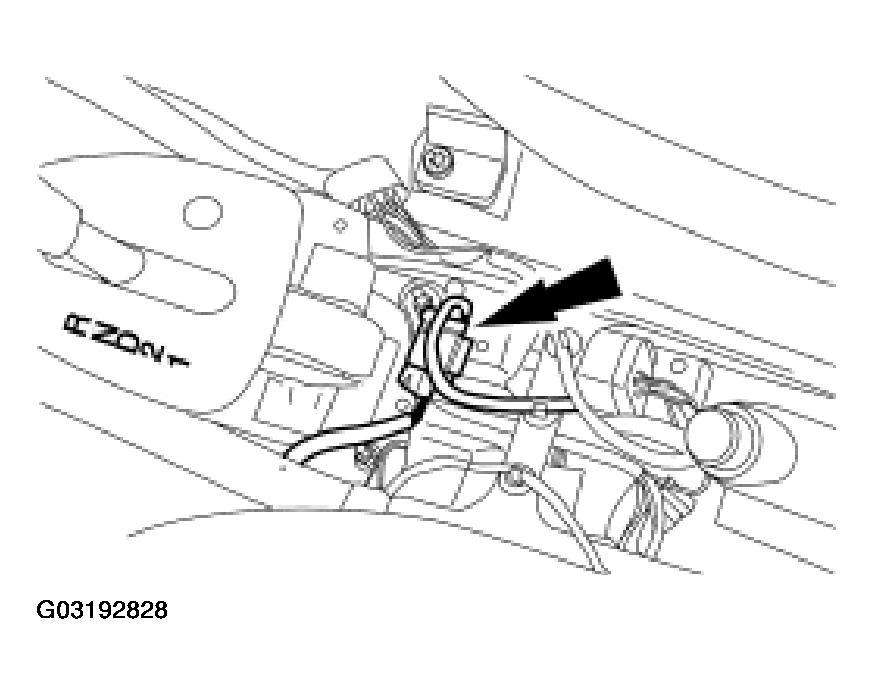

    Fig 2: Connecting Selector Lever Assembly Electrical Connector
    G03192828Courtesy of FORD MOTOR CO.
    3. NOTE: The selector lever has its own detent mechanism. Holding the selector lever is not necessary.

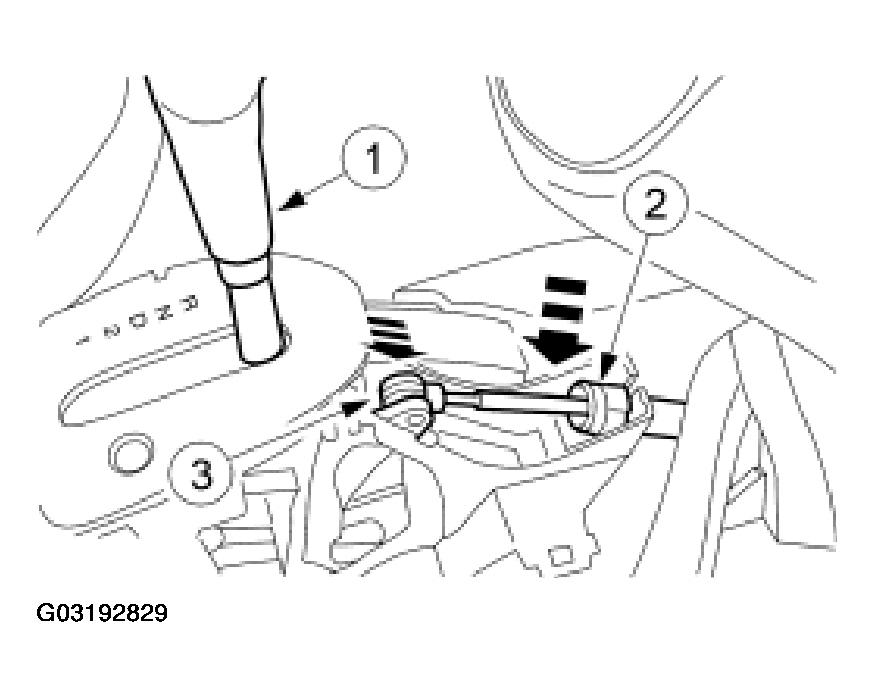

    Fig 3: Installing Selector Cable To Selector Lever
    G03192829Courtesy of FORD MOTOR CO.
  3. Install the selector cable to the selector lever.
    1. Shift the selector lever to "P".
    2. Clip in the selector lever cable outer sleeve.
    3. Clip in the selector lever cable.
  4. Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  5. Readjust the system. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
