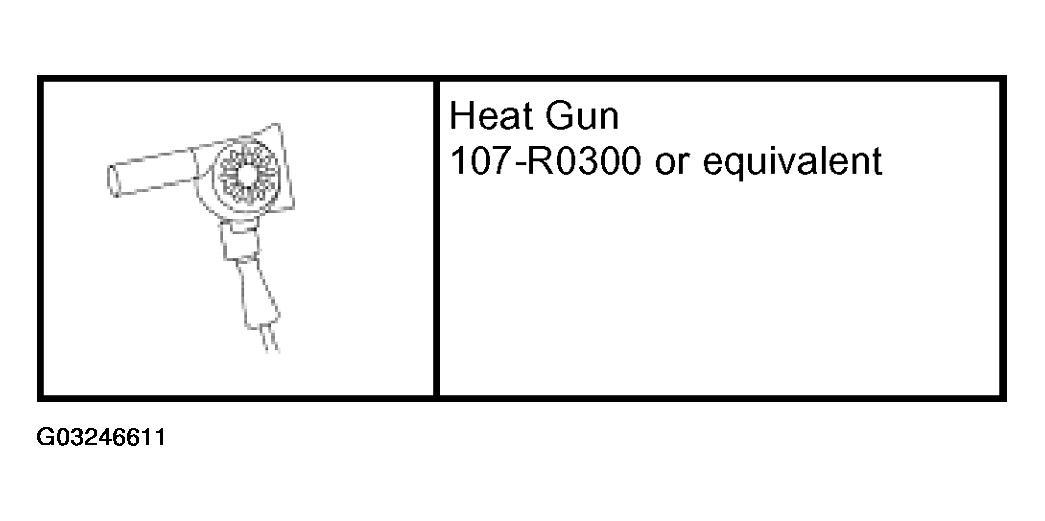

Special Tool(s)
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Rear Window Defroster Repair D8AZ-19562-AA or equivalent | ESB-M4J58-B |

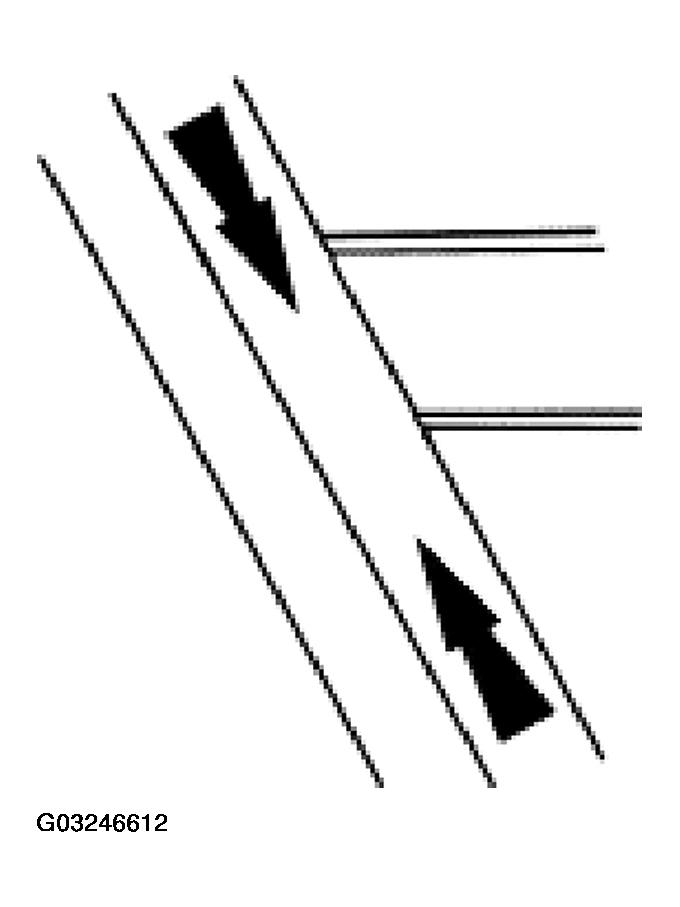

- Clean the bus bar in the area to be serviced with steel wool (3.0 to 4.0 grade).

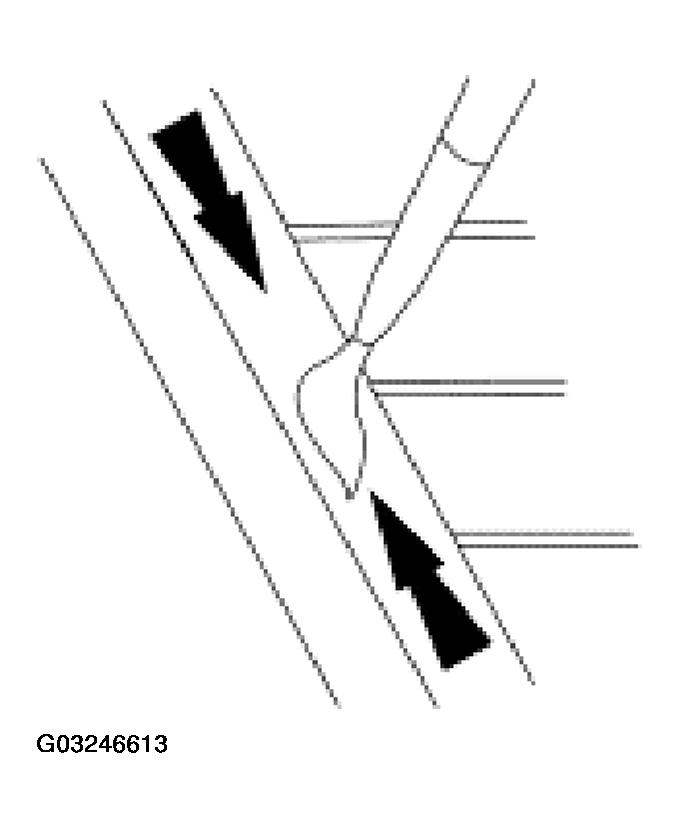

- Apply 3 coats of rear window defroster repair.

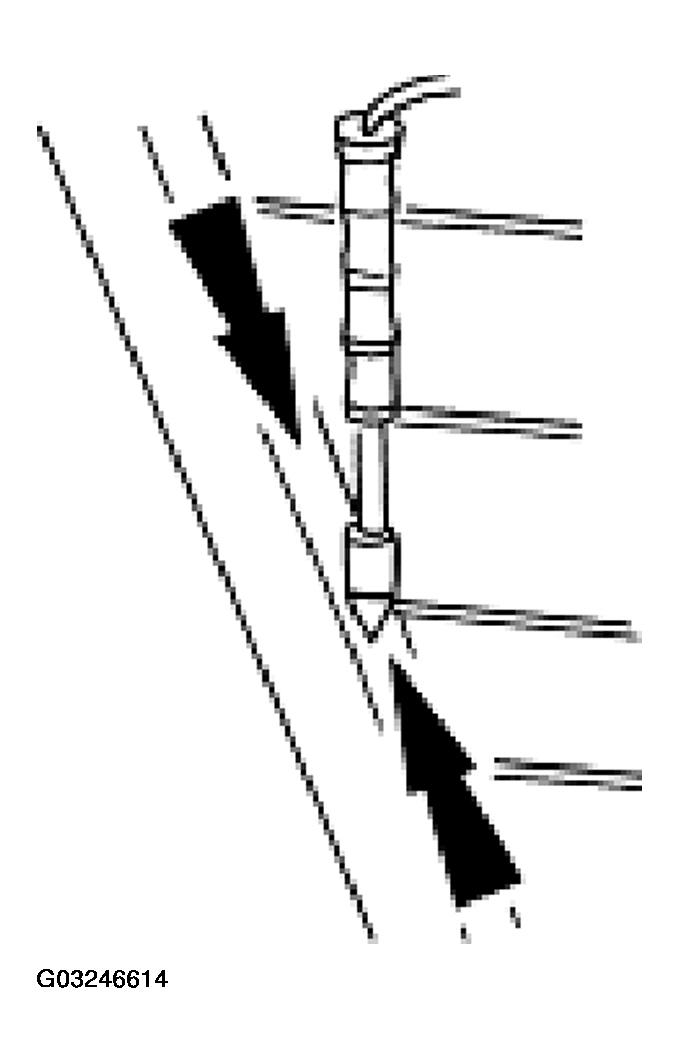

- Tin the bus bar repair area with solder.

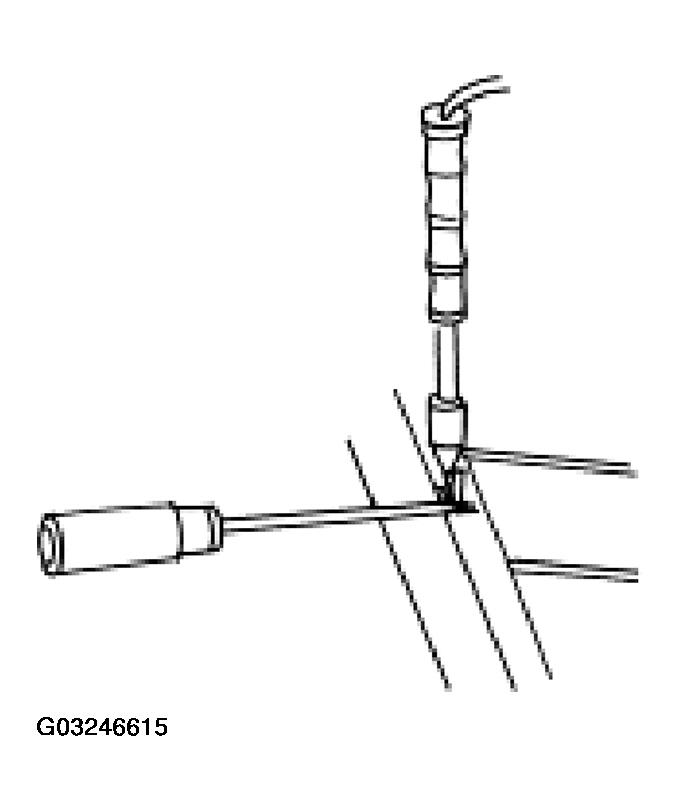

- Preheat the rear window glass in the area to be serviced using the special tool and solder the terminal to the bus bar.
- Apply rear window defroster repair to the repair area as needed.
NOTE:
The rear window glass must be at room temperature at the time of the repair.
NOTE:
Allow 10 minutes of drying time between the coats.
CAUTION:
Do not overheat the rear window glass or damage to the rear window glass may occur.
CAUTION:
To prevent overheating the rear window glass, remove the soldering gun as soon as the solder flows.
NOTE:
Turn the heated rear window switch ON for 5 minutes prior to the final inspection of the repair.
