Removal And Installation: Fender: Notes

Remove the wheel and tire. For additional information, Refer to WHEEL AND TIRE -- FRONT .
Remove the front bumper cover. For additional information, Refer to FRONT BUMPER .
Remove the front rocker moulding. For additional information, Refer to MOULDINGS .
Remove the parts in the order indicated in the following illustration and table.
To remove individual parts, only carry out the listed steps:

Part Steps

Fender 1-7

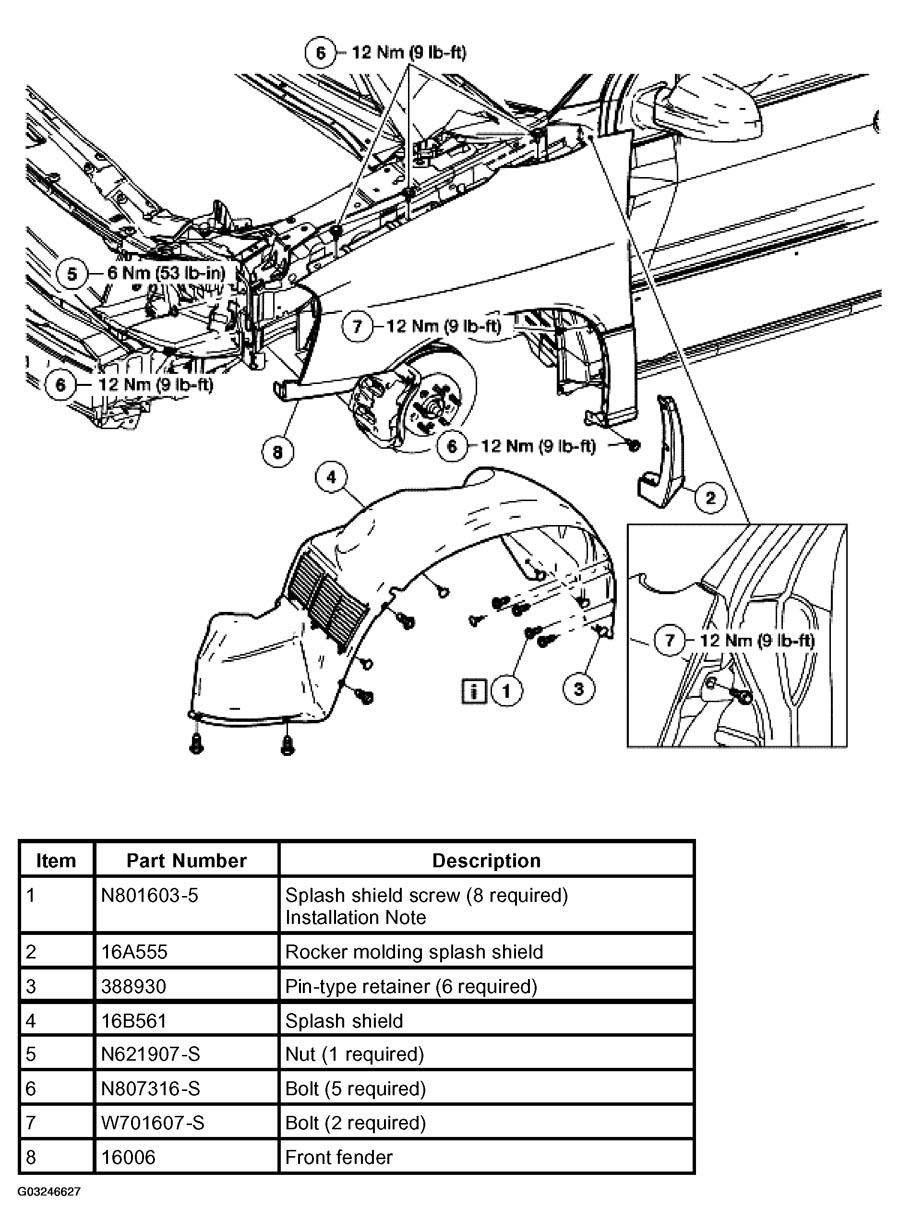

Fig 1: Removing Front Fender
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
