Removal And Installation: Liftgate: Notes
- Remove the C and D-pillar. For additional information Refer to INTERIOR TRIM PANELS .
- Position the headliner to access the rear washer hose and liftgate harness electrical connectors.

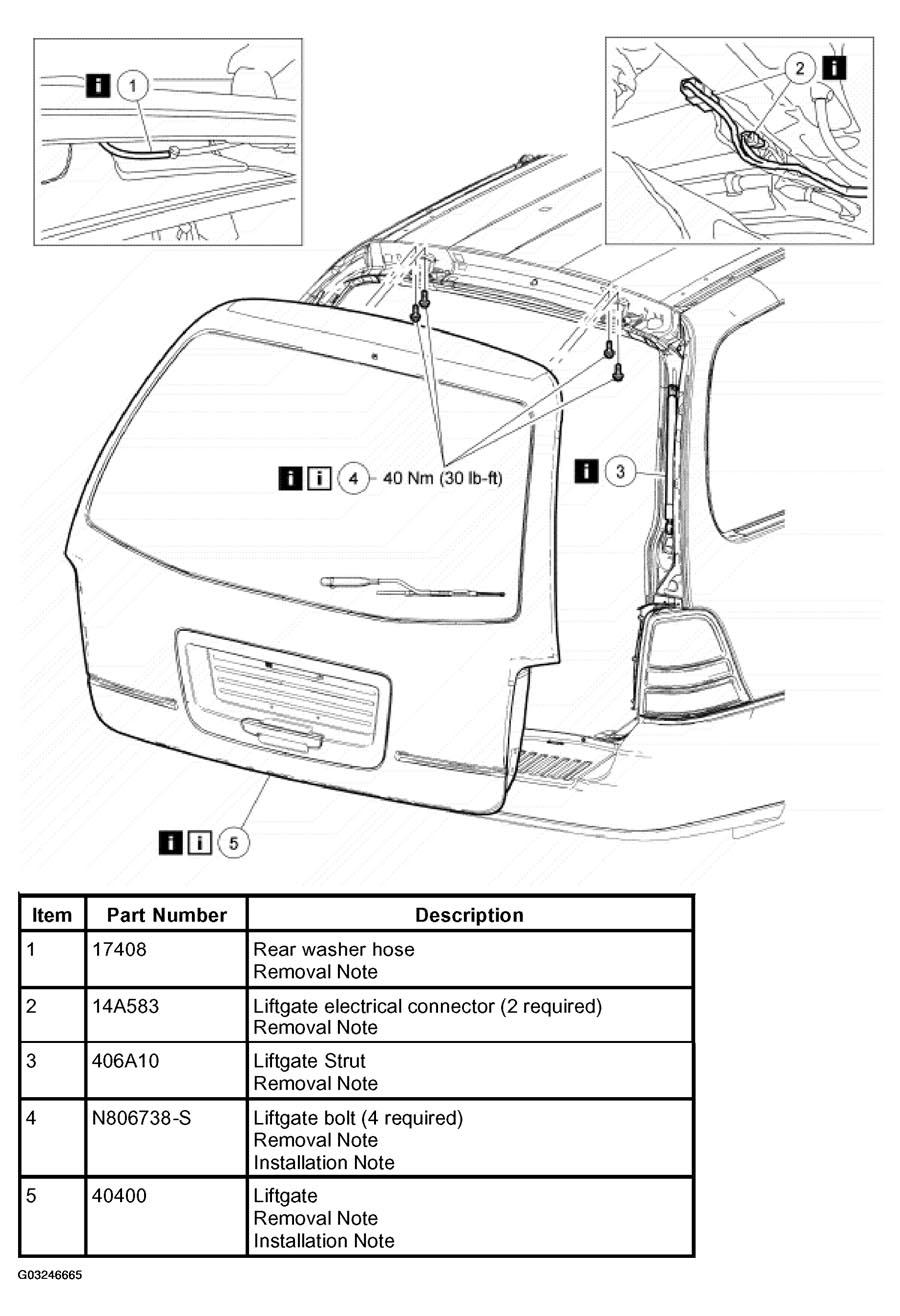

- Remove the parts in the order indicated in the following illustration.
- To install, reverse the removal procedure.
