Window Control Switch

Disconnect the battery. For additional information, Refer to BATTERY & CHARGING SYSTEM .
Remove the parts in the order indicated in the following illustration and table.

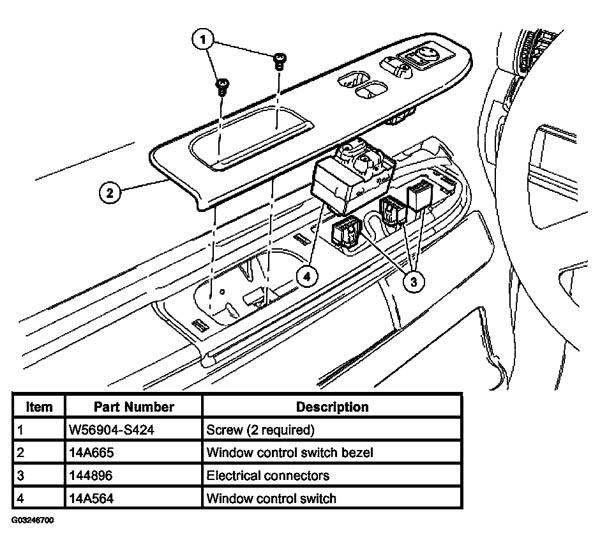

Fig 1: Removing Window Control Switch
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
