Piston - Diameter

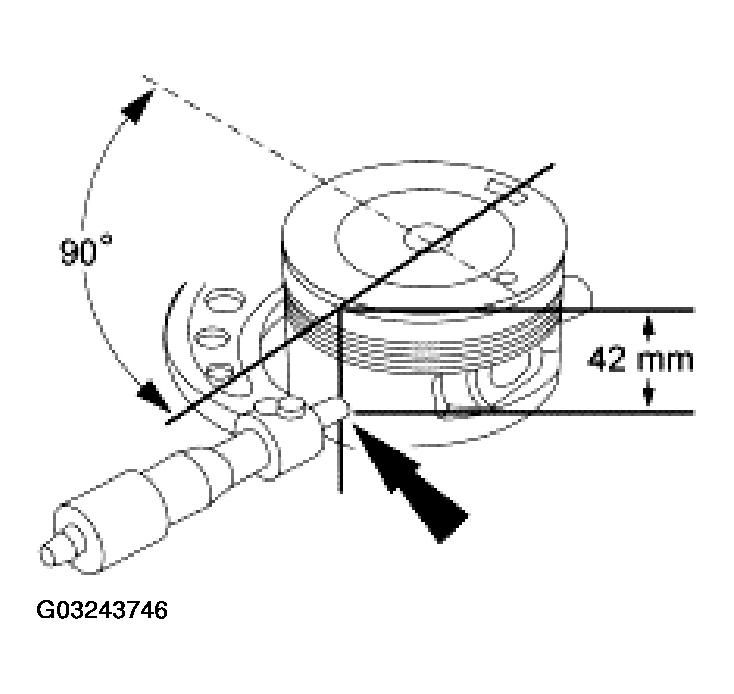

- Measure the piston diameter 90 degrees from the piston pin and 42 mm down from the top of the piston at the point indicated. .
- If out of specification, install new components as necessary. Refer to ENGINE - 3.9L & 4.2L for the procedure .
