Seat - Passenger Storage Drawer: Assembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes at the beginning of the disassembly procedure.

    ALL PASSENGER SEATS

  1. Install the passenger under-seat storage housing to the seat support.

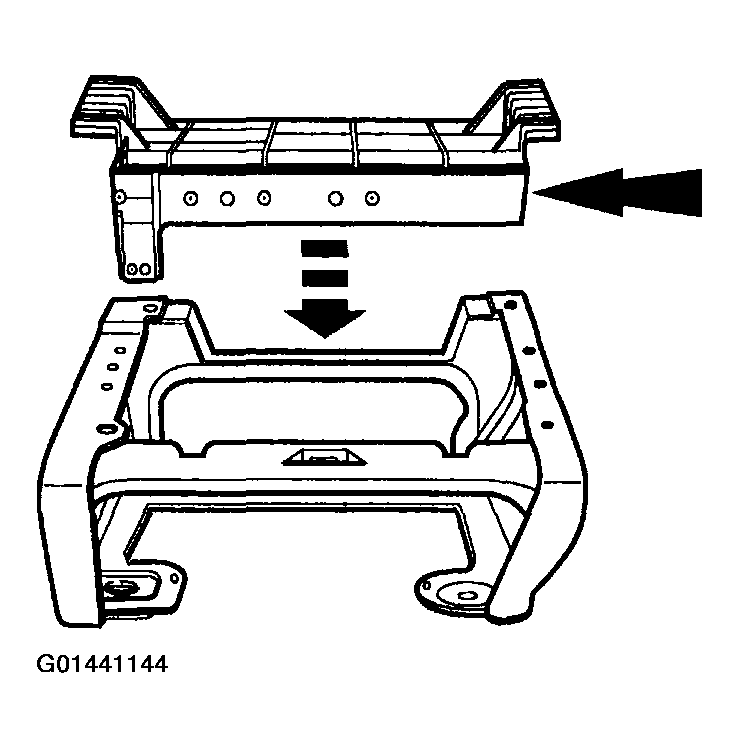

    Fig 1: Installing Passenger Under-Seat Storage Housing To Seat Support
    G01441144Courtesy of FORD MOTOR CO.
  2. Install the screws.

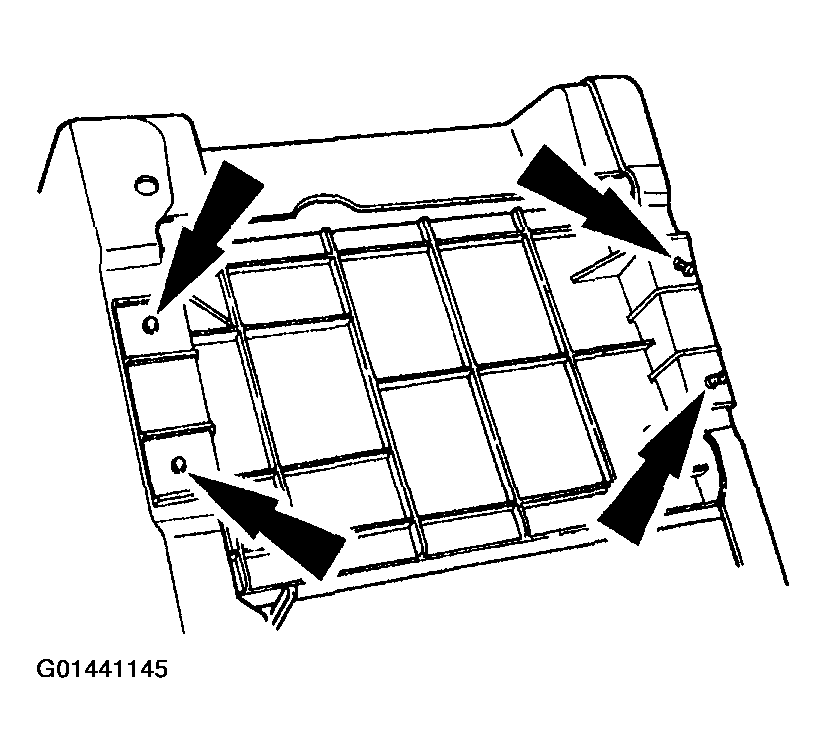

    Fig 2: Installing Screws
    G01441145Courtesy of FORD MOTOR CO.
  3. Install the passenger seat support. For additional information, refer to SEAT - FRONT, POWER BUCKET  or SEAT - FRONT, MANUAL BUCKET .
    4. WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, and notes in the seat removal and installation procedure.
  4. Install the passenger seat. For additional information, refer to PASSENGER SEAT .
  5. Install the under-seat storage drawer.

    6. PASSENGER SEATS EQUIPPED WITH A SAFETY BELT BUCKLE PRETENSIONER

  6. Restore the vehicle to operating condition.
      WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system deactivation/reactivation procedure.
    1. Reactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
      2. WARNING: The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
    2. With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

    7. ALL PASSENGER SEATS

  7. Check the restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
