Driver Seat: Installation
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions and notes at the beginning of the removal procedure.

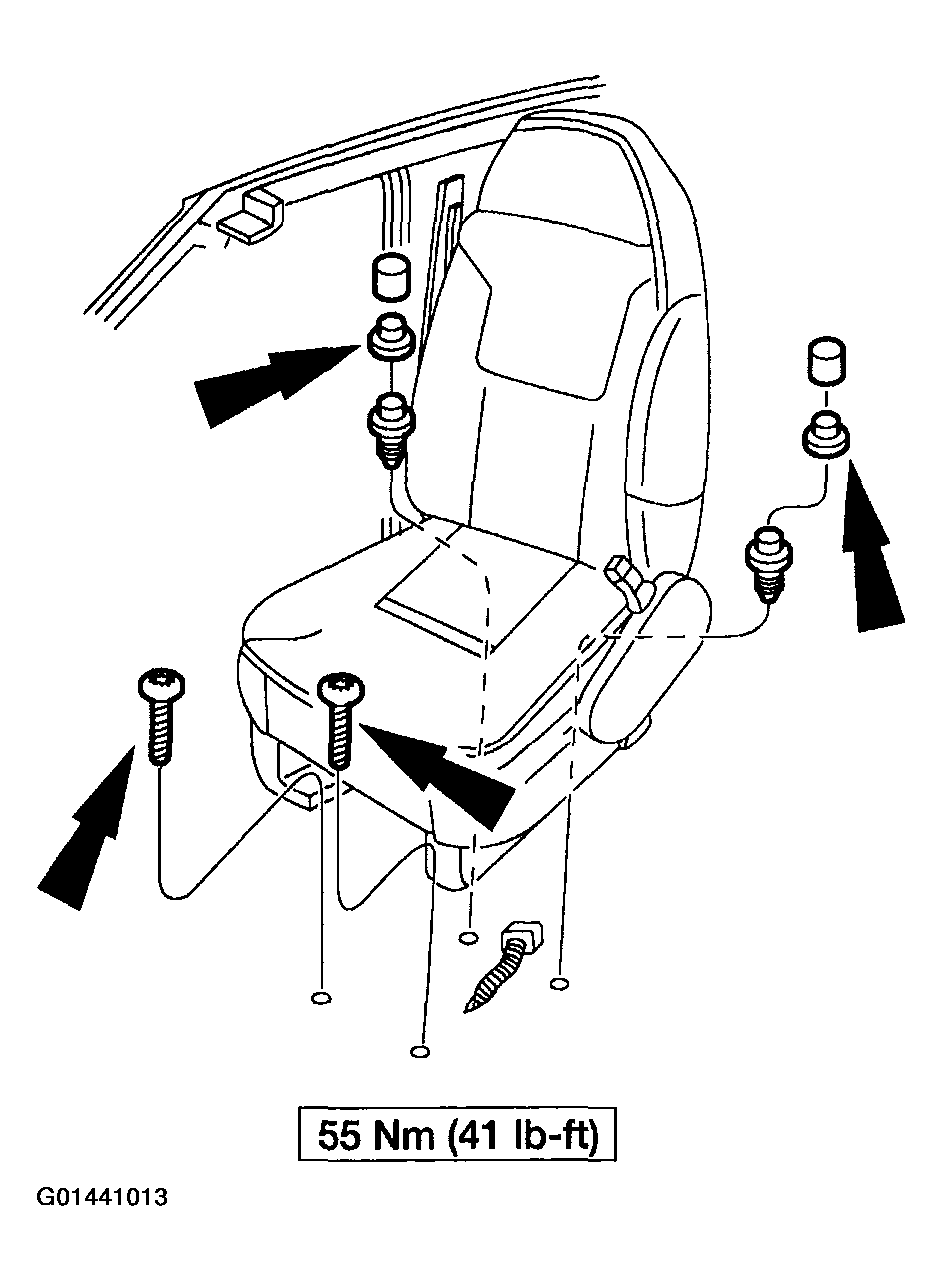

- Install the front seat.

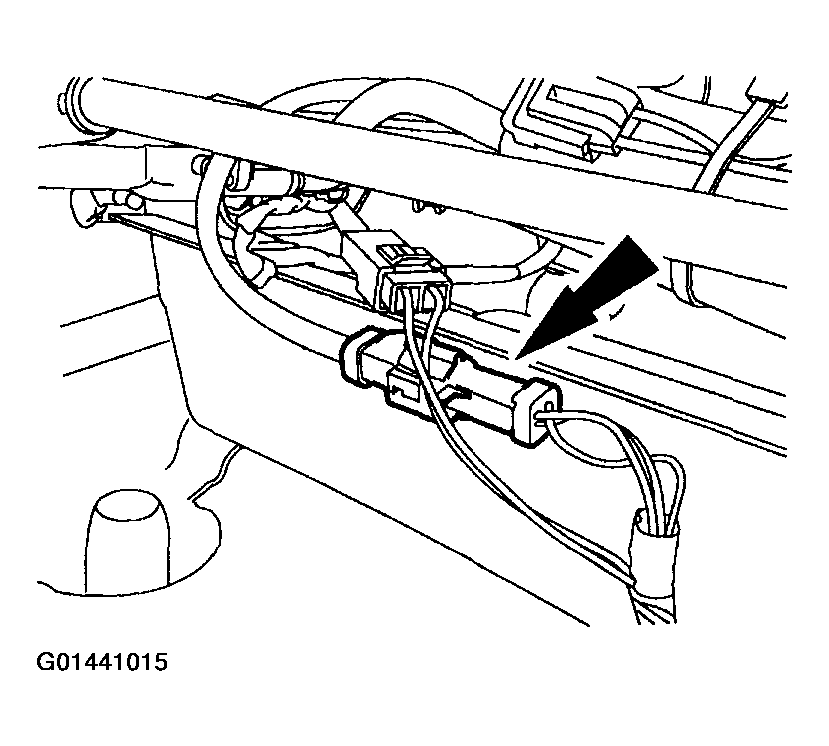

- Connect the electrical feed electrical connector underneath the seat.

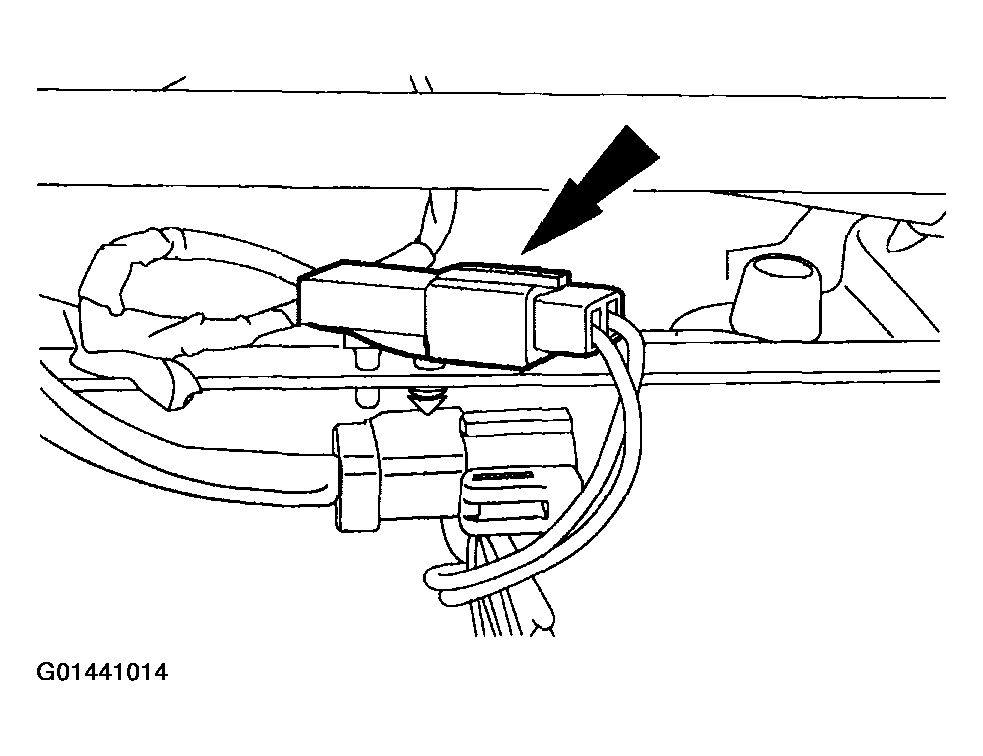

- Connect the driver safety belt buckle pretensioner electrical connector.
- Connect the battery ground cable and wait at least one minute. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
- Reactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .
- With all the restraint system diagnostic tools removed, prove out the supplemental restraint system (SRS). For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
- Check the restraint system for correct operation. For additional information, refer to SAFETY BELT SYSTEM .
ALL VEHICLES
VEHICLES EQUIPPED WITH POWER SEAT
ALL VEHICLES
ALL VEHICLES
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system deactivation/reactivation procedure.
WARNING:
The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
