Driver Seat: Removal
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
WARNING:
The belt and buckle assembly pretensioner is a pyrotechnic device. Always wear safety glasses when servicing an air bag-equipped vehicle and when handling a belt and buckle assembly pretensioner.
WARNING:
The belt and buckle assembly pretensioner is a pyrotechnic device. Never probe the connectors on the belt and buckle assembly pretensioner. Doing so can result in belt and buckle assembly pretensioner or air bag deployment and can result in personal injury.
WARNING:
The restraint system diagnostic tool is for restraint system service only. Remove from the vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
- Disconnect the battery ground cable (14301) and wait at least one minute. For additional information, refer to BATTERY, MOUNTING AND CABLES .
- Deactivate the supplemental restraint system (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEACTIVATION AND REACTIVATION .

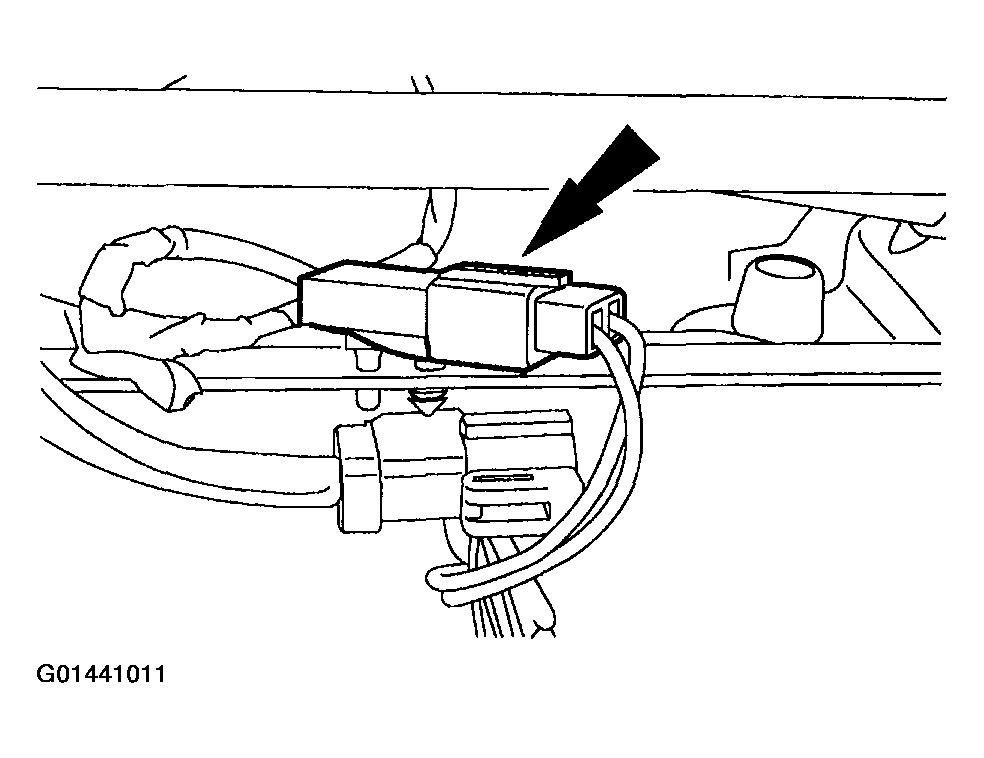

- Disconnect the driver safety belt buckle pretensioner electrical connector.
Courtesy of FORD MOTOR CO.
VEHICLES EQUIPPED WITH POWER SEAT

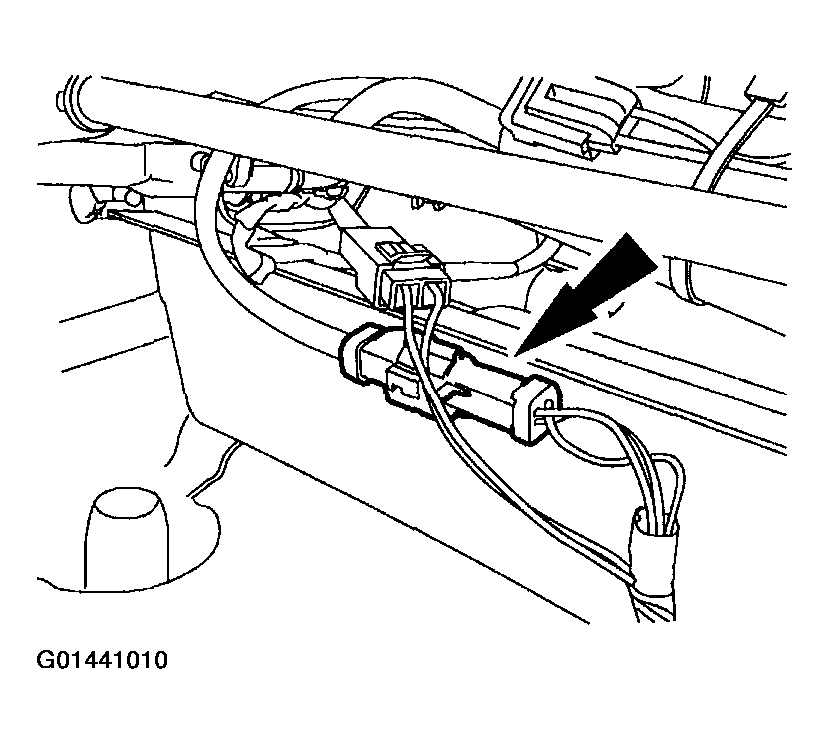

- Disconnect the electrical feed electrical connector underneath the seat.

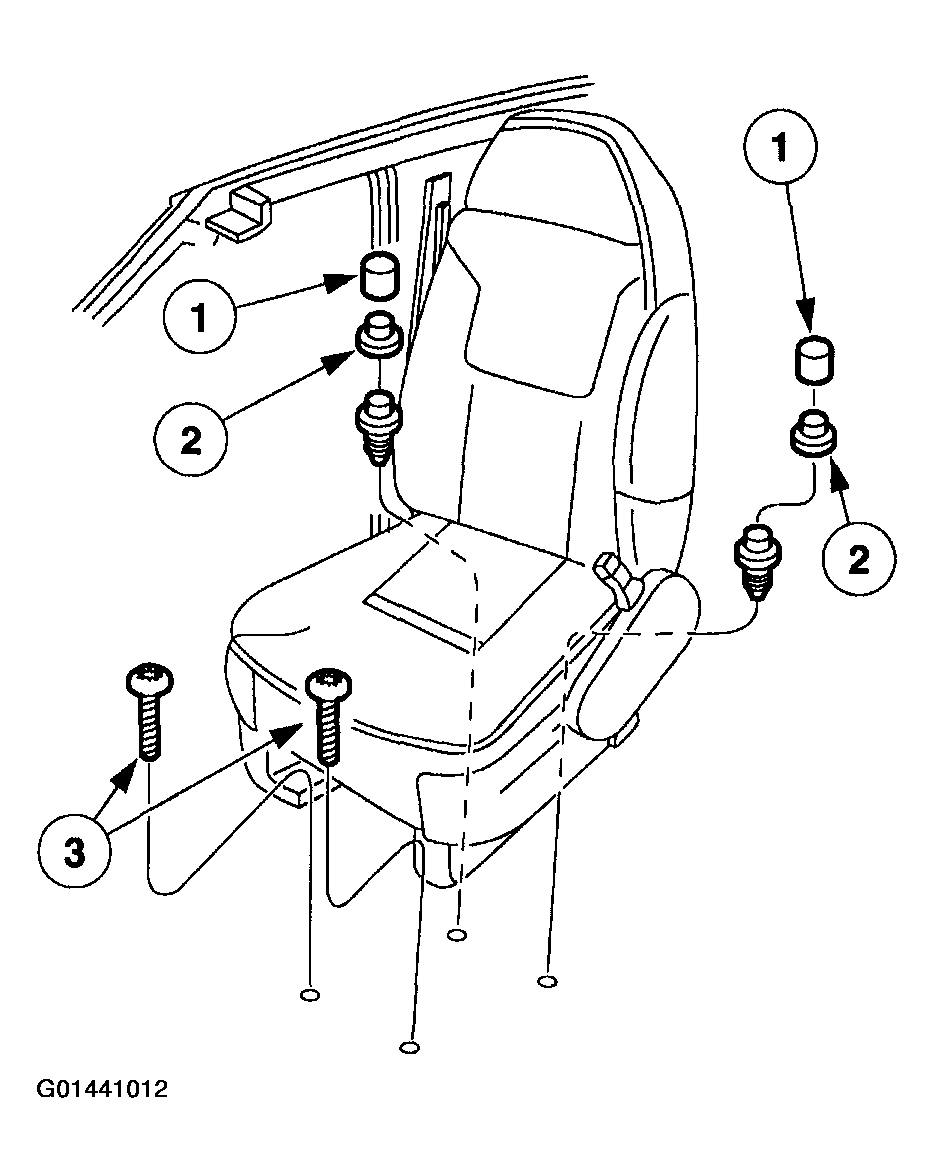

- Remove the front seat.
- Remove the stud covers.
- Remove the nuts and washers.
- Remove the bolts and the front seat.
ALL VEHICLES
WARNING:
To avoid accidental deployment and possible personal injury, the backup power supply must be depleted before preparing or replacing any front or side air bag supplemental restraint system (SRS) components and before servicing, replacing, adjusting or striking components near the front or side air bag sensors, such as doors, instrument panel, console, door latches, strikers, seats and hood latches.
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
To deplete the backup power supply energy, disconnect the battery ground cable and wait at least one minute. Be sure to disconnect auxiliary batteries and power supplies (if equipped).
WARNING:
To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the supplemental restraint system deactivation/reactivation procedure.
ALL VEHICLES
