Item 20: Steering Column Bearing Assembly Note

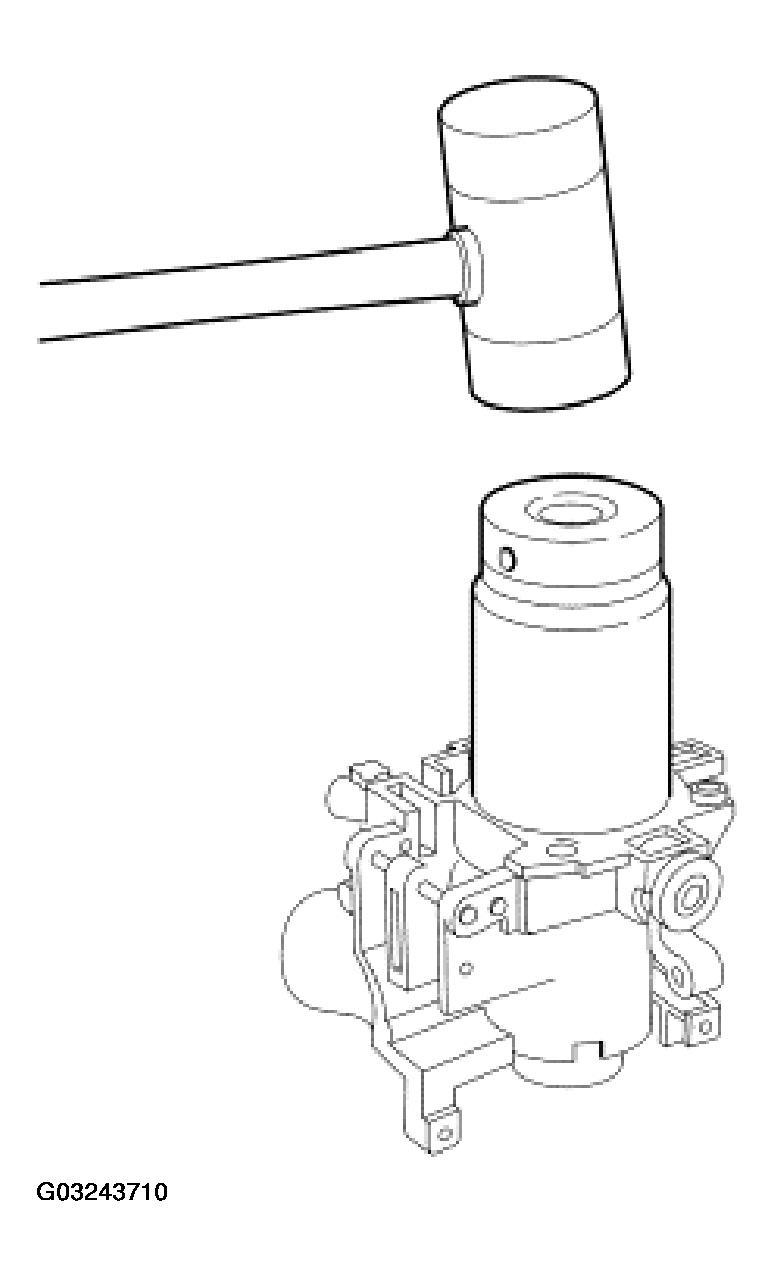

Fig 1: Installing Steering Column Bearing

Courtesy of FORD MOTOR CO.

CAUTION: Install the large steering column bearing so that the inner race is visible when installed.

NOTE: The numbering and description of components are for correct bearing orientation and not for an assembly order.

NOTE: Use an appropriate bearing installer.

Install the steering column lower bearing into the steering column lock cylinder housing.

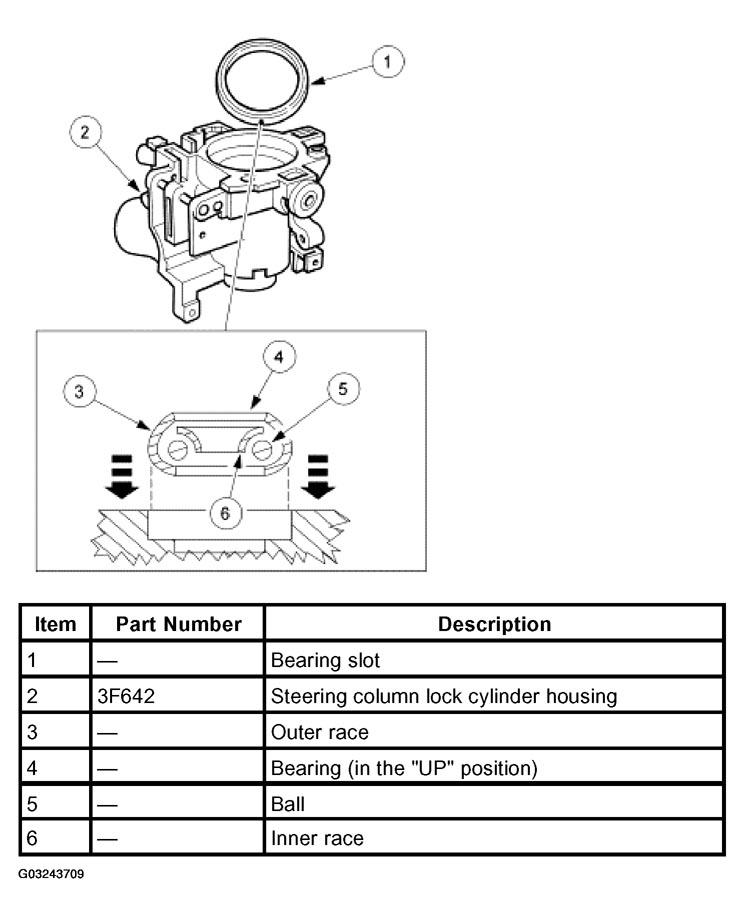

Fig 2: Installing Steering Column Lower Bearing Into Steering Column Lock Cylinder Housing

Courtesy of FORD MOTOR CO.

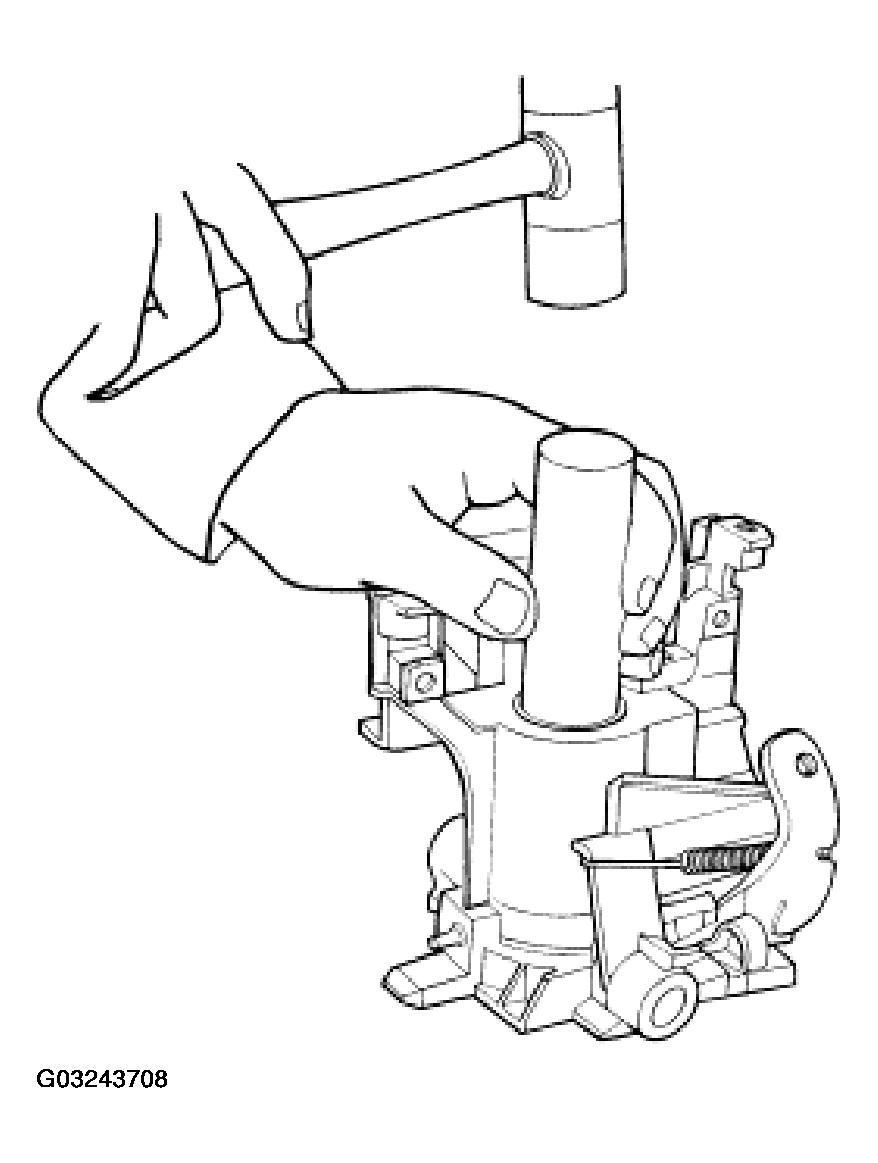

Fig 3: Installing Steering Column Bearing

Courtesy of FORD MOTOR CO.
