Item 29: Gearshift Lever Pin Assembly Note

    CAUTION: Gearshift lever pin must be installed correctly (tapered end up) or 1st gear position may be blocked.

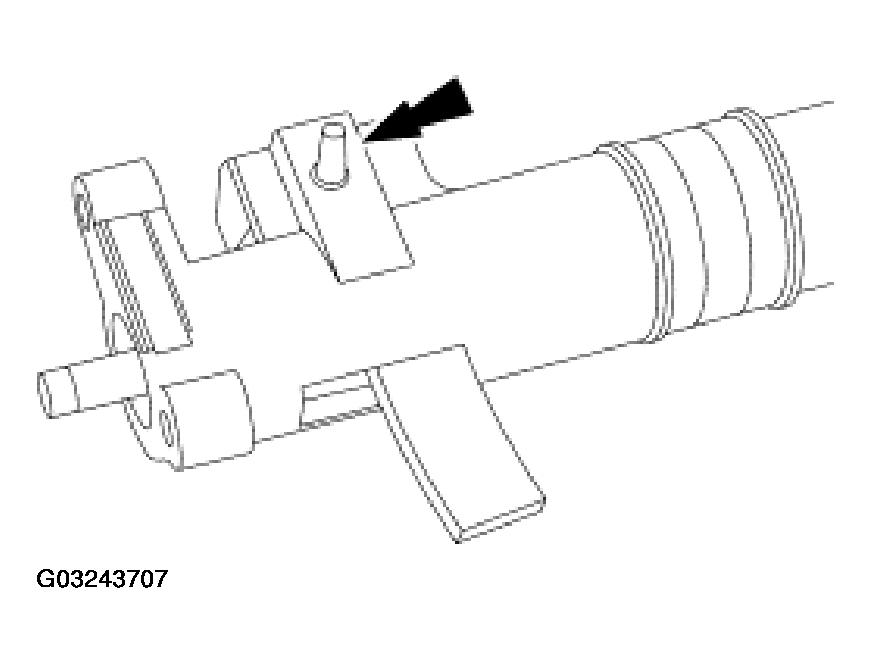

    Fig 1: Installing Gearshift Lever Pin
    G03243707Courtesy of FORD MOTOR CO.
  1. Install the gearshift lever pin in the shift tube.
