Item 4: Steering Column Lock Bearing Assembly Note

  1. Install the bearing retainer firmly to engage the 4 retention tabs into the lock housing using the previously made index marks.

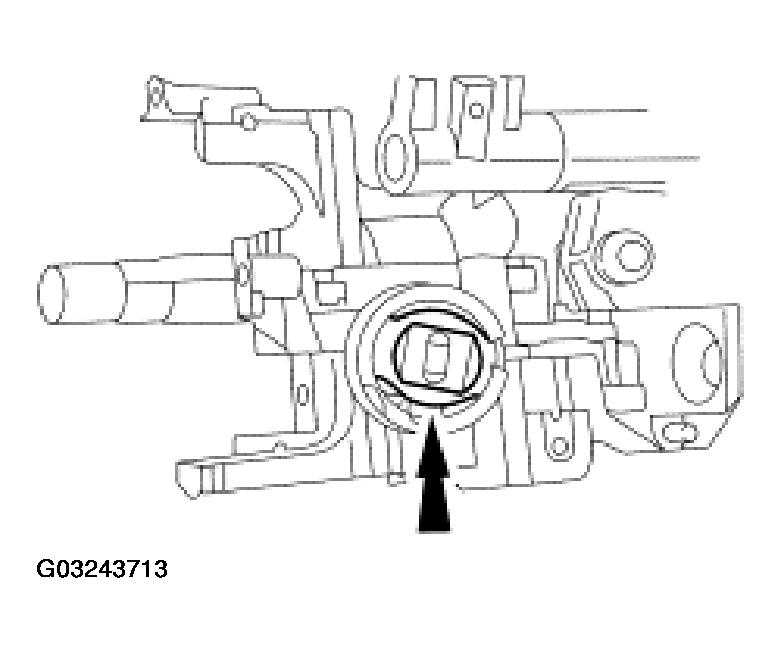

    Fig 1: Installing Bearing Retainer
    G03243713Courtesy of FORD MOTOR CO.
