Transmission Range (TR) Sensor Adjustment

Special Tool(s)

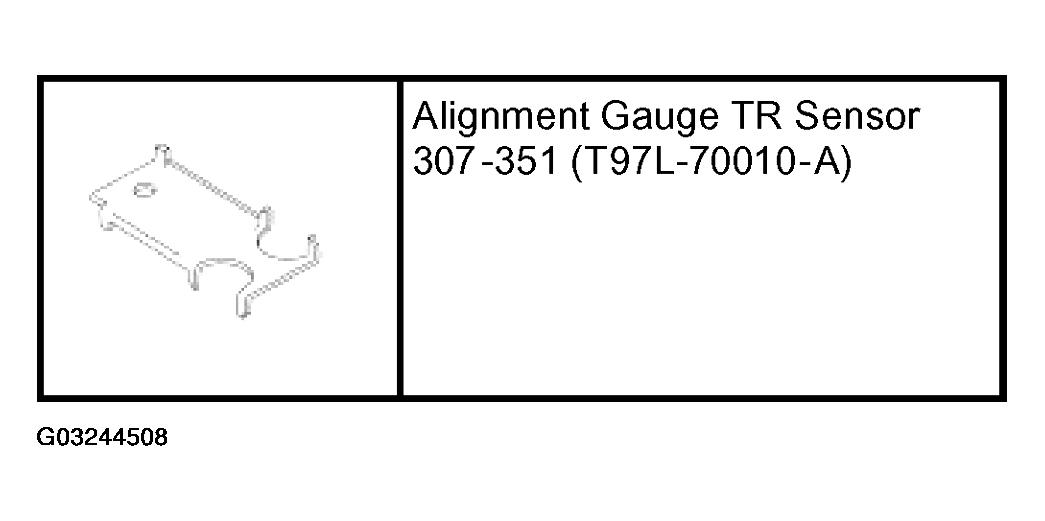

Fig 1: Special Tools Specifications
G03244508Courtesy of FORD MOTOR CO.
  1. With the vehicle in NEUTRAL position it on a hoist. For additional information, Refer to JACKING & LIFTING .
  2. Set the parking brake.
  3. Loosen the clamps and remove the air cleaner tube.
    Fig 2: Removing Air Cleaner Tube
    G03244509Courtesy of FORD MOTOR CO.
  4. Remove the air cleaner assembly. For additional information, refer to AIR CLEANER ASSEMBLY .

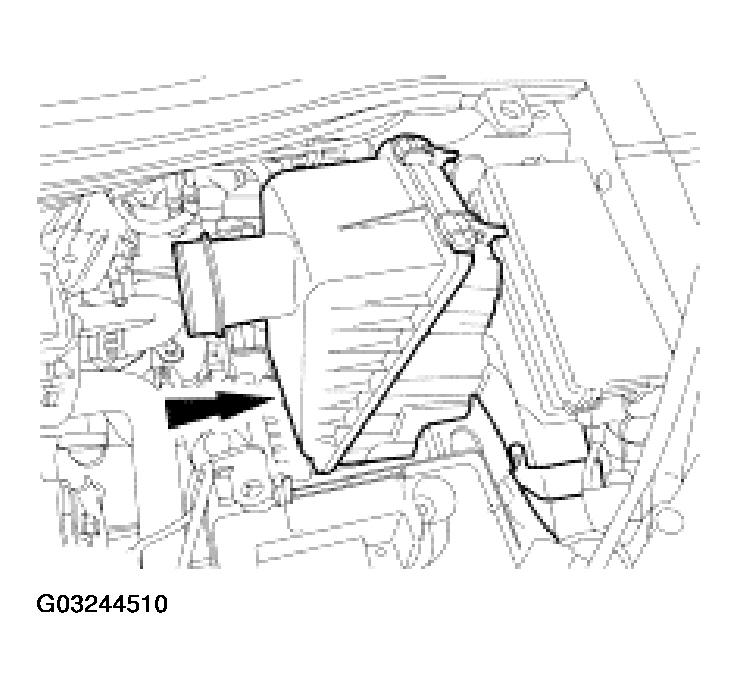

    Fig 3: Removing Air Cleaner Assembly
    G03244510Courtesy of FORD MOTOR CO.
  5. Disconnect the digital transmission range (TR) sensor electrical connector.

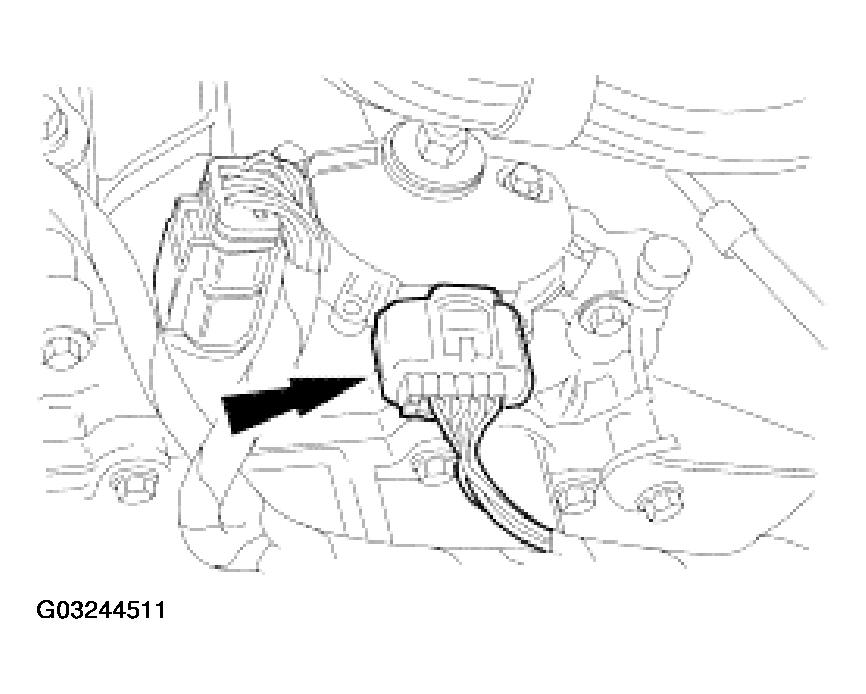

    Fig 4: Disconnecting Digital Transmission Range (TR) Sensor Electrical Connector
    G03244511Courtesy of FORD MOTOR CO.
  6. Disconnect the shift cable from the manual control lever.
    Fig 5: Disconnecting Shift Cable From Manual Control Lever
    G03244512Courtesy of FORD MOTOR CO.
  7. Remove the manual control lever.

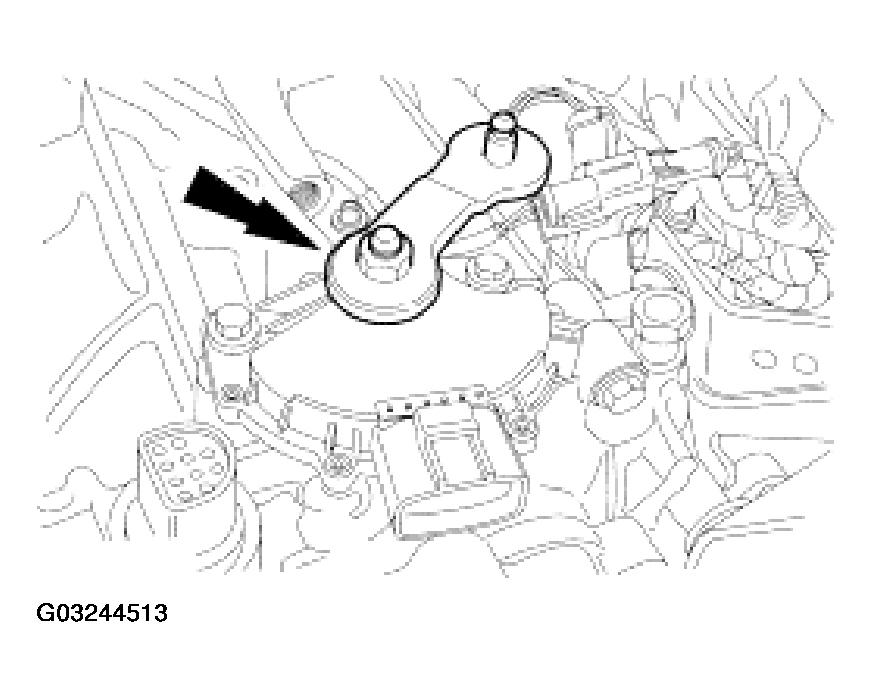

    Fig 6: Removing Manual Control Lever
    G03244513Courtesy of FORD MOTOR CO.
  8. Loosen but do not remove the digital TR sensor bolts.

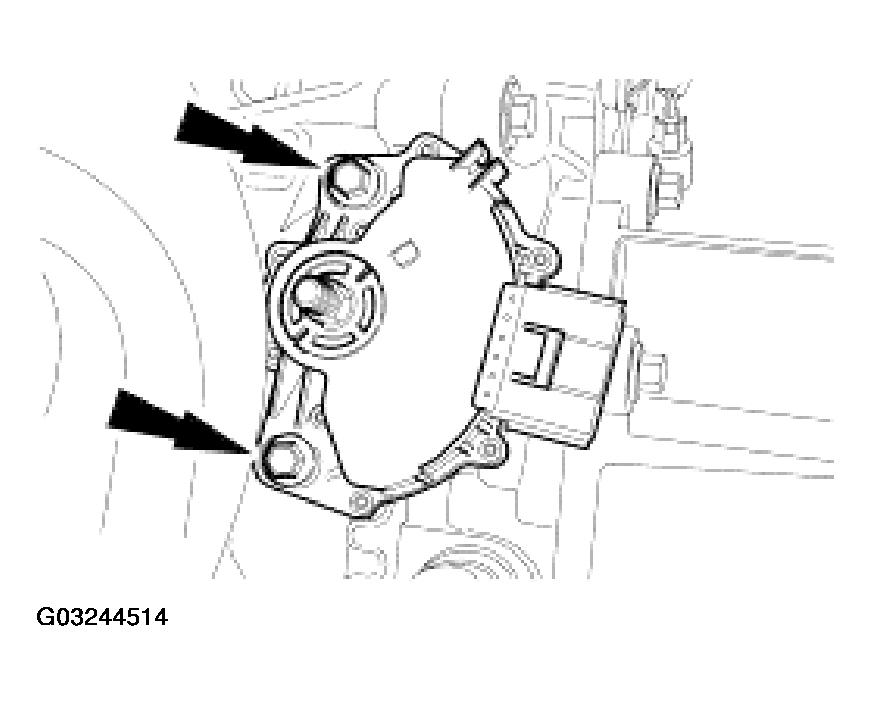

    Fig 7: Loosening Digital TR Sensor Bolts
    G03244514Courtesy of FORD MOTOR CO.
  9. Using the special tool, align the digital TR sensor and tighten the bolts.

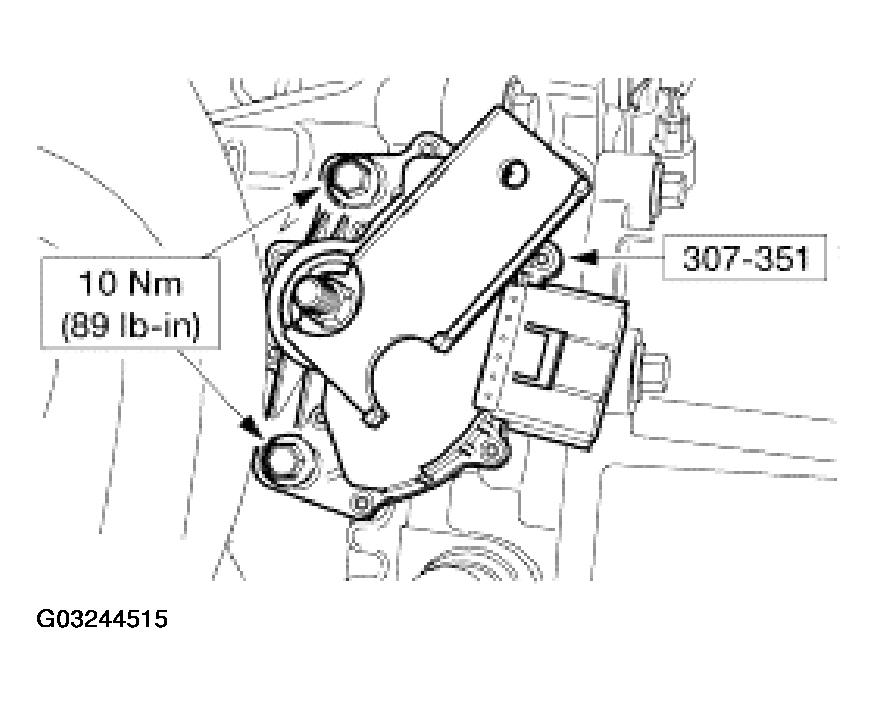

    Fig 8: Aligning/Tightening TR Sensor Bolts
    G03244515Courtesy of FORD MOTOR CO.
  10. Install the manual control lever and nut.

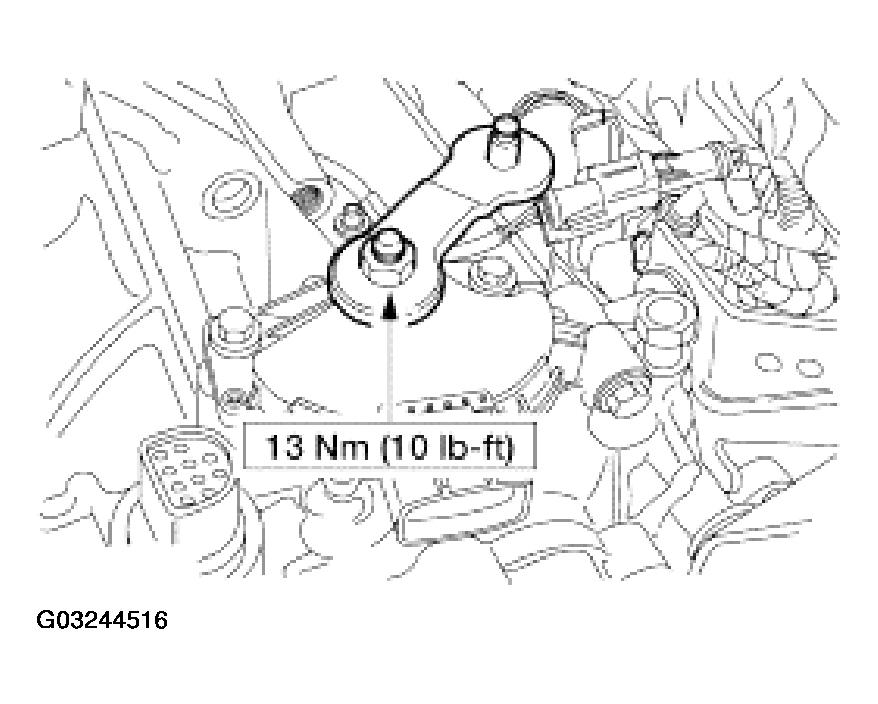

    Fig 9: Installing Control Lever
    G03244516Courtesy of FORD MOTOR CO.
  11. Connect the shift cable back onto the manual control lever.

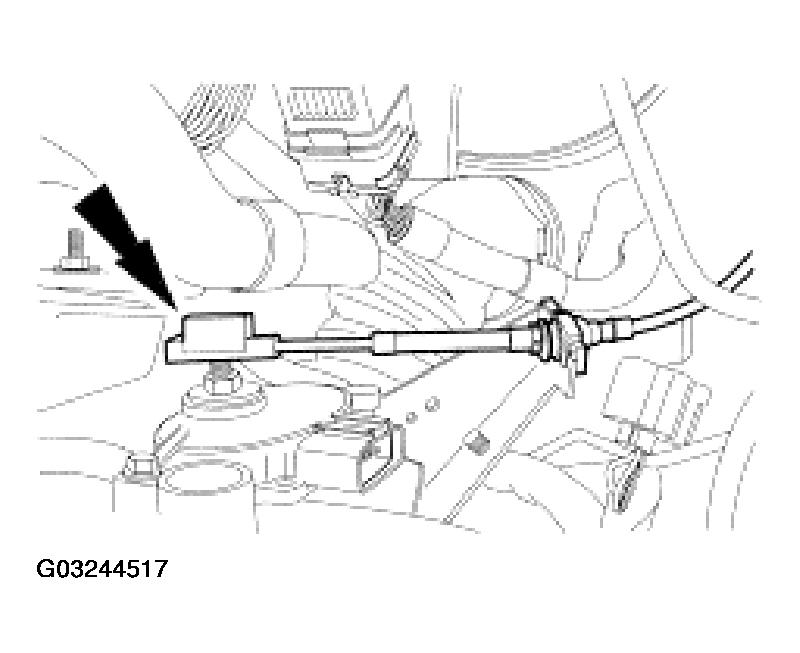

    Fig 10: Connecting Shift Cable Onto Manual Control Lever
    G03244517Courtesy of FORD MOTOR CO.
  12. Verify that the selector lever cable is correctly adjusted. For additional information, refer to SELECTOR LEVER CABLE ADJUSTMENT .
  13. Connect the digital TR range sensor electrical connector.

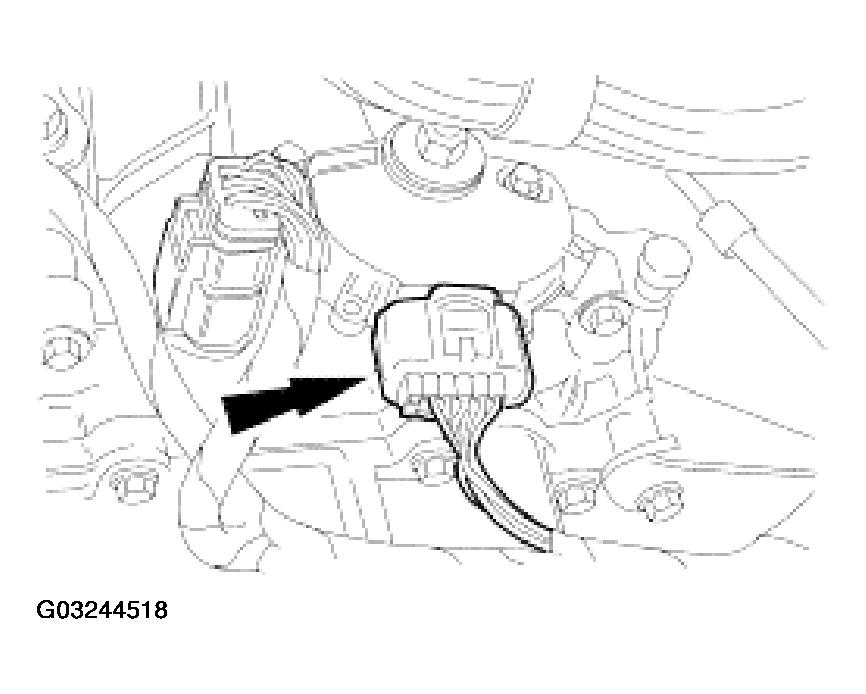

    Fig 11: Connecting Digital TR Range Sensor Electrical Connector
    G03244518Courtesy of FORD MOTOR CO.
  14. Install the air cleaner assembly. For additional information, refer to AIR CLEANER ASSEMBLY .
    Fig 12: Installing Air Cleaner Assembly
    G03244519Courtesy of FORD MOTOR CO.
  15. Install the air cleaner tube and tighten the hose clamps.

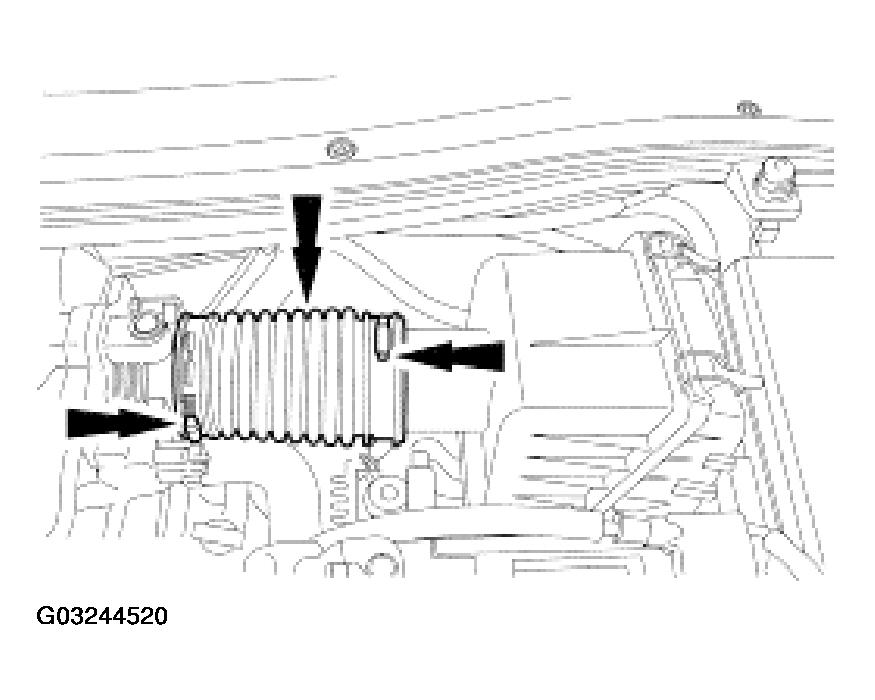

    Fig 13: Installing Air Cleaner Tube
    G03244520Courtesy of FORD MOTOR CO.
  16. Check for correct vehicle operation. Verify that the vehicle starts in the PARK and NEUTRAL positions and the reverse lamps illuminate in REVERSE.
