Exhaust Manifold - RH: Notes

  1. With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the dual converter Y-pipe. For additional information, refer to EXHAUST SYSTEM .
  3. Remove the windshield wiper mounting arm and pivot shaft. For additional information, refer to the windshield wiper procedure in WINDSHIELD WIPER .
  4. Remove the parts in the order indicated in the following illustration.

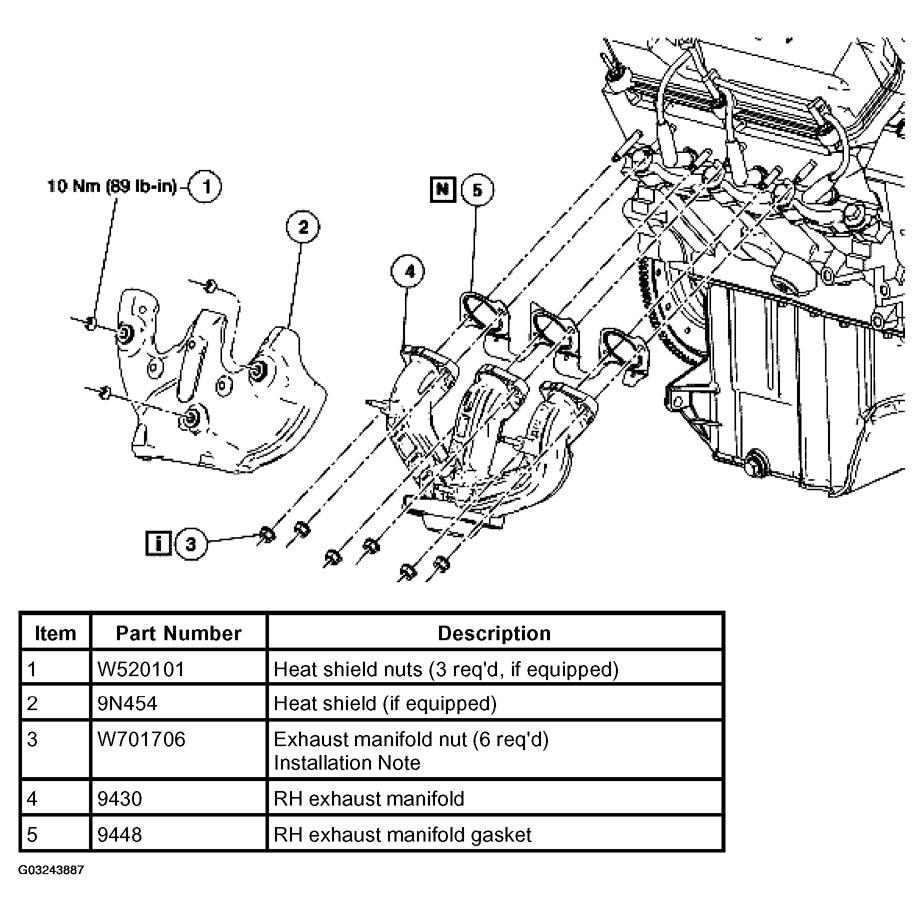

    Fig 1: Exhaust Manifold RH Parts Removal Sequence
    G03243887Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
