Coast Band Servo

NOTE: Inspect the seals on the coast servo piston, rod and the cover for damage. If the seals are damaged a new piston, rod and the coast servo cover are installed as an assembly.

Inspect the seals.

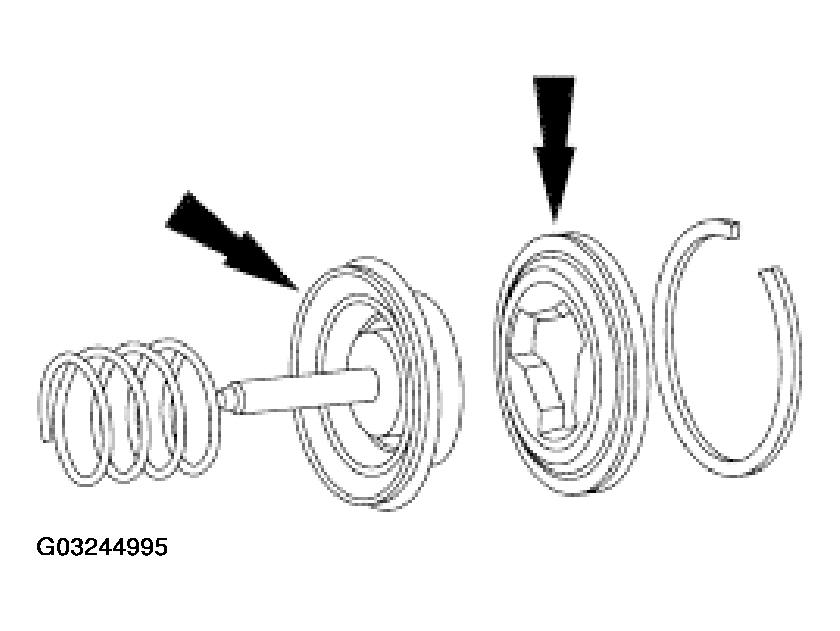

Fig 1: Inspecting Seals

Courtesy of FORD MOTOR CO.
