Exhaust Manifold - LH: Notes

  1. With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the dual converter Y-pipe. For additional information, refer to EXHAUST SYSTEM .
  3. Remove the parts in the order indicated in the following illustration.

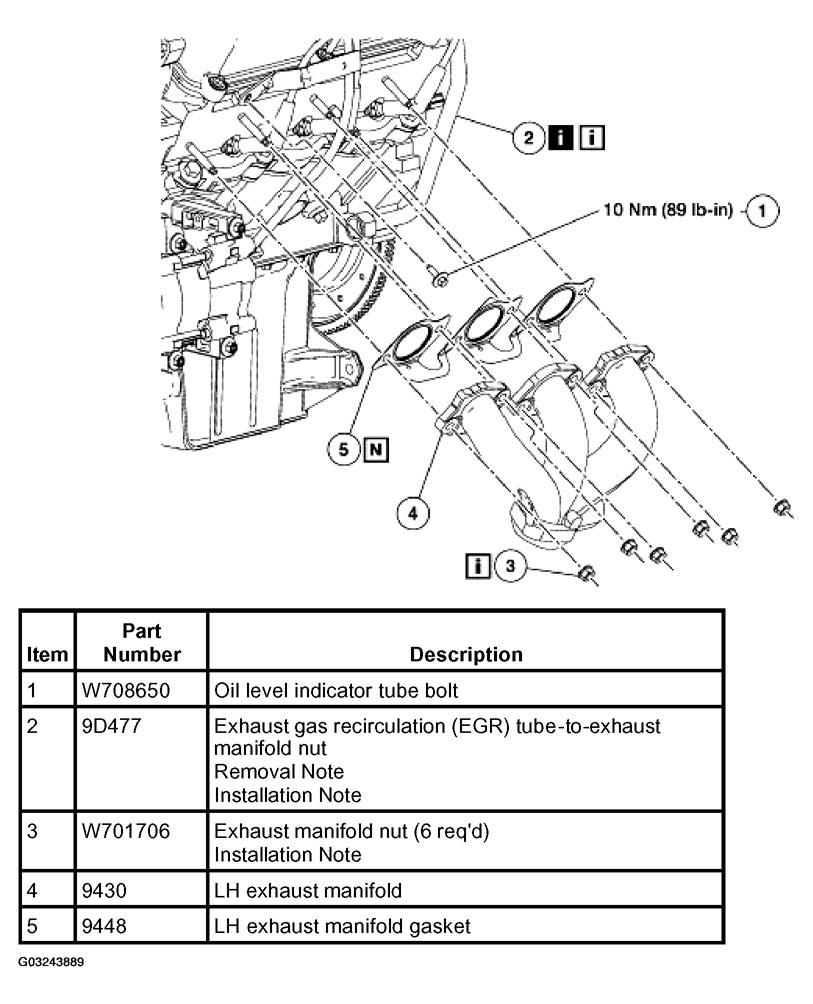

    Fig 1: Exhaust Manifold LH Parts Removal Sequence
    G03243889Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
