Driven Sprocket Support: Assembly

    CAUTION: The seal rings must be installed correctly. Transmission failure could result.

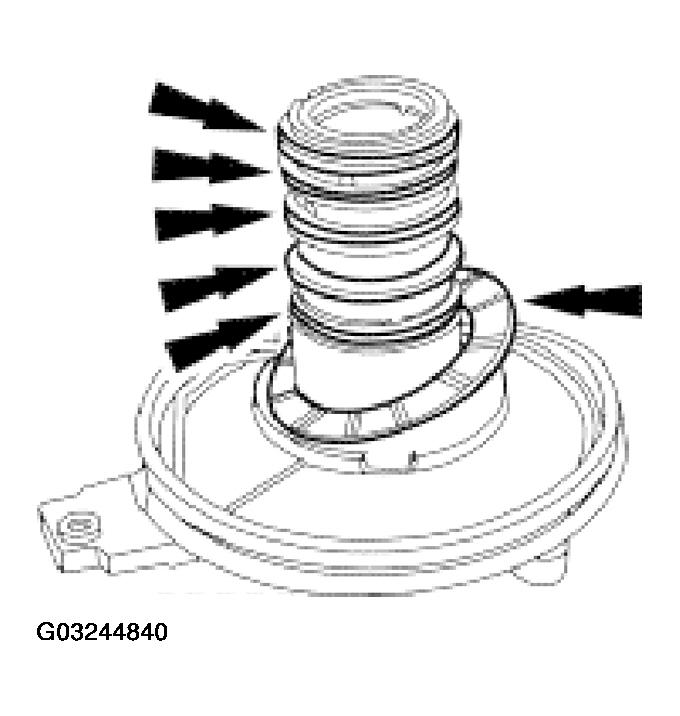

    Fig 1: Installing New Teflon® Seals And No. 5 Thrust Washer
    G03244840Courtesy of FORD MOTOR CO.
  1. Install new Teflon® seals and the No. 5 thrust washer.
  2. Make sure that the seals are mated correctly during installation.

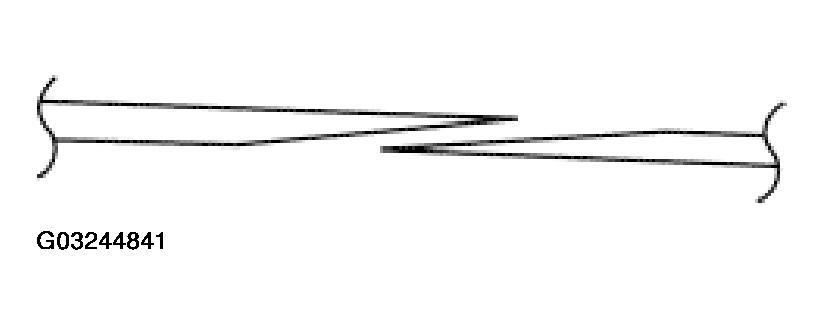

    Fig 2: Verifying That Seals Are Mated Correctly During Installation
    G03244841Courtesy of FORD MOTOR CO.
