Main Components and Functions

Main Components and Functions

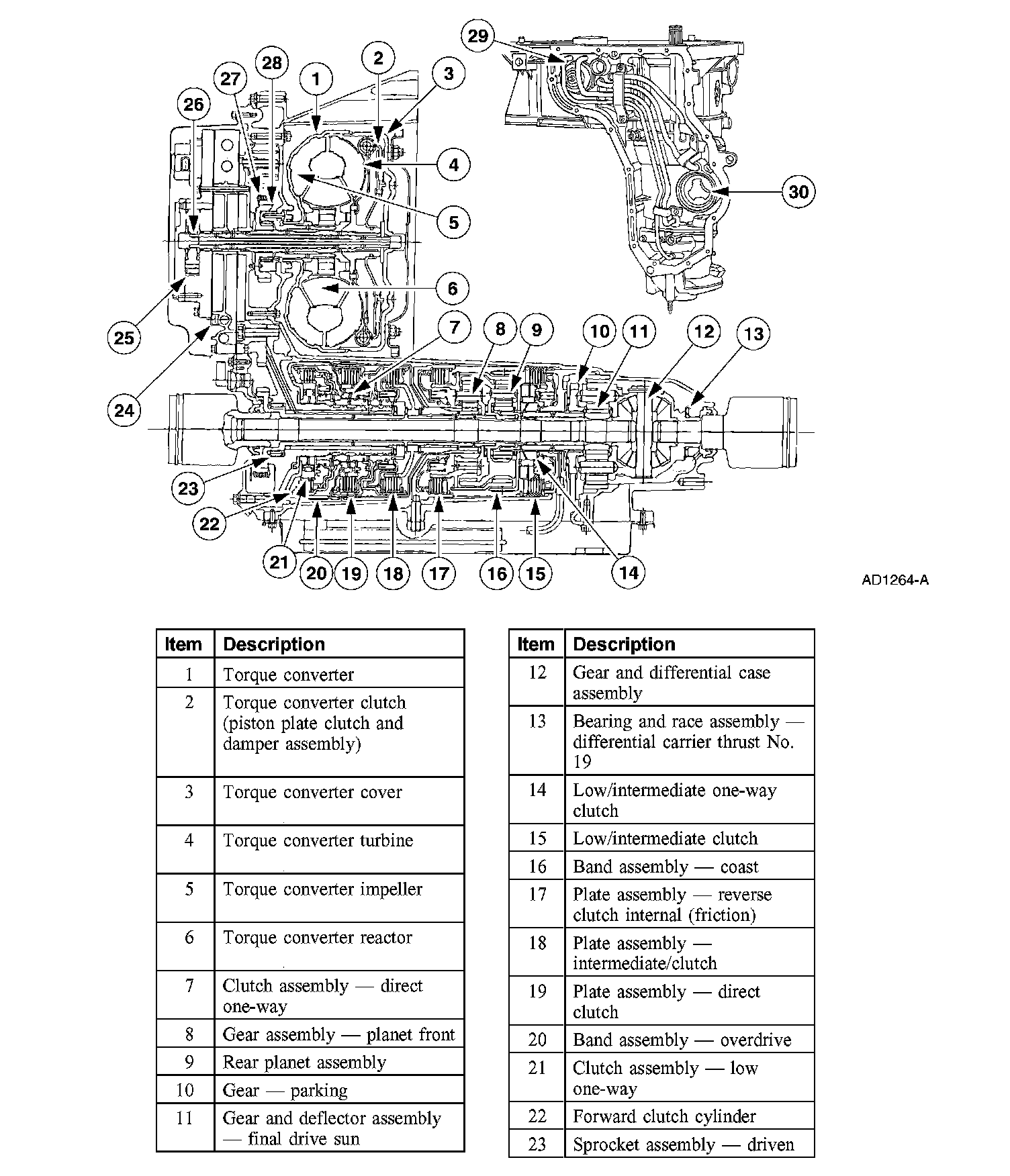

Part 1 Of 2:

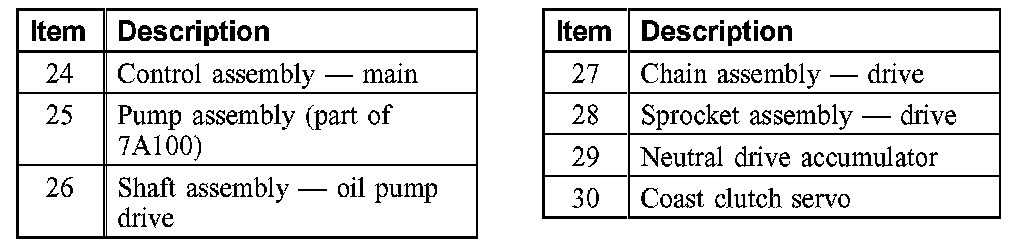

Part 2 Of 2:





Torque Converter

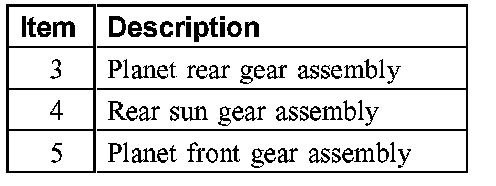

Planetary Gearset

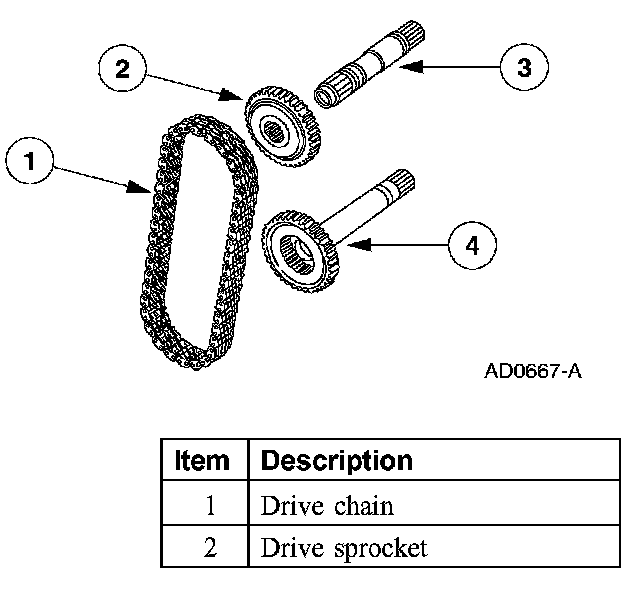

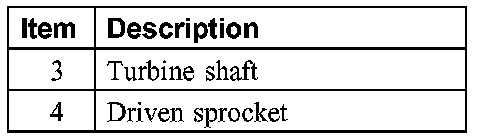

Drive Chain and Sprockets

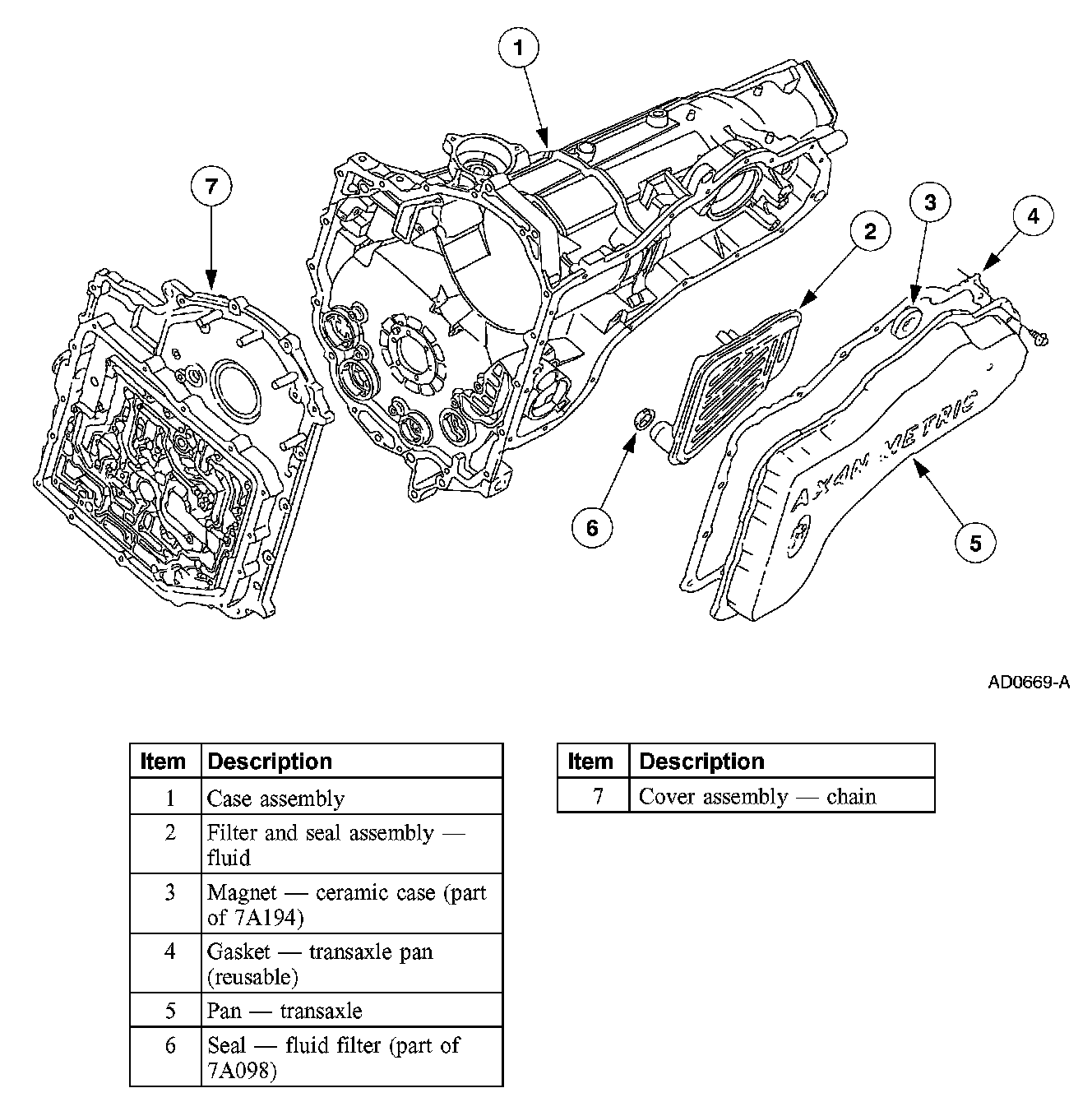

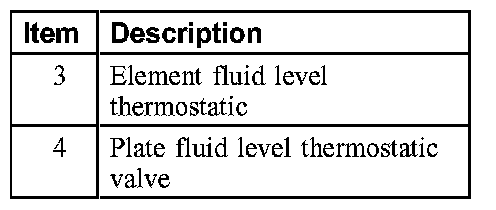

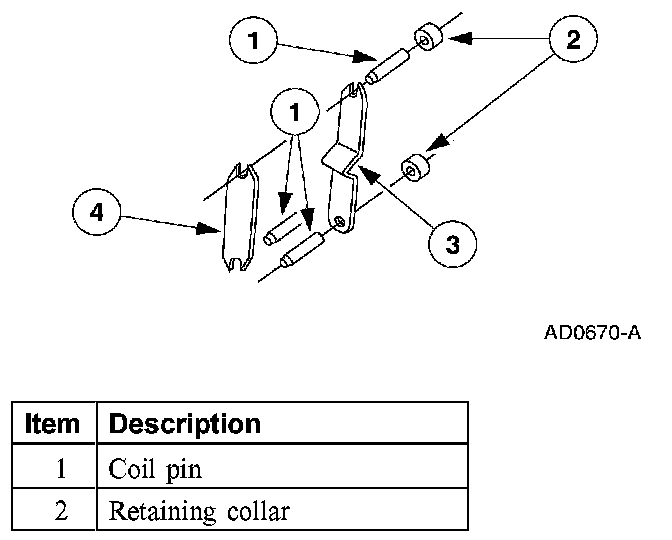

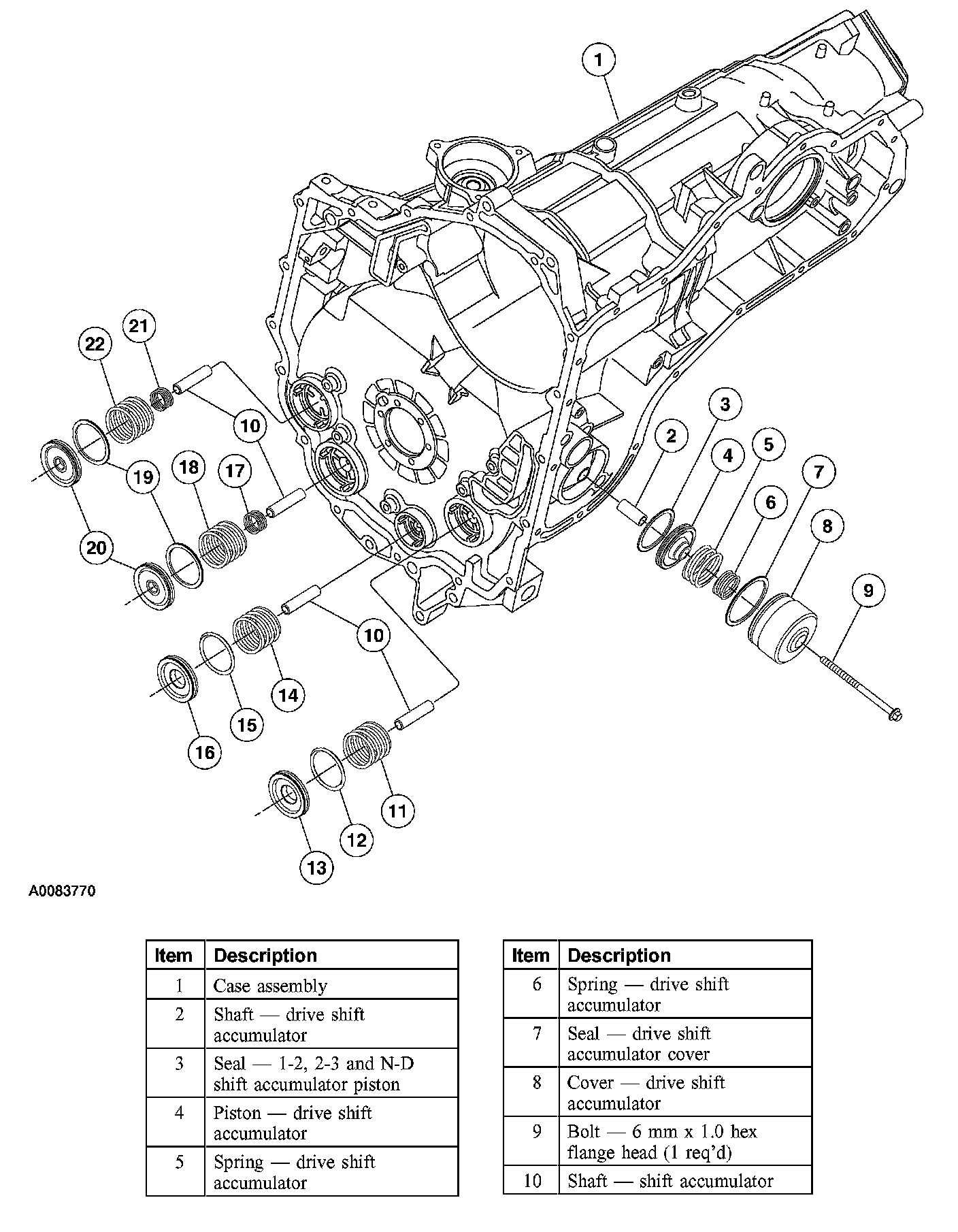

Fluid Sump and Case Components

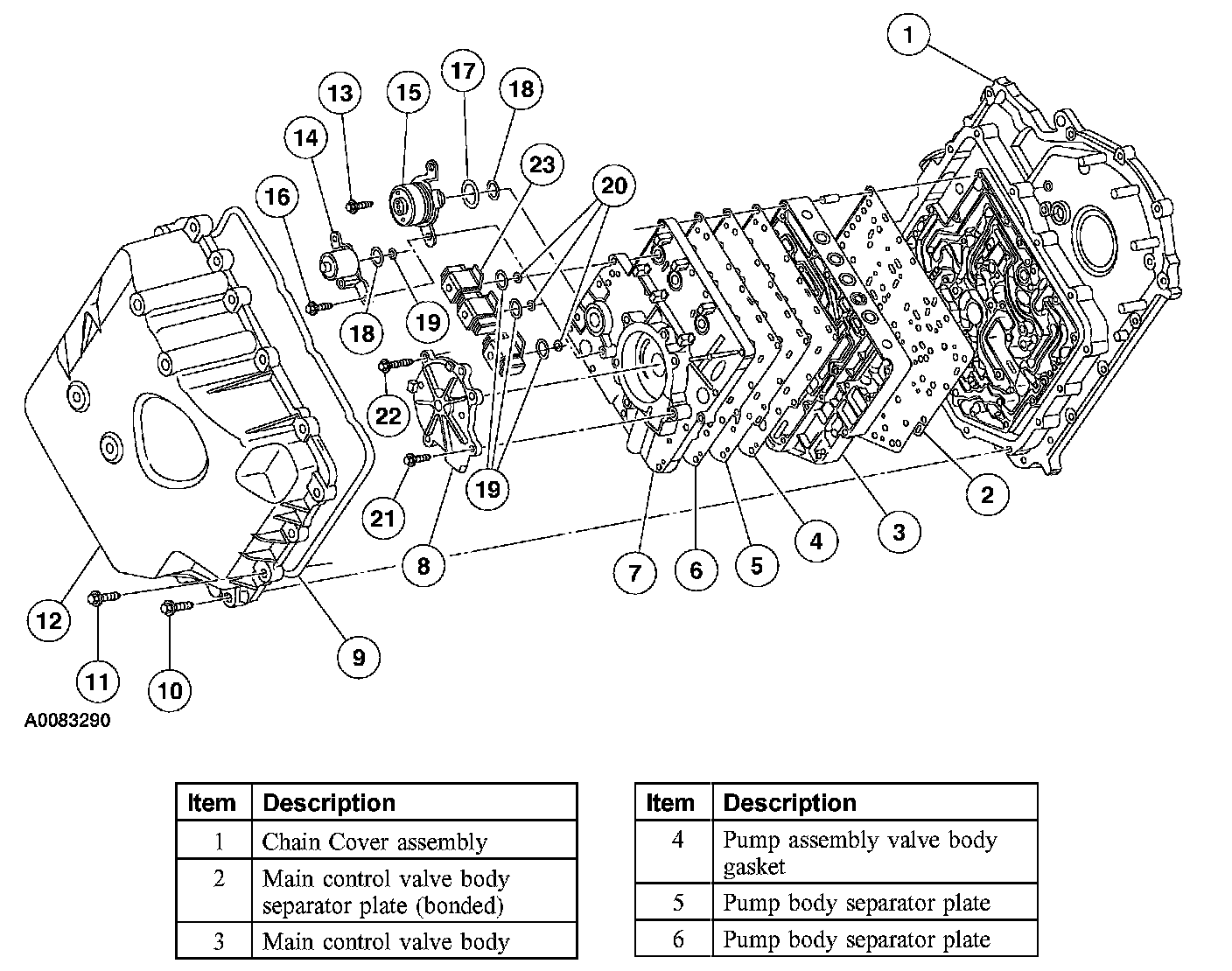

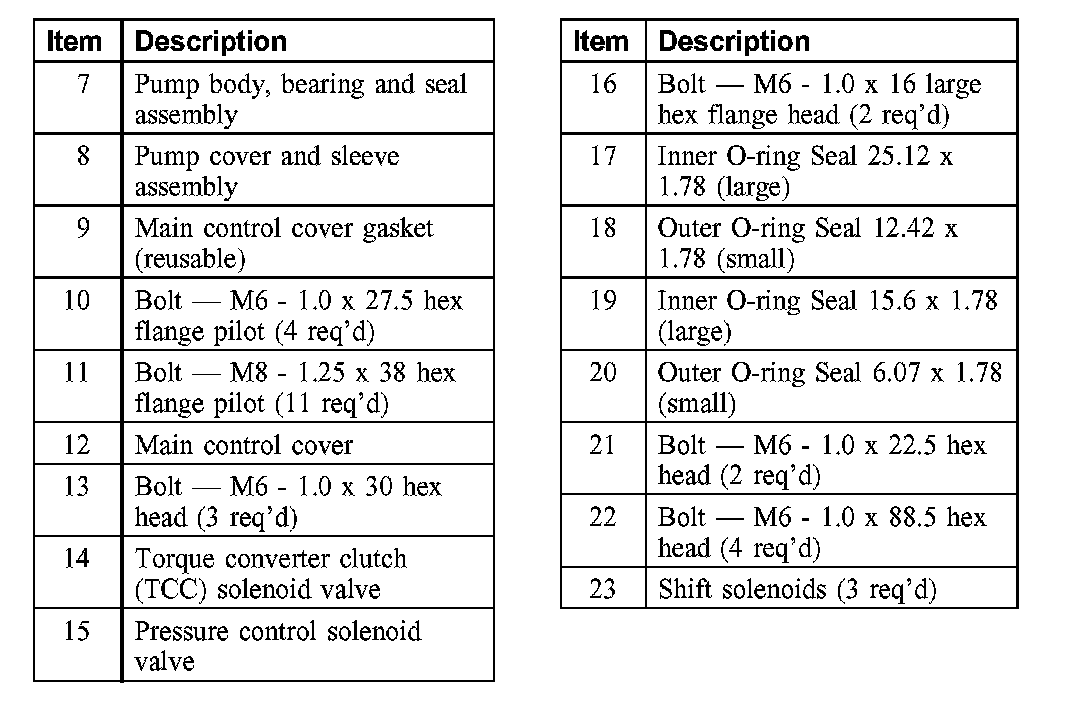

Main Control








Main Control Components

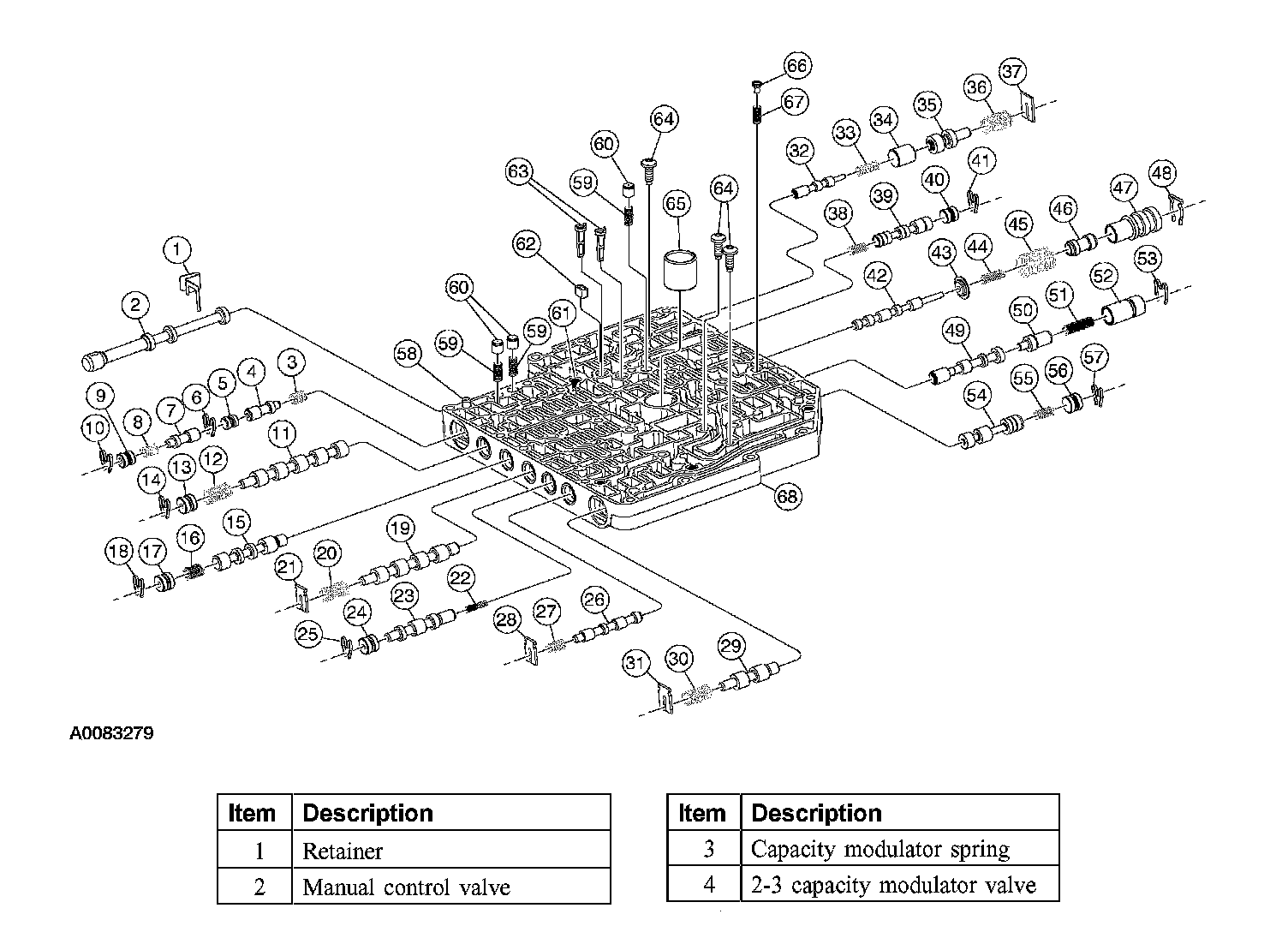

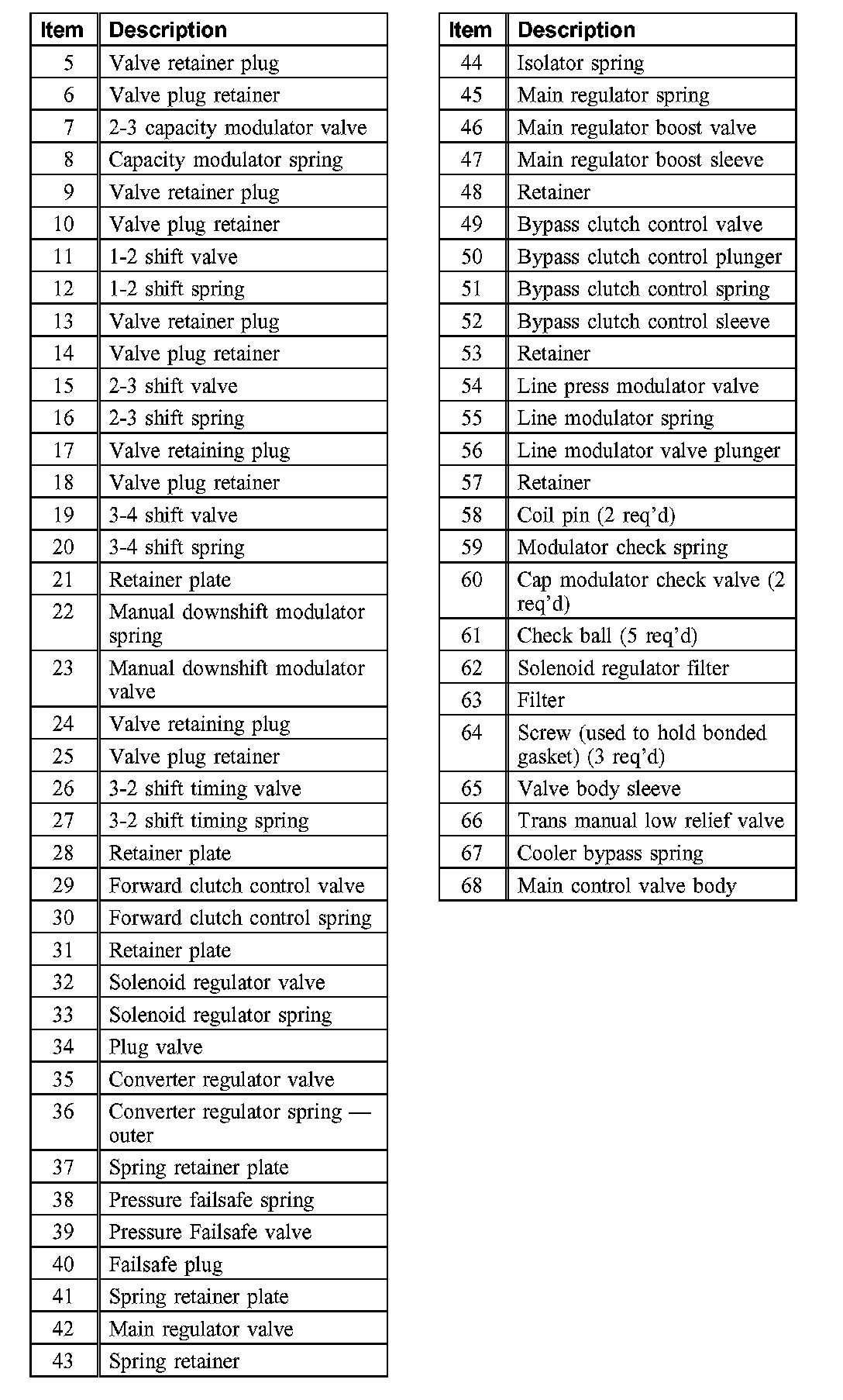

Main Control Valves

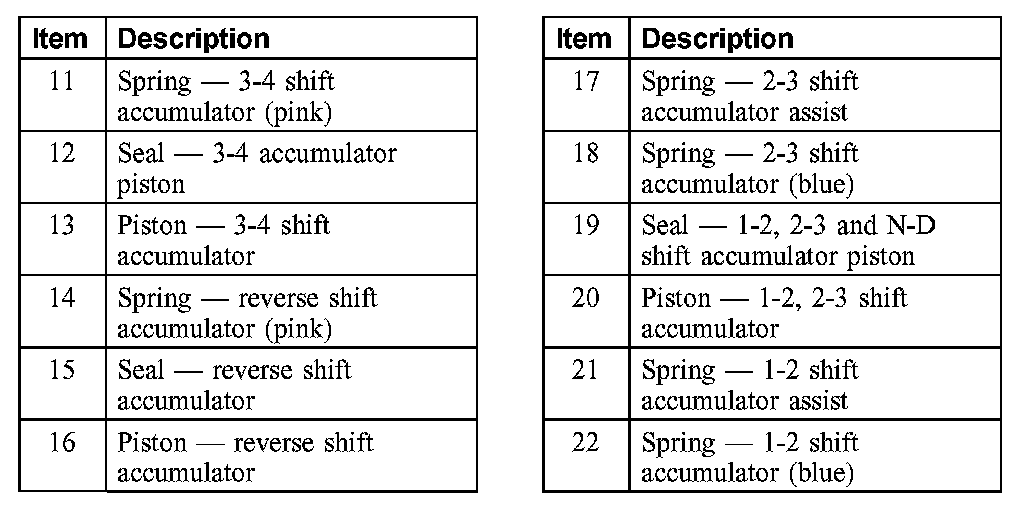

Accumulators
