Engine-Lower Components

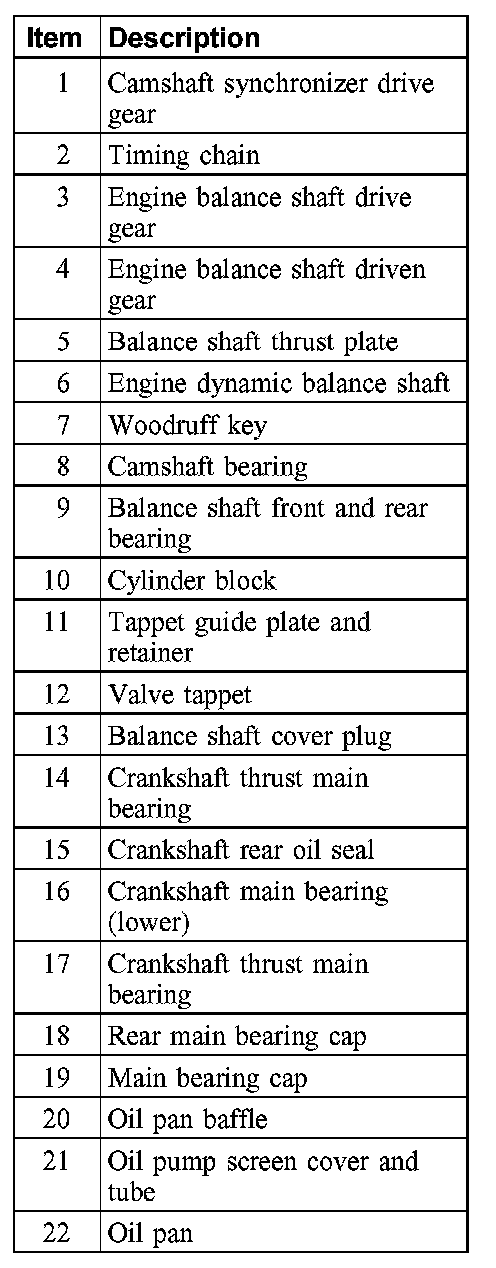

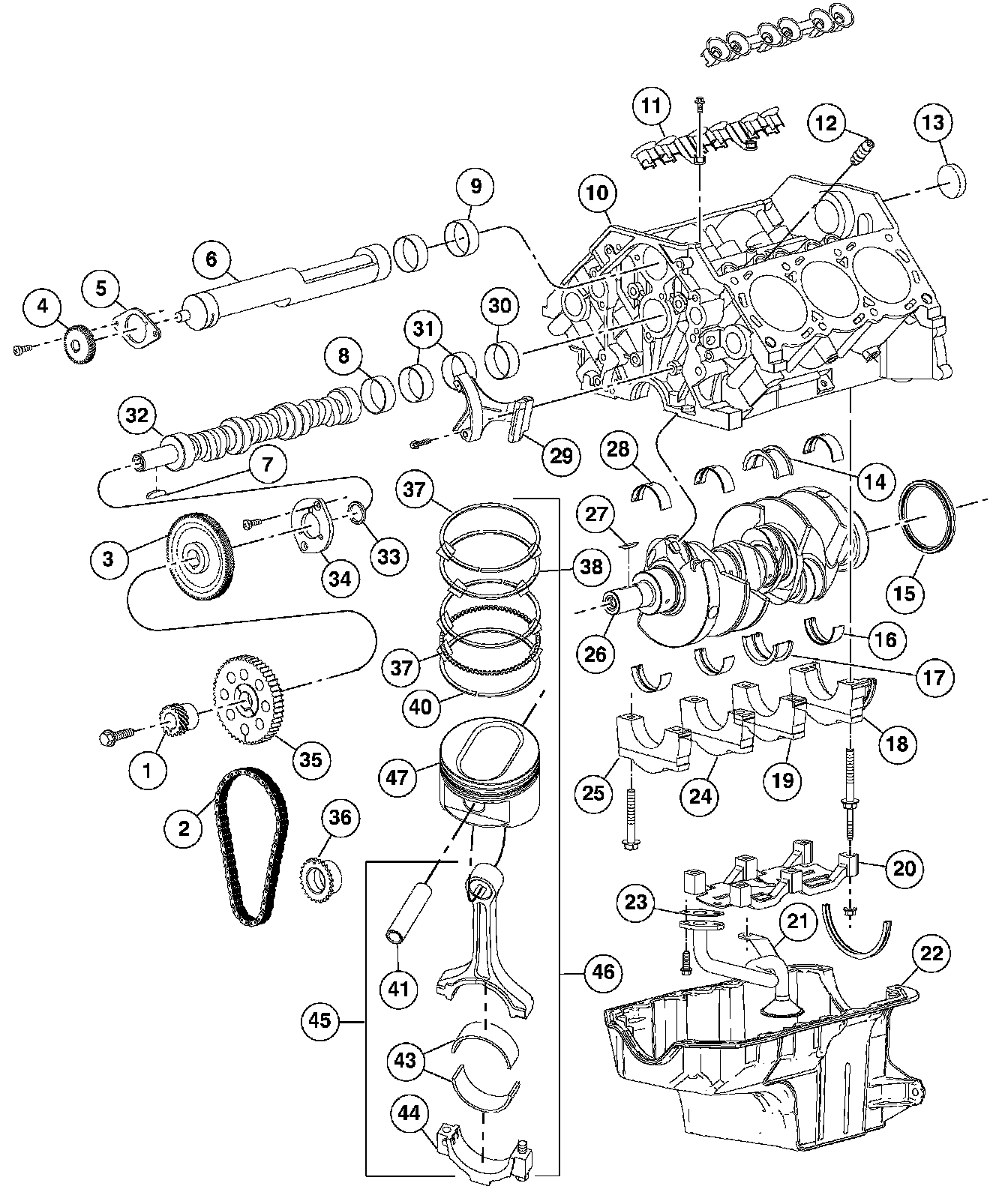

Engine-Lower Components Part 1 Of 3:

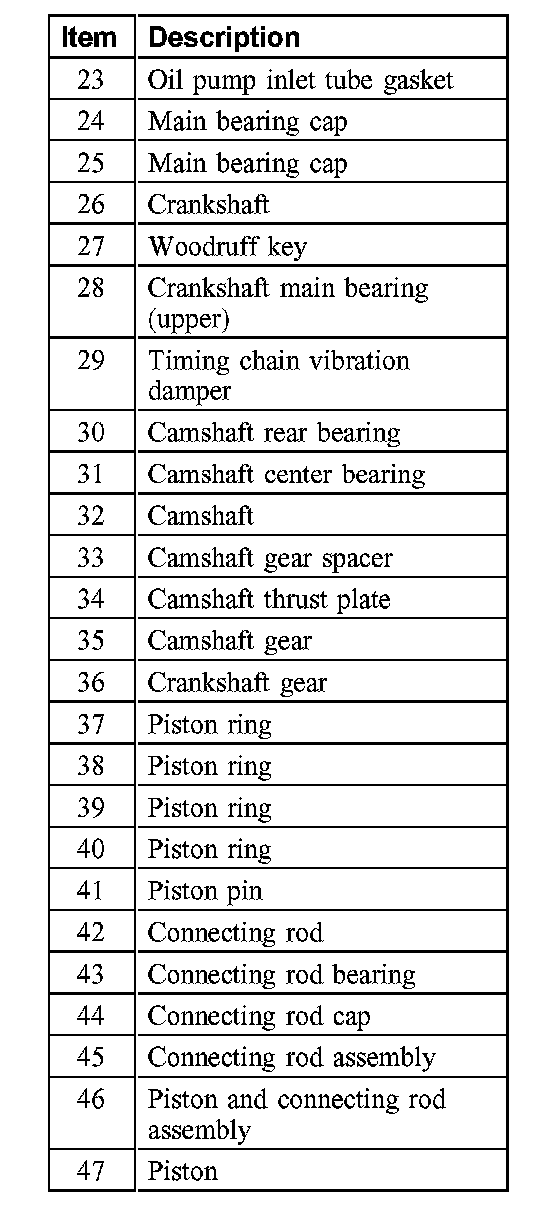

Engine-Lower Components Part 2 Of 3:



Engine-Lower Components Part 3 Of 3:
