Engine-Upper Components

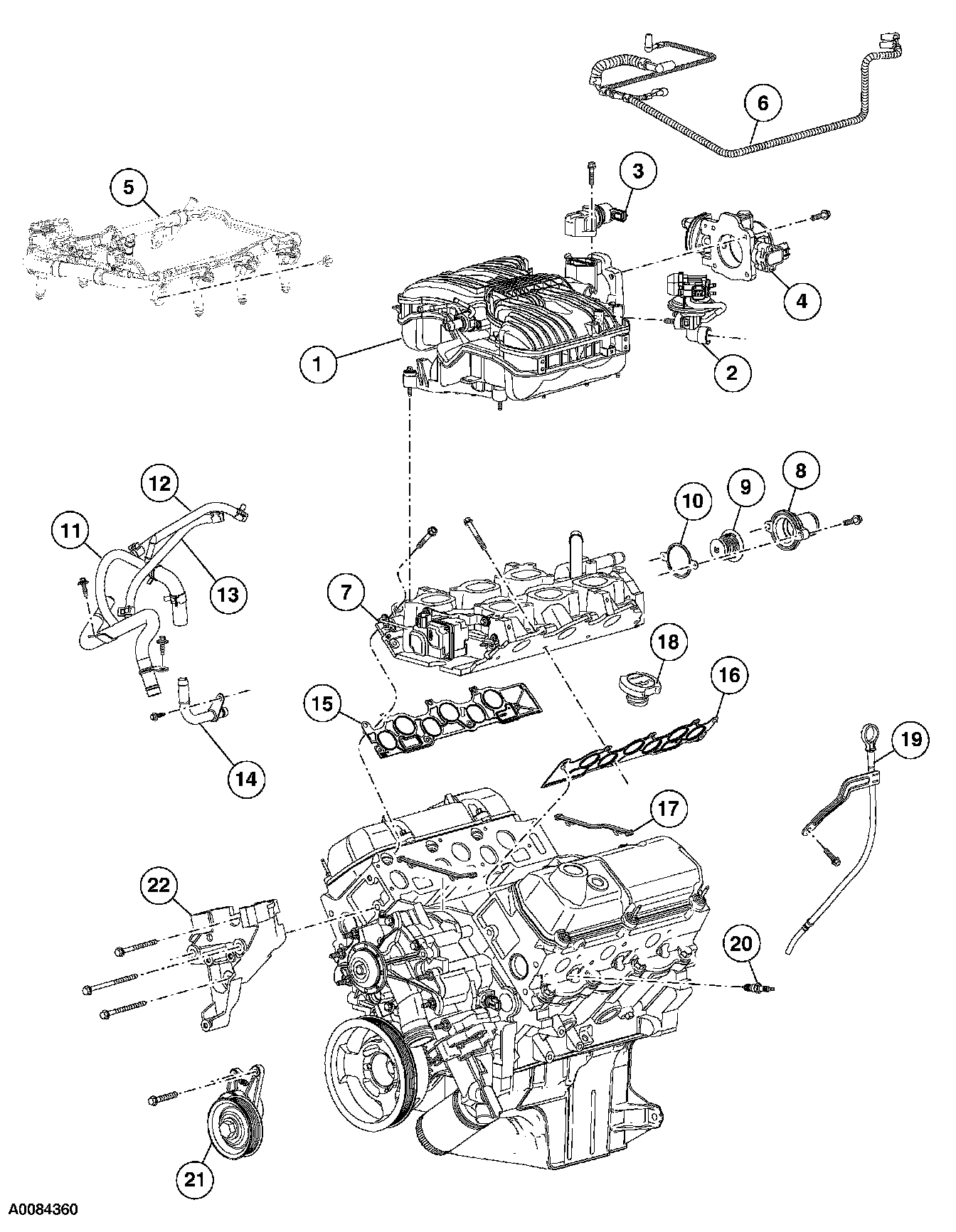

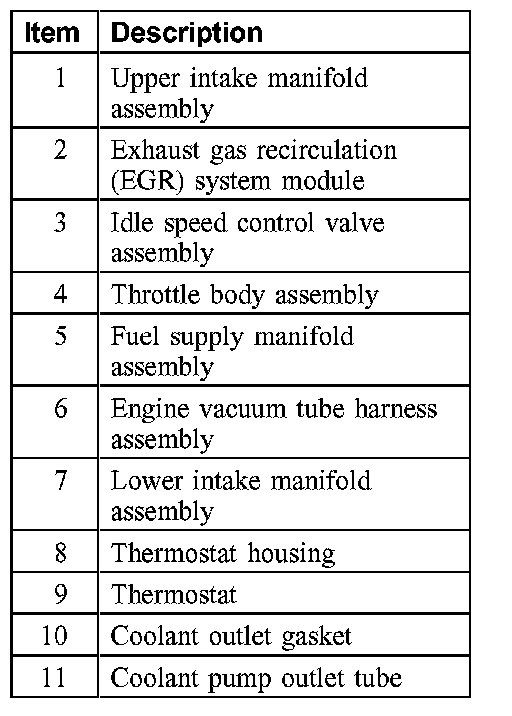

Engine-Upper Components Part 1 Of 3:

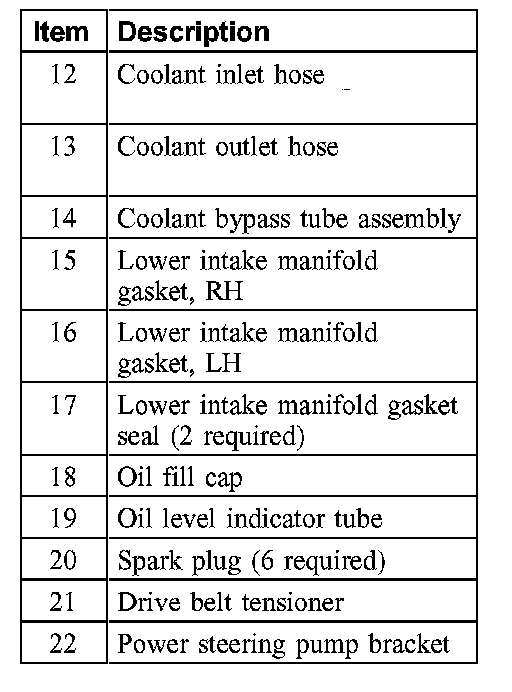

Engine-Upper Components Part 2 Of 2:



Engine-Upper Components Part 3 Of 3:
